USB Hug
*USB Hub. 1 USB port ❌ -> 4 USB ports✅ This is a simple USB hub made using CoreChips SL2.1A, which adds 4 USB ports to one USB port.
Created by
Jaydev 🚀
Tier 4
9 views
1 follower
Timeline
Jaydev 🚀
added to the journal ago
Update README

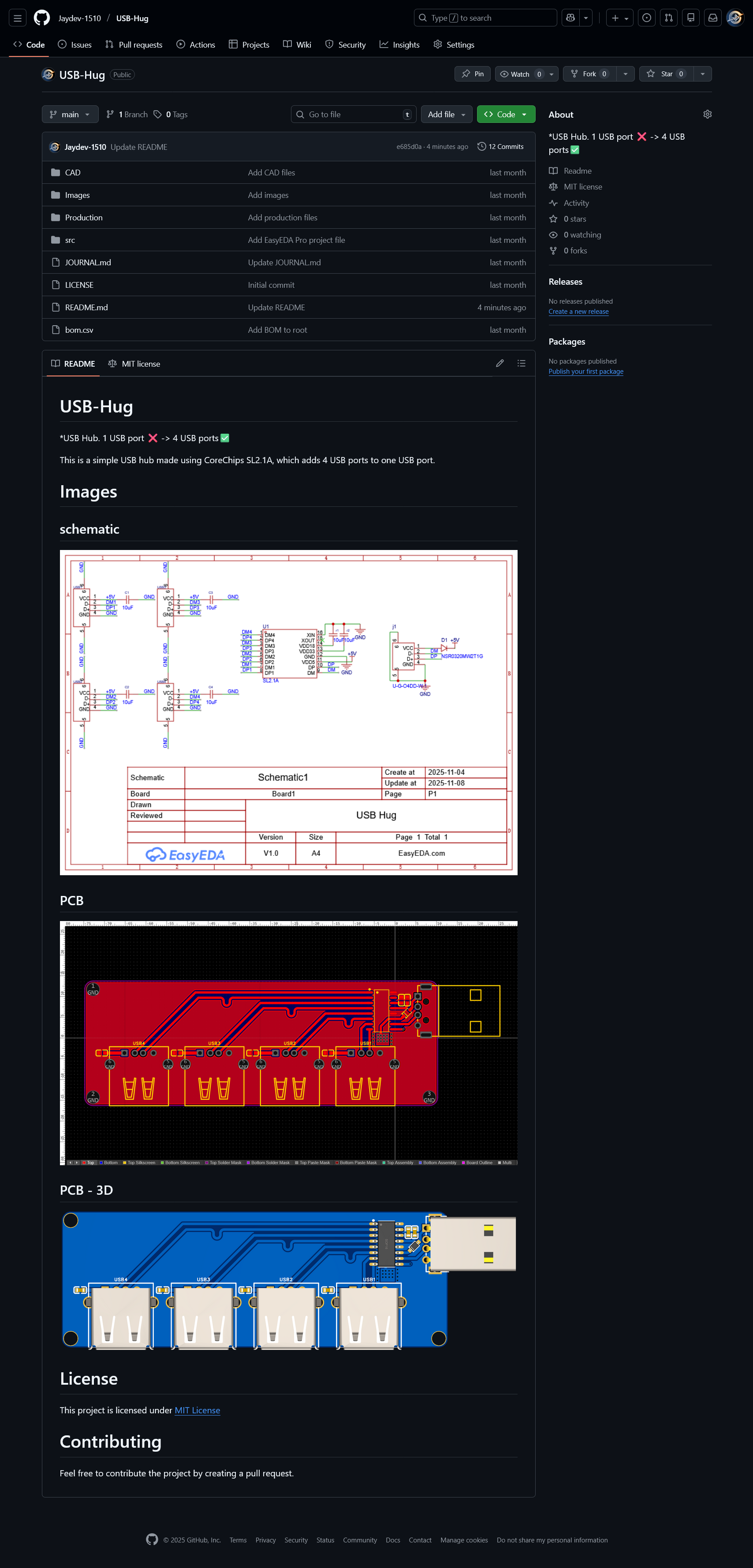

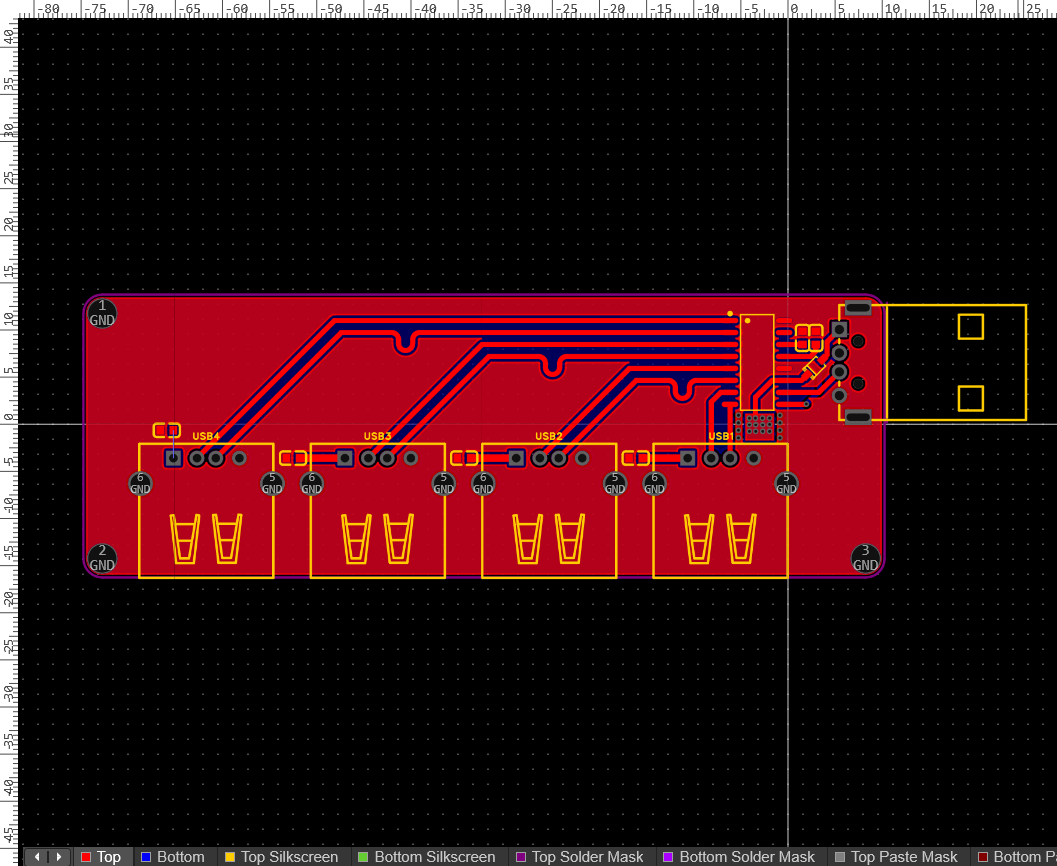

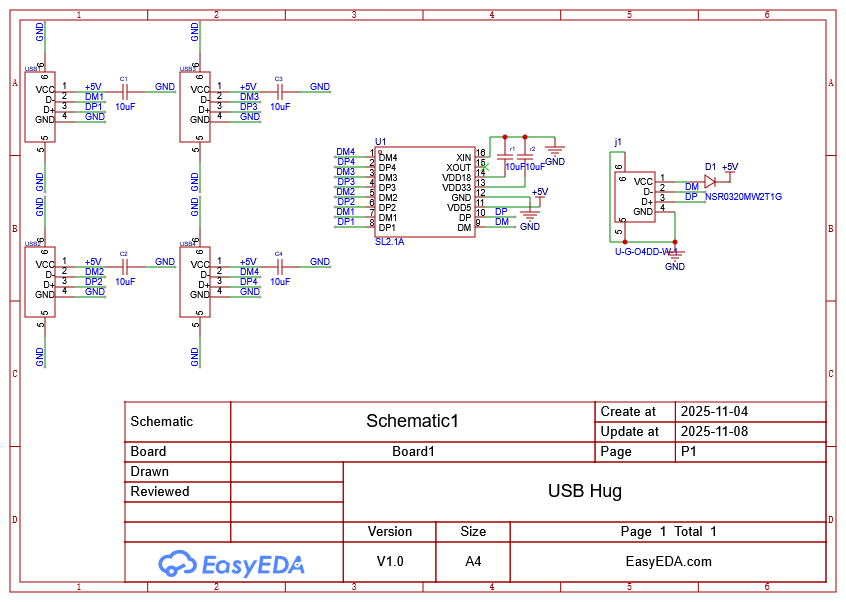

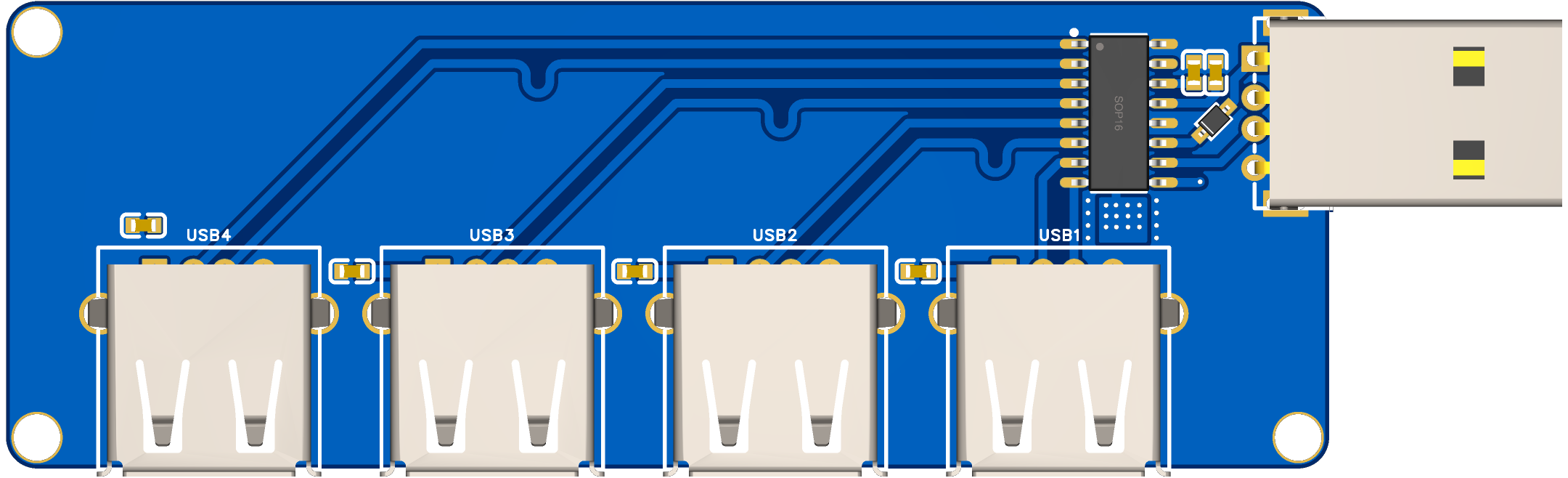

This is a blueprint comeback!!! I am back. I have updated the README by adding the images of schematic, PCB, and the 3D image of the PCB. I also added the License and Contributing section to the README.
CAN ⚡🚀
requested changes for USB Hug ago
You need a photo in your readme
Tier: 4
Jaydev 🚀
submitted USB Hug for review ago
Jaydev 🚀
added to the journal ago
Update Github

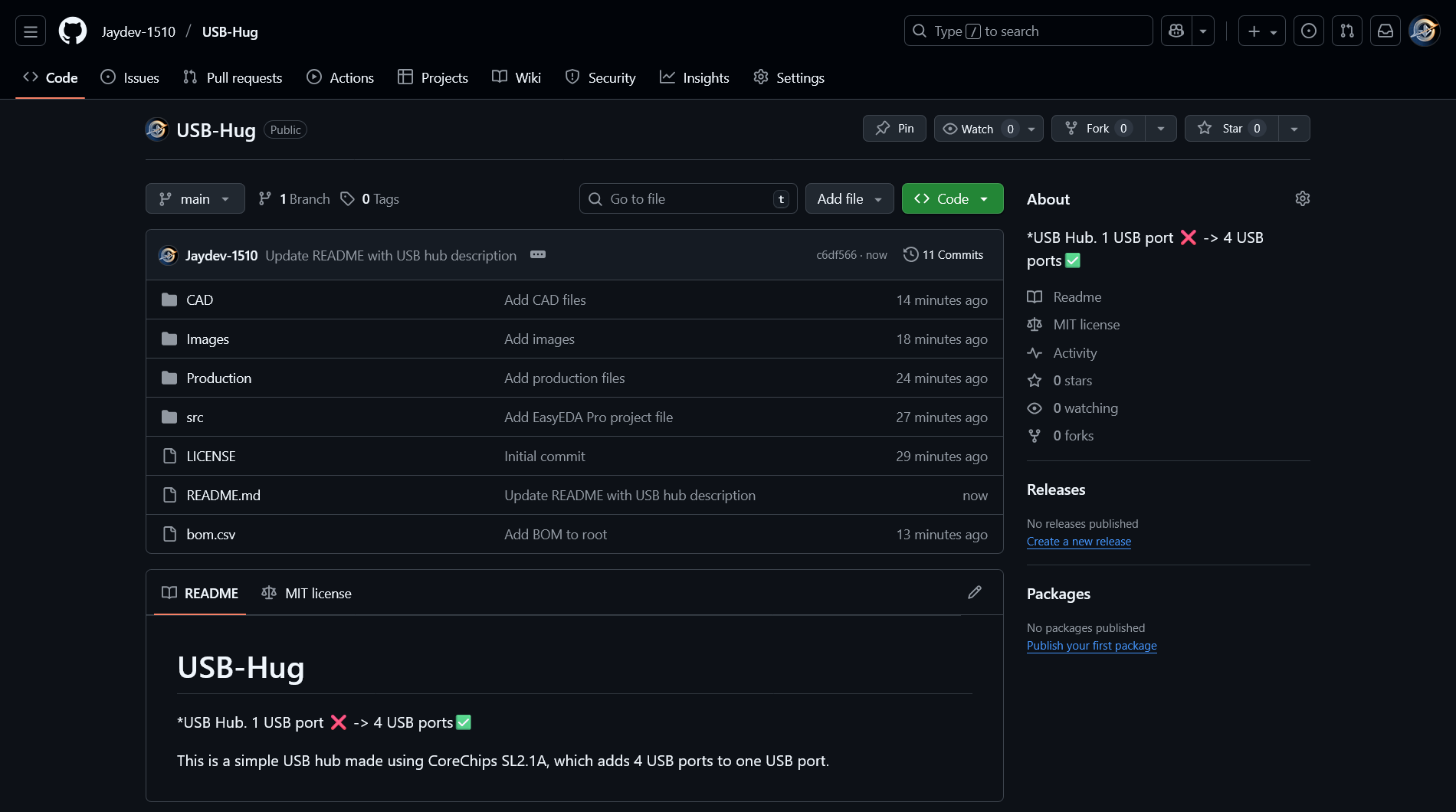

Added all the images of the project, production files, CAD models and the source file for the EasyEDA project file. Added a little README. Now, I'll ship the project.
Jaydev 🚀
added to the journal ago
Made the CAD model

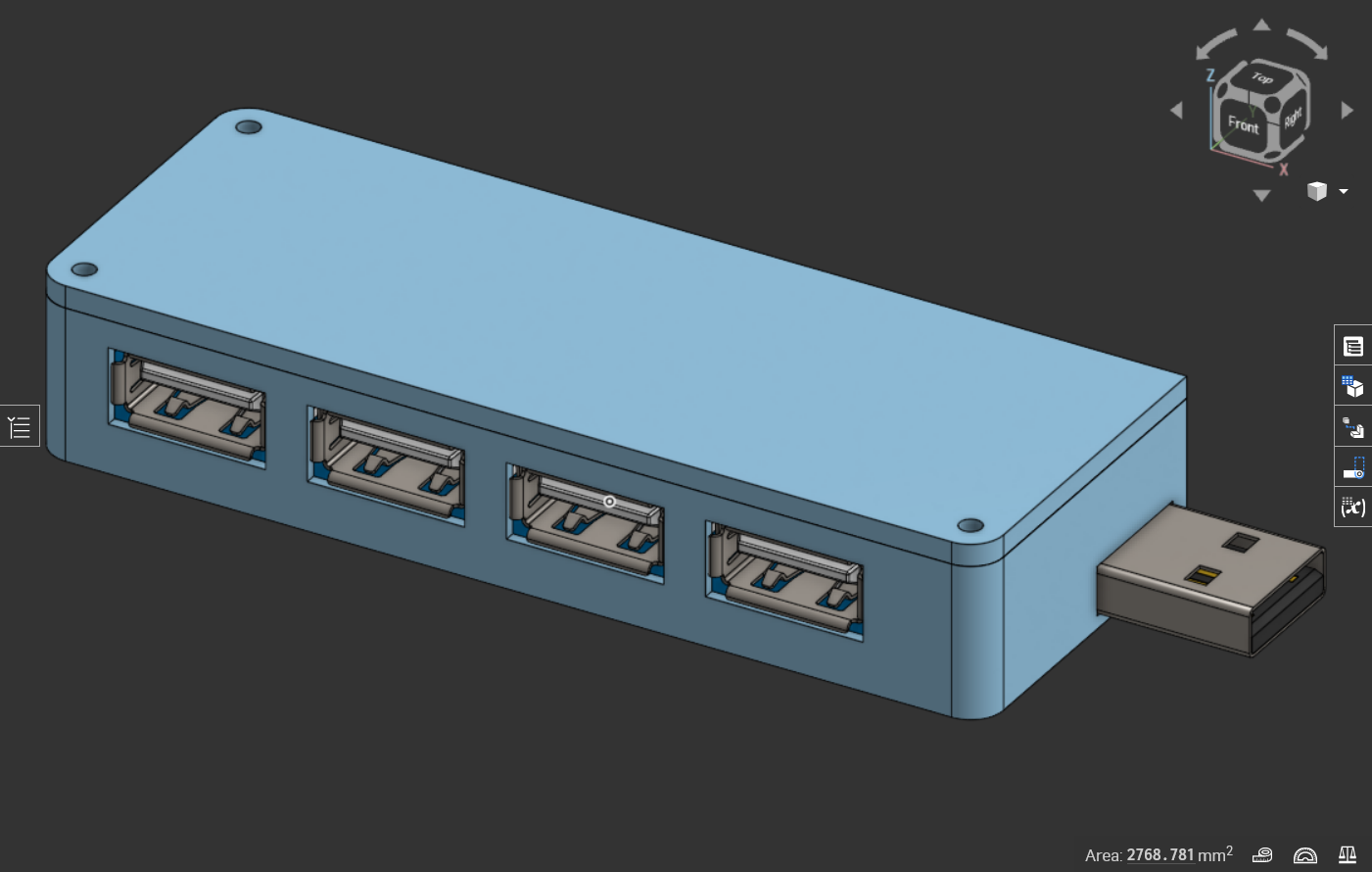

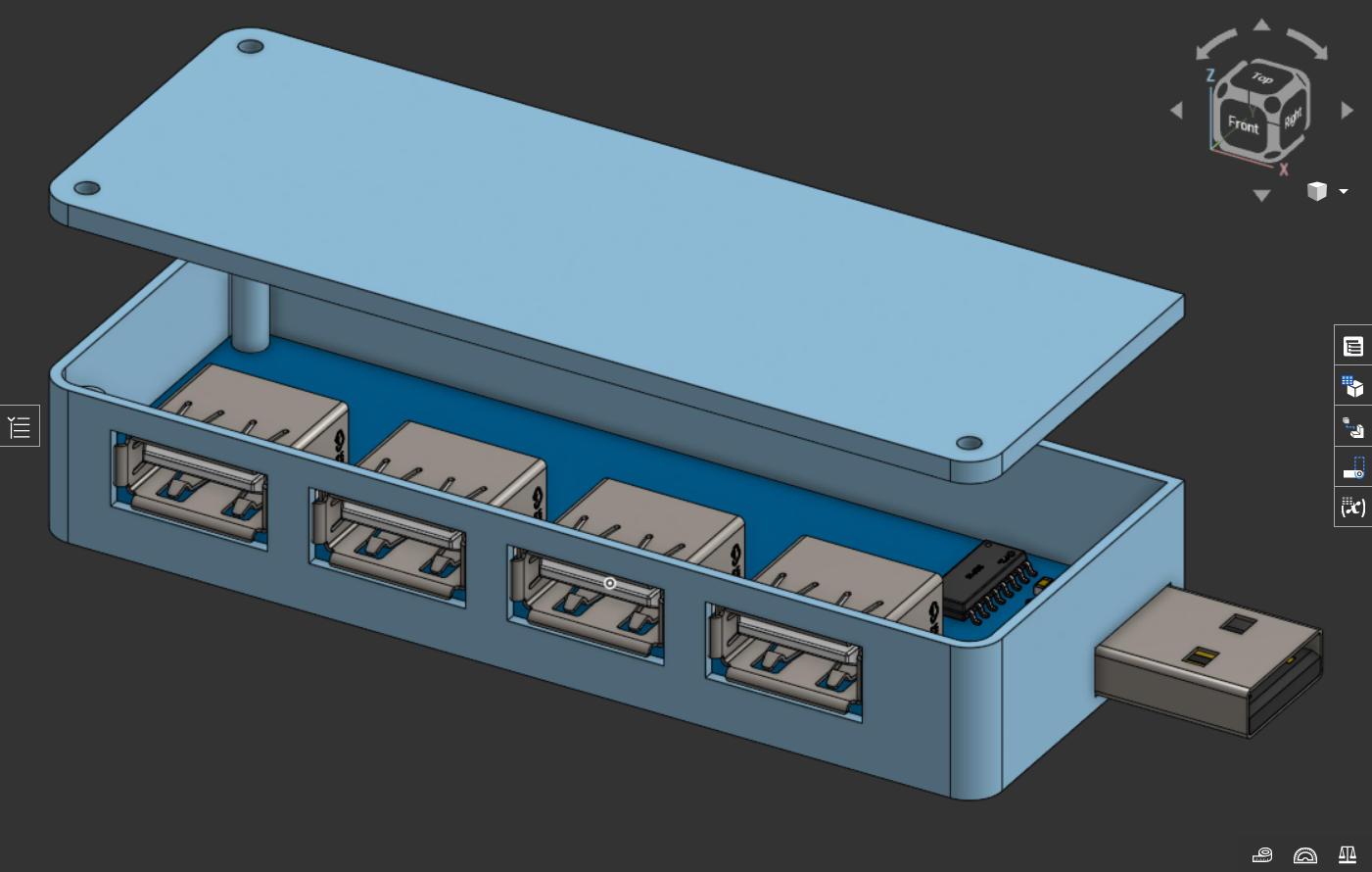

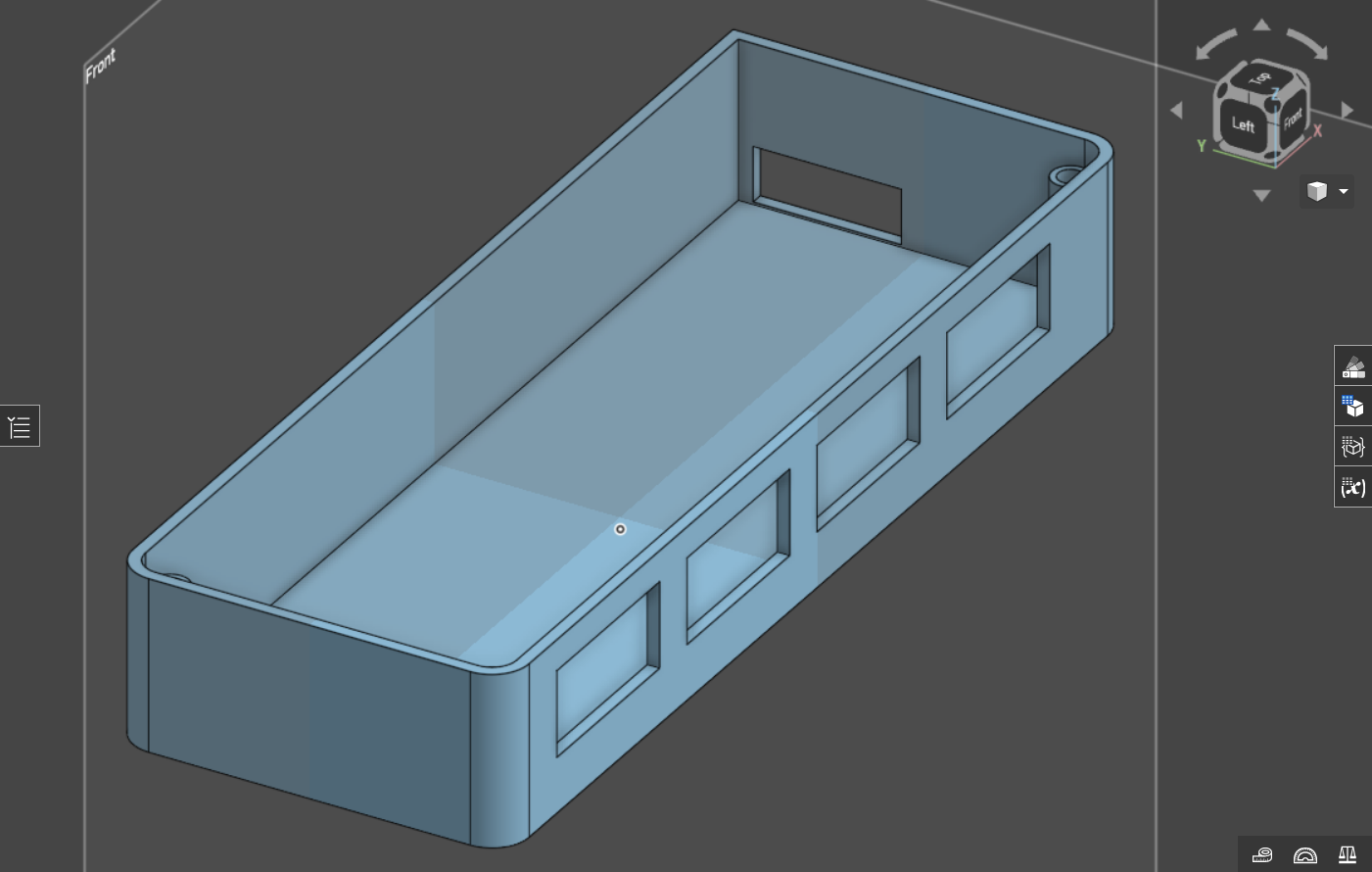

I started with the CAD for the first time. I have made a simple case for the USB hub PCB. Here are the images of the work done. I'll also add the models to my github.
Jaydev 🚀
added to the journal ago
Speedran PCB
I followed the guide and completed the PCB quickly. Added a few things from my side. I would also start designing the case for this PCB in CAD for this project. See the progress below
Jaydev 🚀
started USB Hug ago
