made the pcb :wooo:

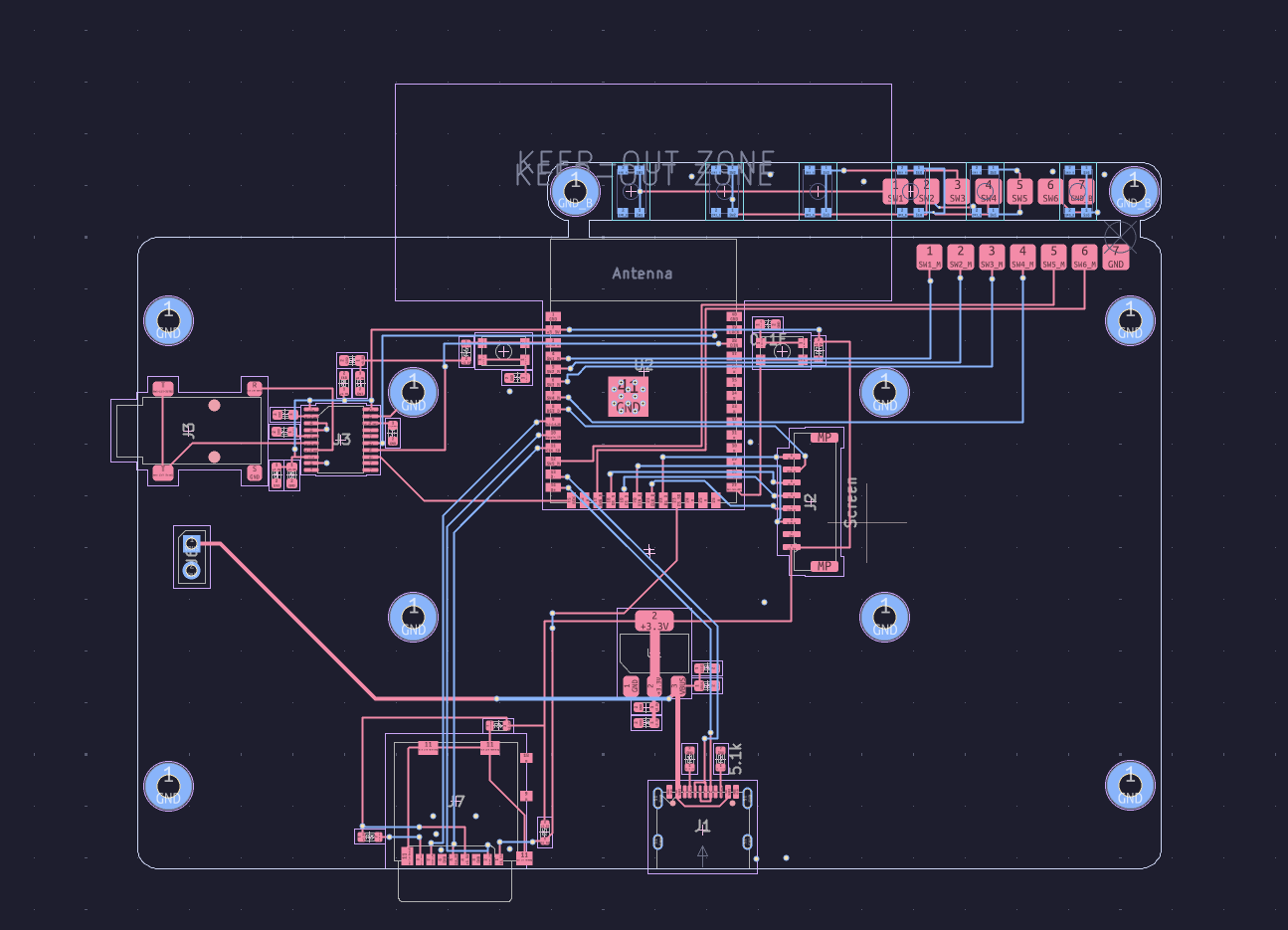

So I made the full pcb i should have done more journaling but so i made the layout once first then i wired everything then i decided against that layout and made a fully new one so it stayed like this

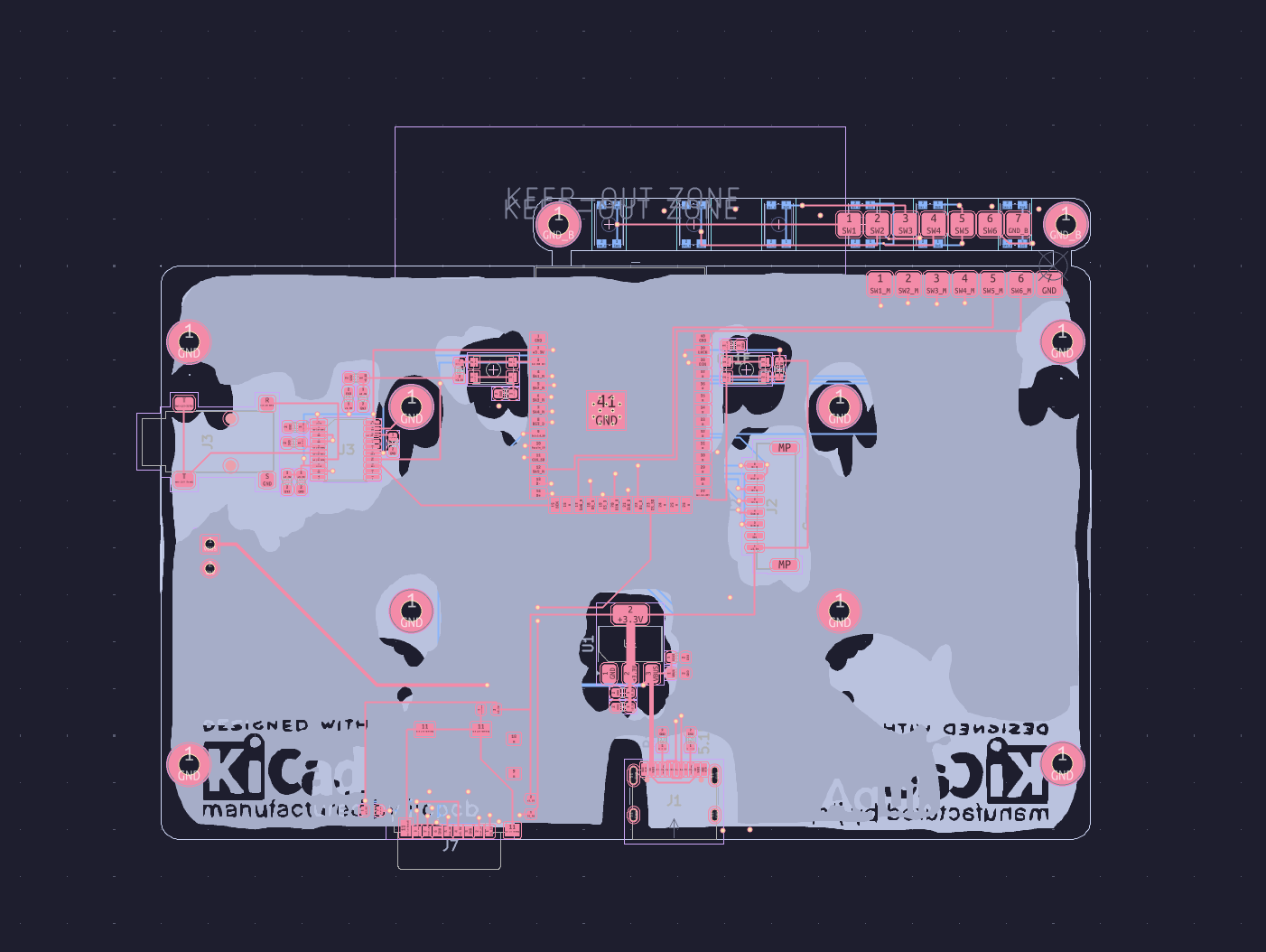

Then i spent 50minutes making my silk screen this is how it came after

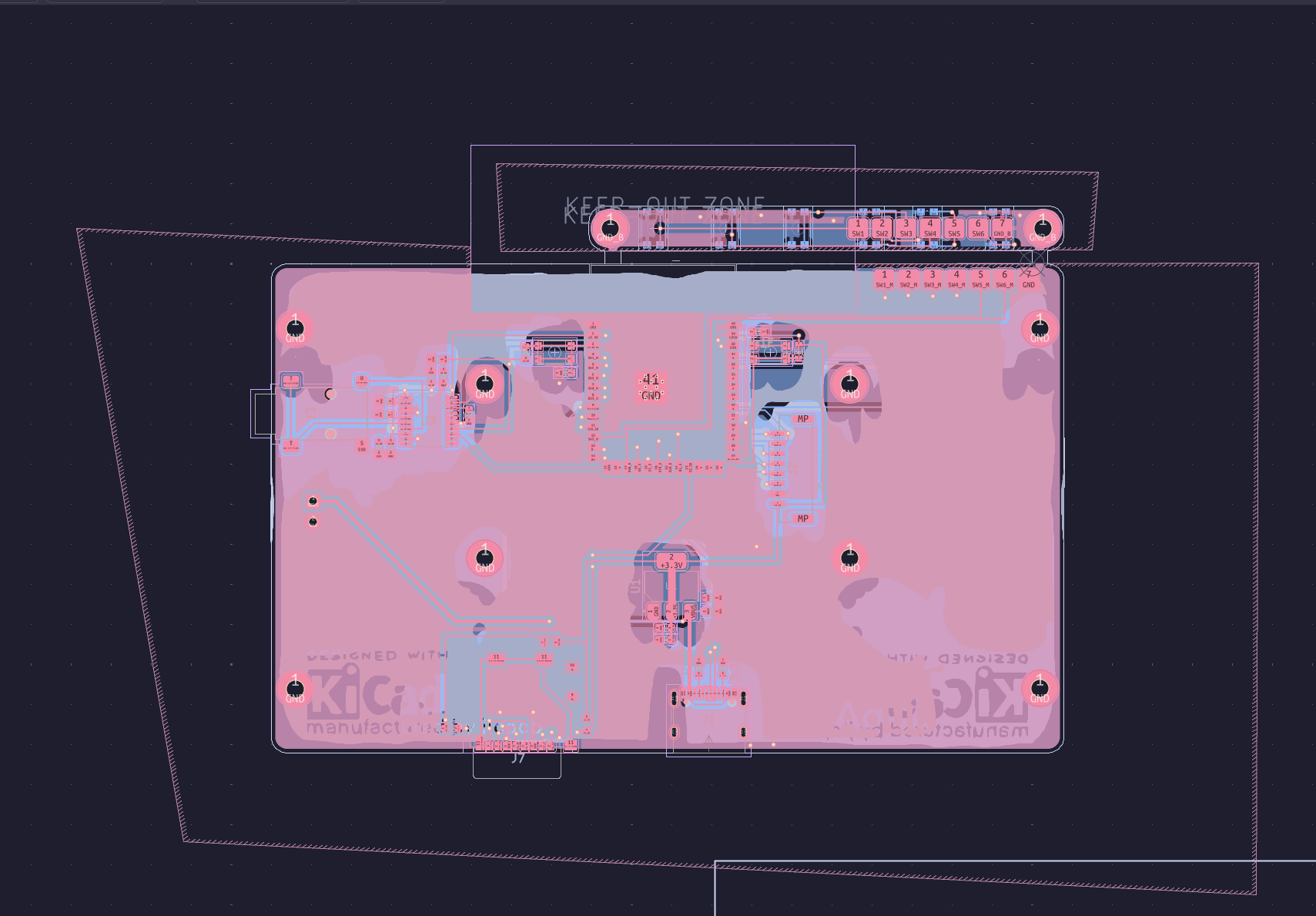

Im pretty proud of the pcb cause its inside a 100x100mm so im pretty happy.

:3 67 uwu

Started the schem

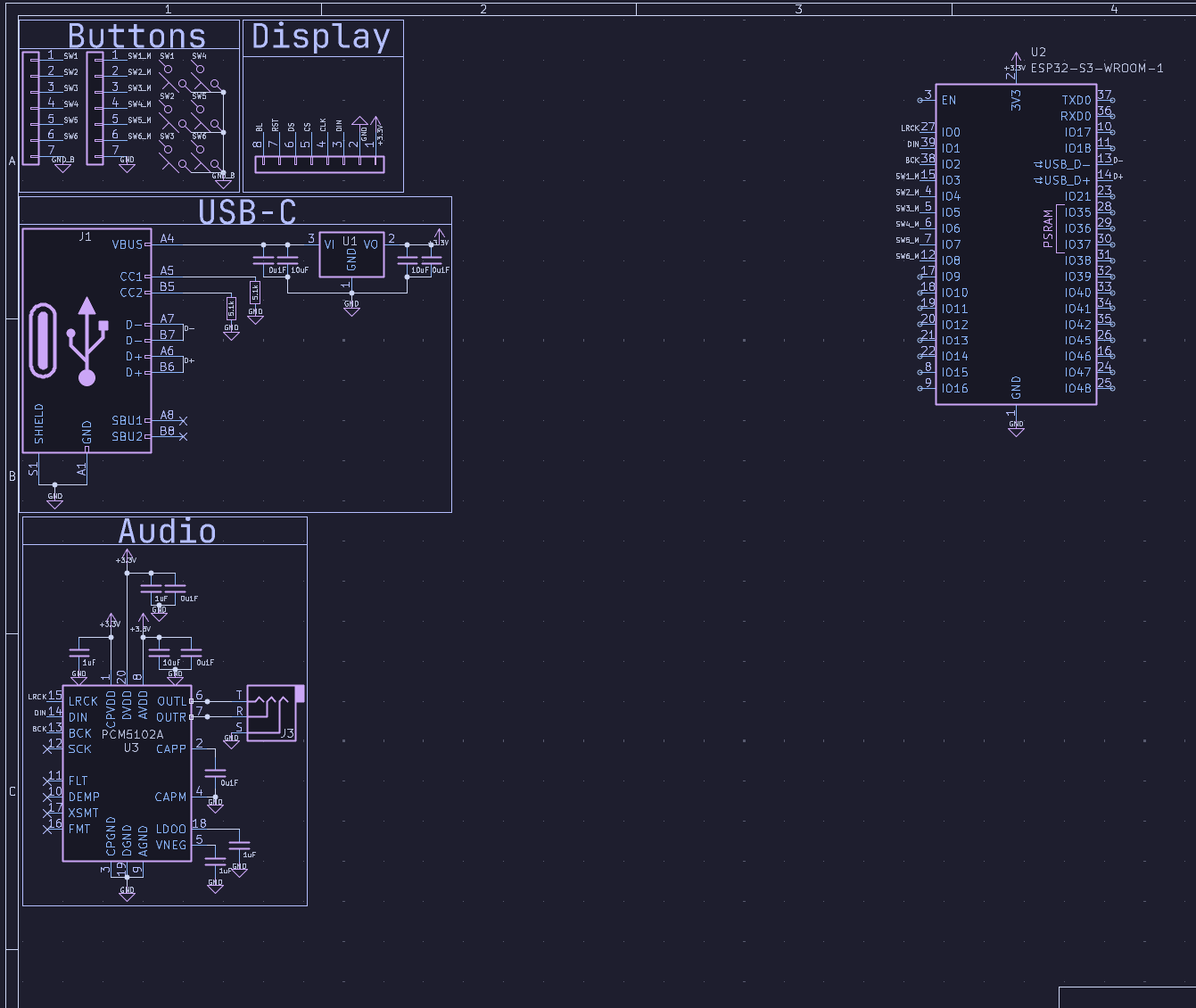

I started making the schematic and now it already has the headphone jack and usbc and the buttons i already added the connector for the screen but its still not connected to the esp32
