WPM on the screen!

Used QMK Docs, a bunch of trial and error and the inevitable vibecoding session on this. QMK's WPM thing just wouldn't work, so I had chatgpt write me a WPM calculation script. It used dt, so it's quite instantaneous (derivative moment), but I managed to smooth it out and add some decay. I then changed around the stuff on the screen ig. I think this means I am done?! Except the case i still am printing that (multimaterial printing is hard wdym i already purged 200mm3 of filament). only took like 15 minutes on this.

FIRMWARE

about damn time
bad news: no major firwmares (even ZMK) support wireless on the pico w :(
this means i will need to code in wireless from scratch using micropython/C.

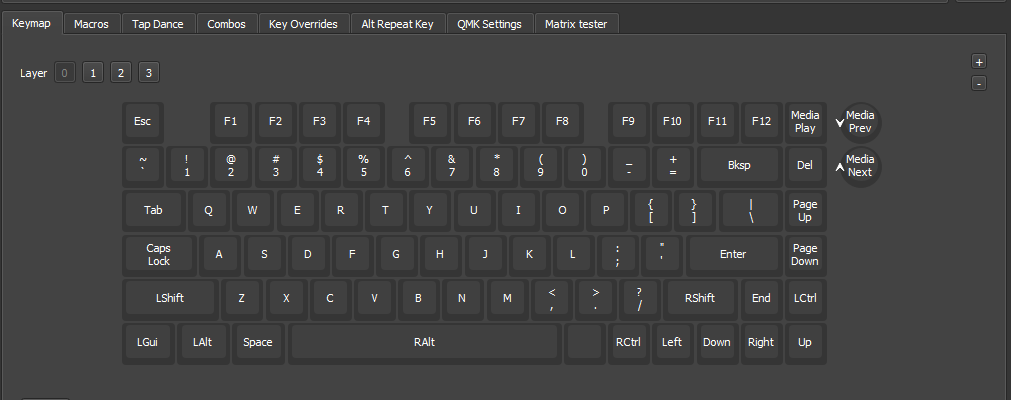

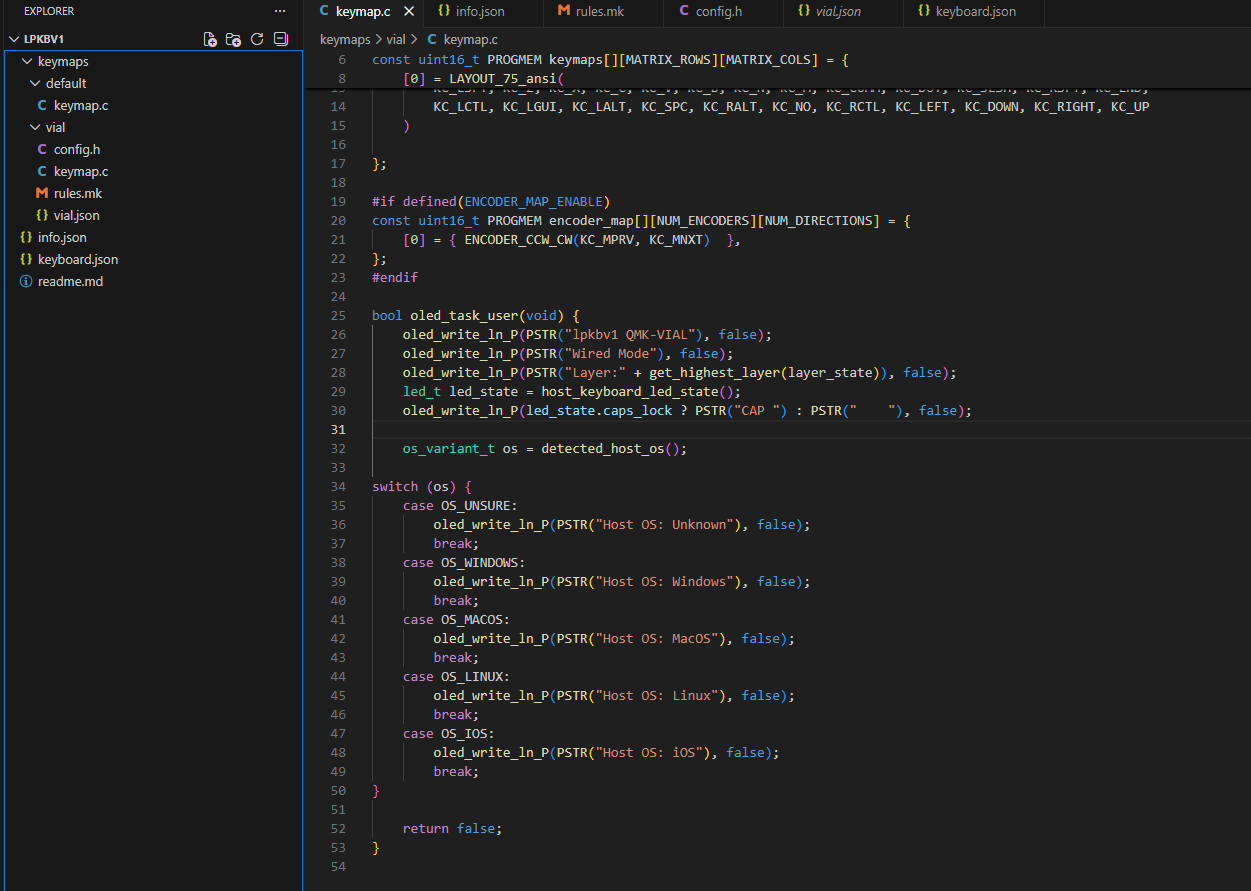

in the meantime, I configured good ol' qmk-vial to work with the screen and everything and it looks awesome!

3D printing, cad and more printing!

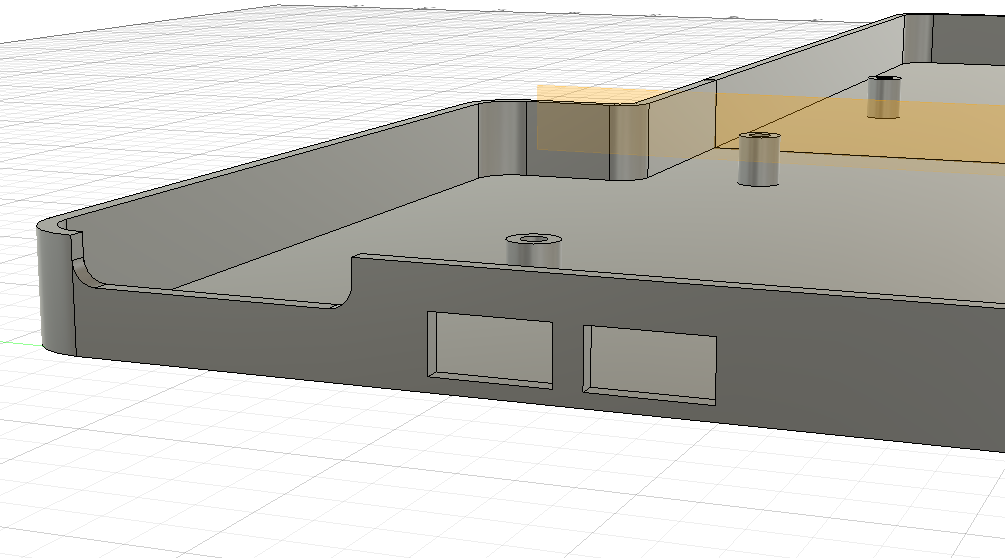

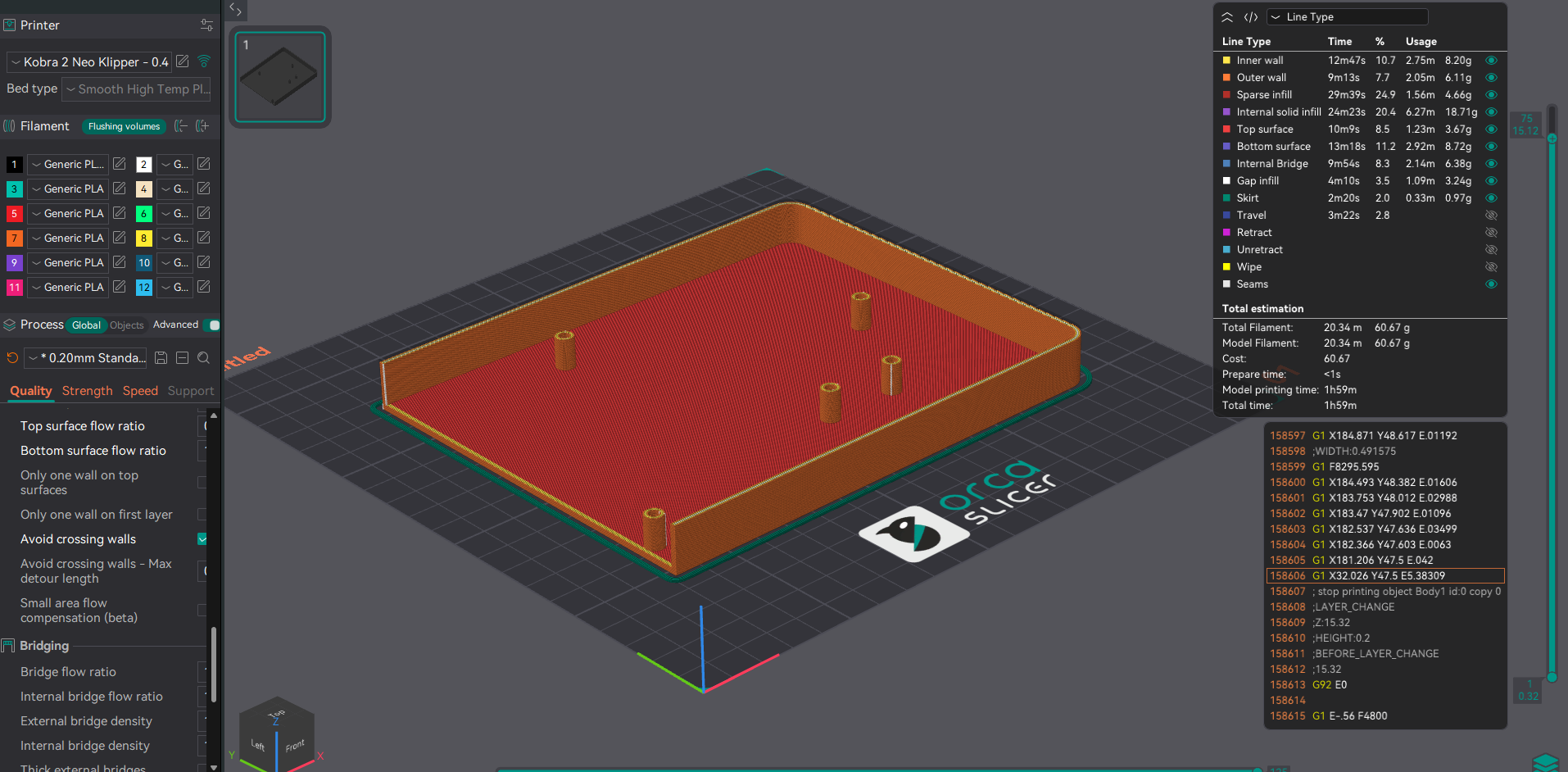

Spent around 2 hours printing, fixing, cadding and reprinting! this is in addition to the hours i have to wait for it to actually print :sob:. i think i went through around 200g of filament? honestly surprised how lightweight these cases are lmao. i think i finally made the perfect design that looks good, fits snug and prints nicely (once i fix my adhesion issues. take this as a sign to not break your heated bed).

I also removed the notch near the pico's USB port because i noticed my pico was so high up it wasn't even affected by the case!

redesign cad

the PCB dimensions had to be changed prior to fabrication. i was reuploading the gerbers, might as well make it smaller and more compact? anyways i made a new cad which I am more proud of, loading that into my 3D printer as I type this. Also added a way for bigger nicer switches so that I can cover up the area with the bad soldering :(

*edit: switches refer to power switches and battery charging switch

soldering!

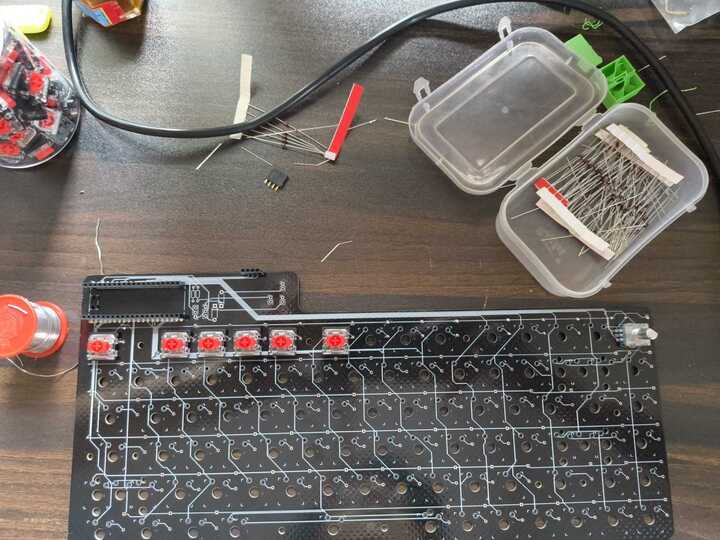

pcbs arrived, started soldering them. i swear this was easy except the area near the batteries
i cannot desolder
unfortunately the stabs don't work, so i might design and print a replacement.

Redid the power

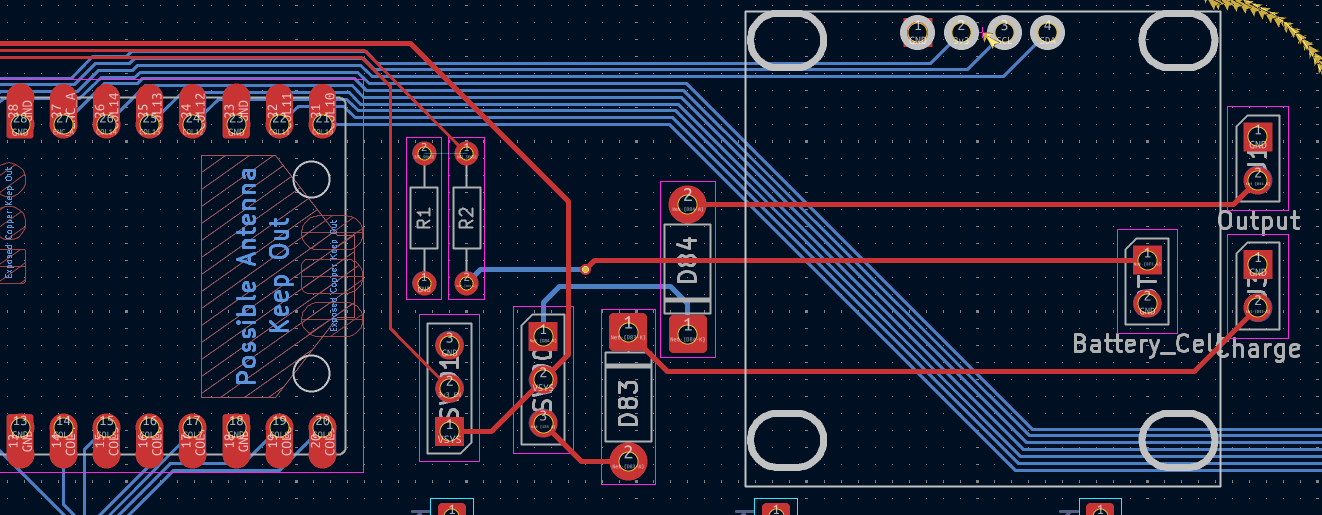

Changed it up to use a good ol' TP4056 IC i have lying around, and make it function just as good with 2 schotkey diodes! the pcb is a pain, but I didn't change much so mountin should be the same

Finshed the CAD

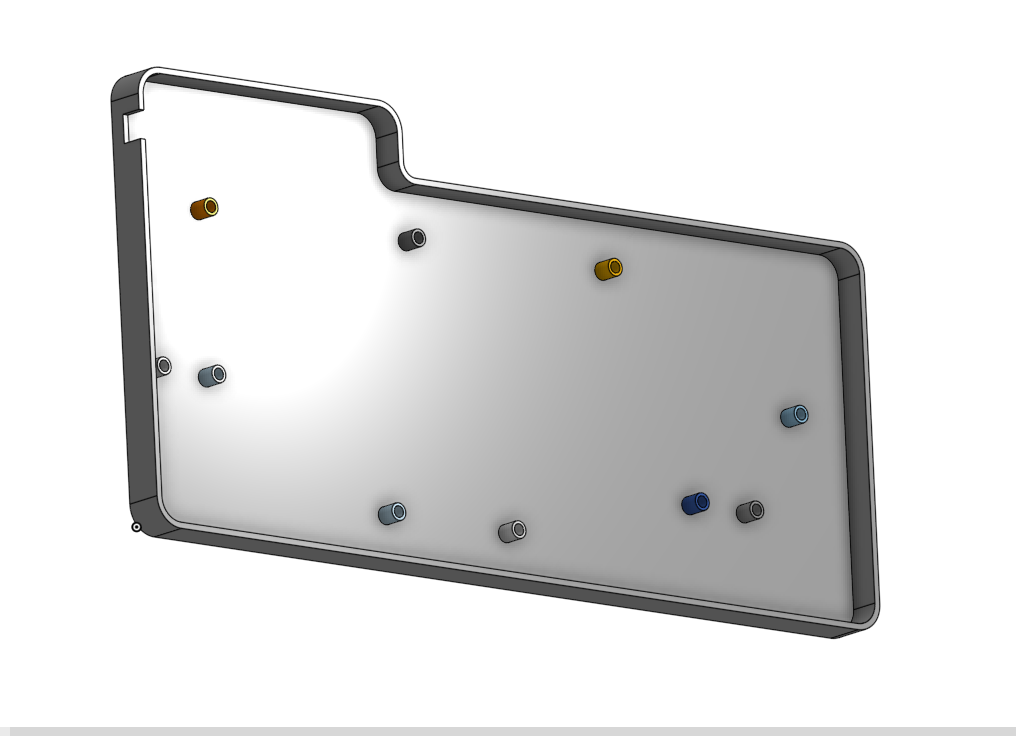

Keyboard CAD! I should be able to fit the battery in there, everything else looks perfect. idk why the inserts are different colours but eh. also it was kinda fun to make all this now that i look back. time to make the bom and submit this :yay:. here is some padding text to reach the word count :thumbup:

CAD (2)

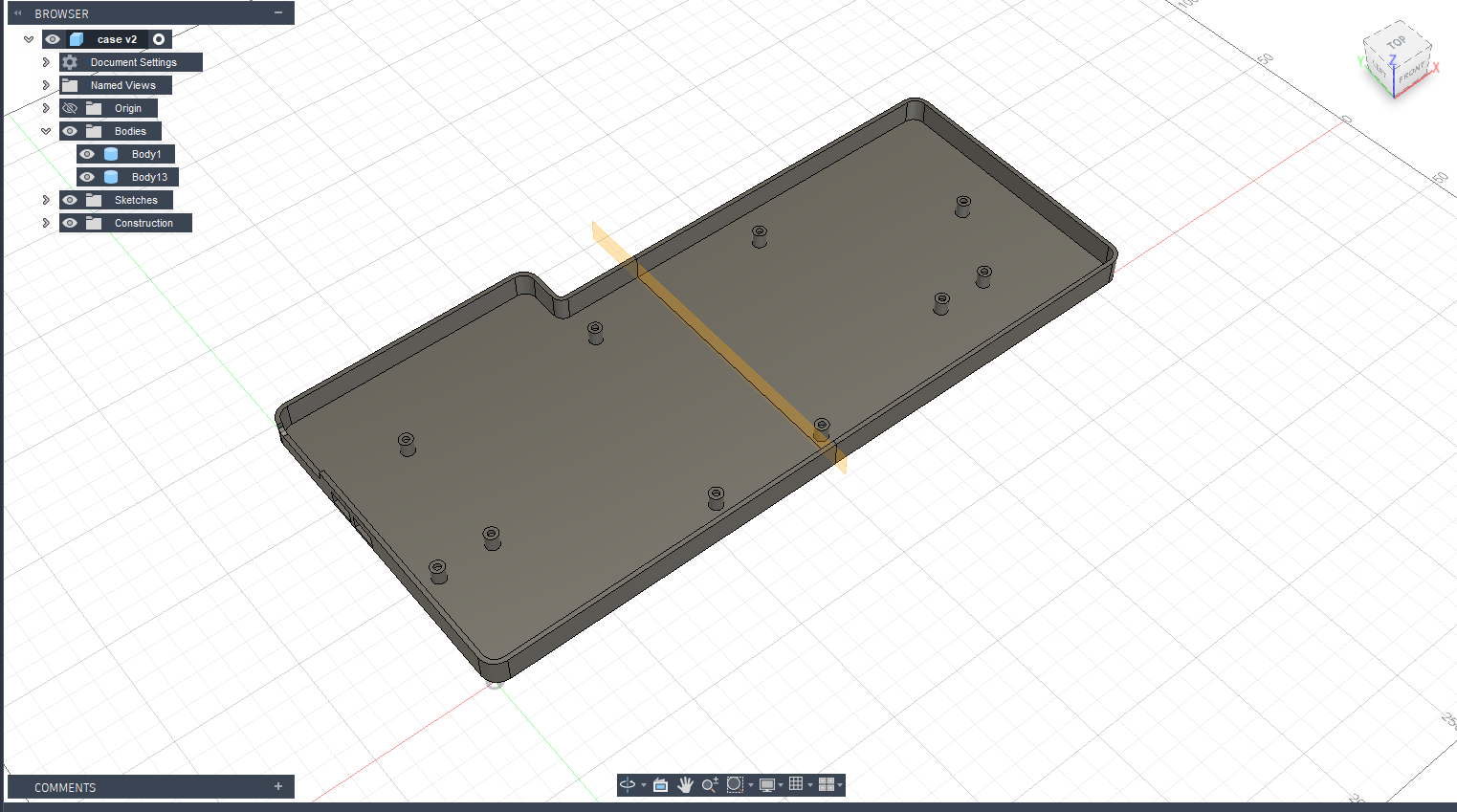

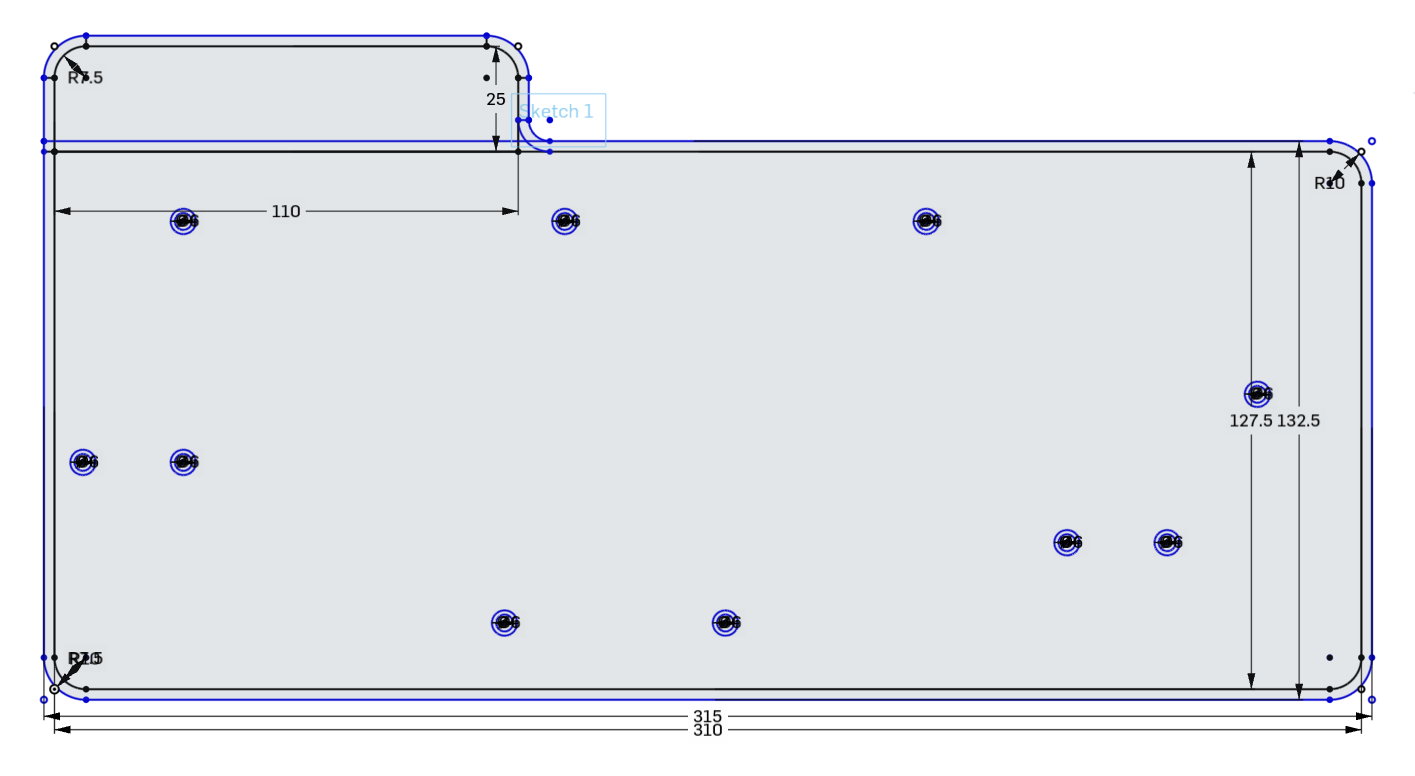

Freecad wasn't right for me, so I went to onshape to learn. I started with the basic keyboard, added the screws and set up the walls. Thin (2.5mm) walls and a not that large area of coverage. I will also need to figure out the way to slide in the battery but that's a future me problem. I'll probably sandwich the battery and then screw in a top case, screw the PCB into that.

Rerouted the PCB again

Turns out gateron KS-33 LP have different footprints, so there goes my saturday. I also reinstalled kicad so i could get the 3d models rendering properly, and my god is it pretty. Tried the 18650, didn't like and am sticking with a 4000mAh lipo battery

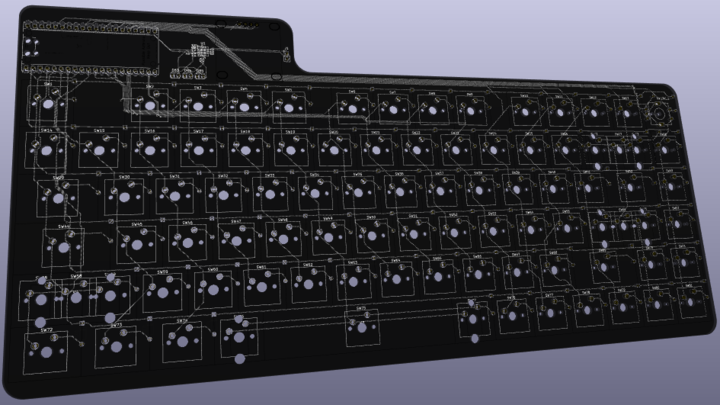

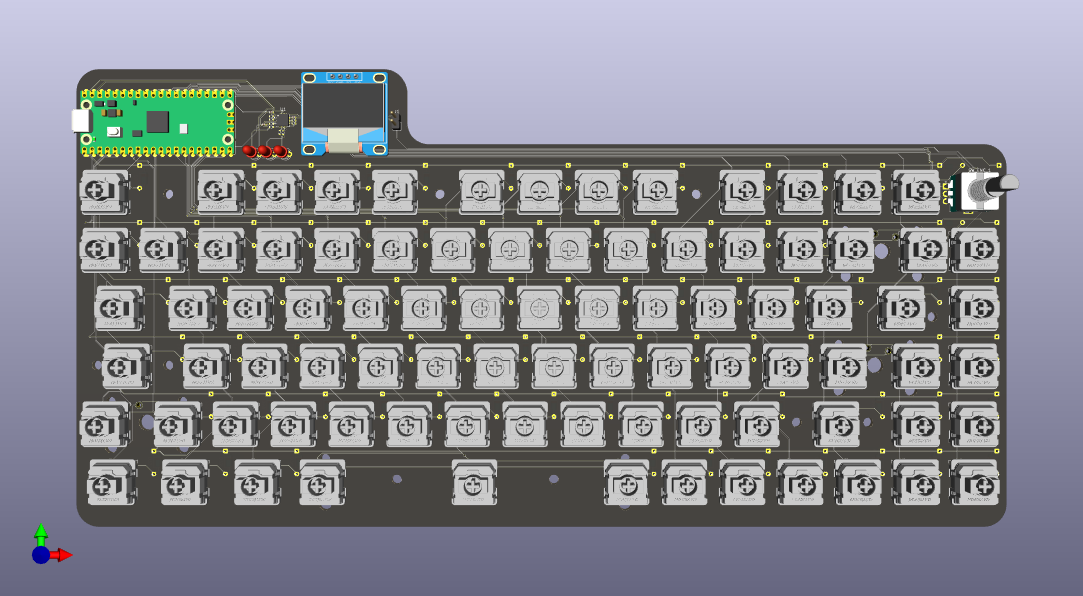

here is the nice PCB now

CAD!!!

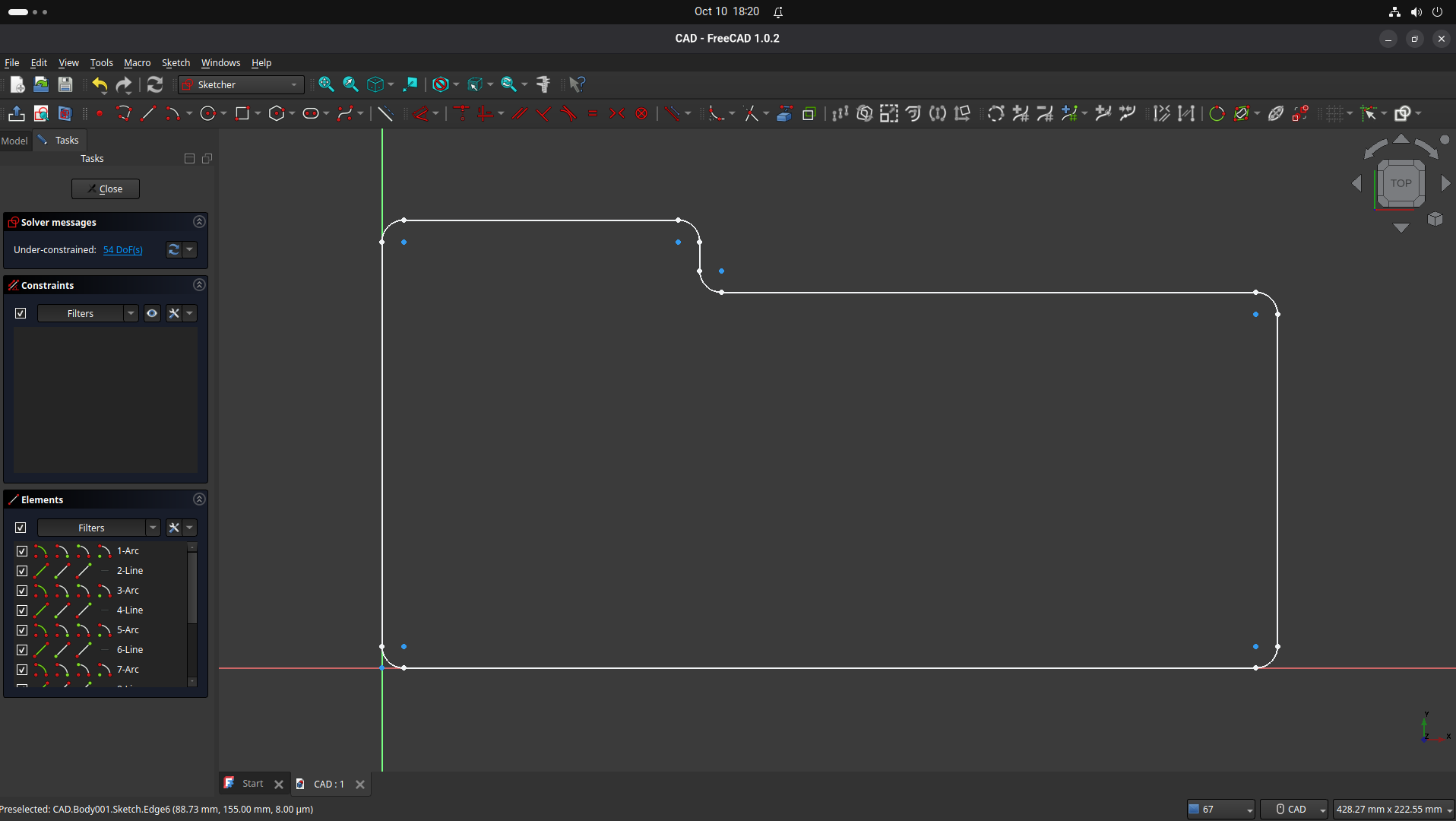

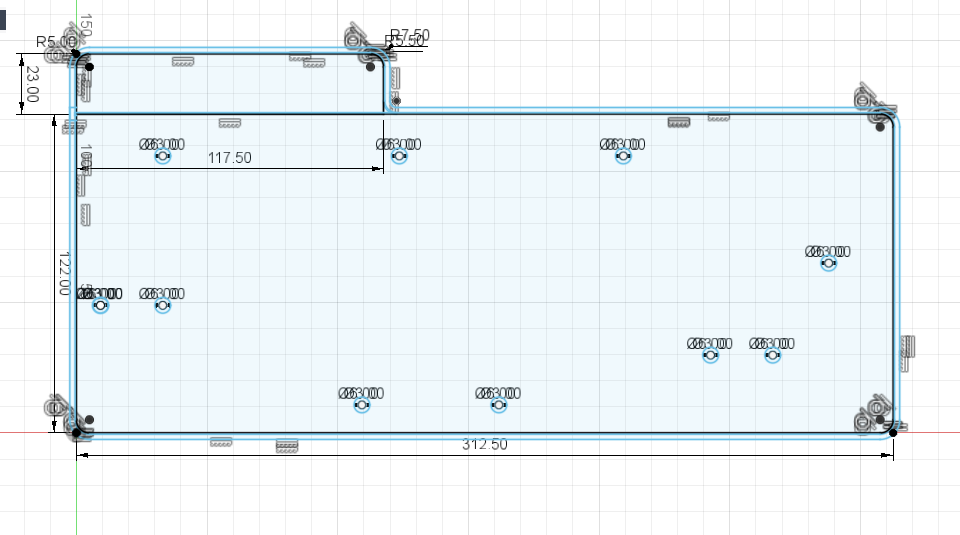

Learning freecad definitely has a curve to it, but it runs awesome unlike fusion. I am too used to fusion so it took me more than an hour to fix up the outline sketch of the case. After that, I need to add the mounting holes (also to the PCB, i forgot those) and the slot for the acrylic cover!

Finished the PCB

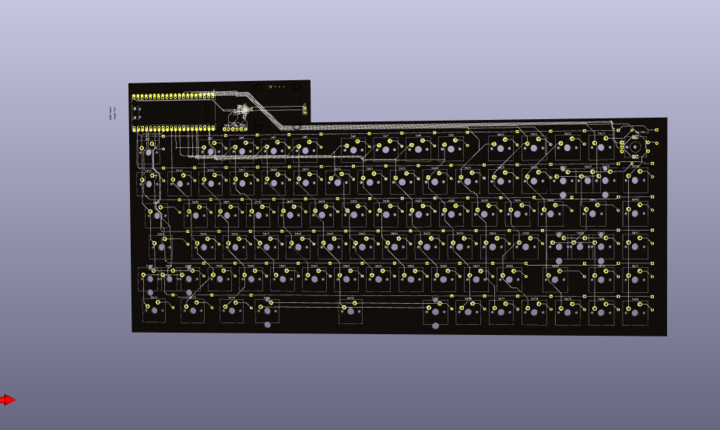

I finally finished the PCB! Now everything looks (and hopefully works) awesome! Still debating between a black on white or white on black design, but it will definitely have acrylic on the case :yesyes:. Anyways check out the picture of the design! Rounded corners will be translated into the cad (2.5mm, 1cm is too much, i learn).

Routed the rest of the PCB

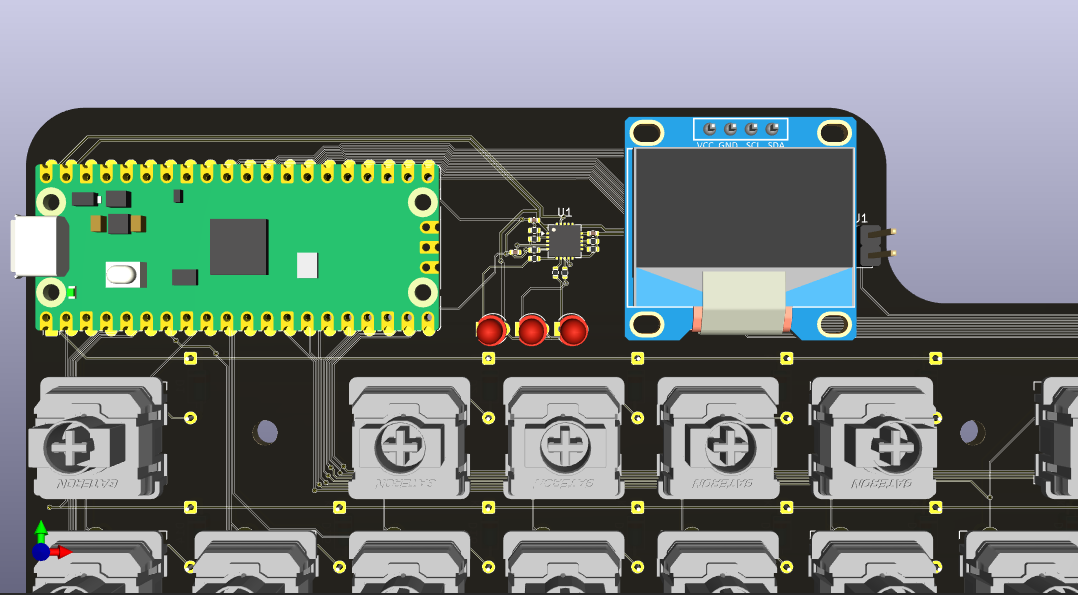

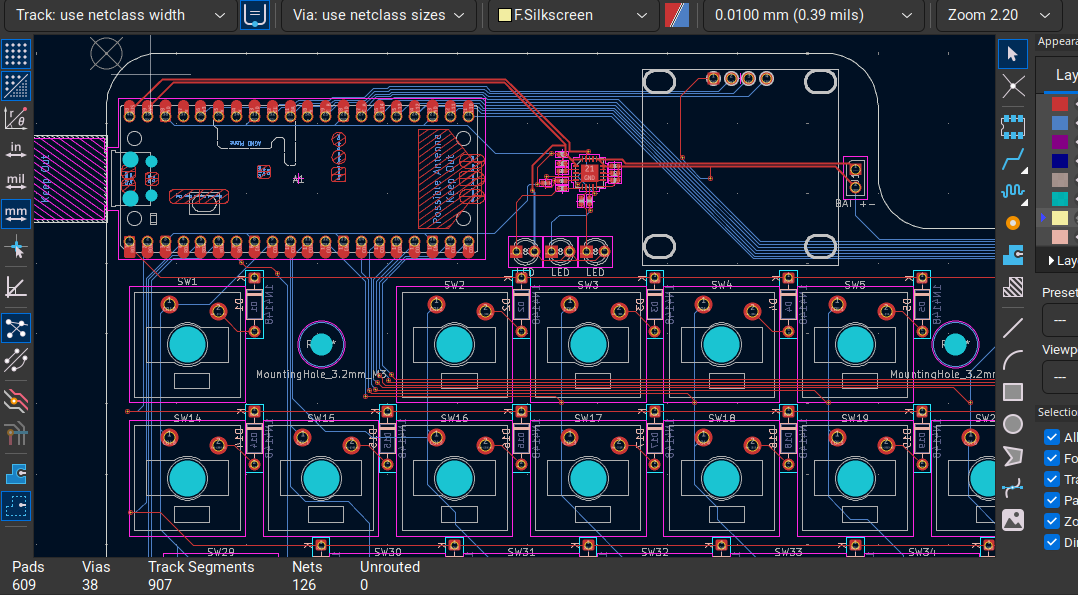

Got the new power stuff working and routed the rest of the PCB. Also managed to figure out the PSU, although I might need to fix the resistors around. I also added an OLED screen. There is a cool thing where i exported the PCB as dxf and imported it onto the silkscreen, just because; and it honestly looks pretty cool ngl. The edge cuts is temporary, just so the board renders properly. Might round it off later or clean up the areas.

power stuff

tried to replace the shitty chinese charging thing with an actually good IC (the MCP73871). i have no idea how this works. my chatgpt free ended for today. i found a reddit thread from 2018 with no good answers. i need help. oh also the pcb looks pretty clean, i might replace the 18650 with a thin pillow, so i can expand the size later too!

Added the diodes and routed some of the PCB

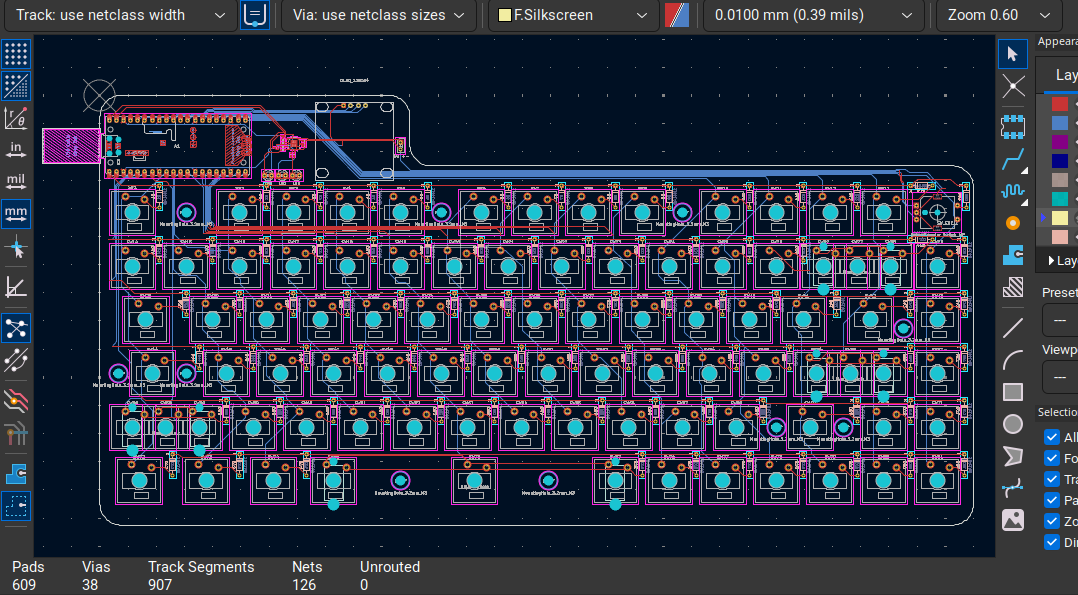

Added the diodes and routed most of the rows and columns! Decided where to put the Pico (only used for charging) and now it looks very clean. The battery will be near the top so i'll have to expand the case (chamfer?) around that area; or just get a lipo instead. Overall, i am very close to completing the PCB

Laid out the PCB

pretty fun, just set the grid sizes to the MX standard and went at it. Still debating where to put the 18650 holder, but i'll probably put it near the bottom or the top side of the keyboard
The stabs are hard to find for low profile keyborads, so i came up with a cursed alternative. Just put the stabs and two extra switches smh

Completed the Schematic!

Made a matrix and copy-pasted it to get the keyboard area. Then I used the research I did for the battery to make that area. The Pico and the encoder are standard, and the switches are MX. The 18650 also goes through a Voltage Divider to act as a Battery percentage somewhat. Finally, I set all the footprints for each symbol (thank you joe scotto)

Make KLE Layouts!

I made some KLE Layouts for Matrix and Label! Matrix is going to be required for Vial later on so I decided to do that right now. I also made the PCB Files and added them to the repo! Gonna start work on the schematic now :D. Also, why are low profile keycaps so expensive, and I don't even have aliexpress 😭😭

Researched power system and battery requirements!

Calculated some of the power stuff, which BMS board I can use and a couple of the things to calculate the overall charging system :). Connecting the Pico will be through a USB Micro B port. The VBUS will connect to the BMS for charging, and BMS to VSYS. This is the Breakout I plan on using, but probably won't expose the USB Port on it!
