3x3 key switch, 0.91" OLED I2c display computer shortcuts macropad powered by a Xiao rp2040 microcontroller

Created by Gethin Gethin

Hackpad

70 views

1 follower

View Repository View Demo

alexren alexren ⚡🚀 approved Gethin's Hackpad ago

Tickets awarded: 50 tickets

Tier: 4

awesome job with assembling this hackpad! could i ask what happened with the plate? seems like it didn't make the final assembly.

Regardless - enjoy the tickets! Keep building awesome stuff

Gethin Gethin submitted Gethin's Hackpad for review ago

1Mon 1Mon ⚡ requested changes for Gethin's Hackpad ago

really clean hackpad! please update your demo link, the current link is 404ing! you should upload the video to youtube or similar.

Tier: 4

Gethin Gethin submitted Gethin's Hackpad for review ago

alexren alexren ⚡🚀 requested changes for Gethin's Hackpad ago

Hey there! I'm returning this because there is no build image in the repository

Tier: 4

Gethin Gethin submitted Gethin's Hackpad for review ago

Gethin Gethin added to the journal ago

Soldering, programming & testing

My hackpad kit & PCBs arrived so I got everything ready
IMG_2704 (1)

I soldered the xiao, switches and OLED onto the PCB (it took quite a while as this was my first time)
IMG_2706

IMG_2713
I ensured all the connections were soldered properly and programmed the xiao for my keypad
I first made it just type out the number of the key switch that was pressed but later upgraded to my custom binds which include music pause/play, windows lock, task manager, new brower tab and arrow keys.

IMG_2798 (1)
My 3D printed hackpad case arrived and I put everything together.

I have learnt through making my hackpad: Fusion 360 design for 3d printing, PCB design in KiCad and electronic soldering

Gethin Gethin added to the journal ago

Design approved

My design was approved so I have gone through my whole project to ensure everything is accurate and how I want it to be. This included:

  • Measuring & adjusting the 3D model for my case to properly fit my PCB
  • Creating a finalised BOM for my components
  • Double checking my PCB for any errors & running the DRC program on KiCad

Just waiting for the grant to come through so I can order my parts

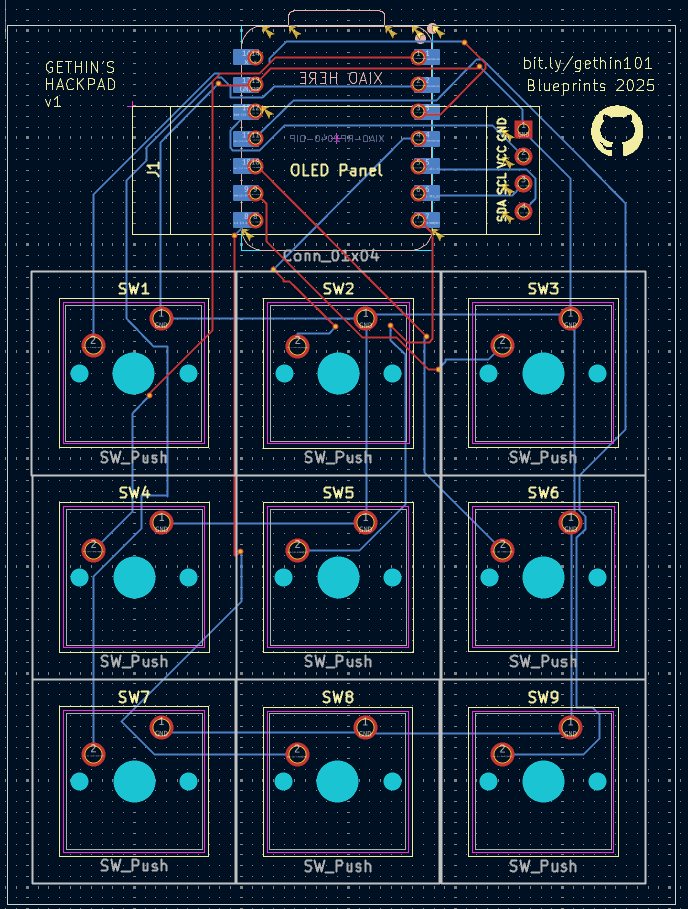

pcb
