Clock
A clock with XIAO RP 2040 as controller, DS3231M to keep track of time, A display, A few buttons, etc.
Created by
jessehill126
1 view
0 followers
Timeline
jessehill126
added to the journal ago

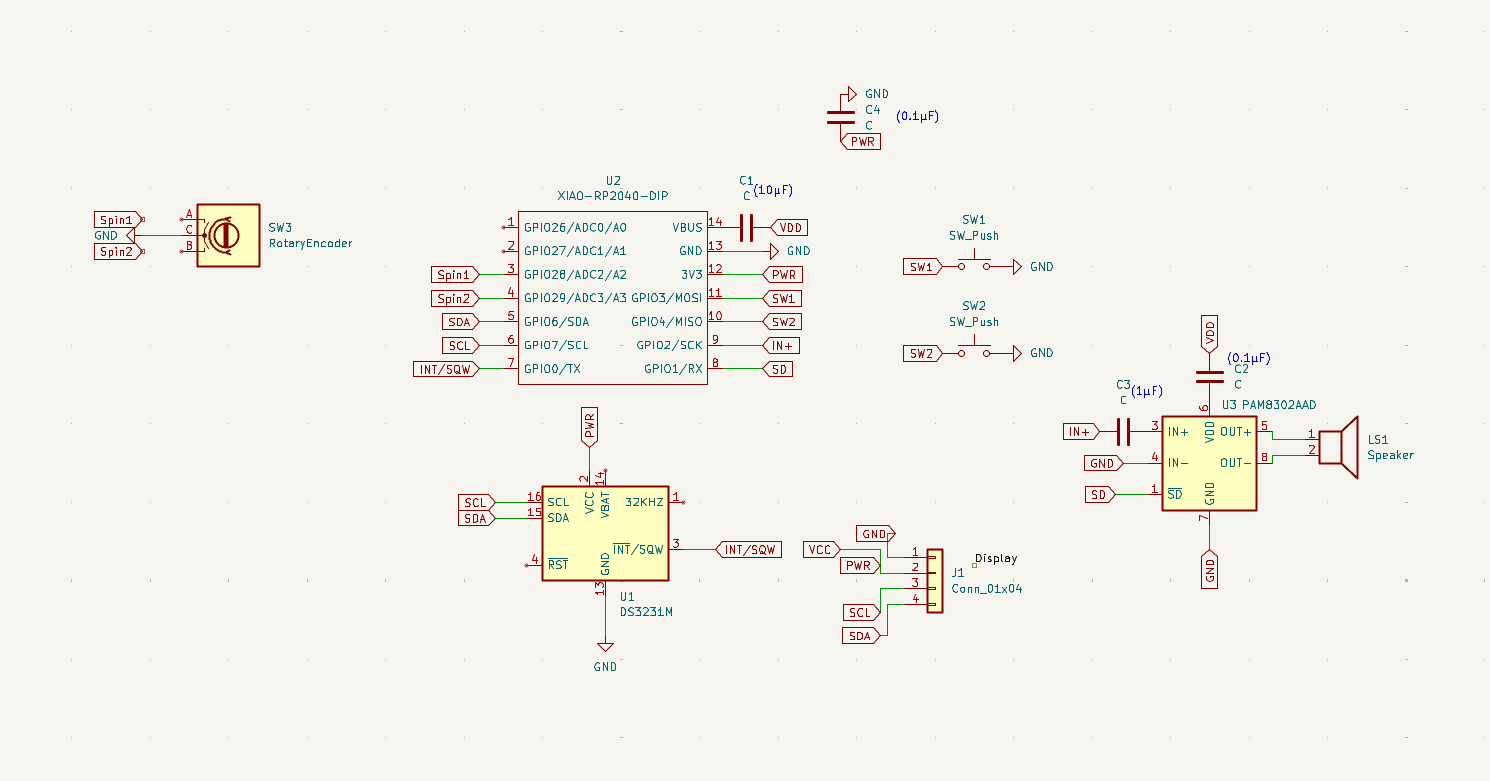

I think this helps?
Done some research, I think the capacitors will help?? not 100% sure though, also added rotary encoder for volume control. please let me know if I should change anything
jessehill126
added to the journal ago

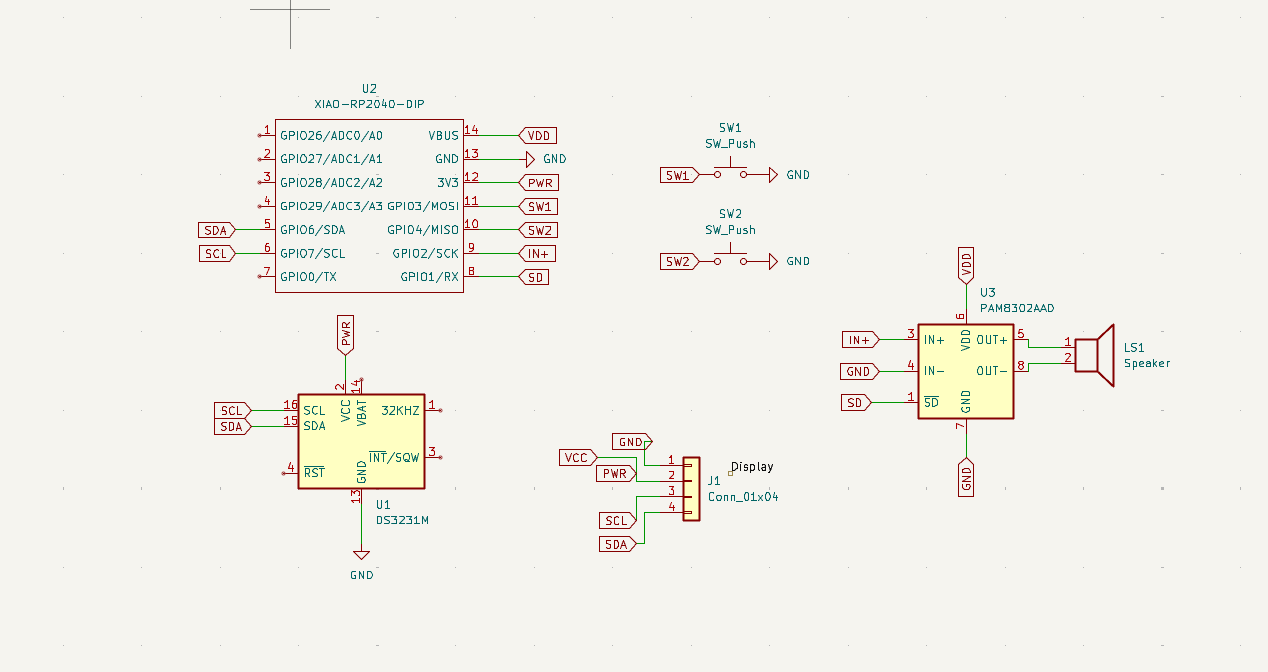

Designing the PCB
So far designing the SCHM with all required components/chips, speakers, buttons, display, clock, controller.
Will try to finish the SCH before I go to sleep, if not I will finish tomorrow (and hopefully can get a start onto wiring the PCB)
jessehill126
started Clock ago
