whigh voltage tesla coil

idk i just want to create a powerfull voltage amplifier

Created by franklyneflorezn franklyneflorezn

Tier 5

2 views

0 followers

No Demo Yet

Timeline

franklyneflorezn franklyneflorezn added to the journal ago

researching

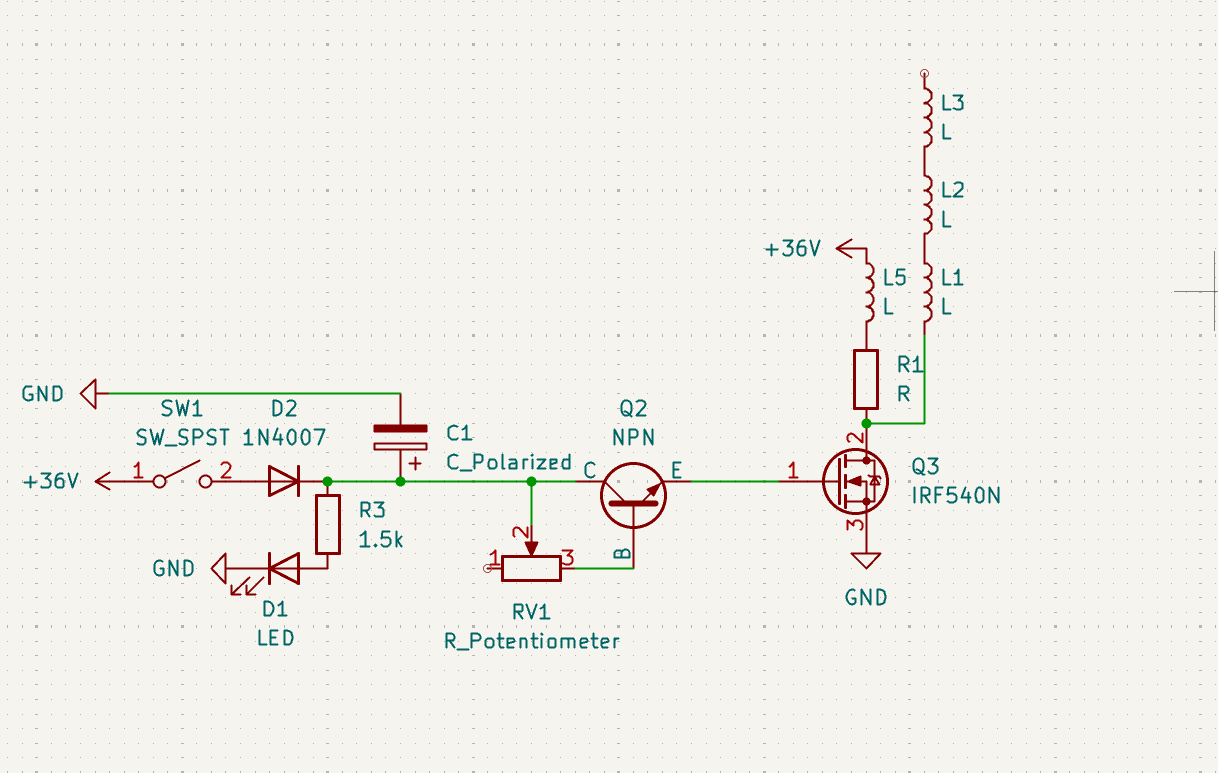

i researched a lot, i first though about making the tesla coil work with a zts driver and a flyback but i think that is very dangerous and difficult, also expensive so i searched for other options and i found the SSTC but it was very dangerous too, but i wanted one powerfull tesla coil, not like these that just use a 9v or two 1.5 battery so i made a scheme of a variable circuit for it that run on 32v for the tesla coil, but ill probably made changes to it

franklyneflorezn franklyneflorezn started whigh voltage tesla coil ago
