Dreamscape F722
custom stm32 flight controller for 5" drones
Created by
pn2222a
Tier 2
9 views
0 followers
alexren ⚡🚀
approved Dreamscape F722 ago
Tier approved: 2
Grant approved: $173.00
hi there! i'm going to be approving this but it would be awesome if you could include a feature list with your project!
pn2222a
added to the journal ago
organise files
moved kicad files into kicad folder
new folder named kicad has been created
kicad files moved into kicad folder
removed old bom files
Image:
repo is now cleaner than before
pn2222a
submitted Dreamscape F722 for ship review ago
pn2222a
added to the journal ago
ready for submission
used different sensors and this time i shouldnt need standard pcba.
updated firmware for flight controller with new sensors.
remade the entire board because everything was broken after new sensors and layout is more optimised for 4-layer board
im getting faster at pcb design!!
pn2222a
added to the journal ago
add switches
i forgot to add switches for nrst and boot0 so i added them.
made space for them by moving everything around them to the left.
i hope the switches are pointing the right way
pn2222a
added to the journal ago
ready for submission
fixed drc issues in kicad and looked for some parts.
need to preorder some because they are special.
the board has lots of breakouts for future uses.
picture:
pn2222a
added to the journal ago
switch to stm32f722
almost complete redesign of board, except for 30x30 drone mount.
mcu is now stm32, and can run betaflight and ardupilot.
new compass and barometer too.
more i2c spi and uart support.
Kai the Jolly Guy 🚀
requested changes for Dreamscape F722 ago
I love the concept of your devboard, but it's got a couple small problems ;) The first one is your capacitors aren't placed properly. They should be as close as possible to the power pins that they're decoupling. The second thing is I would highly suggest making your pads THT instead of SMD, because it's really easy to short your signals right now! Finally, you're missing a small firmware file that could just make like an LED blink or something, and you should probably organize your files into folders in your repo. Looks great so far though :D
pn2222a
added to the journal ago
Switching to Different MCU
it turns out that the rp2040 maybe isnt the best idea for a flight controller and instead i will switch to stm32 maybe stm32f745 perhaps. i still need to figure out what other chips to use
pn2222a
added to the journal ago
Optimise PCB
Got rid of unnecessary via connections and fixed unnecessary traces.
Updated the
jlcpcb cart and pcba.
Updated GitHub repo with screenshots and pictures.
pn2222a
submitted Dreamscape F722 for ship review ago
zsharpminor
requested changes for Dreamscape F722 ago
Hi! Please add screenshots of your schematic view, PCB view, and a detailed description of how you made this project to your repo. Additionally, we need a BOM.csv file showing exactly what you're getting. Finally, as a cart screenshot, we need your full JLCPCB PCBA breakdown showing which component you're getting for which part. Thanks!
pn2222a
submitted Dreamscape F722 for ship review ago
PenguinMo
requested changes for Dreamscape F722 ago
This look's cool but can you change the quantity from 5 to 2 PCBA's but besides that this is looking really cool, can't wait to see you build this
pn2222a
submitted Dreamscape F722 for ship review ago
pn2222a
added to the journal ago
fixed mounting holes
hole size is now M3 instead of M6
also removed unnecessary traces for more clean look
remaking gerbers soon
i might switch to stm32 instead of pico for ease
1mon ⚡
requested changes for Dreamscape F722 ago
please upload gerbers and make sure your cart screenshots show final checkout price! also only do 2 boards pcba'd!
pn2222a
submitted Dreamscape F722 for ship review ago
PenguinMo
requested changes for Dreamscape F722 ago
Please organize your files, upload your Gerbers and add picture's of your project to the read.me
pn2222a
submitted Dreamscape F722 for ship review ago
pn2222a
added to the journal ago
Add Power LED and User LED
Power led connected to 3.3v
User led connected to GPIO25
PCB soon
fixed ground plane
hole size fixed for M3
made parts smaller
more space for other things
one sided design now
pn2222a
added to the journal ago
almost done
pcb is done (with pictures!)
going to run drc soon
i hope no more errors
"Do or Do Not, There is no Try"
i will do it
i will succeed

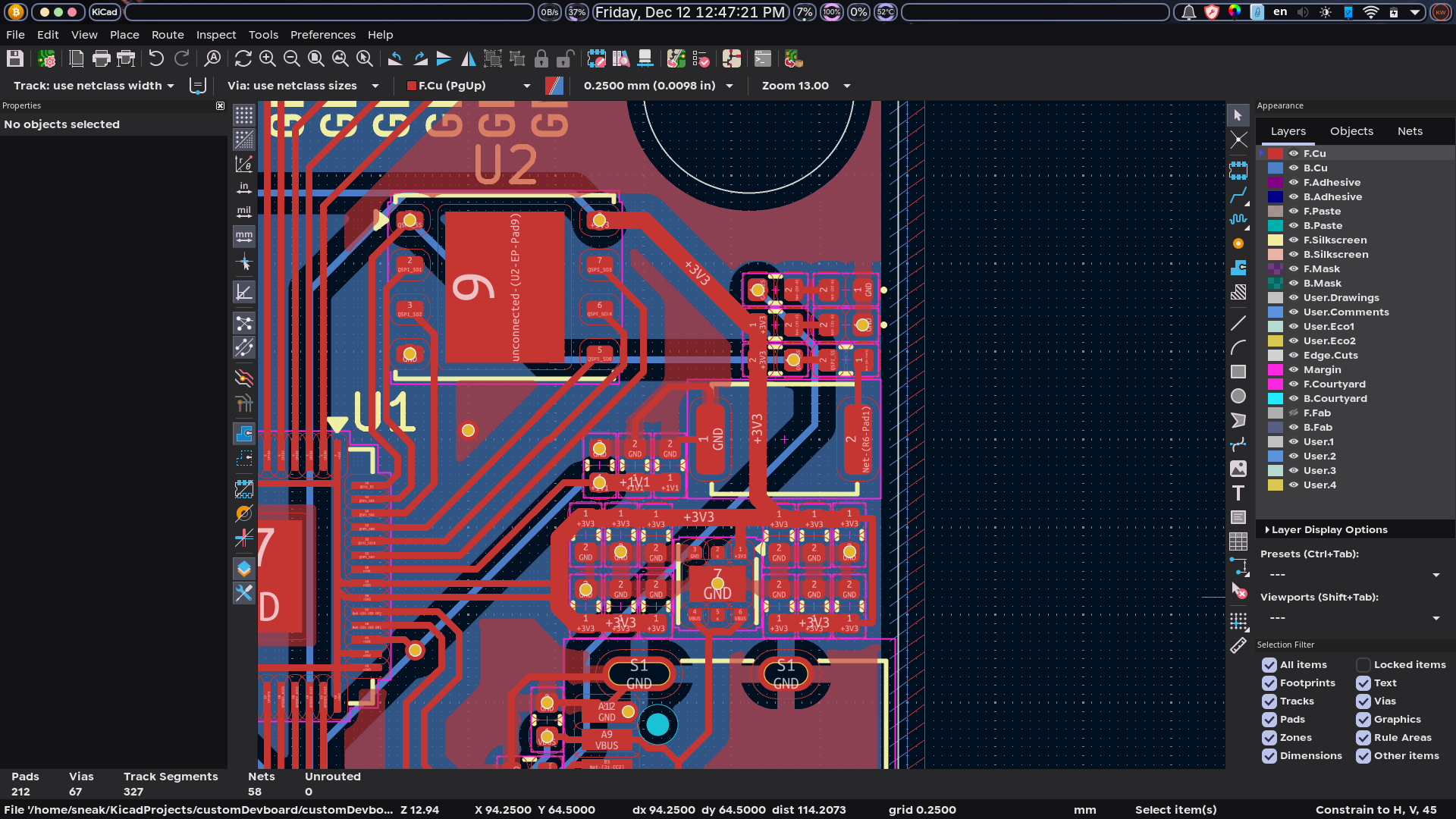

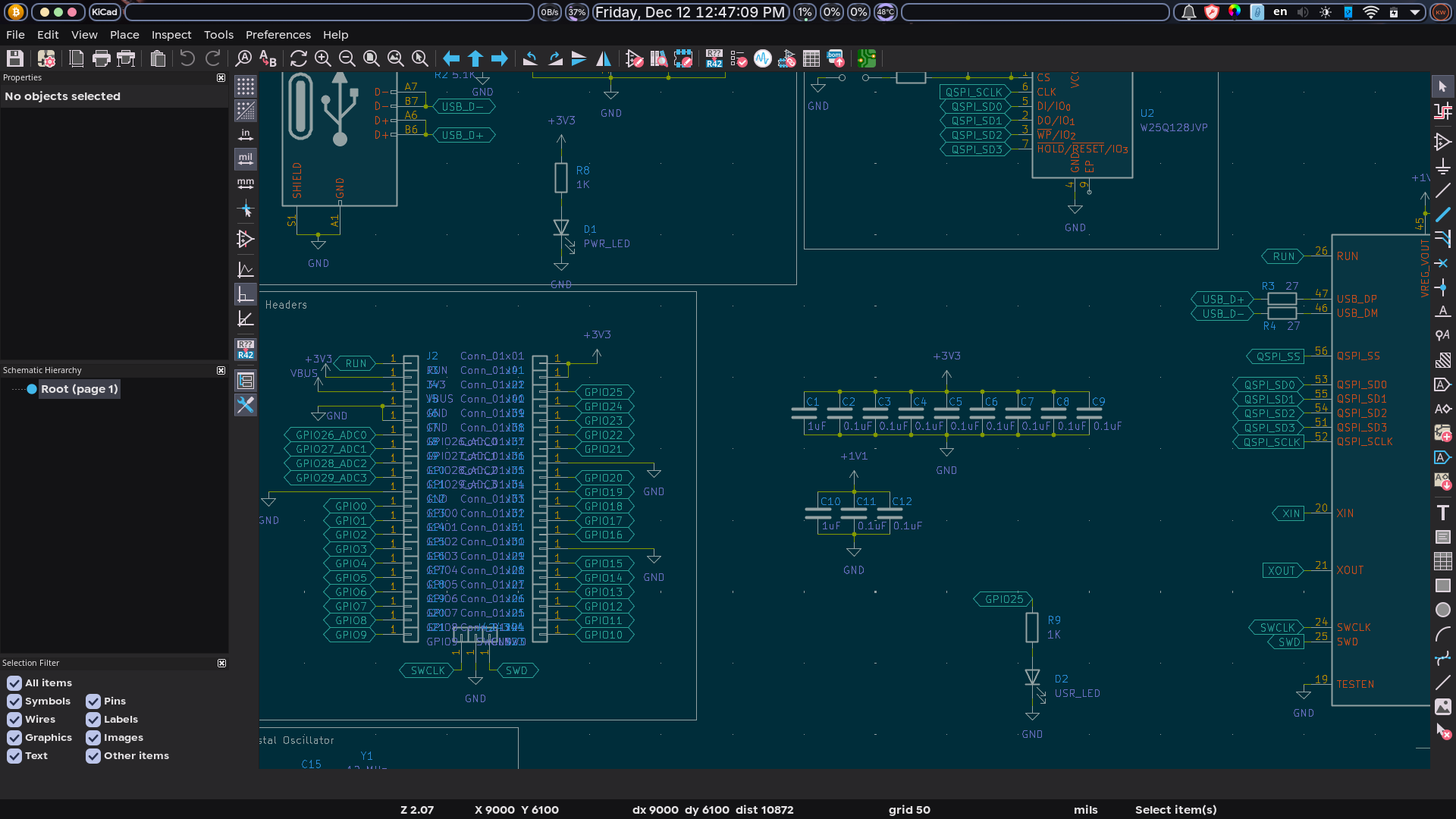

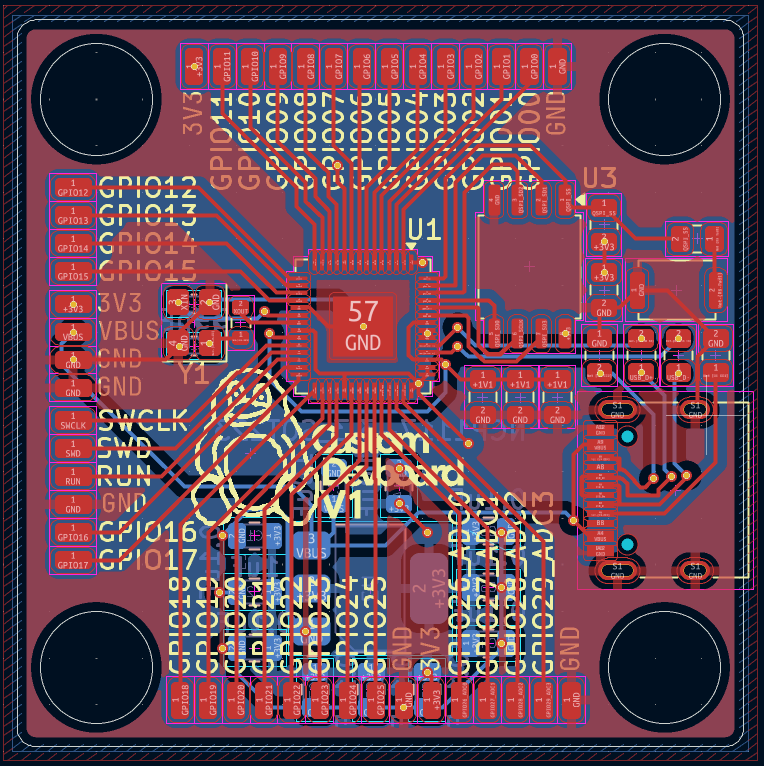

some pictures from the pcb editor

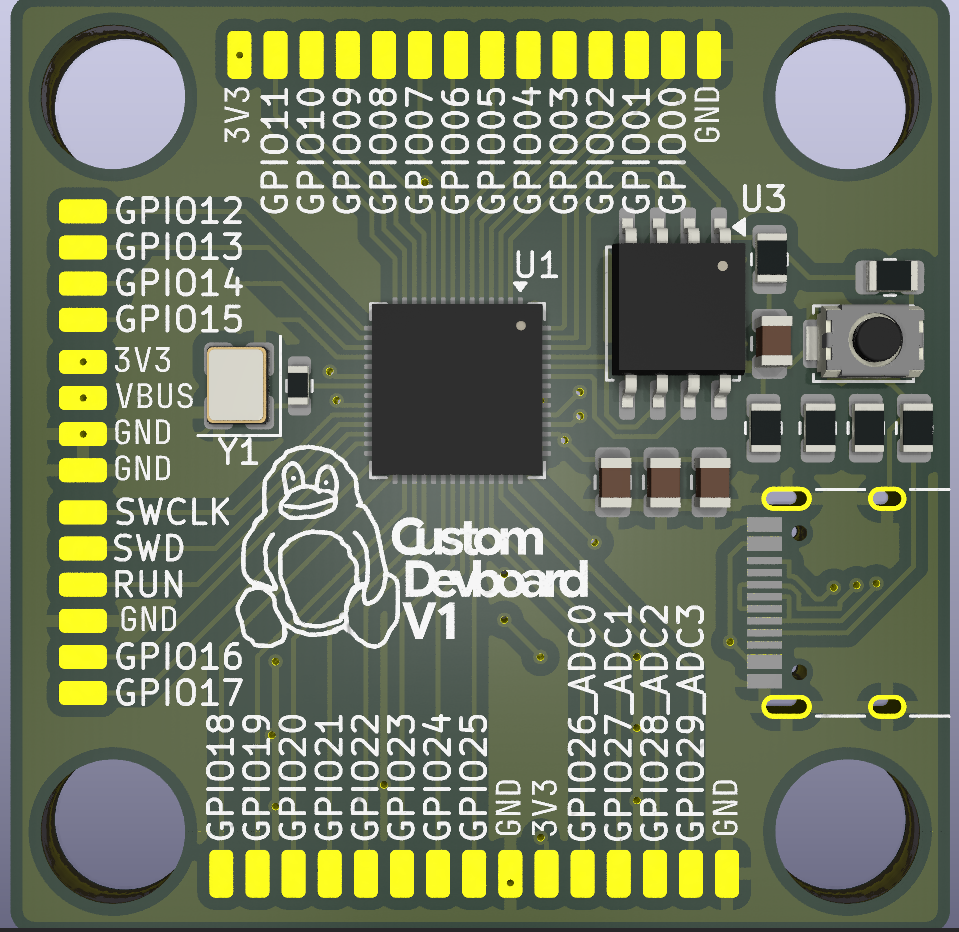

and from the 3d viewer
pn2222a
started Dreamscape F722 ago
12/11/2025 - almost done
pcb is done (with pictures!)
going to run drc soon
i hope no more errors
"Do or Do Not, There is no Try"
i will do it
i will succeed
some pictures from the pcb editor
and from the 3d viewer
12/14/2025 - Add Power LED and User LED
Power led connected to 3.3v
User led connected to GPIO25
PCB soon
fixed ground plane
hole size fixed for M3
made parts smaller
more space for other things
one sided design now
12/25/2025 - fixed mounting holes
hole size is now M3 instead of M6
also removed unnecessary traces for more clean look
remaking gerbers soon
i might switch to stm32 instead of pico for ease
1/10/2026 - Optimise PCB
Got rid of unnecessary via connections and fixed unnecessary traces.
Updated the
jlcpcb cart and pcba.
Updated GitHub repo with screenshots and pictures.
1/13/2026 - Switching to Different MCU
it turns out that the rp2040 maybe isnt the best idea for a flight controller and instead i will switch to stm32 maybe stm32f745 perhaps. i still need to figure out what other chips to use
1/29/2026 - switch to stm32f722
almost complete redesign of board, except for 30x30 drone mount.
mcu is now stm32, and can run betaflight and ardupilot.
new compass and barometer too.
more i2c spi and uart support.
2/5/2026 - ready for submission
fixed drc issues in kicad and looked for some parts.
need to preorder some because they are special.
the board has lots of breakouts for future uses.
picture:
2/7/2026 - add switches
i forgot to add switches for nrst and boot0 so i added them.
made space for them by moving everything around them to the left.
i hope the switches are pointing the right way
2/11/2026 - ready for submission
used different sensors and this time i shouldnt need standard pcba.
updated firmware for flight controller with new sensors.
remade the entire board because everything was broken after new sensors and layout is more optimised for 4-layer board
im getting faster at pcb design!!
2/24/2026 - organise files
moved kicad files into kicad folder
new folder named kicad has been created
kicad files moved into kicad folder
removed old bom files
Image:
repo is now cleaner than before
