GG Battle Robot
This is my custom Robot Wars inspired battle robot with a servo-driven axe weapon, wireless radio frequency remote control with a custom PCB, LCD display, RGB lights, and audio sound effects. The main microcontrollers are raspberry pi picos and the chassis, axe and remote case will be 3d printed in PLA
Created by
Gethin
Tier 3
45 views
1 follower
Gethin
submitted GG Battle Robot for ship review ago
Gethin
added to the journal ago
Remote PCB re-routing
Next, I went through my remote PCB and got rid of any 90 degree bends in the routing and changed them to 45 degrees ones to improve signal integrity and to ensure my remote runs smoothly
Gethin
added to the journal ago
Remote case in CAD
I have a few things I need to change with my robot design. This first thing was that I needed to design a simple case in CAD for my remote that has small pins that secure the PCB into place via the drill holes
Shadow
requested changes for GG Battle Robot ago
user req - needs to make few changes
Gethin
submitted GG Battle Robot for ship review ago
Gethin
added to the journal ago
PCB design process update
Added lots of more detail on the process behind designing the remote PCB for my robot. I talked about some issues I ran into as well as some design choices I made.
Repo preview:
1mon ⚡
requested changes for GG Battle Robot ago
thanks for updating the cart photos! you still dont have much journaling on the process behind designing the pcb, please add some more info! we should be able to see your whole process, including issues you ran into. make sure to check out https://blueprint.hackclub.com/about/submission-guidelines to make sure your project is good to go!
Gethin
submitted GG Battle Robot for ship review ago
Shadow
requested changes for GG Battle Robot ago
user request
Gethin
submitted GG Battle Robot for ship review ago
1mon ⚡
requested changes for GG Battle Robot ago
really awesome project! id like to see some more info in your journal about the process behind making the pcb so please add that before resubmitting. additioanlyl please make sure your pcb cart screenshot includes final checkout price including shipping and tax!
Gethin
submitted GG Battle Robot for ship review ago
Jay ⚡🚀
requested changes for GG Battle Robot ago
:pf: their feedback was:
This is a super cool project! However, we cannot provide funding for filament and you can also get the Raspberry Pi Pico from aliexpress to save costs.
Tanuki ⚡🚀
requested changes for GG Battle Robot ago
Previous reviewer accidently accepted :)
Gethin
submitted GG Battle Robot for ship review ago
Gethin
added to the journal ago
Design re-review submission
I sorted out my components, uploaded all of the cart screenshots to github & updated my BOM with my final amount.
I also designed and finished my PCB for the remote, exported the gerber files & got a quote on JLCBPCB and uploaded the files & cart screenshot
I believe I'm ready for re-submission
zsharpminor
requested changes for GG Battle Robot ago
Hi, we need cart screenshots from where you're planning to buy your parts. Additionally, you mention "PCB costs" in your BOM but do not have a PCB as far as I can see. Finally, please set your grant amount equal to your final BOM amount, thanks!
Gethin
added to the journal ago

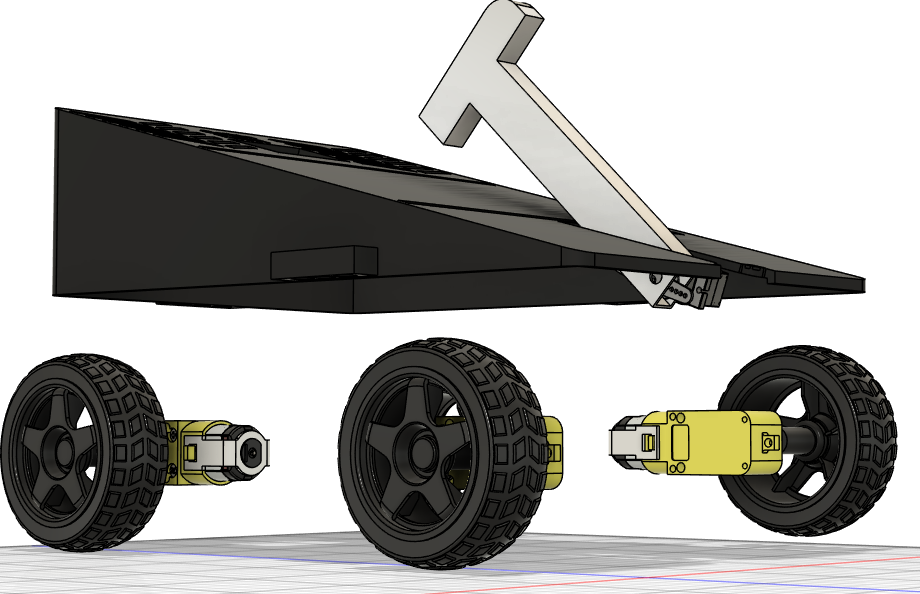

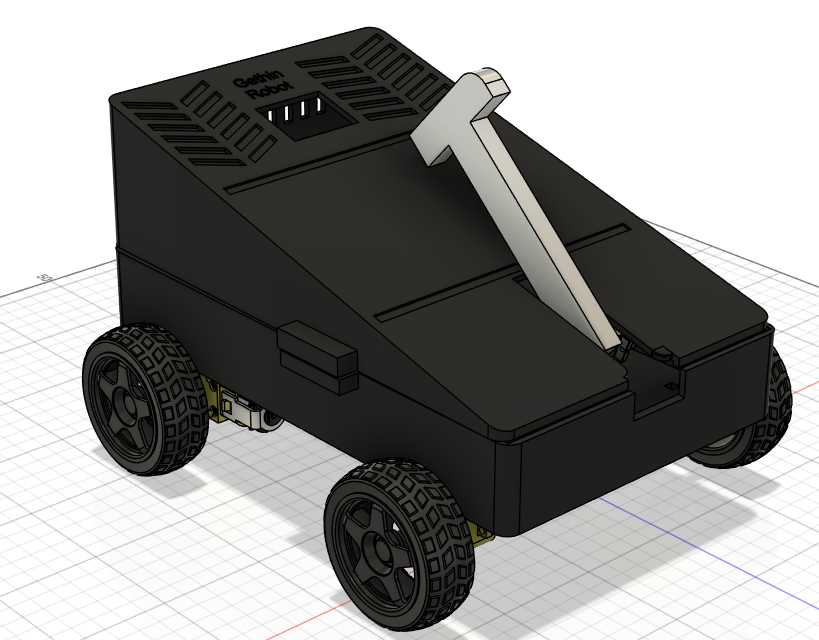

Importing components
I imported 3D models of the electronic components into Fusion 360 so I can fully visualise their placements, applied textures to my robot and updated my github
Gethin
submitted GG Battle Robot for ship review ago
Gethin
added to the journal ago
Chassis design

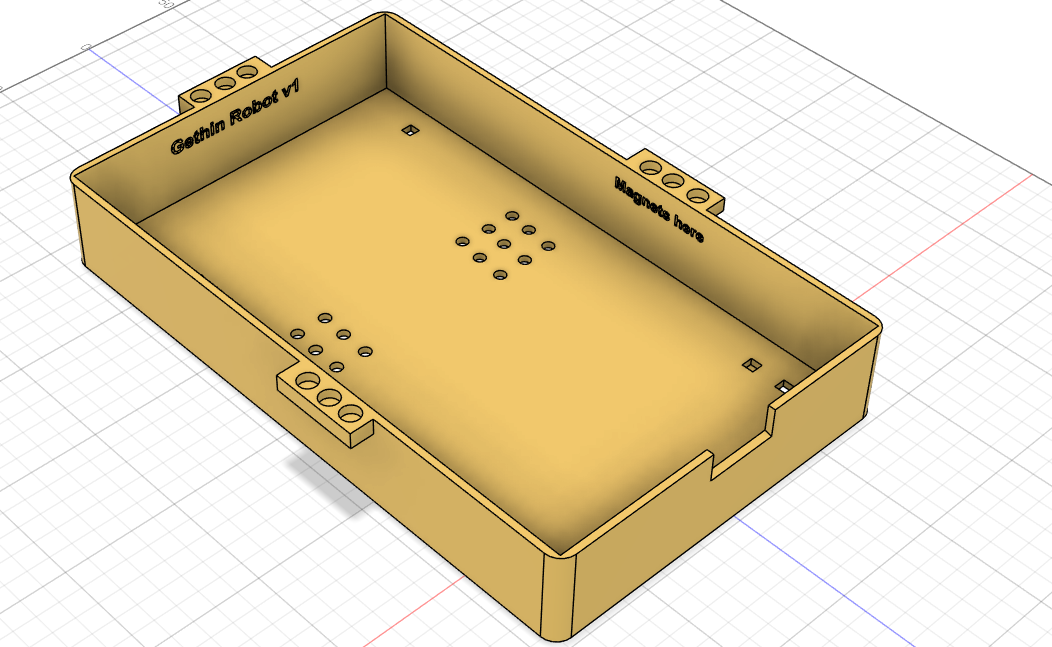

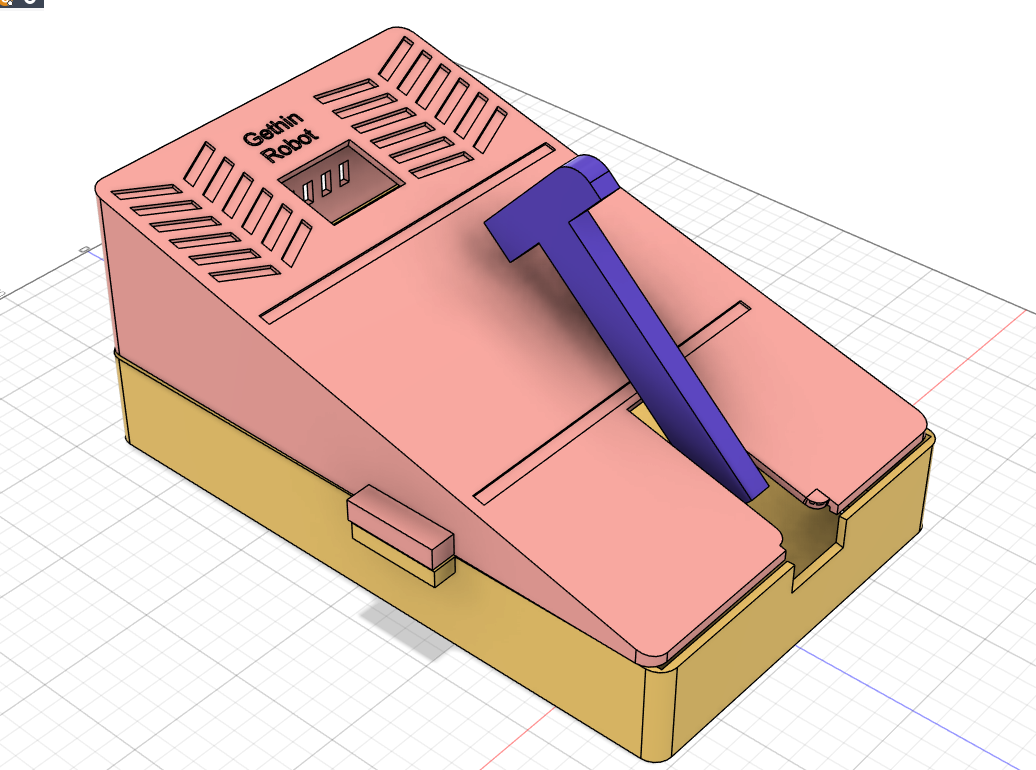

I finished designing my robot chassis for 3D printing - took many iterations. I ended up with a single servo-driven axe weapon that rests on the slanted part of the chassis and swings forwards on command.
I made holes in the base for the speaker audio, small indents for magnets so I can connect the bottom & top halves, and added text to the chassis for some extra personalisation.
Gethin
added to the journal ago

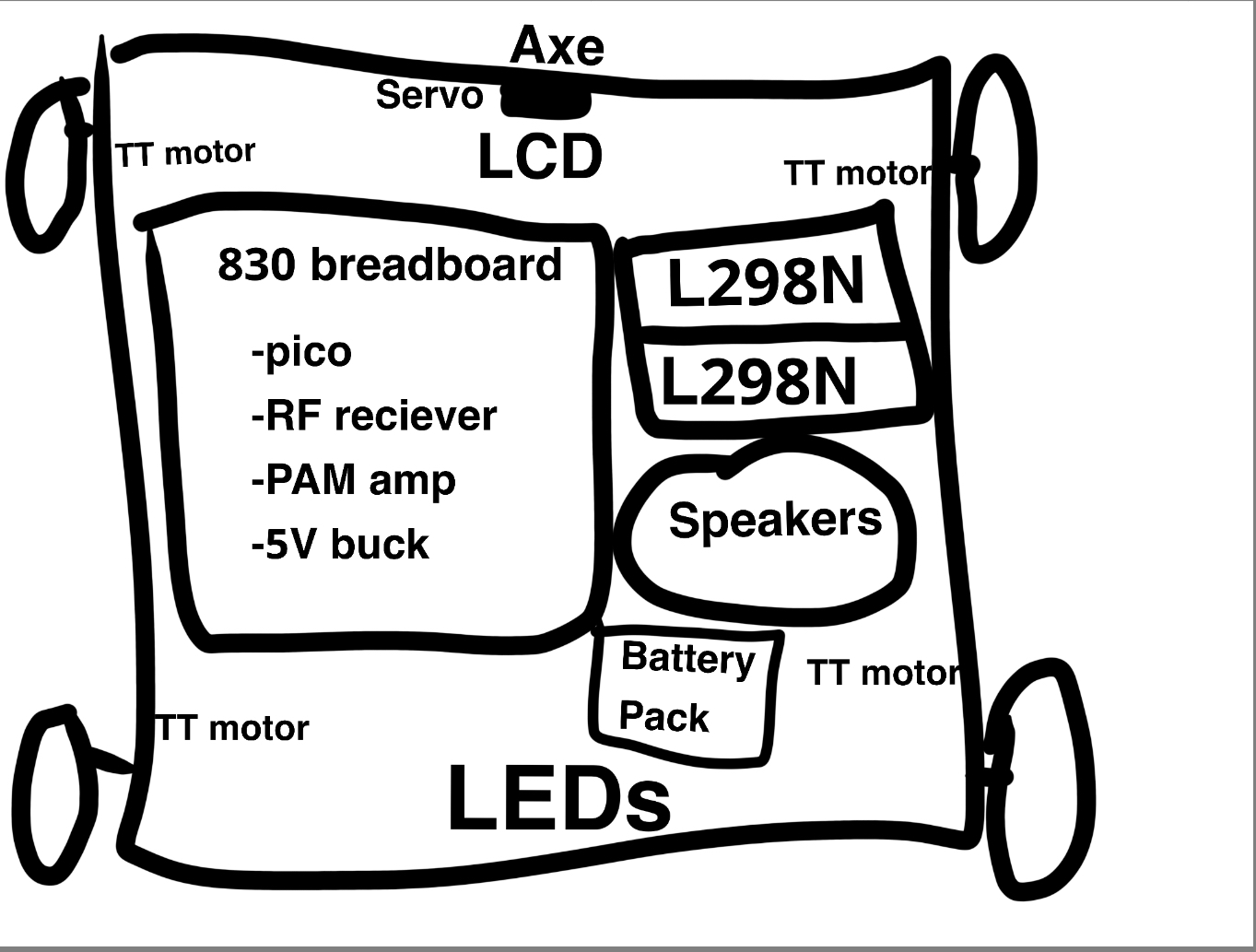

Planned out where the components will go in the robot
I did a sketch of the setup for my custom battle robot project with the hardware placement. For example what will go on the breadboard, what battery devices I will need to power my components & what motor drivers I will need for my TT motors
Gethin
started GG Battle Robot ago
12/15/2025 - Planned out where the components will go in the robot
I did a sketch of the setup for my custom battle robot project with the hardware placement. For example what will go on the breadboard, what battery devices I will need to power my components & what motor drivers I will need for my TT motors
12/18/2025 - Chassis design
I finished designing my robot chassis for 3D printing - took many iterations. I ended up with a single servo-driven axe weapon that rests on the slanted part of the chassis and swings forwards on command.
I made holes in the base for the speaker audio, small indents for magnets so I can connect the bottom & top halves, and added text to the chassis for some extra personalisation.
12/19/2025 - Importing components
I imported 3D models of the electronic components into Fusion 360 so I can fully visualise their placements, applied textures to my robot and updated my github
12/26/2025 - Design re-review submission
I sorted out my components, uploaded all of the cart screenshots to github & updated my BOM with my final amount.
I also designed and finished my PCB for the remote, exported the gerber files & got a quote on JLCBPCB and uploaded the files & cart screenshot
I believe I'm ready for re-submission
2/11/2026 - PCB design process update
Added lots of more detail on the process behind designing the remote PCB for my robot. I talked about some issues I ran into as well as some design choices I made.
Repo preview:
3/9/2026 7:24 AM - Remote case in CAD
I have a few things I need to change with my robot design. This first thing was that I needed to design a simple case in CAD for my remote that has small pins that secure the PCB into place via the drill holes
3/9/2026 7:27 AM - Remote PCB re-routing
Next, I went through my remote PCB and got rid of any 90 degree bends in the routing and changed them to 45 degrees ones to improve signal integrity and to ensure my remote runs smoothly
