Atmo

A simple portable air quality meter

Created by dylan.najera dylan.najera

1 view

0 followers

Timeline

dylan.najera dylan.najera added to the journal ago

Started the connections and case

This is a project I had been wanting to do for a while, and I had even bought the parts, but I always procrastinated and never did it. Today I decided to focus and make a lot of progress. I started soldering the components, which took me a long time; they are not yet connected to the board because I plan to solder them once they are in the case. After soldering all the components, I started working on the case, which, even though it's simple, took me quite a while. Then I started looking at how it would turn out. I plan to make the bottom part transparent with acrylic or plastic; I'll figure that out later.

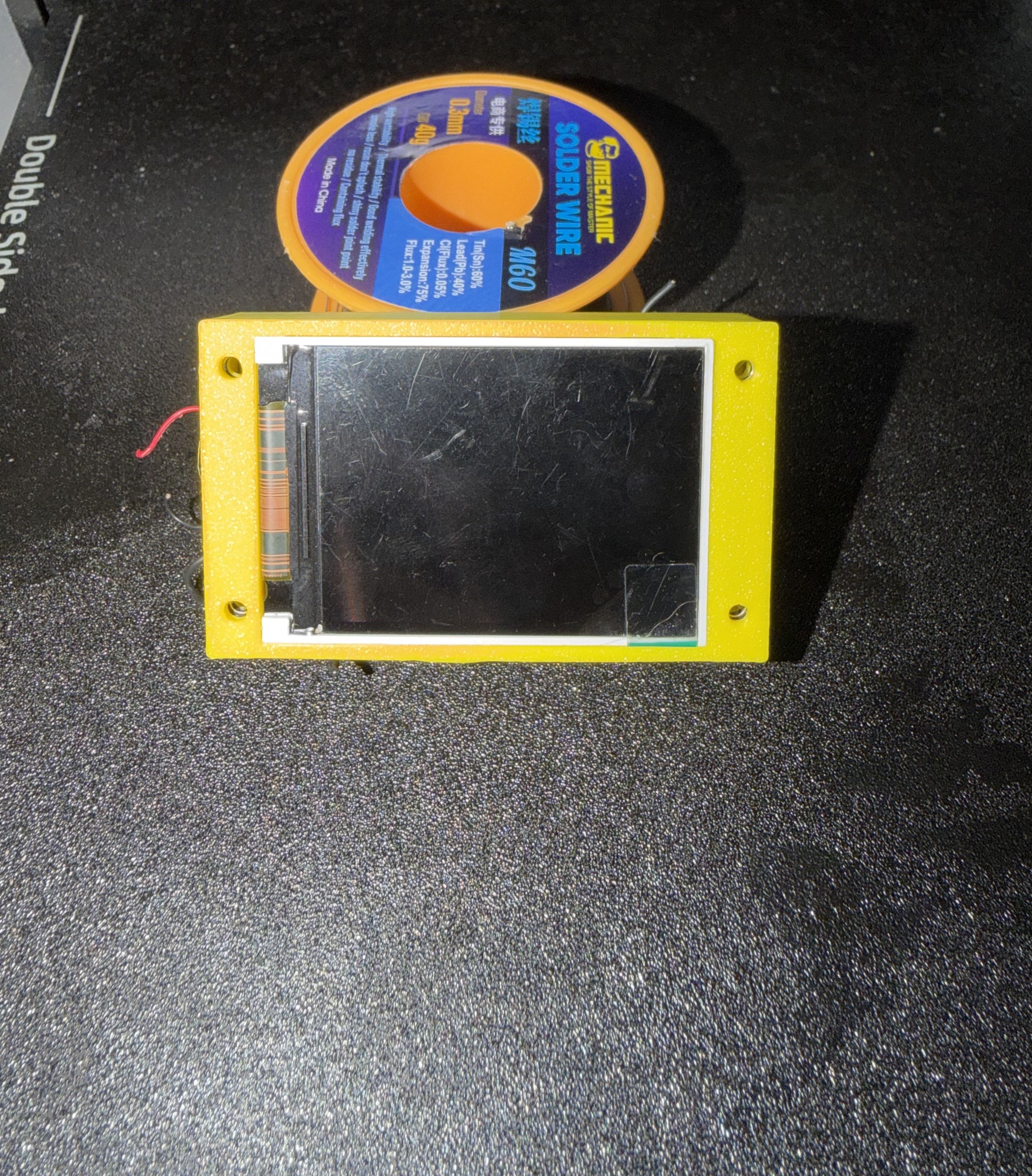

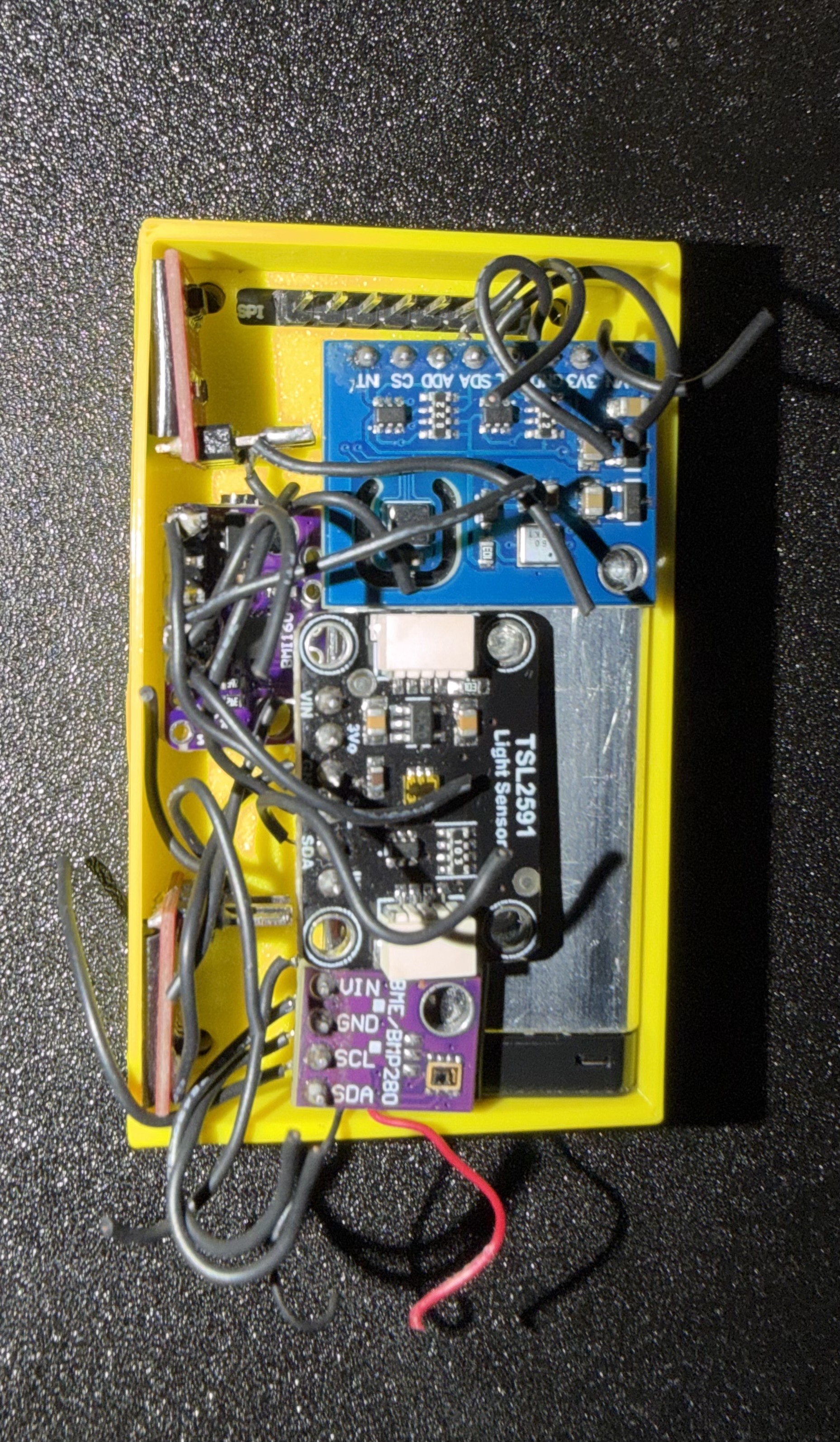

IMG_5099IMG_5098
(So far it's a complete hackjob held together with tape and hope, but I'll improve that in the future. Right now it's just to see where each component would go and then solder it to the board.)
