a ultra low profile keyboard. Name WIP.

Created by wizard maddy (manni) wizard maddy (manni) πŸš€

11 views

1 follower

View Repository No Demo Yet

Timeline

Lukas Lukas πŸš€ gave kudos to flatline ago

ts really cool

wizard maddy (manni) wizard maddy (manni) πŸš€ added to the journal ago

Made the pcb and wired it! :yay:

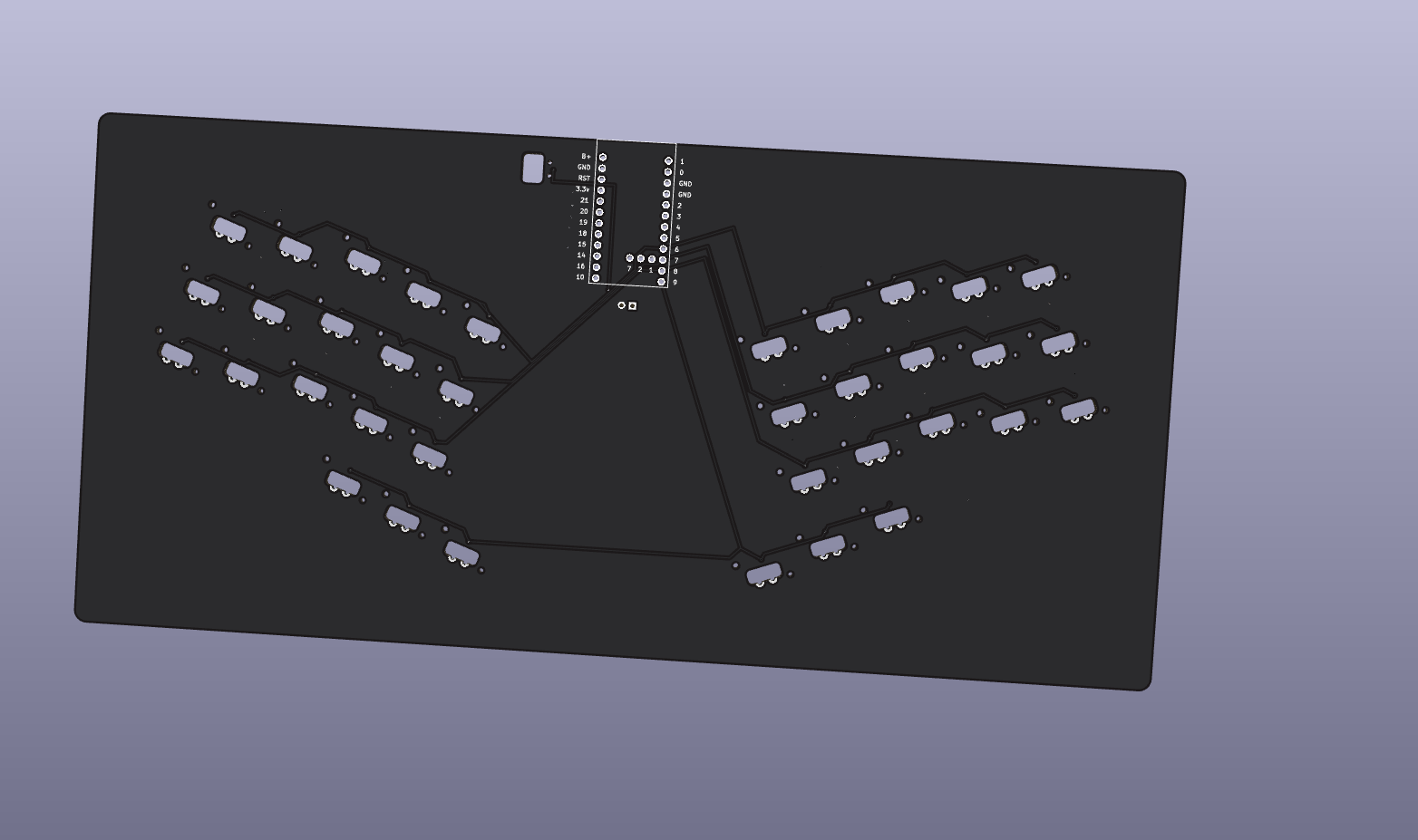

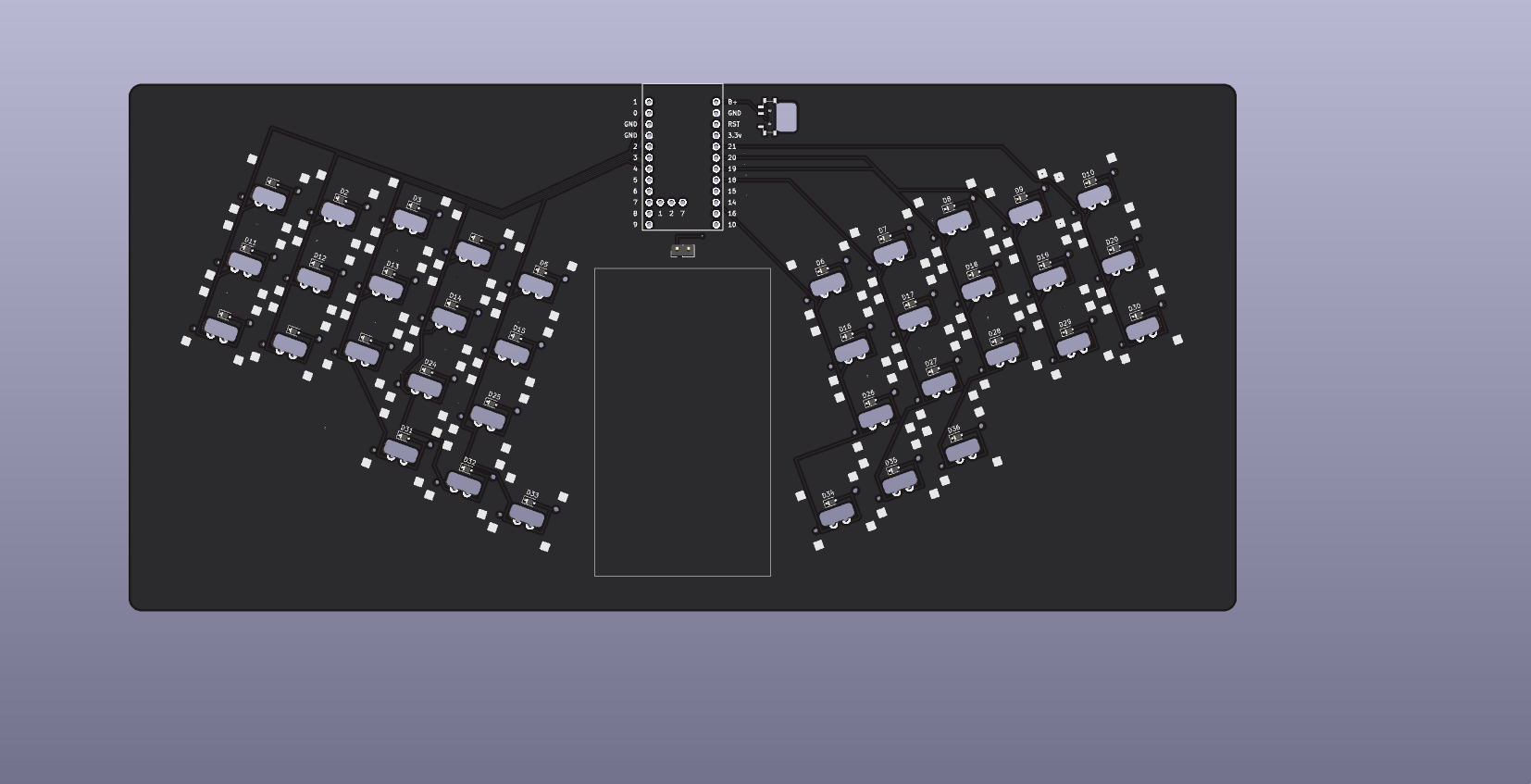

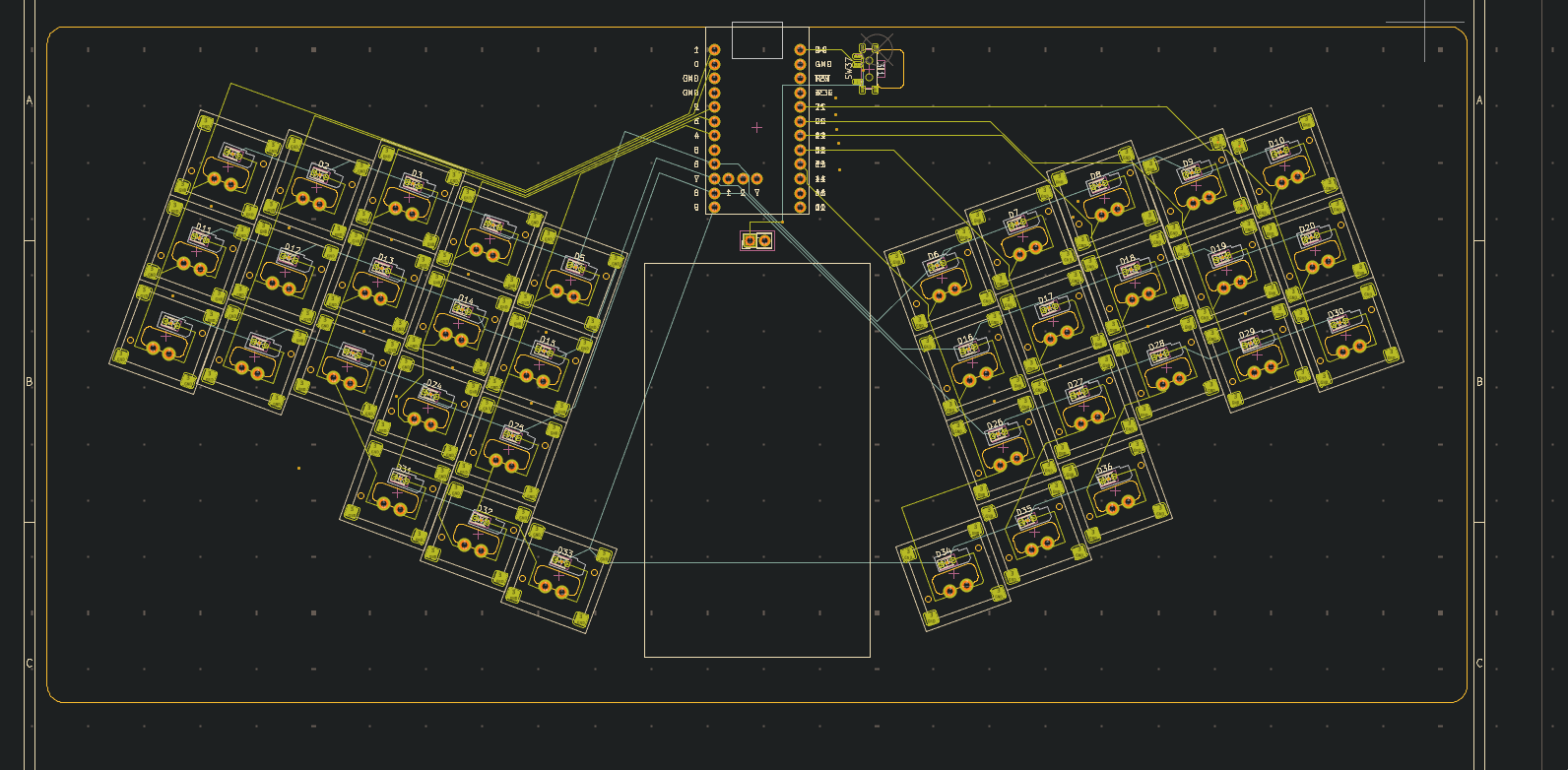

Okay, so I actually made the PCB and wired everything. The plan is to make it pretty big so it can be used on the lap, and it’s going to be really sleek and beautiful.


wizard maddy (manni) wizard maddy (manni) πŸš€ added to the journal ago

Made the schematic

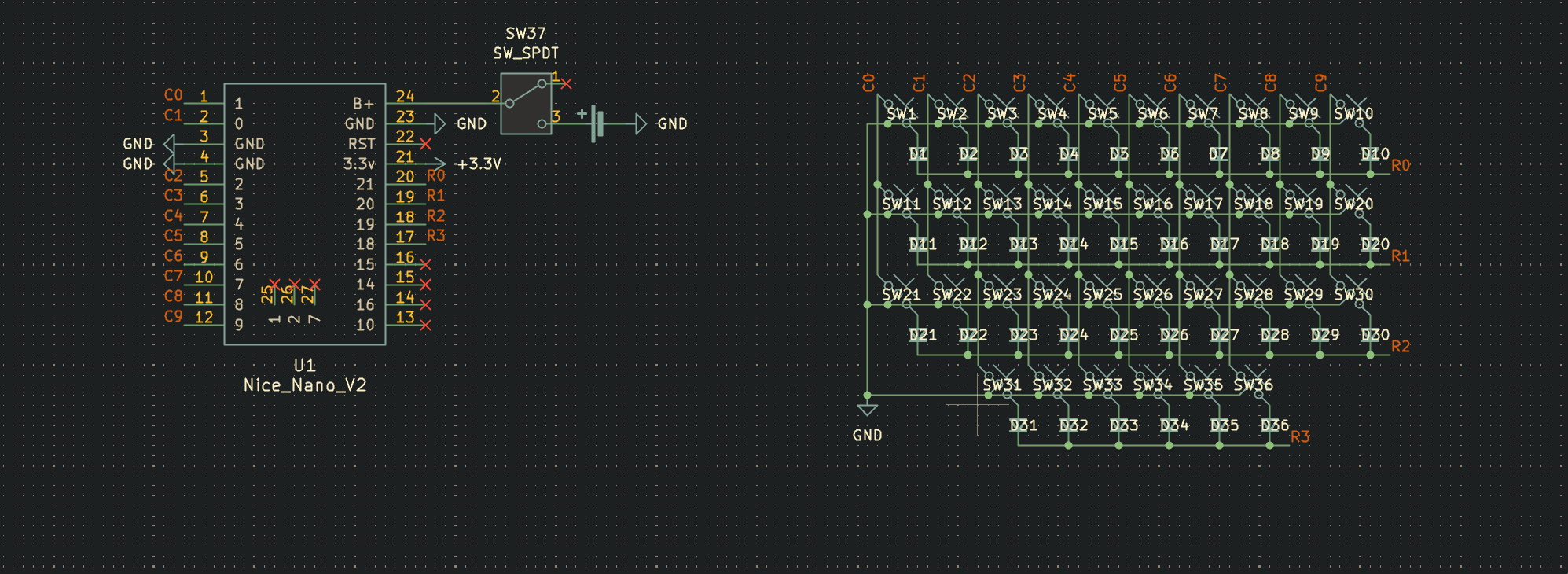

I finished the schematic yesterday. It is probably done now, but I might still make some adjustments later on. I am considering switching to a Seeed XIAO BLE. Right now, I am using a nice!nano V2. So I still need to confirm which one I will go with in the end.


wizard maddy (manni) wizard maddy (manni) πŸš€ started flatline ago
