USB Hub

A usb hub made using hackclub's tutorial for it. x1 USB A male into x4 USB A Female

Created by Alex Alex 🚀

Tier 5

136 views

1 follower

View Repository No Demo Yet

Timeline

CAN CAN ⚡🚀 approved USB Hub 10/30/2025 at 5:41 PM ago

Tickets awarded: 16 tickets

Tier: 5

Alex Alex 🚀 submitted USB Hub for review 10/27/2025 at 5:07 PM ago

Alex Alex 🚀 added to the journal 10/27/2025 at 5:02 PM ago

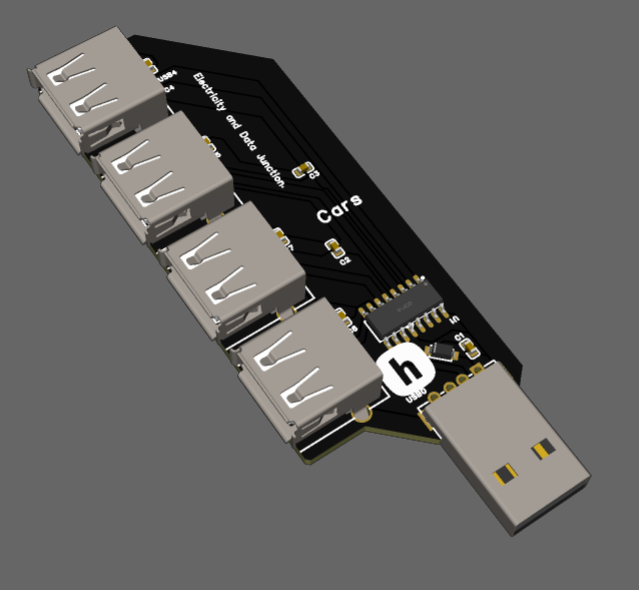

Decorated the pcb - 0.3 hrs

Added a bad joke "electricity and data junction" but this joke is "very necessary". Added hackclub logo so I always remember why I made it and "Cars" to link back to the joke mentioned prior.

Alex Alex 🚀 added to the journal 10/27/2025 at 5:01 PM ago

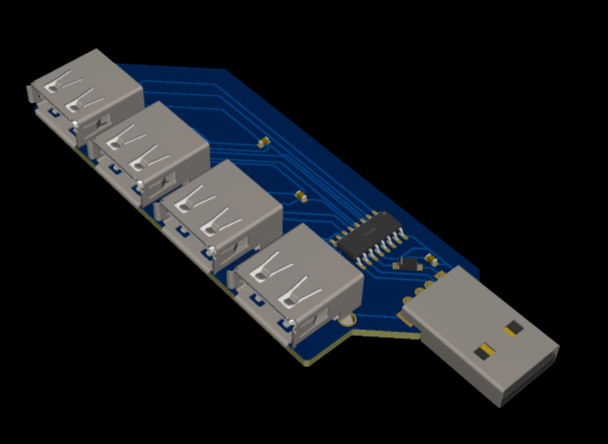

Routed the PCB - 0.7hours

Routed the pcb although not the most interesting design it should give the ports the least strain when weight placed on the by putting on one side, also increases user accessibility.

Alex Alex 🚀 added to the journal 10/27/2025 at 4:49 PM ago

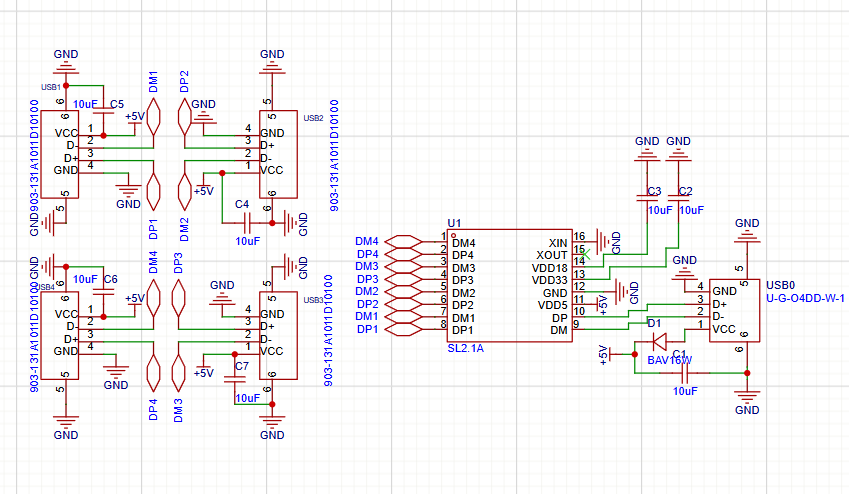

Research + Schematic 1 hr

Read through hackclub's usb 2.0 usb_hub tutorial. Followed along and deviated at some points. Such as using double the usb ports and using a different diode.

Alex Alex 🚀 started USB Hub 10/27/2025 at 4:47 PM ago
