Lysergic
End-all be-all keyboard. It has color displays integrated into its keycaps, analog buttons with haptic feedback, gesture enabled space bar, clear dials with displays hidden behind them, a large configuration screen, and USB-C and Bluetooth connectivity. Planned: Use pogo pins to connect different modules over i2c with (hopefully) incredibly strong magnets.
Created by
femur dev
5 views
0 followers
Timeline
femur dev
added to the journal ago
I made a pcb
I made the pcb to adapt from the strange .65 mm pitch of the displays to a standard 1mm pitch cable. Only issue is that all cheap flex pcb (FPC) services are not producing anything. This project unfortunately has to be shelved for this reason. I contacted one and was quoted 1200 for ten of them, so no, I will not be presuing this further.

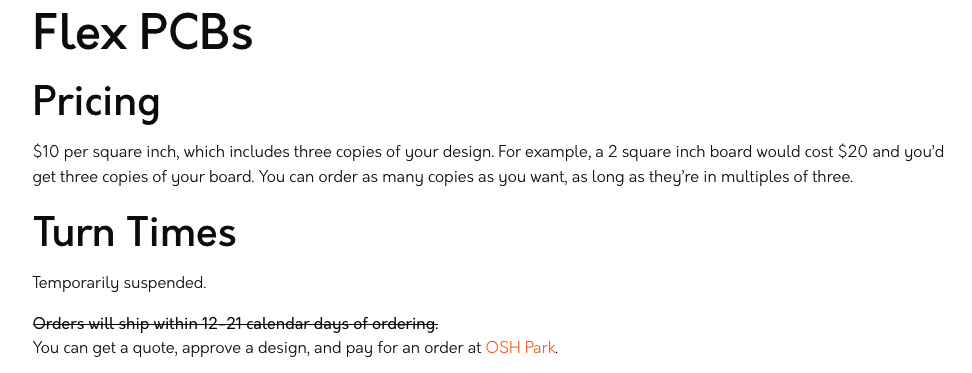

A good cheap producer that I'm waiting on
femur dev
added to the journal ago
Created keycap

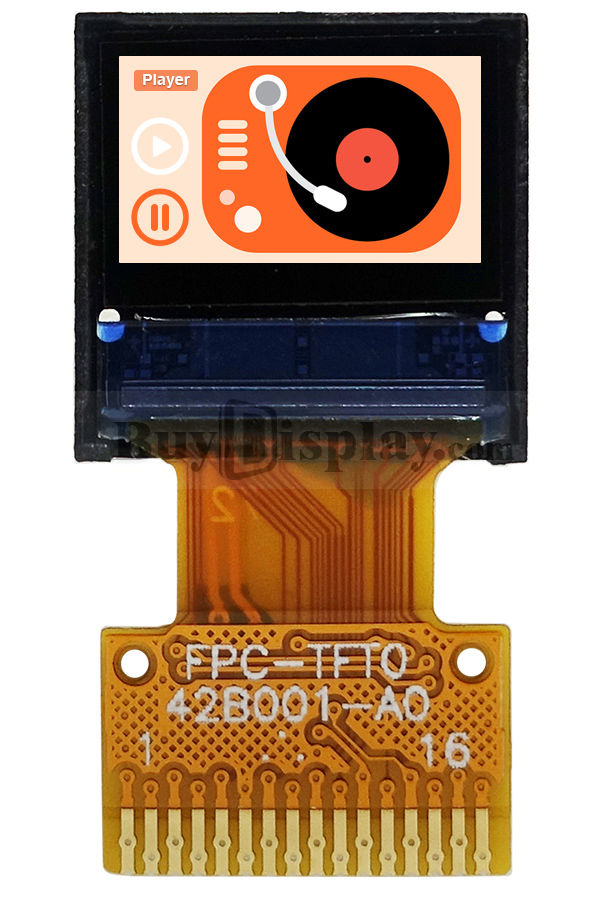

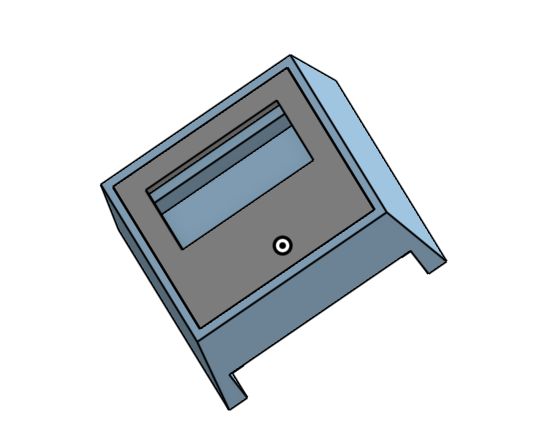

Drafted all variations of keycap in on shape. Mulled over the options for far too long before settling on a cool .42" display to be embedded. Here's the key and display.
femur dev
started Lysergic ago
