Simple Logic Gate Simulator using Arduino Nano I'm studying industrial automation, so I figured something like this would be useful, especially since Boolean algebra is important in automation. The project didn't take long and is interesting.
Created by
Jadamek1337
Tier 5
60 views
0 followers
Timeline
Minhaz Abedin
gave kudos to Logic Gates Simulator ago
Wow that looks super cool!
CAN ⚡🚀
approved Logic Gates Simulator ago
Tickets awarded: 24 tickets
Tier: 5
Jadamek1337
submitted Logic Gates Simulator for review ago
Jadamek1337
added to the journal ago
Bug fixes
I tried simulating my project in a simulation program and found a few bugs that I quickly fixed. This wasn't too difficult either. Next time, I'll have to be more careful with pinout and code details.

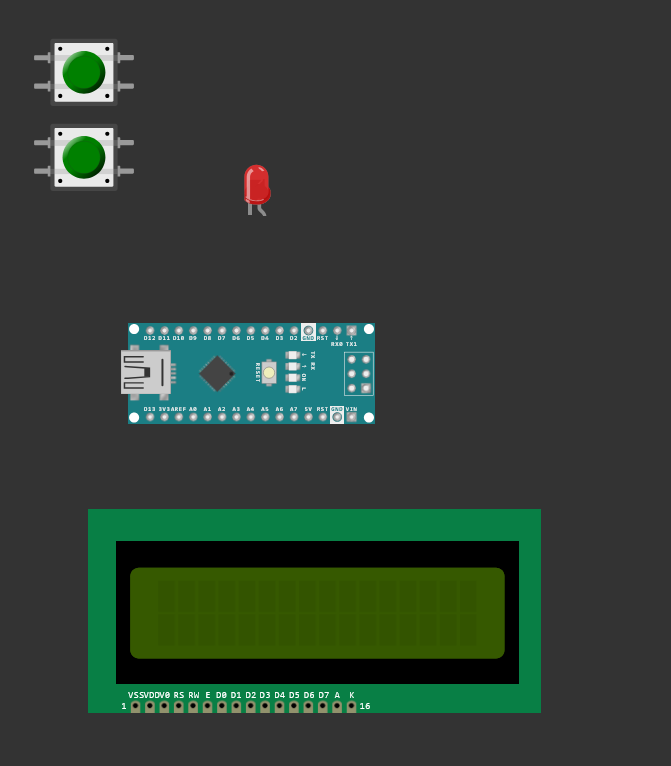

Below is a screenshot from the beginning of work, when I didn't know how many stupid mistakes I made lol
Jadamek1337
added to the journal ago

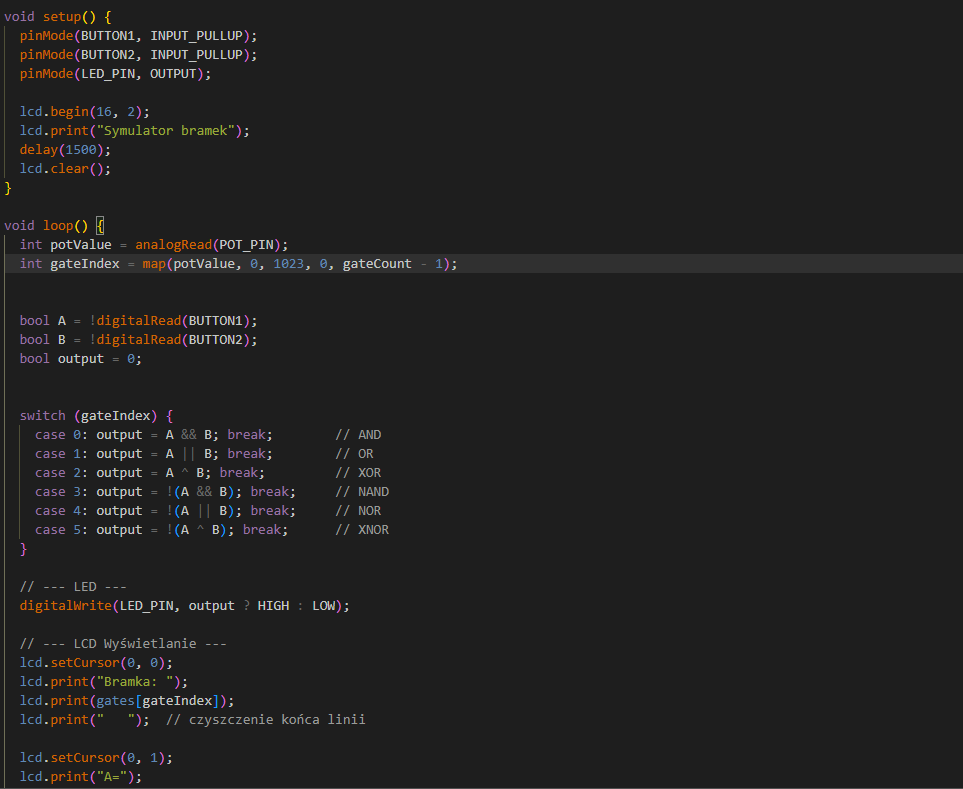

Programming Filmware
I love programming, so it didn't take me long. The problems were minor and I easily solved them. I expanded my knowledge, trained my fingers, and practiced my English by reading the documentation.
Jadamek1337
added to the journal ago
Just Making PCB and looking for components
The project itself is very easy and doesn't require a case. The PCB didn't take long, but the programming took longer. I enjoyed working on this project.
A big problem for me was assigning footprints, which I had never done without internet knowledge, I wanted to understand it myself
Jadamek1337
started Logic Gates Simulator ago
