2/21/2026 - I added all the parts needed for now

Ok so I accidentally deleted my first journal writing. So I will explain it briefly. I added the basic components needed and shown in the tutorial however I will add my own custom parts like idk. maybe leds but we will see if it will be worth it because if I understood the tutorial correctly the flight controller will be placed in a rocket so I don't think the leds will be visible.

About the time... I don't know how long it took me so I will just give an hour thirty minutes because I had to do lots of trouble shooting and I worked on this multiple days because of school. If my work tempo stays like this I might not finish this in time so I have to speed things up :)

2/25/2026 - I routed a part (Forgot the name)

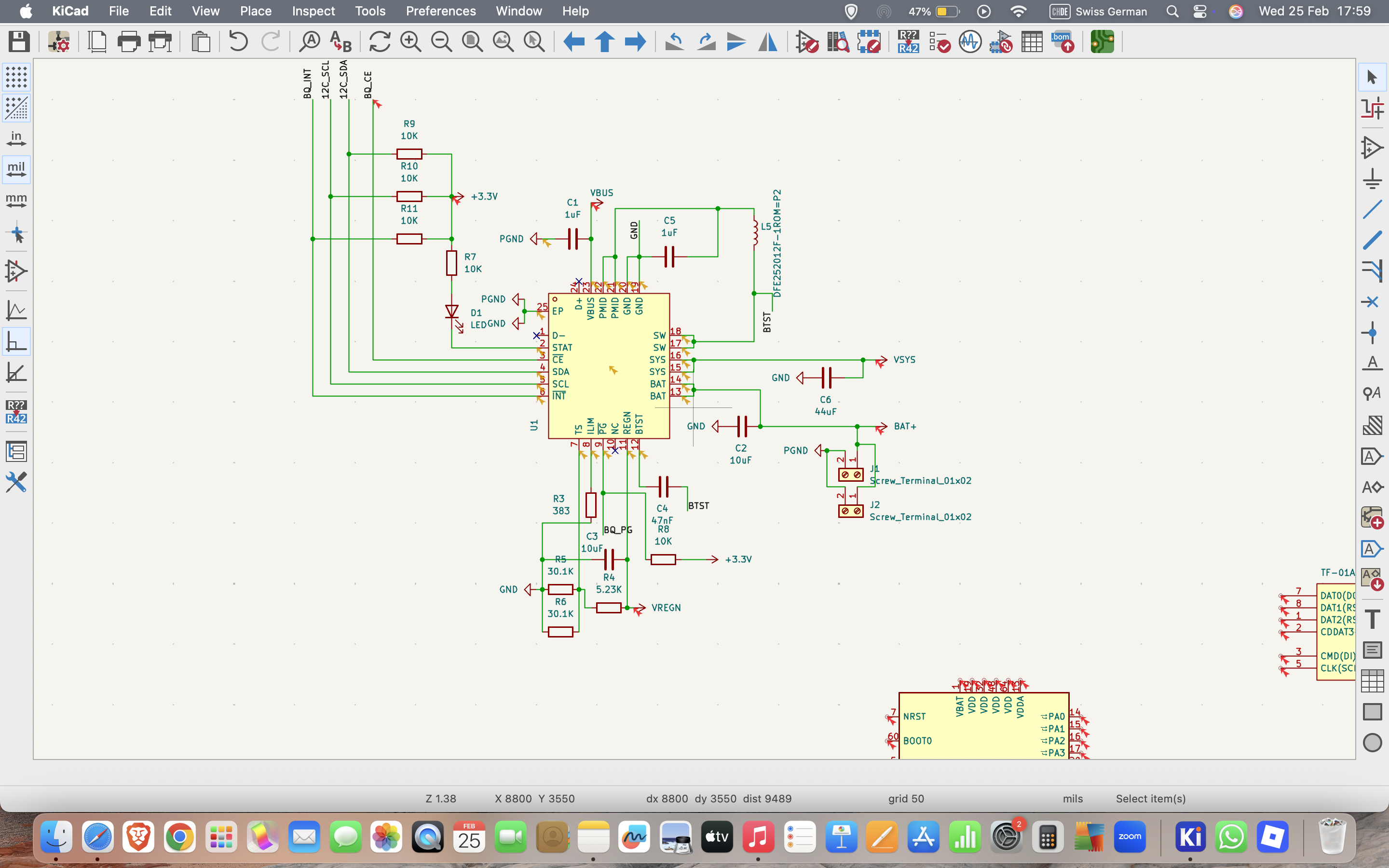

I did as in the tutorial and I routed two parts. I don't know their name but yeah. I added another screw terminal which will serve as a battery terminal. I added them in parallel to increase the builds energy storage capacity ![Screenshot 2026-02-25 at 17.59.30](/user-

attachments/blobs/proxy/eyJfcmFpbHMiOnsiZGF0YSI6MTExMzM0LCJwdXIiOiJibG9iX2lkIn19--bb9d9dfa3c996ecb11a2580ff73584eccbec5f2b/Screenshot%202026-02-25%20at%2017.59.30.png)

3/3/2026 - I routed some parts (I really need to memorise their name)

Ok... So now I followed the tutorial exactly as I didn't want to mess anything up I uploaded my photos to the slack blueprint channel to see if somebody would be willing to check my work. Again I worked on this multiple days because of exams so the time is an estimate thanks you :)

3/8/2026 - I routed some parts

I routed some parts like in the tutorial after I finish the tutorial schematic I will try to add some leds maybe or some other parts to make it original. .
