555 Chaser

I'm following a guide from a glove workshop regarding blinky LED chaser board.

Created by Jay Jay 🚀

Tier 5

2 views

0 followers

Timeline

CAN CAN ⚡🚀 approved 555 Chaser ago

Jay Jay 🚀 submitted 555 Chaser for review ago

Jay Jay 🚀 added to the journal ago

I just made the pcb :)))

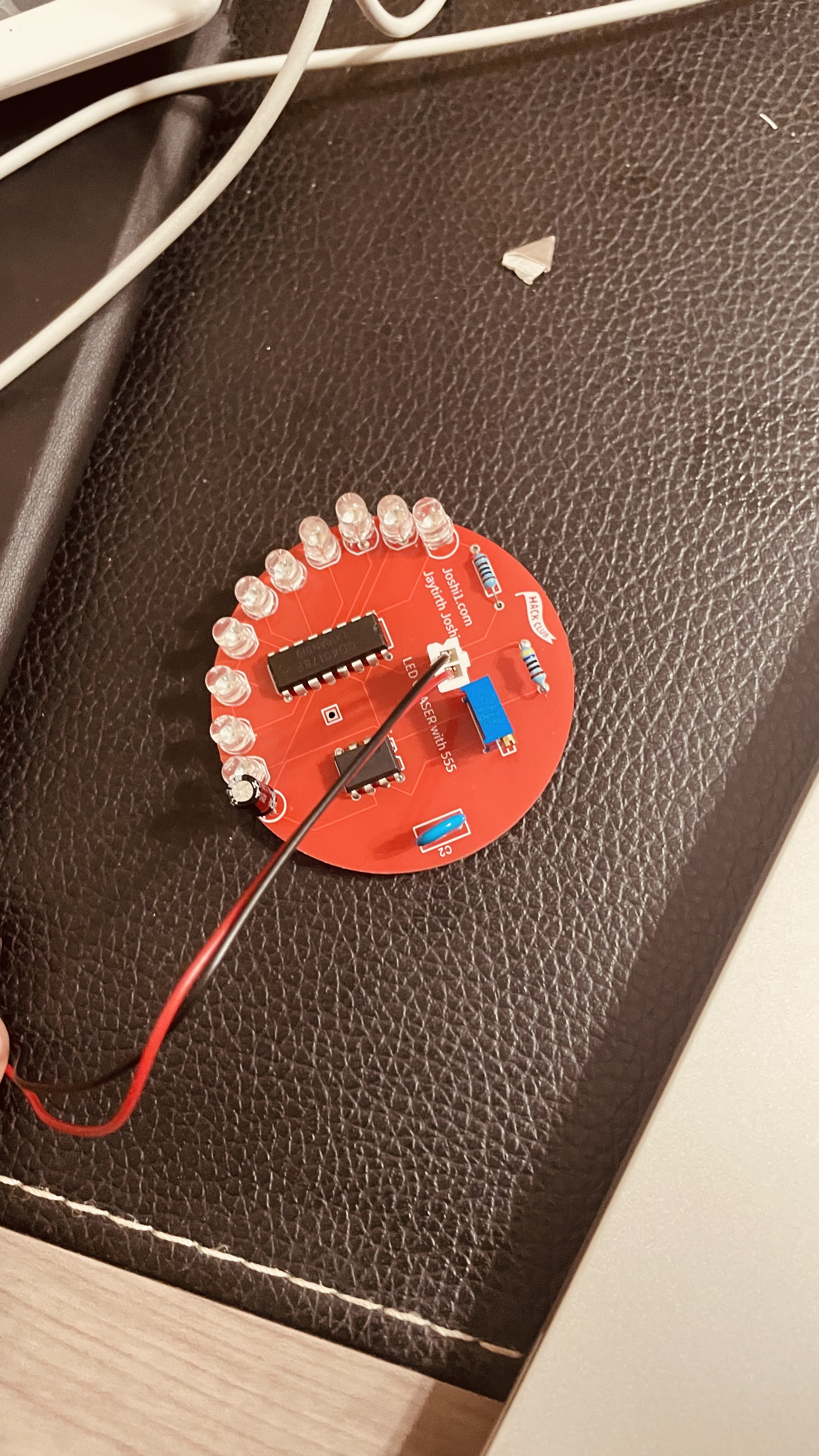

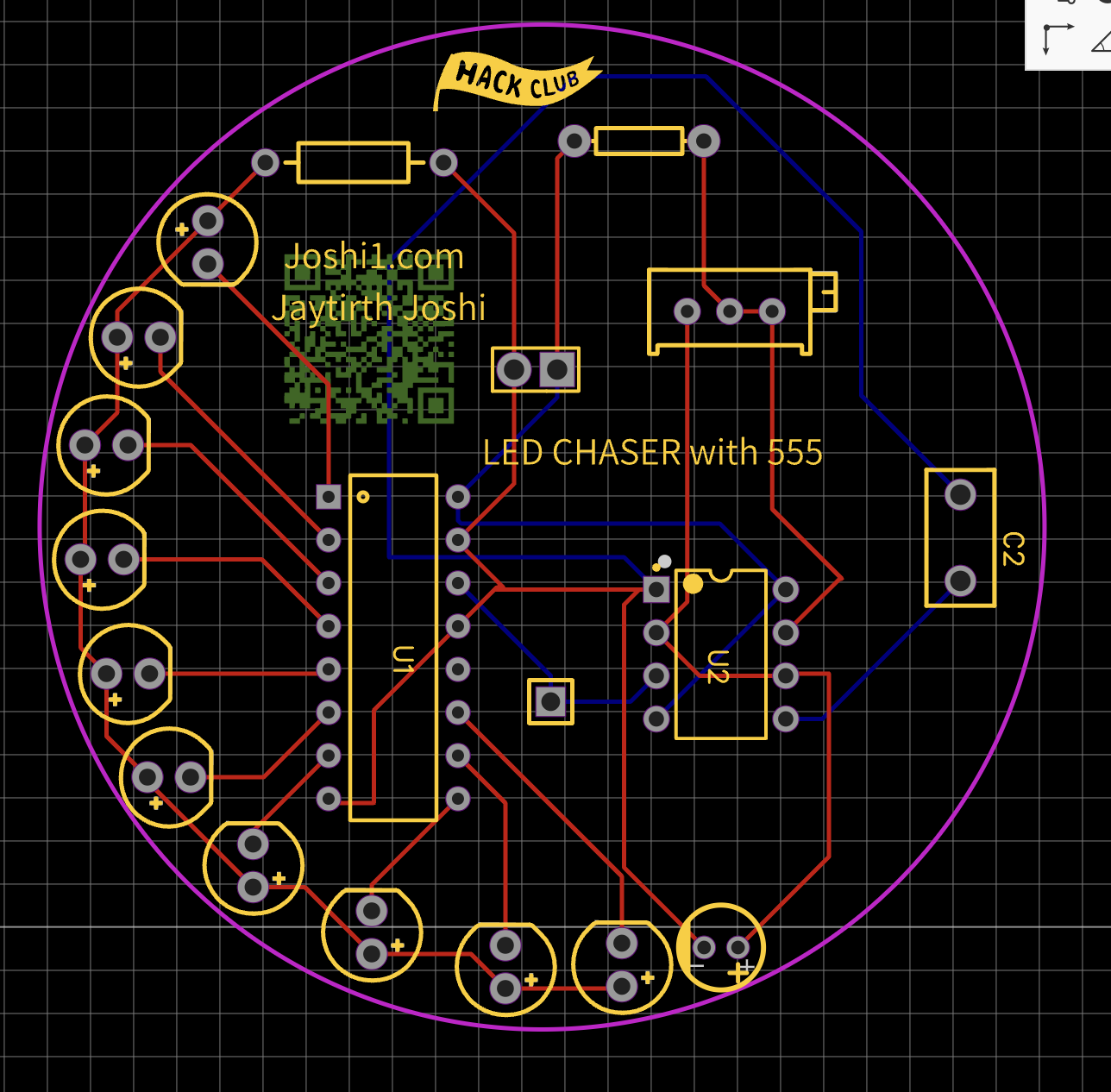

Just finished designing my PCB. Adding a photo below added a lot of design elements and really how I learned how to use tools in EasyEDA. I did follow the guide, but it's a circular shape. The wiring was really confusing to do though. Screenshot 2025-11-02 at 2.07.06 PM
