Honeycomb game console

Features cartridges that use EEPROM. Runs on a raspberry pi pico and uses the python coding language to write and read games.

Created by Aahmel gatlin Aahmel gatlin

92 views

1 follower

View Repository No Demo Yet

Timeline

Aahmel gatlin Aahmel gatlin added to the journal ago

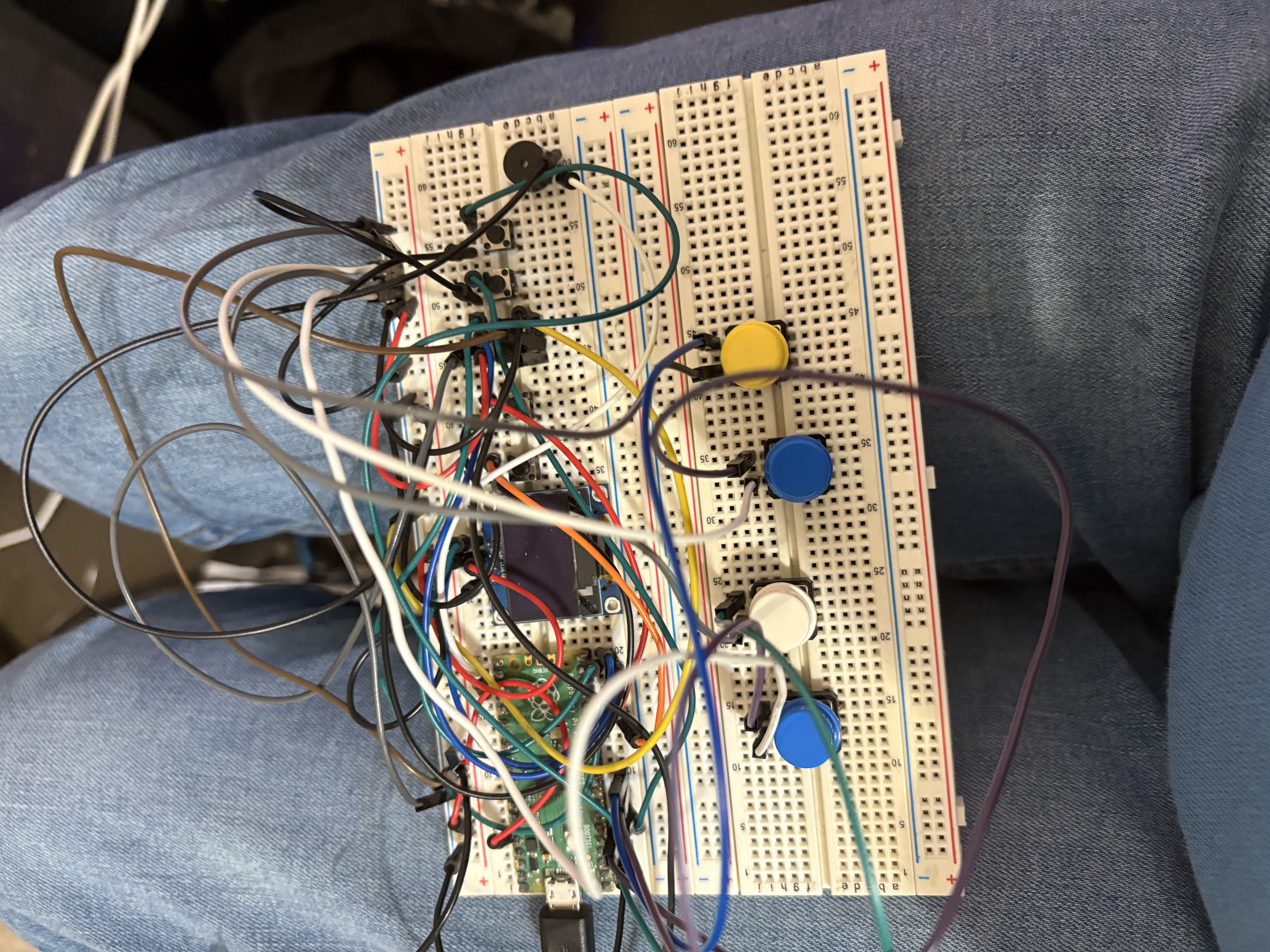

Late prototype submission

I was out for the week, small vacation. So sorry for this late submission! And the last one (i already forgot but i think it was the blueprint.) i will try to make up for it but all i have at the moment is this picture of the prototypeIMG_3893

Aahmel gatlin Aahmel gatlin added to the journal ago

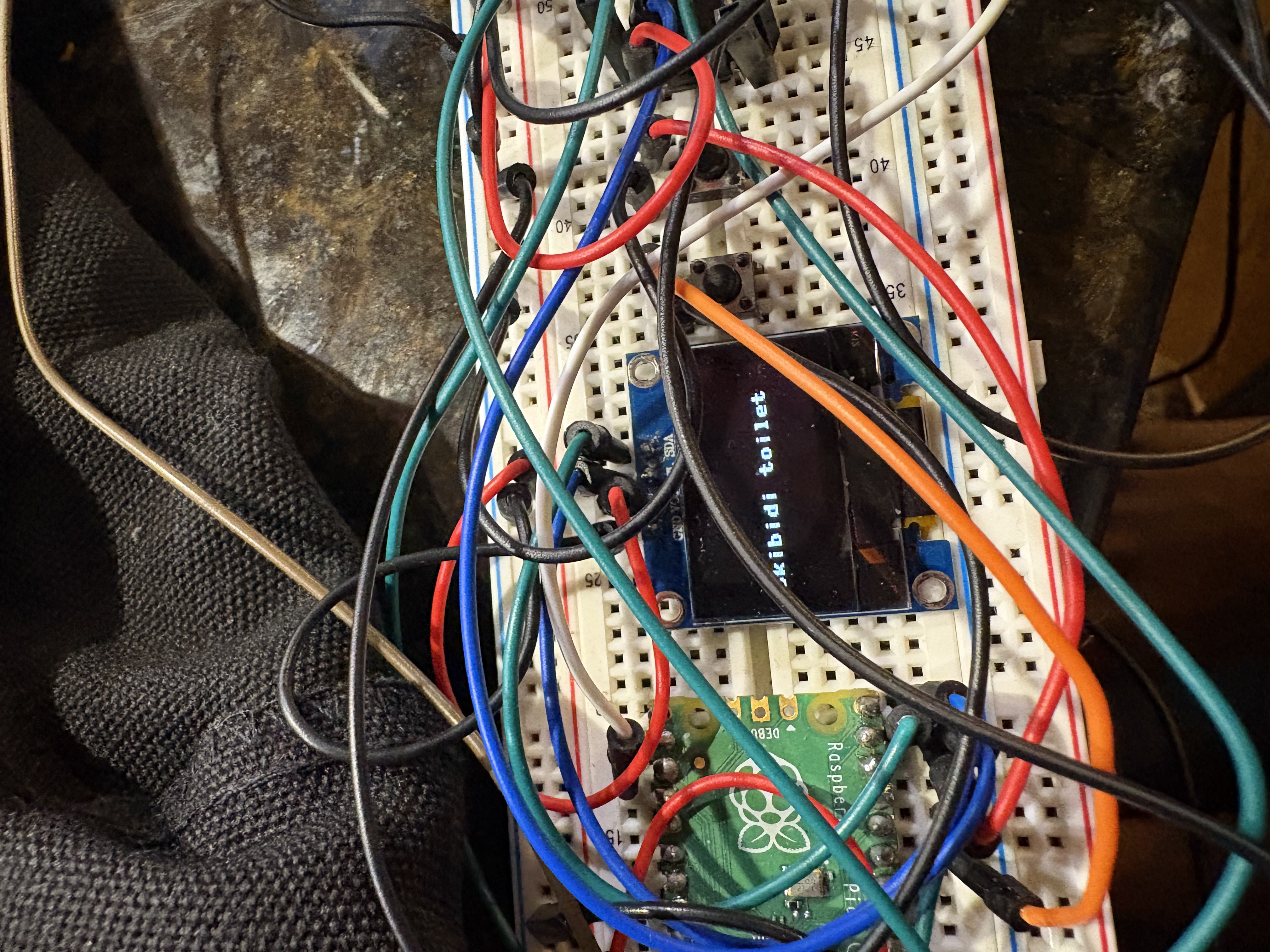

Text didnt show up for some reason

Yippity yap yap, just fixing the mistake with my last image. Text didnt really show up when i sent that last picture. Sorry! Now i have to make up 150 extra characters cause i wasnt careful.IMG_3229

Aahmel gatlin Aahmel gatlin added to the journal ago

Got the cartridge somewhat working

It writes whatever text i want it to write, and then the main file reads it. Its not much but its honest work. Soon i’ll have 5 games. After that i’ll work on miscellaneous (i think thats how you spell it) stuff like multiplayer and bluetooth support. I am almost doneIMG_3228
with this project, and it only took like a month. Thanks to the 17 people who viewed and the 1 person that followed. Really means a lot!

Aahmel gatlin Aahmel gatlin added to the journal ago

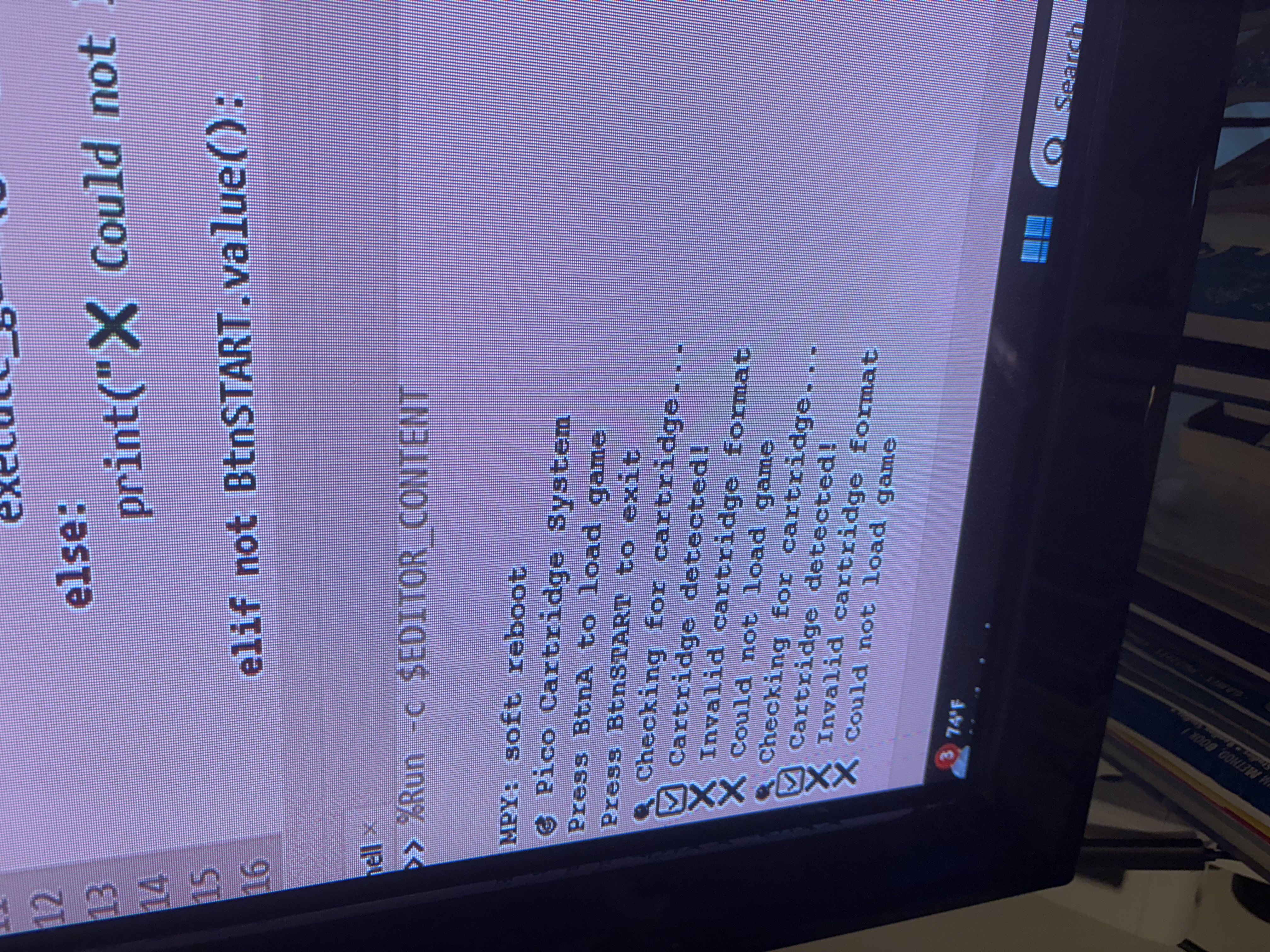

Fixing my hours

Nothing special to add here, i realized i read the time thing wrong. So i have to write 150 characters and post a random image. Truly sorry for my mistake. This is meant to fix the gap between the FIRST and SECOND updates.IMG_3008

Aahmel gatlin Aahmel gatlin added to the journal ago

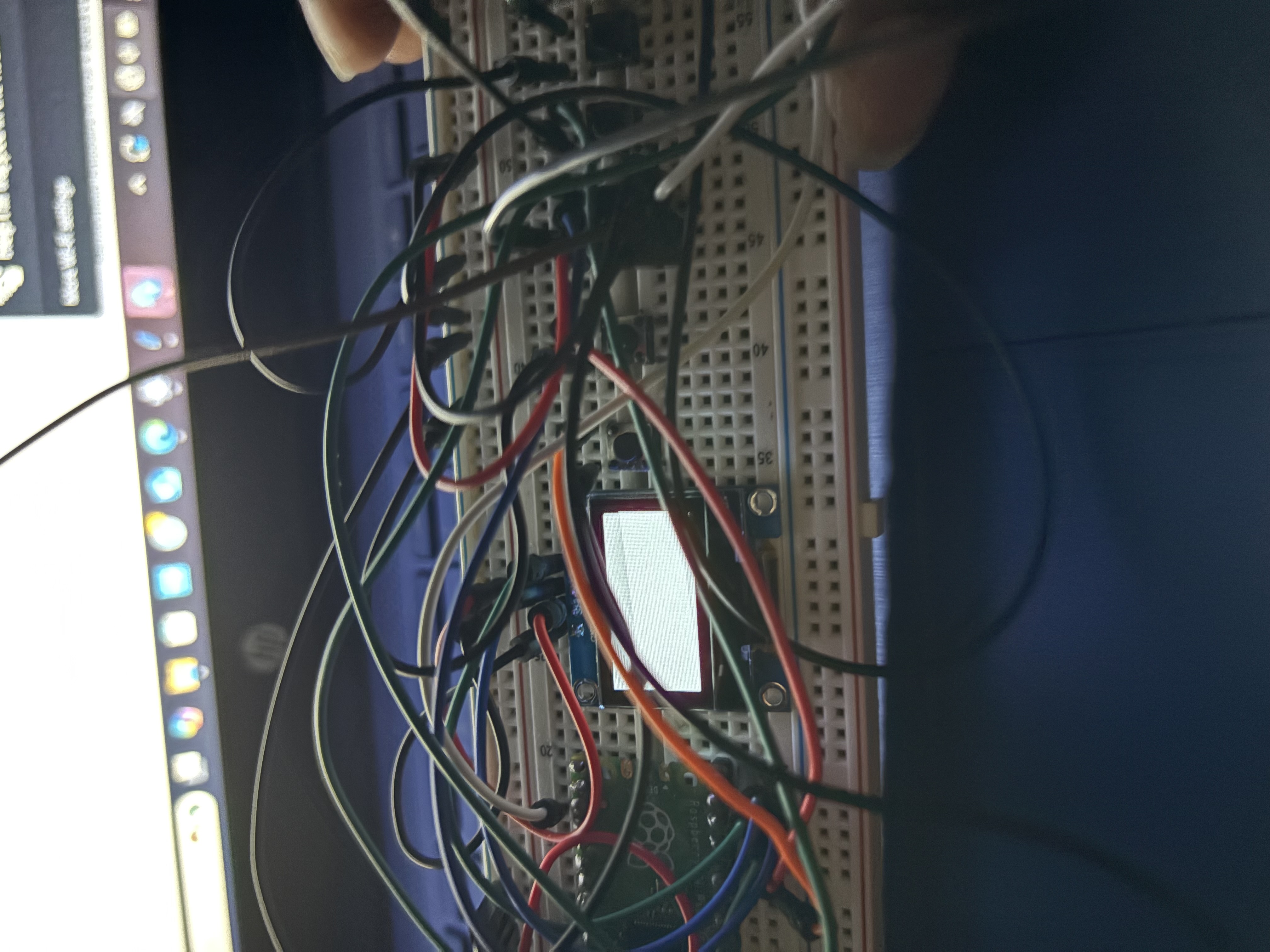

Finally added a screen

The screen took a while to arrive in the mail. But i finally got it. I will run a few tests on there. While i’ve been doing that i’ve also been researching how the cartridge will work.IMG_3084

Aahmel gatlin Aahmel gatlin added to the journal ago

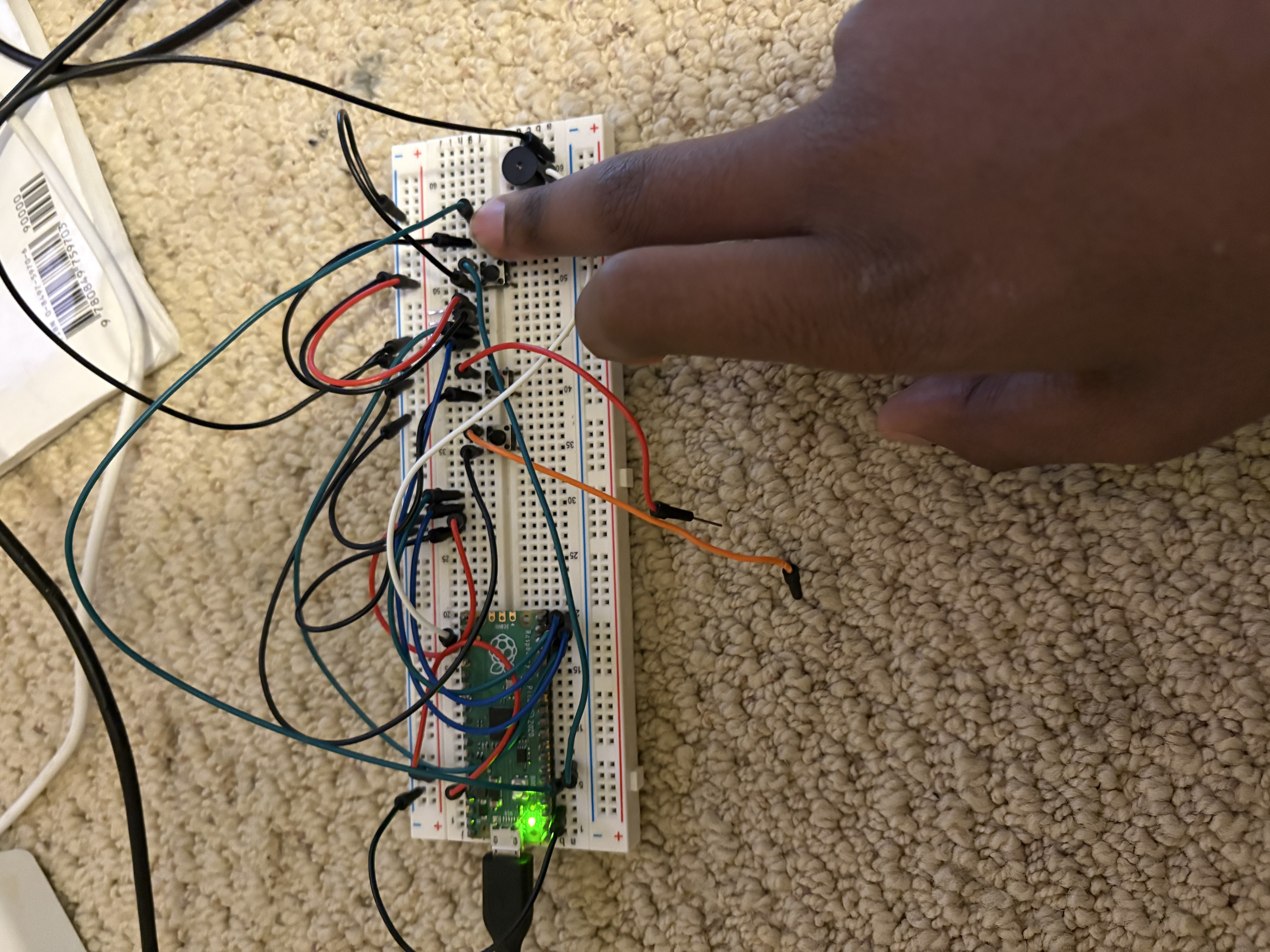

Made the buttons and sound work

Got the buttons and sound to work. Now working on reading data from EEPROMS and putting them on the pico. First game i’ll test is rock paper scissors since i dont have a screen yet.IMG_3007

Aahmel gatlin Aahmel gatlin added to the journal ago

Laid out the materials. Started connecting some things.

Laid out everything but im missing the screen. So far i have: main board (rpi pico), a buzzer (for sound), some buttons, the EEPROM, and the cartridge pins. Planning on using one of those OLED screens with four pins.IMG_2891

Aahmel gatlin Aahmel gatlin started Honeycomb game console ago
