Firefly
a small fpv tinywhoop drone with a totally custom frame!
Created by
Lukas 🚀
Tier 4
22 views
1 follower
Timeline
Tanook 🚀
requested changes for Firefly ago
Hi! Sorry, you would have to design the controller to buy it :/
Lukas 🚀
submitted Firefly for review ago
1Mon
requested changes for Firefly ago
please make sure your cart screenshot includes the entire cart with each item your buying
Lukas 🚀
submitted Firefly for review ago
samliu ⚡🚀
requested changes for Firefly ago
Returning so you can edit it!
Lukas 🚀
submitted Firefly for review ago
Nachu Thenappan 🚀
requested changes for Firefly ago
Hi, it looks like cart screenshots aren't uploaded now could you add them?
Lukas 🚀
submitted Firefly for review ago
technical_.
requested changes for Firefly ago
Did you mistakenly put different pictures for your cart screenshots? I only see 3d renders of the drone...
Lukas 🚀
submitted Firefly for review ago
technical_.
requested changes for Firefly ago
Hey Lukas, this seems like a really cool project, but there isn't enough hardware complexity to give you a tier three. All I see is that you are fabricating the frame, and buying premade modules from different sites. This would be considered in the tier four range. Please optimize your BOM, or increase hardware complexity. A good way to get tier three is by making your own custom flight computer!
Lukas 🚀
submitted Firefly for review ago
Lukas 🚀
added to the journal ago
Made camera attachement
Wrote the README so i can submit!! for that i made this:
- Made a BOM in markdown and .csv format.
- Rendered images in Fusion.
- Exported files from Fusion.
- Wrote general README
Lukas 🚀
added to the journal ago

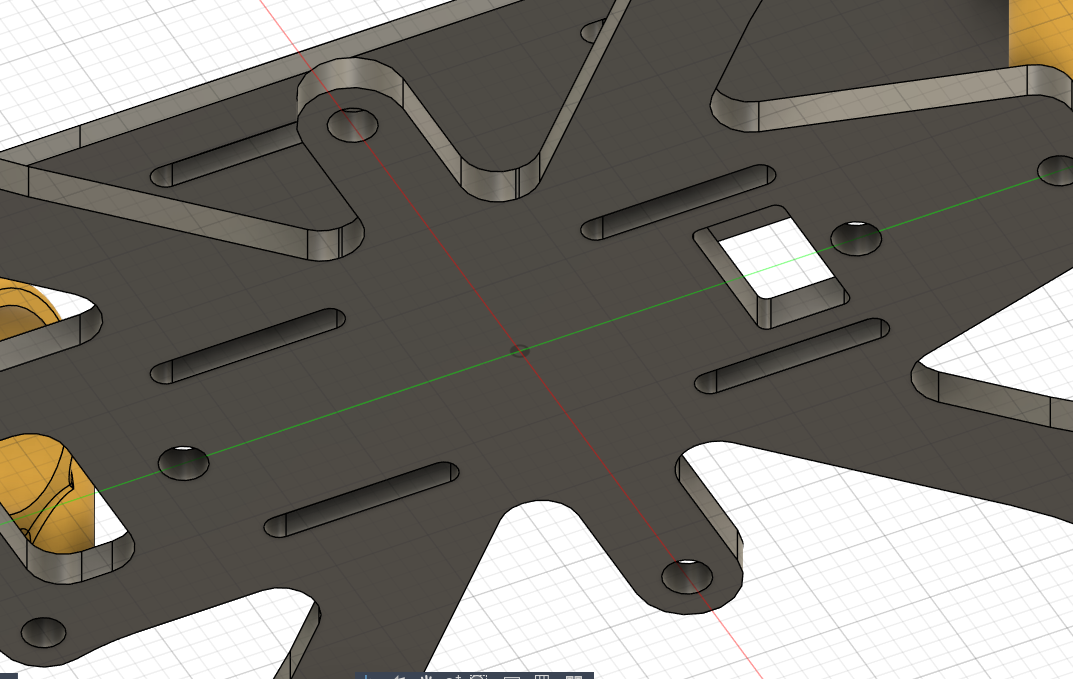

Small changes
There are some other small changes that i did:
- added a hole for the JST connector that there is on the FC (Flight Controller) so you can connect it to the computer and i think it should work
- the other 4 holes i made them more together and these holes are to hold the battery so i pass 2 small Velcro straps and it holds the battery together and there also are holes in the top panel because like that you can choose if you use the battery in the top or bottom with changing the battery like that you can change the feel of the drone
Lukas 🚀
added to the journal ago

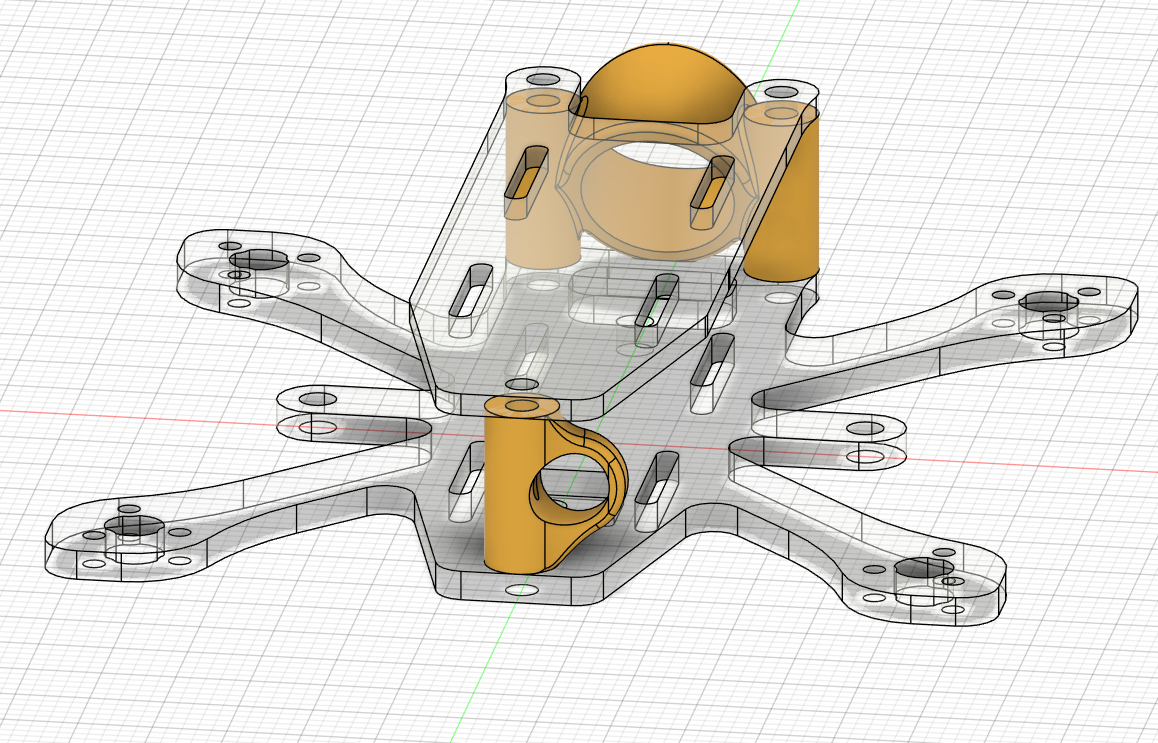

Made antena holder
So i just fastly made a thing to hold the antenna so it wouldn't just stay dangling there so i made this really sim
ple but good attachment for it and i think it turned out great
Lukas 🚀
added to the journal ago

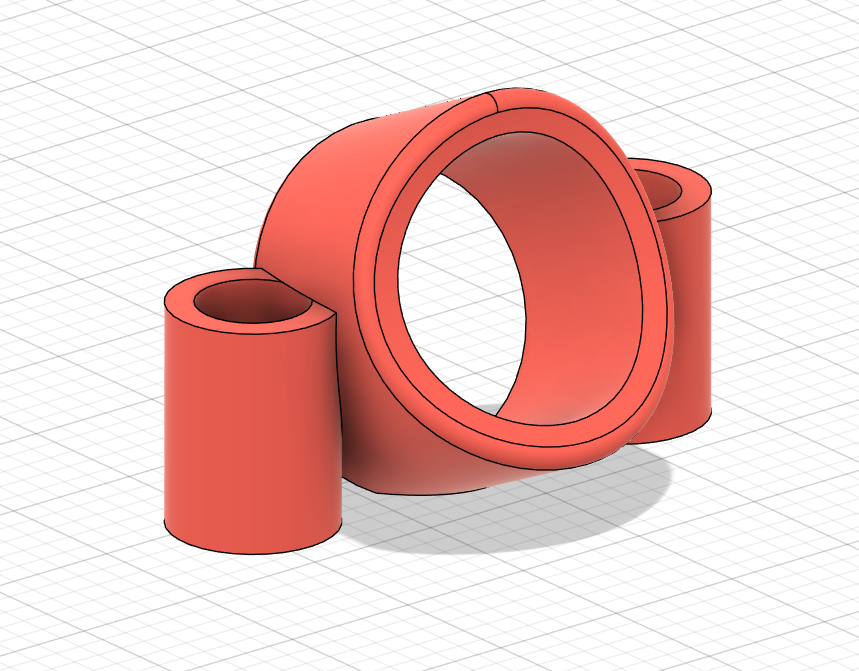

Made camera attachement better!
I made the camera attachment better by making the standoffs bigger so they are only 1 standoff instead of two (this makes sense for me :hdheavysob:) and made somethings a bit more bigger so when printed i dont have to sand stuff
Lukas 🚀
added to the journal ago

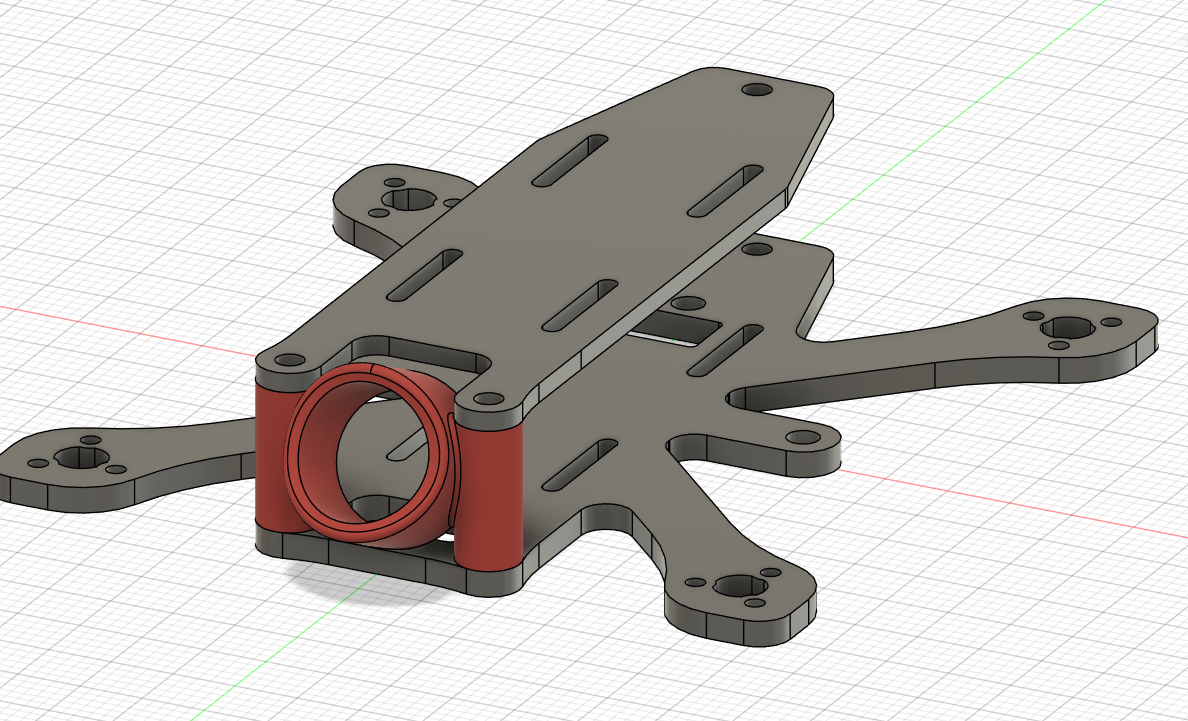

Made camera attachement
Made this really cool attachment for the camera and i think it turned out great! i already printed a version that half worked and the one on the image is the new version which i'm pretty sure will work perfectly
Lukas 🚀
added to the journal ago

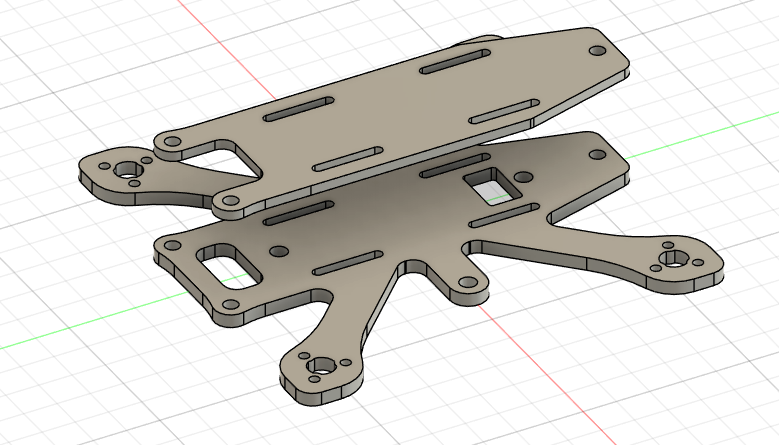

NEW design!
So i actually went with the second idea that i had for the frame shape and i'm quite happy with it still need to make a few changes its too small in one of the directions but it is soo cool im loving it
Lukas 🚀
added to the journal ago
Started on the frame
I started on the frame i already had some ideas on how i wanted it to look like even tho i already have a shape of the frame i have a totally different frame idea not sure on which design i'm going for so yeah that concludes the day
Lukas 🚀
started Firefly ago
