NFC Hacker Card
This is a NFC hacker card made by following a guide on hackclub jams.
Created by
Hashim 🚀
Tier 5
1 view
0 followers
Timeline
CAN ⚡🚀
requested changes for NFC Hacker Card ago
For a hackercard, signifigant custom art is required.
Hashim 🚀
submitted NFC Hacker Card for review ago
Hashim 🚀
added to the journal ago
BOM and stuff

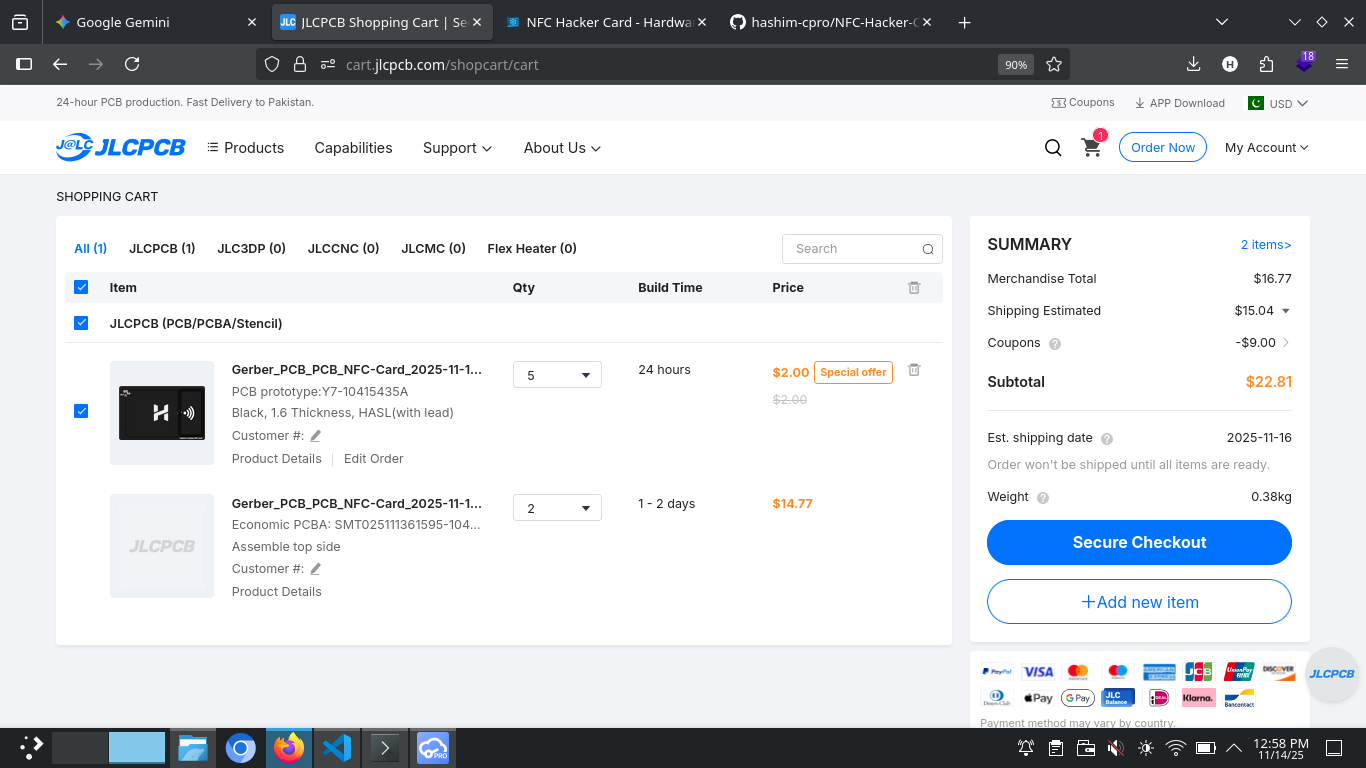

So just made the BOM and stuff and surprisingly if i get PCBA, that would be cheaper then ordering the parts and PCB separately because of shipping fees. (i will have to pay separate shipping fee for pcb and for parts as well which will increase the cost) This is why PCBA is cheaper. I can get 2 PCBA's for $22.81
Hashim 🚀
added to the journal ago
Completed the project!

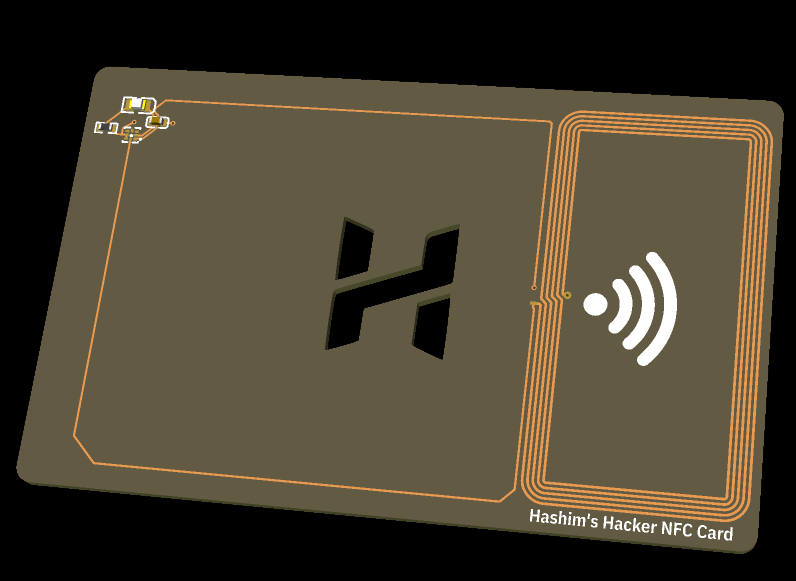

Finished up with having a cutout of a custom logo in the middle of the board and custom silkscreen. it is sized just like a normal atm card and isn't that beautiful?
Hashim 🚀
added to the journal ago
Migration and it's struggles

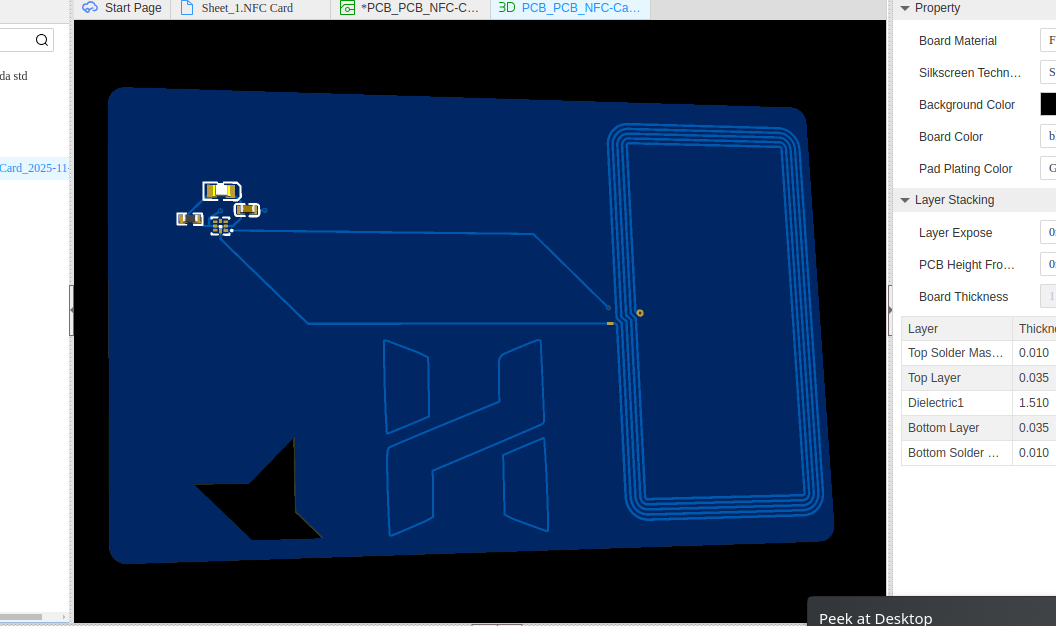

Moved the project over to easyeda pro because i wanna add custom shaped cutouts by just importing DXF files, i didn't find a way to do it in the std version and also for a while in pro version :pf but i get it now, thanks to the forum. Now i can start putting my custom designs on the PCB.
Hashim 🚀
added to the journal ago

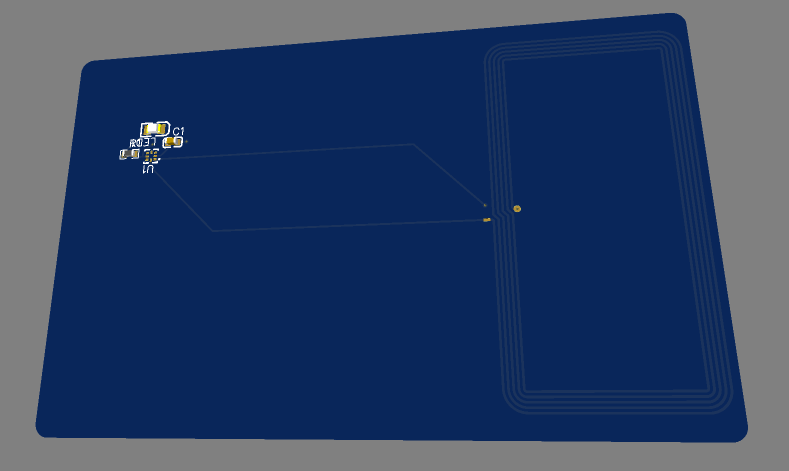

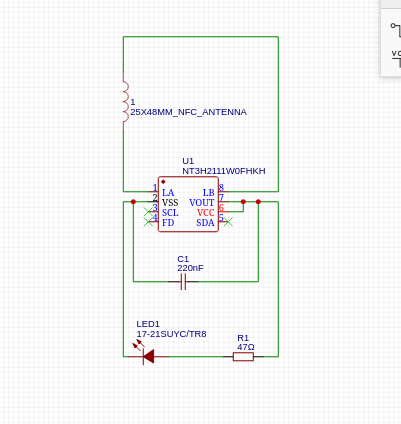

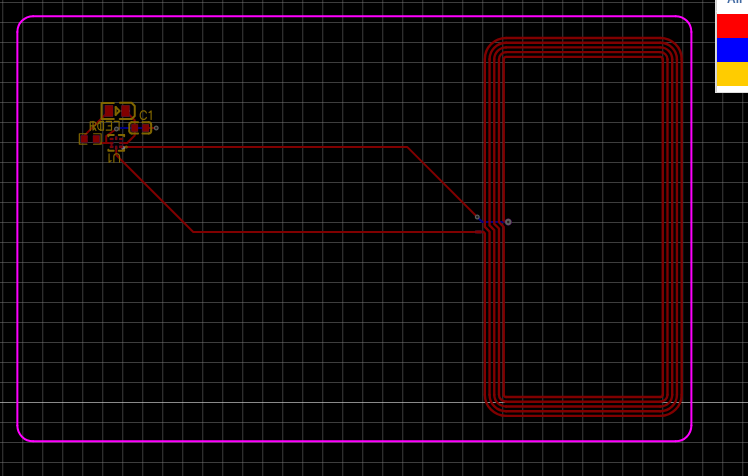

Made the Schematics and Routed the PCB
So i just started it and made the schematics and also made the PCB and routed everything together. Now it's time that i start to customize it. I have some ideas that i would like to implement on it.
Hashim 🚀
started NFC Hacker Card ago
