PicoKey
Tiny FIDO key (Ft. RP2354). I have tried to develop a tiny passkey with RP2354 (stacked 2MB flash). This will help me log in without using my password in front of people.
Created by
Jaydev 🚀
Tier 3
142 views
3 followers
Timeline
CAN ⚡🚀
approved PicoKey ago
Tier approved: 3
Grant approved: $45.00
Jaydev 🚀
submitted PicoKey for review ago
Jaydev 🚀
added to the journal ago
Add README.md + schematic
Day-4
Add README.md + schematic

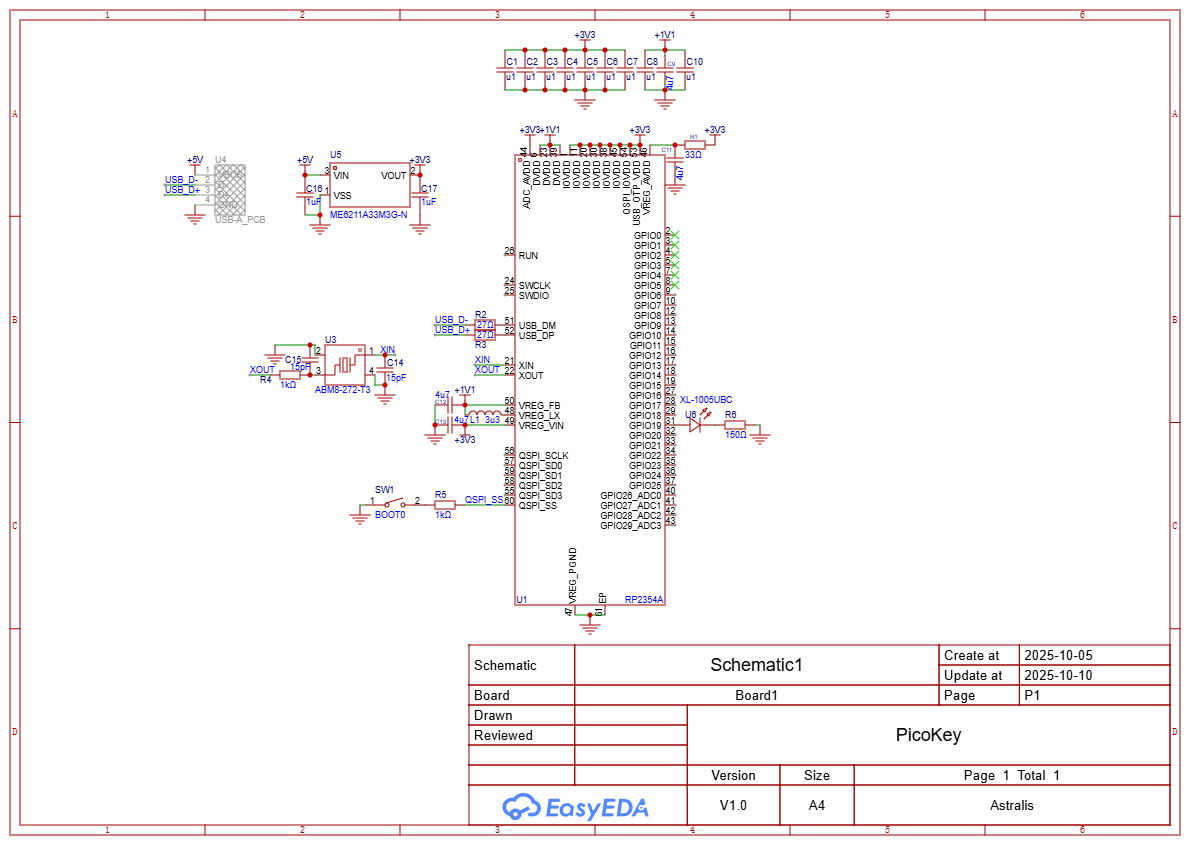

I added more content to the README.md about this project as suggested by @CAN. Also, the schematic image is not shown in the blueprint journal so I have added it here again. This is the schematic-
Time Spent: 0.5h
CAN ⚡🚀
requested changes for PicoKey ago
This project is missing a ReadMe. The image for the schematic is also not loading.
Jaydev 🚀
submitted PicoKey for review ago
Jaydev 🚀
added to the journal ago
Made changes
Day-3
Made changes

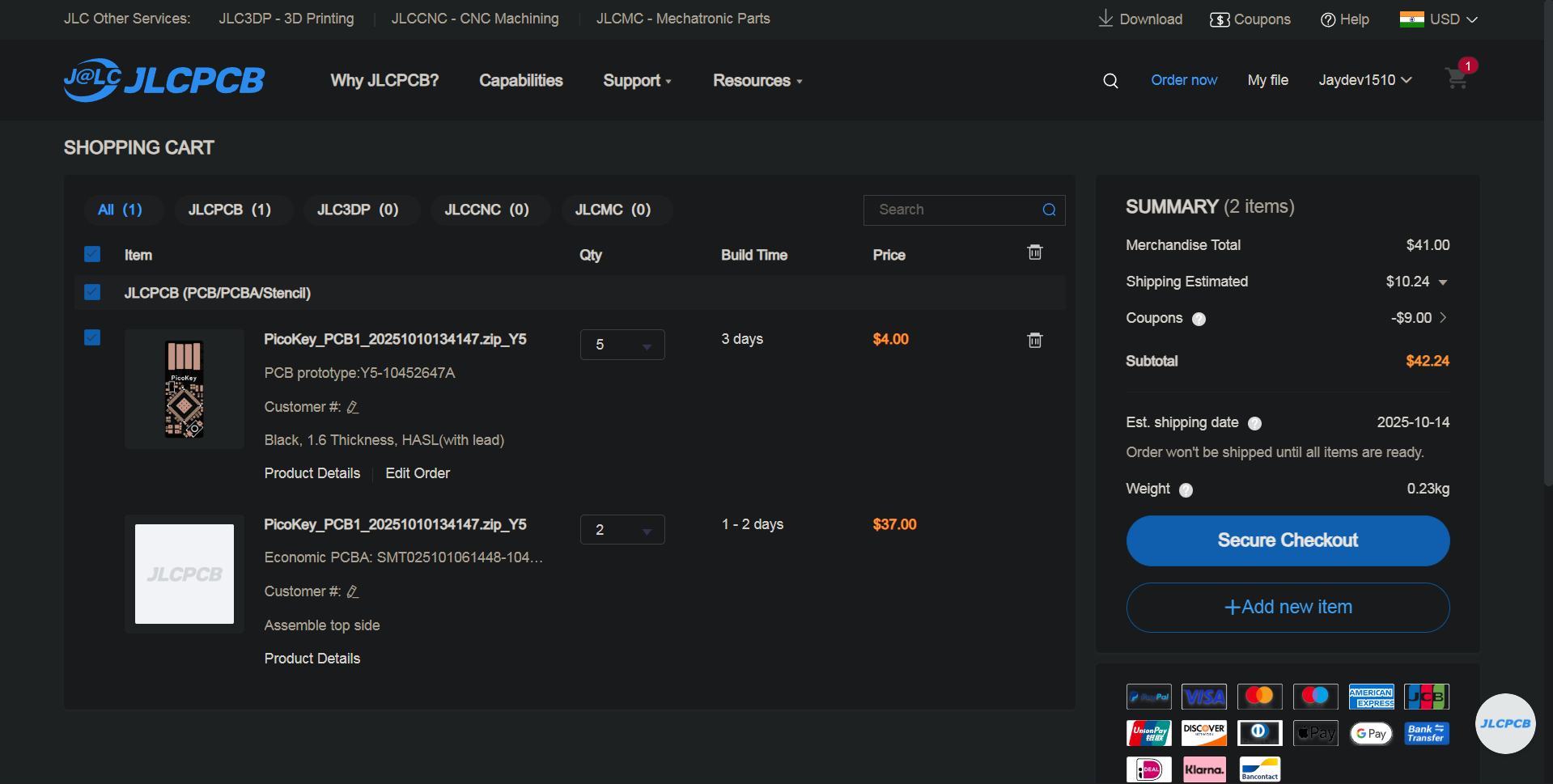

I had uploaded the Gerber and the BOM in order to get the generate the quotation for PCB fabrication. I got to know that that the LED I had chosen was not in stock so I changed it and its resistor. Here is the final cost of PCB fabrication which is about $42.5
Time Spent: 0.5h
CAN ⚡🚀
requested changes for PicoKey ago
Please add cost and have at least three journals
Jaydev 🚀
submitted PicoKey for review ago
Jaydev 🚀
added to the journal ago
Routed the PCB
Day-2
Completed Routing
It was very tough to make it on a very small PCB. I have managed to achieve a very tiny size of 12mm * 30mm while using cheap and basic components. I have chosen basic components which were available and are 0402 in size. I had started routing yesterday and completed it today. I had to do trial and error so as too achieve a very compact size. Now, I'll complete the BOM and other stuff, and then finally ship it.🚢
Time Spent: 3.5h
Jaydev 🚀
added to the journal ago
Completed the Schematic
Day-1
Completed the Schematic
Today I completed the schematic for my PassKey (PicoKey by name). I have chosen RP2354 chip as it has a better security option with internally stacked 2MB Flash. I have decided to make it as small as possible while being pocket friendly.
Time Spent: 1h
