Side Desk Display
This is my frst hardwre project i've ever created , on HackClub as well as in my life so i tried to make it a simple beginner project . This contains of a PCB which has connection port for my 4.2 Inch e-paper display , this is s small pc monitor that shows activities currenty , it also displays the current usag of cpu , gpu and disk . All this information is sent to the pcb via a usb data transfer cable , i got this idea from ChatGPT
Created by
Eren Yeager 🚀
Tier 3
147 views
1 follower
Timeline
Eren Yeager 🚀
submitted Side Desk Display for review ago
Nachu Thenappan 🚀
requested changes for Side Desk Display ago
Hi, I still don't see the right pcb files, could you please go to the file tab, then click save as local, and from there you should get a .epro file which contains your pcb information that you should upload to github.
Eren Yeager 🚀
submitted Side Desk Display for review ago
technical_.
requested changes for Side Desk Display ago
Please add the PCB files, and not just the Gerbers.
Eren Yeager 🚀
submitted Side Desk Display for review ago
technical_.
requested changes for Side Desk Display ago
Missing pictures of BOM. Please add screenshots of all carts when you resubmit.
Eren Yeager 🚀
submitted Side Desk Display for review ago
Eren Yeager 🚀
added to the journal ago (8.0 hours)

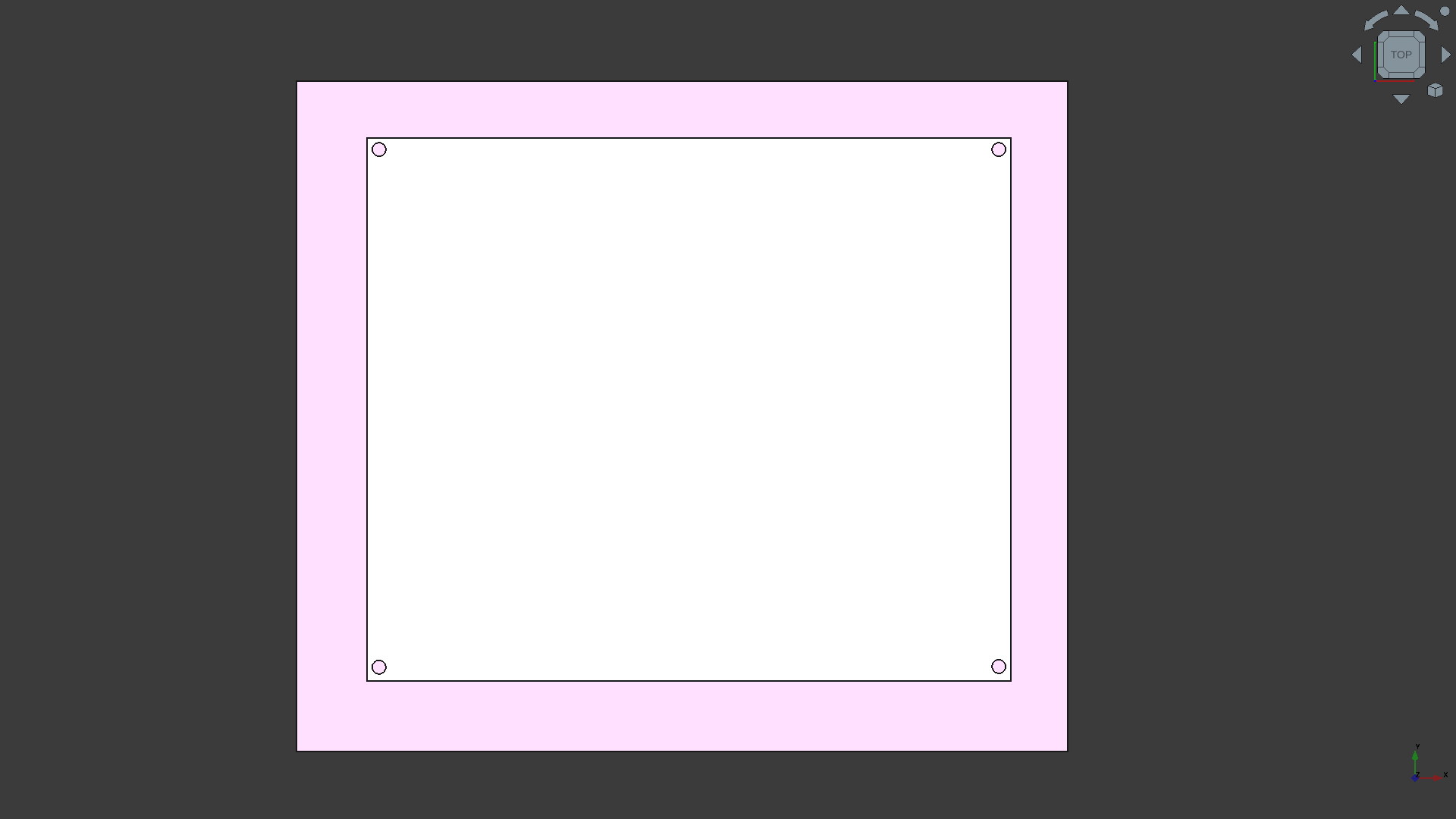

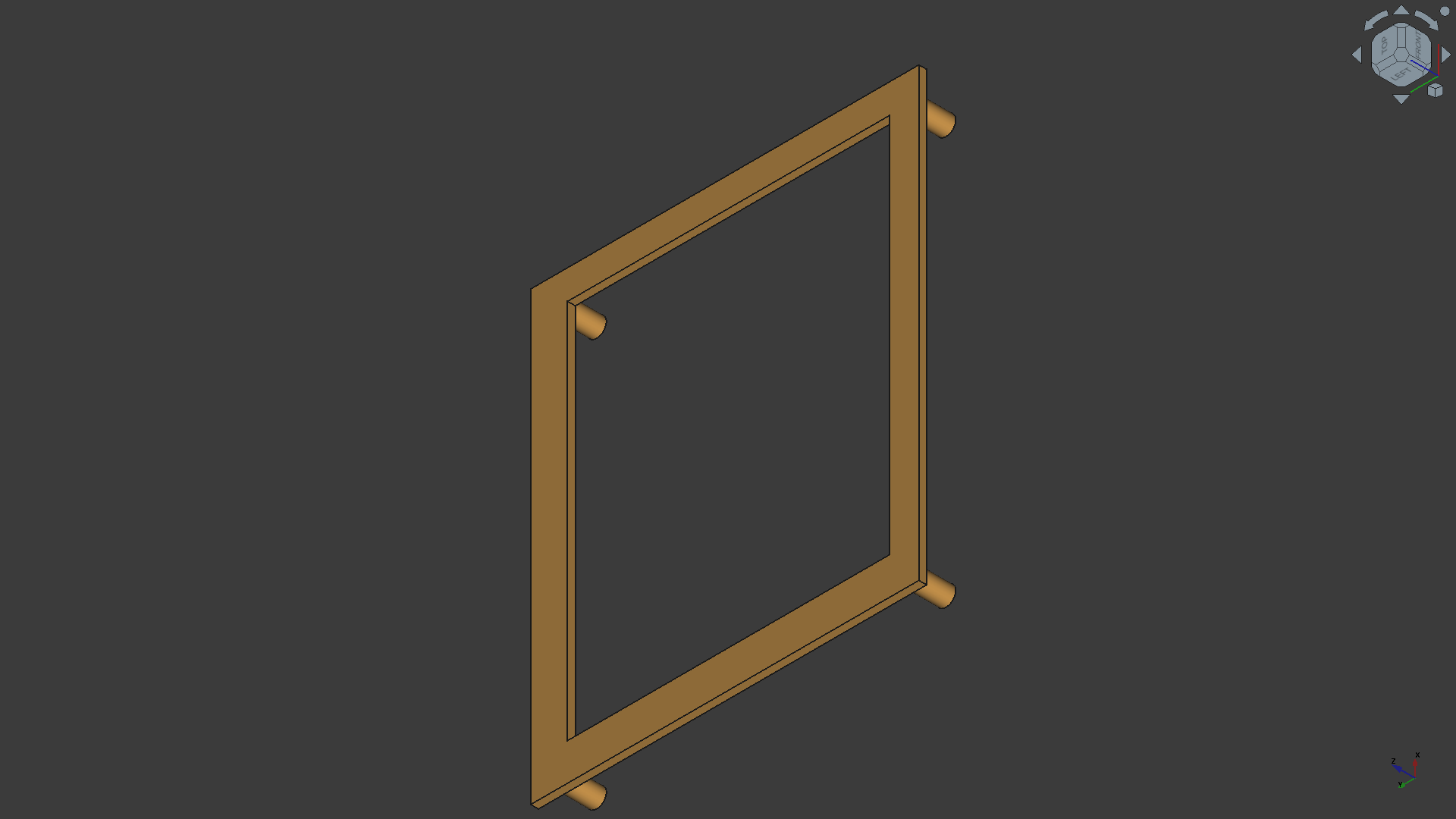

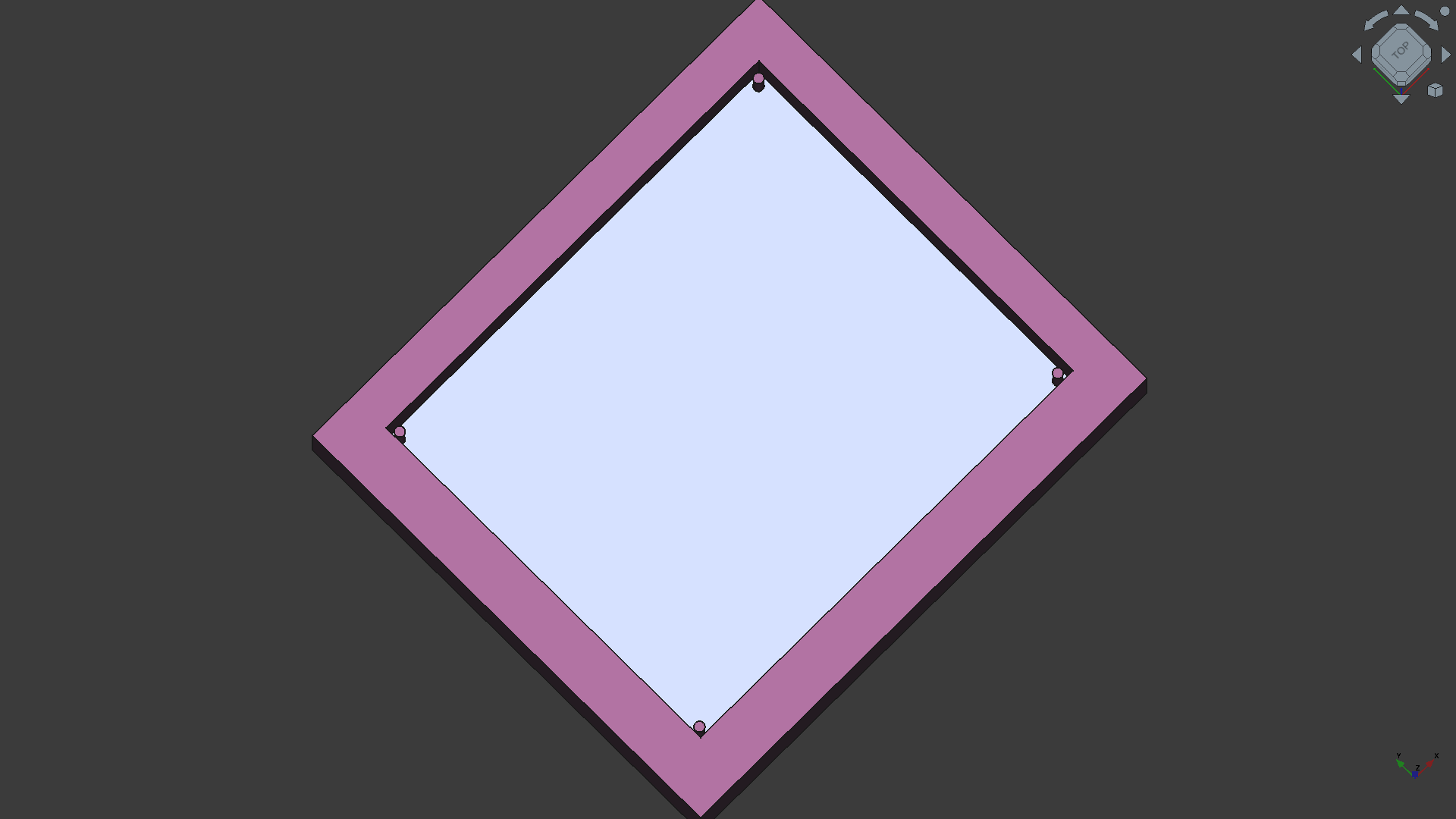

THE CAD WORK AND THE CODE 😎
The next day 5th October , i planned to do the CAD work and for a veryy much beginner like me , it was like pathetic , i wasn't able to even make a rect in 3d , still i watched tutorials and makde it so no pain no gain .... Now the CAD was finished same day after a long long time of CAD . I have a lil experience in CODE so it was done quickly and i was good to go then . All done in 2 Days . 😁
Eren Yeager 🚀
added to the journal ago (7.0 hours)
Designing The Schematic

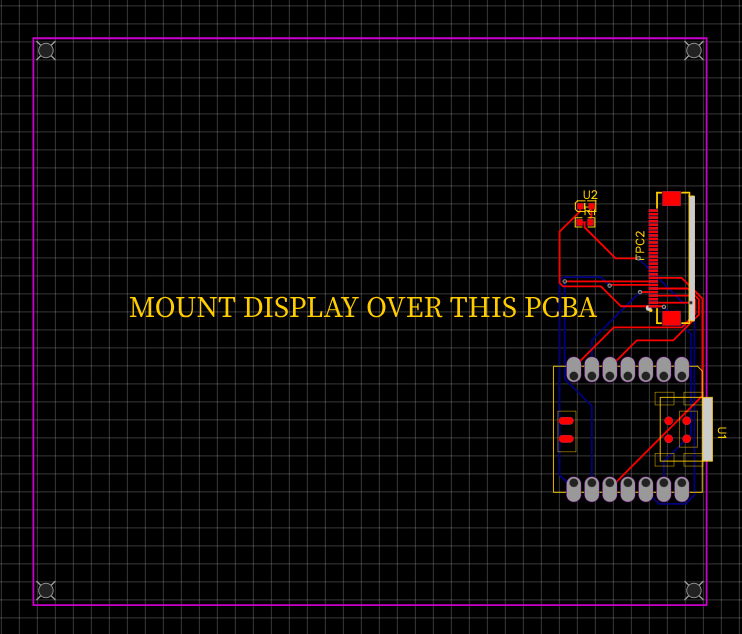

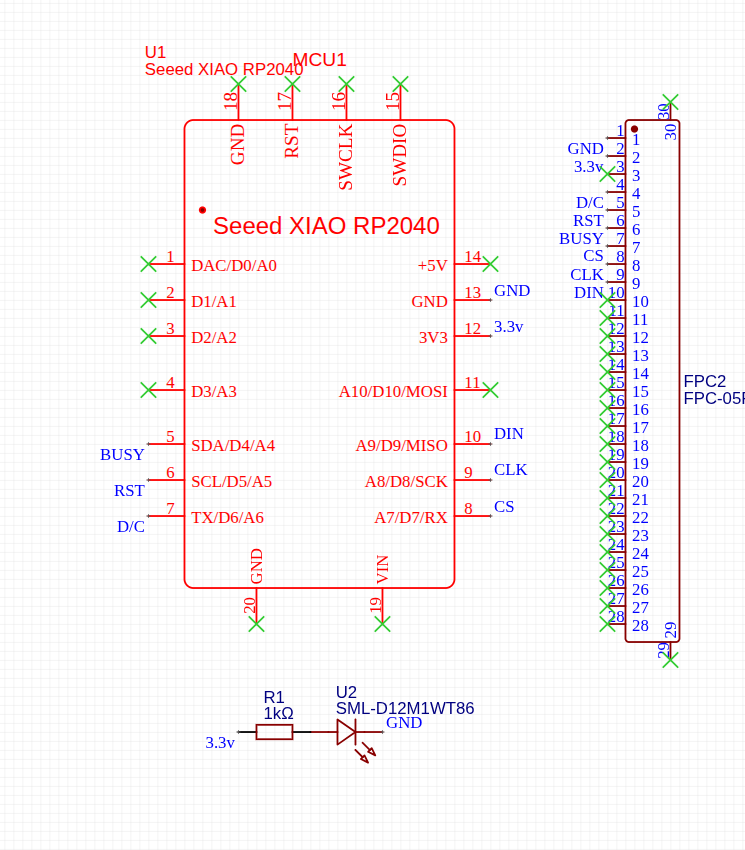

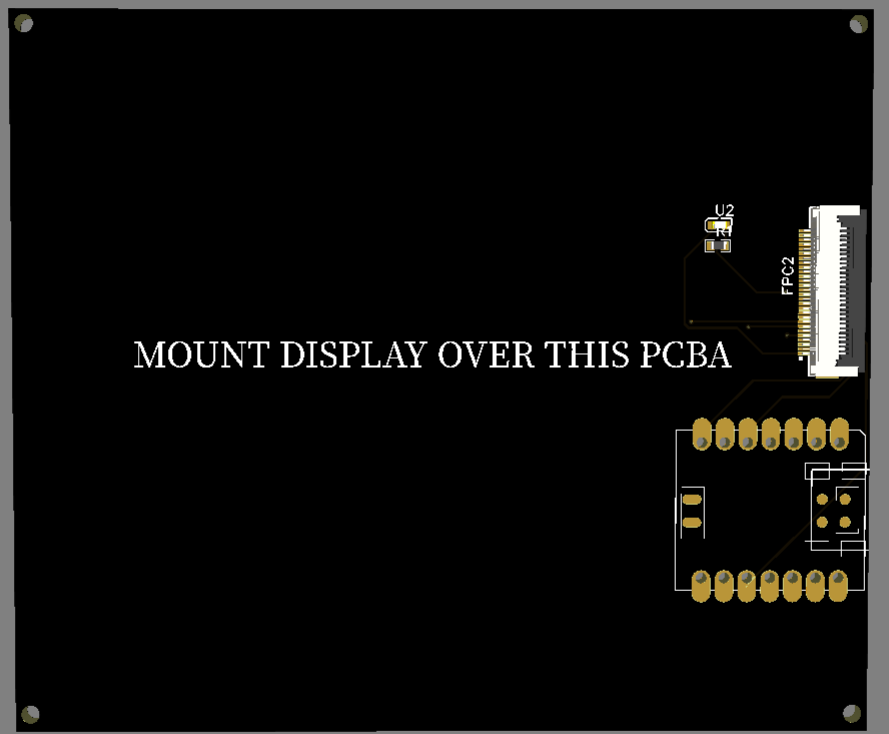

The next day i.e. 4th October was a lot time taking , that day i did all the schematic and routing of the PCB and finished the PCB work , it was quite easy though took time due to my potato pc . Also i got some time to make the GitHub so also did that the same day . It was my frst project so it took a way too much time and i was frustrated but at last completed the PCB
Eren Yeager 🚀
added to the journal ago (3.0 hours)

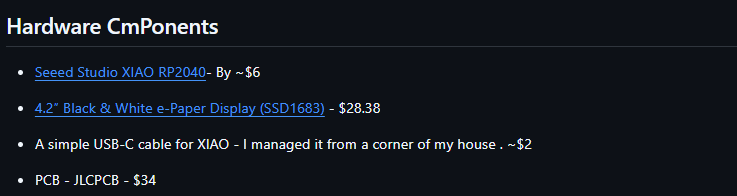

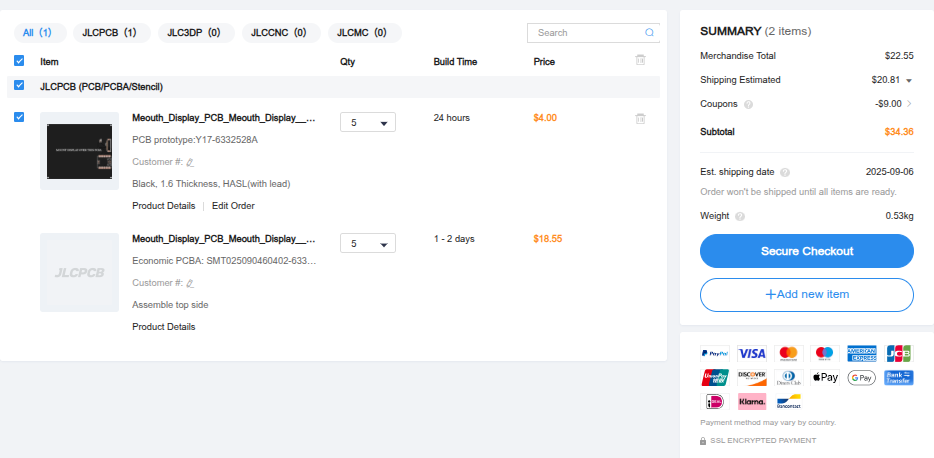

Planning And BOM
This was my frst day i got into work on this project , i spent some time enquiring chatgpt for ideas and i got one , it also helped my make a perfect bom . All the rest work was done by me . The firststep was plannign which i done in like 2-3 hours
technical_.
requested changes for Side Desk Display ago
Please put your journals from your Github repo into here. If there was a bug where your journals didn't appear on the Blueprint website, please contact me! Repeated submissions with the same error will result in a permanent rejection of your project.
Eren Yeager 🚀
submitted Side Desk Display for review ago
CAN ⚡🚀
requested changes for Side Desk Display ago
I see that you only have one journal entry but you have a basic journal in your READMe.md. Could you go through and paste your process into the journal along with the images in your ReadMe
Eren Yeager 🚀
submitted Side Desk Display for review ago
Eren Yeager 🚀
added to the journal ago (16.5 hours)
Completed My Side Desk Display 😁
This is my frst hardware project on HackClub , I'm new to all this work and got the idea to make this by ChatGPT , i started this project on 3rd October and ended on 5th October. I didn't knew abt blueprint then so i didn't made any sort of journal entry here and this is my last entry . As i'm new to pcb designing and CAD so this project took lot of efforts and also it was amazing experience . 😃
Eren Yeager 🚀
started Side Desk Display ago
