Have to redo

So i started routing nad posted in the channel for feedback. and i was told im gonna fix alot of stuff, a lot of stuff.

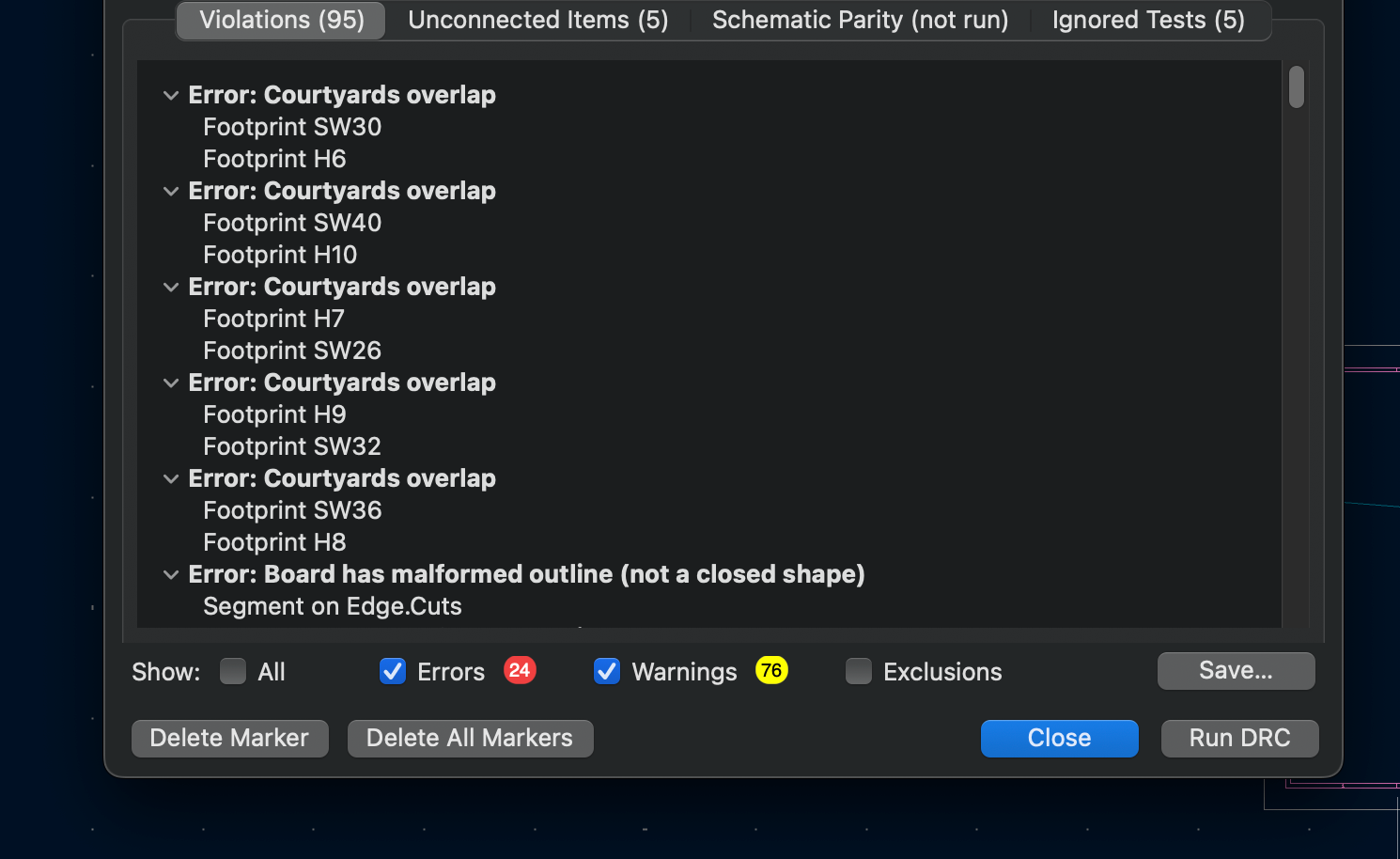

so i wa told i cant putr diopdes in switches thing, and i should have 90 degree liens and i have rat lines etc, so im prob js gonna re do it, after runnig a drc test i got some nice results

Fixed pcb

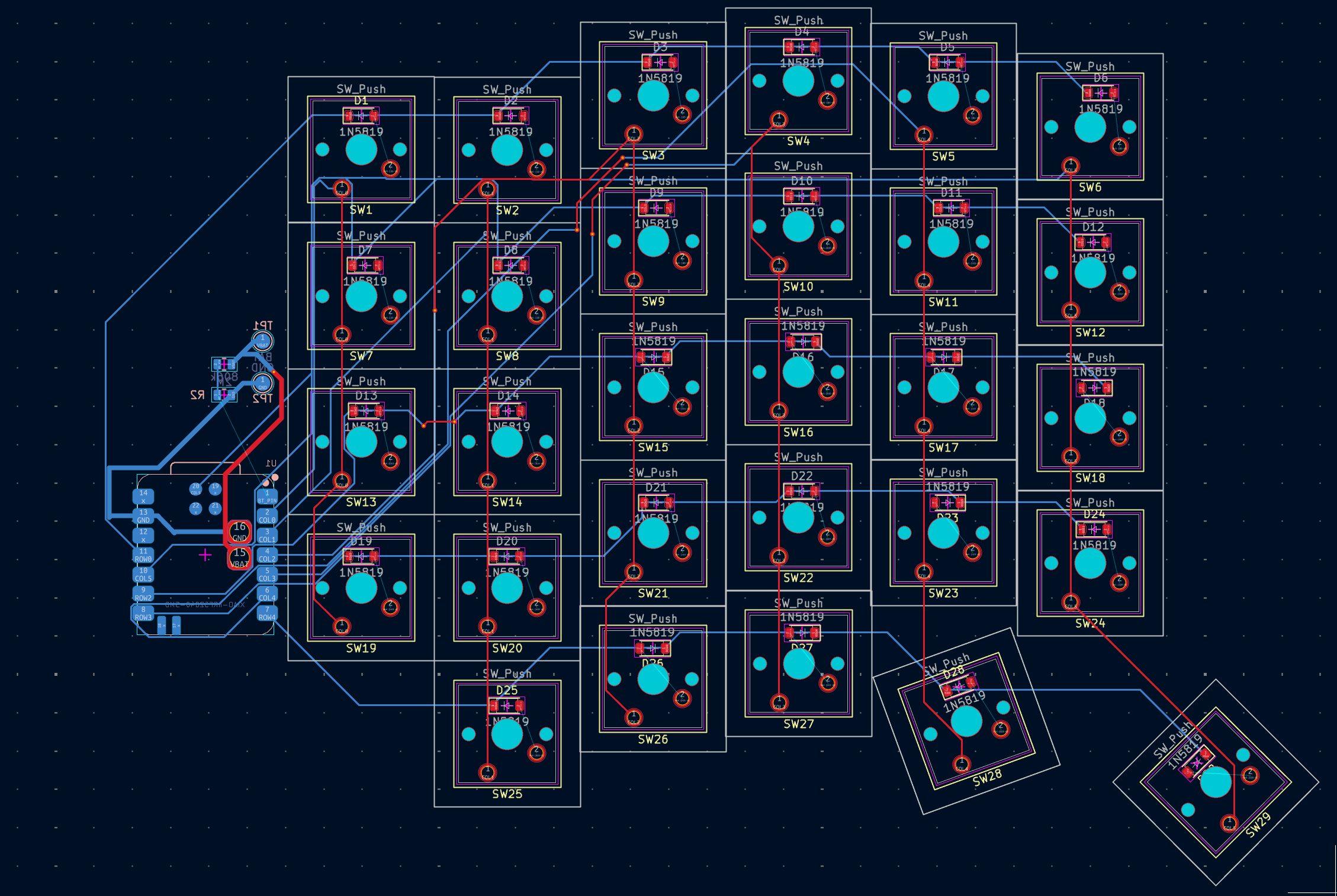

So while trying to make the split keyboard i experiences issues when trying to rotate a pcb half horizontaly, and after trying for 50000000 hours straight i got it to work, after doing my fav routing hell i have it finished, but i wanna add more keys like fn keys and a numpad. i might also make a one handed keyboard.

Set up and PCB Hell :D

So i originally started with HackPad PCB and it was rough to say, i had issues with the pcb half only, where anytime id try to get the grid working for the switches to align it wouldn't, so i ended up just keep trying different positions until it worked, then i had routing hell, but it ended up finished. then i started the spit keyboard guide and i just finished the schematics so now im ging for my favourite part, :DD:DDD

Images

MacroPad

Split keyboard

Half only
