zsharpminor's HackPad v1.2
My personal macro pad for productivity, with 6 keys and a rotary encoder, as well as a MiniLED. As mentioned in the Repo, this was my first serious project on KiCad! Quite a jump from beginner to expert - I think it turned quite well; hopefully it works! This project took around ~8 hours of work, a day well spent!
Created by
funkeudo
Hackpad
27 views
0 followers
Timeline
funkeudo
added to the journal ago

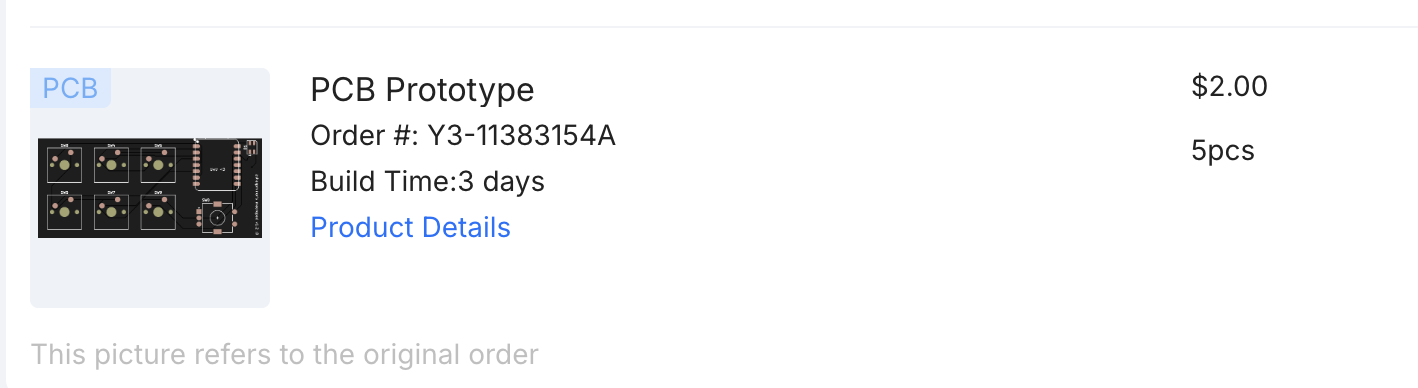

PCB ordered from JLCPCB!
After receiving my grant, I ordered the final PCB from JLCPCB. I went for black as there was no extra cost per color, and I think it would look great in a red 3d-printed case. Thanks HackClub! :D
