NS RP2040 Dev Board
Dev board with rp2040 + Gyroscope
Created by
ContinentalDrip
Tier 3
12 views
0 followers
CAN ⚡🚀
approved NS RP2040 Dev Board ago
Tier approved: 3
Grant approved: $69.00
Nice devboard
ContinentalDrip
submitted NS RP2040 Dev Board for review ago
ContinentalDrip
added to the journal ago
Reviewer Notes
The rat lines were left as it is because i connected the gyroscope with it, leaving the pin connections empty in order to not accidentaly connecting some other module with my gyroscope pins.
i ran DRC and everything looks alright.
i uploaded a firmware file and sorted some of the file into folders.
Kai the Jolly Guy 🚀
requested changes for NS RP2040 Dev Board ago
Sick devboard :D There's just 2 small problems with it though... the first one is you have a couple ratlines on your board as shown in the screenshot in your readme, so either update the screenshot, or fix those. You should be running DRC to check for any unconnected or things that are wrong with your board ;) The second thing is you're missing a quick firmware file, feel free to just make a small blink LED code or something, it doesn't need to be too complicated. Also just for the sake of having a refined project, I'd suggest organizing your repo files into folders!
ContinentalDrip
submitted NS RP2040 Dev Board for review ago
alexren ⚡🚀
requested changes for NS RP2040 Dev Board ago
hi there! im returning this project because there is no demo which is mandatory for builds
Tier: 3
CAN ⚡🚀
submitted NS RP2040 Dev Board for review ago
ContinentalDrip
submitted NS RP2040 Dev Board for review ago
chengyin.yao 🚀
requested changes for NS RP2040 Dev Board ago
Hello! It seems that you want to submit for tickets, but you actually submitted for a grant! Please click edit project and check the "I want to exchange my funding for tickets instead." box in order to submit the project for tickets :)
ContinentalDrip
added to the journal ago
NOTE FOR REVIEWERS
in the youtube demo link, instead of any video i just wrote "its a design and not a completed project"
so dont mind it. i just submitted for tickets. :]
ContinentalDrip
submitted NS RP2040 Dev Board for review ago
ContinentalDrip
added to the journal ago
Uploaded the files
Uploaded the files to GitHub and wrote the readme.md
in total this project took me nearly 24 hours. i had to completely scrap my progress of routing and then reroute because of some errors. its all fine now.
ContinentalDrip
added to the journal ago
Routing Complete.
completed the routing part. now im gonna run drc and debug errors for the board and fix them. ill write a readme.md and upload all the files in a while.
ContinentalDrip
added to the journal ago
Problems
I faced some problems while routing the board, the traces keep blocking my path for the newer ones even with like 6 layers of PCB. So I'm going to copy the layout the original tutorial uses.
ContinentalDrip
added to the journal ago
PCB Designing
Started working on the PCB. Placed the components and started routing on the board (it's so hard I'm genuinely tweaking)
It's my first time designing a microcontroller so I hope it works in the end.
ContinentalDrip
added to the journal ago
Drawing the Schematic
I finally finished the schematic after long continuous work.
it has a 6-AXIS gyro built in too.
has an led for power indicator :D
if reviewers can spot any errors i made then please let me know.
ContinentalDrip
started NS RP2040 Dev Board ago

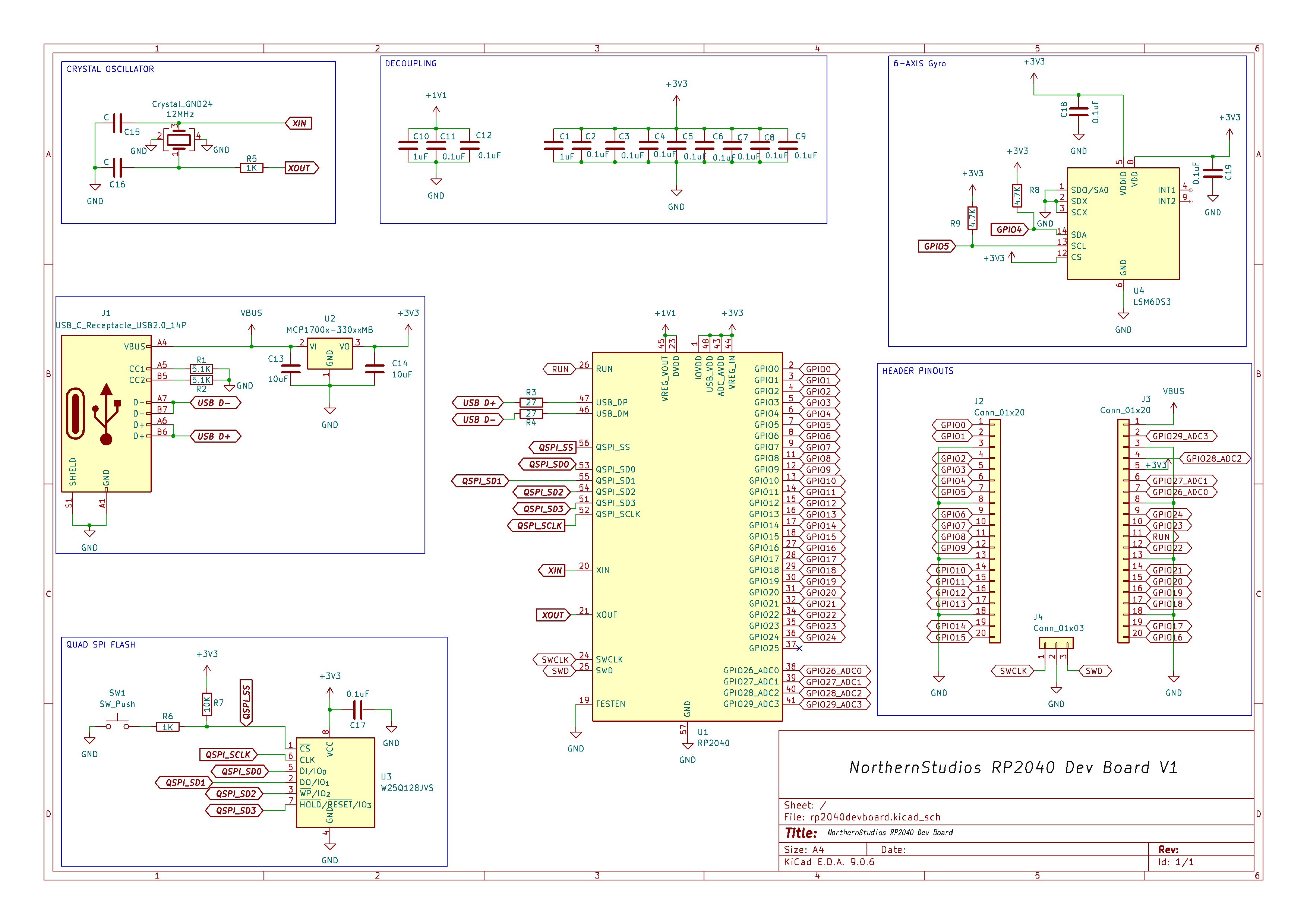

12/3/2025 - Drawing the Schematic
I finally finished the schematic after long continuous work.
it has a 6-AXIS gyro built in too.
has an led for power indicator :D
if reviewers can spot any errors i made then please let me know.

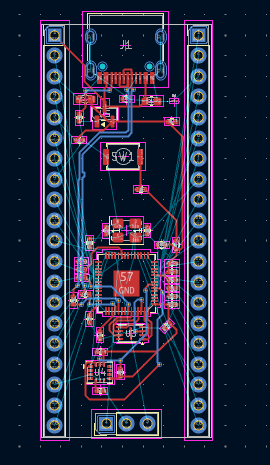

12/4/2025 12 AM - PCB Designing
Started working on the PCB. Placed the components and started routing on the board (it's so hard I'm genuinely tweaking)
It's my first time designing a microcontroller so I hope it works in the end.
12/4/2025 10 AM - Problems
I faced some problems while routing the board, the traces keep blocking my path for the newer ones even with like 6 layers of PCB. So I'm going to copy the layout the original tutorial uses.

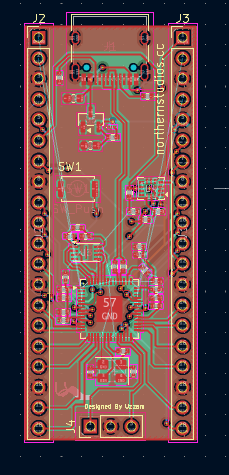

12/4/2025 12:47 PM - Routing Complete.
completed the routing part. now im gonna run drc and debug errors for the board and fix them. ill write a readme.md and upload all the files in a while.
12/4/2025 12:54 PM - Uploaded the files
Uploaded the files to GitHub and wrote the readme.md
in total this project took me nearly 24 hours. i had to completely scrap my progress of routing and then reroute because of some errors. its all fine now.
12/4/2025 1 PM - NOTE FOR REVIEWERS
in the youtube demo link, instead of any video i just wrote "its a design and not a completed project"
so dont mind it. i just submitted for tickets. :]

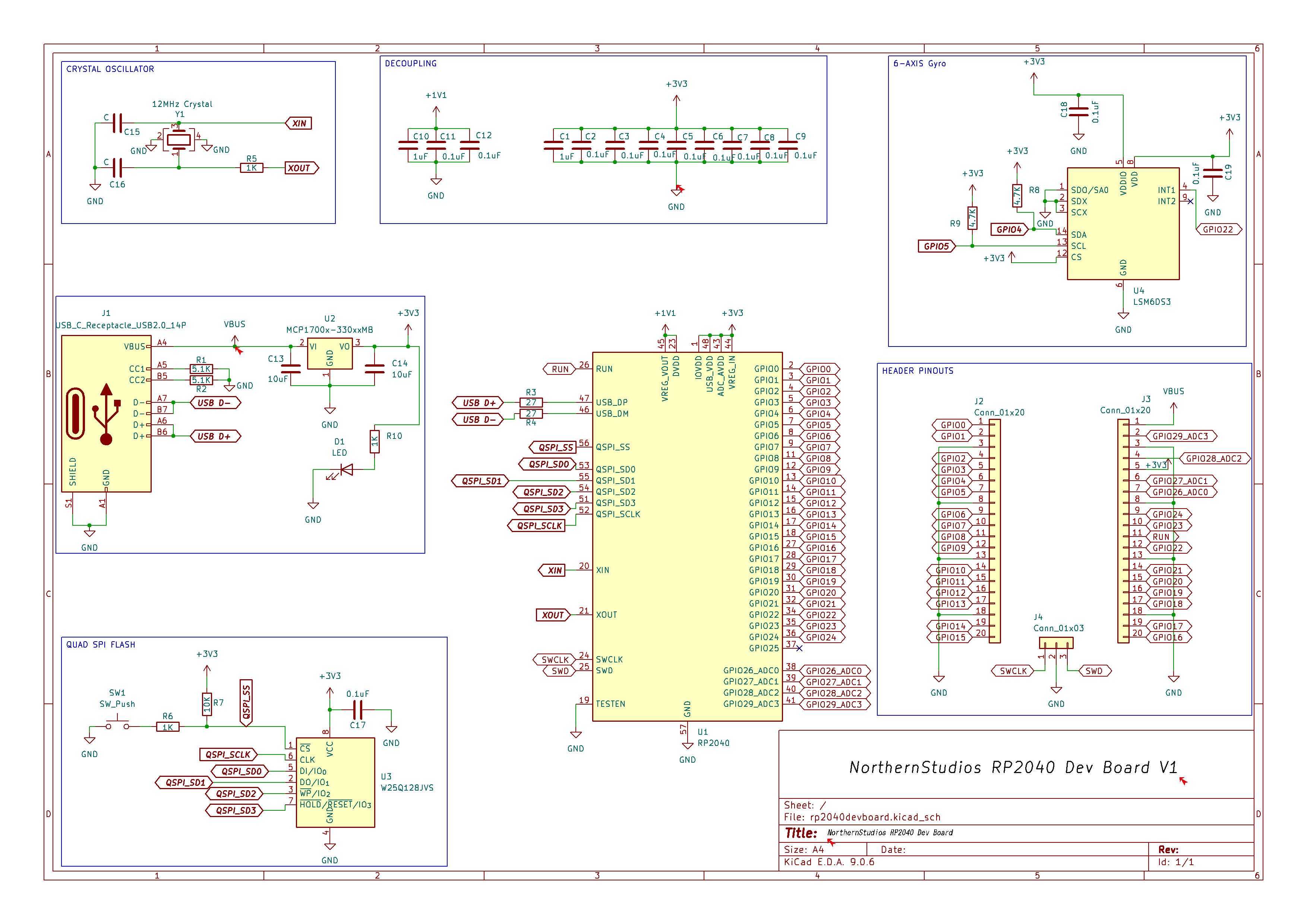

1/20/2026 - Reviewer Notes
The rat lines were left as it is because i connected the gyroscope with it, leaving the pin connections empty in order to not accidentaly connecting some other module with my gyroscope pins.
i ran DRC and everything looks alright.
i uploaded a firmware file and sorted some of the file into folders.
