Wifi scanner
A ESP-32 based wifi scanner that has a screen and dual antennas for maximum range and usage.
Created by
Veracles 🚀
10 views
0 followers
Timeline
Veracles 🚀
added to the journal ago
Got the main schematics done

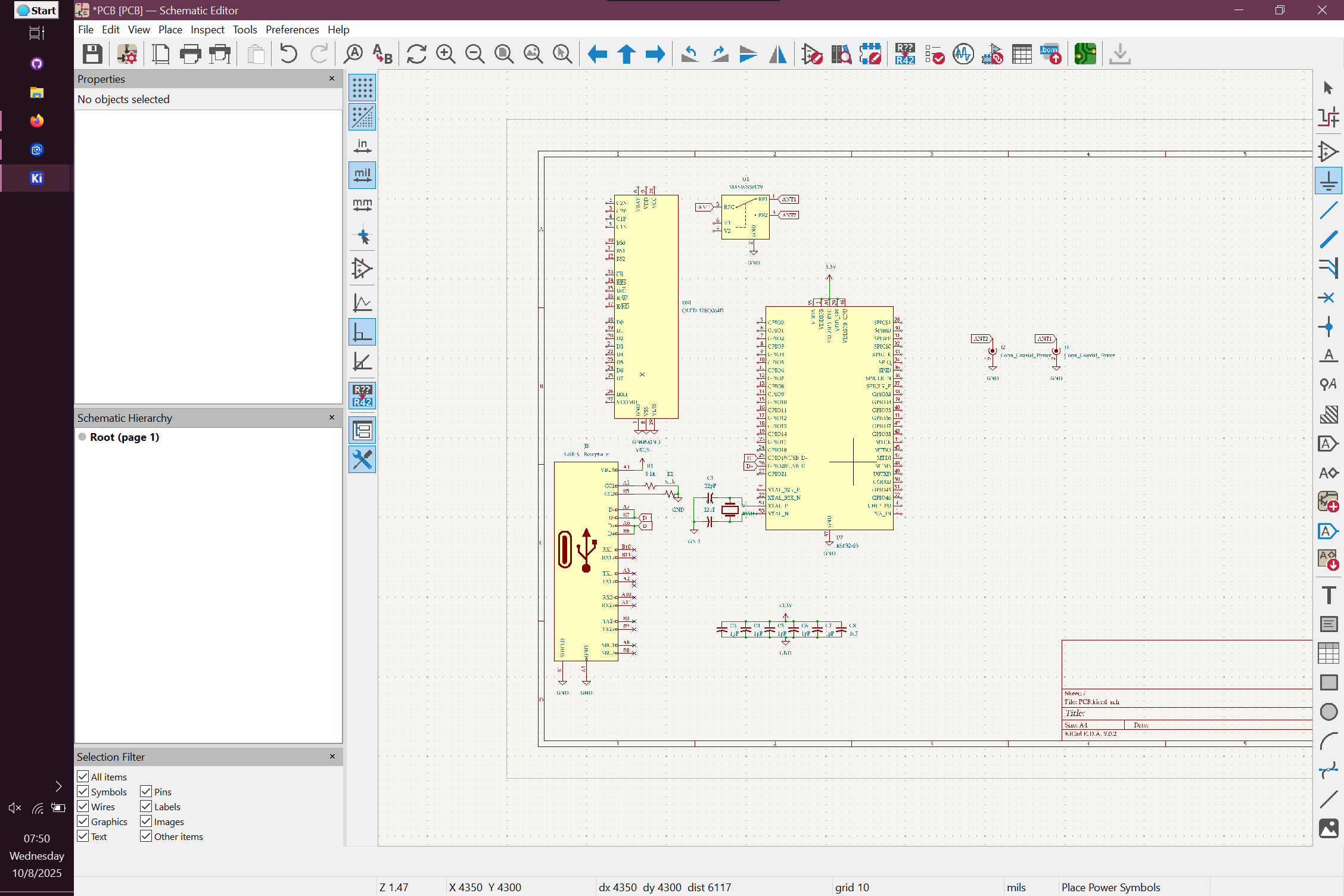

This is what the main schematic looks like, including decoupling capacitors, a screen and the dual antennas w/ RF switch. I need to get it all routed, and there might be some changes as I develop and route it more, but currently I'm planning on making this a 4 layer PCB with a designated ground and power plane. I might change it if the signaling becomes too difficult, as PCBway does coupons for 6 layer PCBs that might make it cheaper.
