10/12/2025 - Started with CAD

its a pretty simple design i did in fusion i started with cad becauuse i can make the pcb as the size as i want it will mostly be hand wired and not pcb but power and all that via pcb
This is a really rtough startnig but i will ofc make it better oevr time .
most time wnt into making the drawing in sheet of paper and getting all stuff setuped

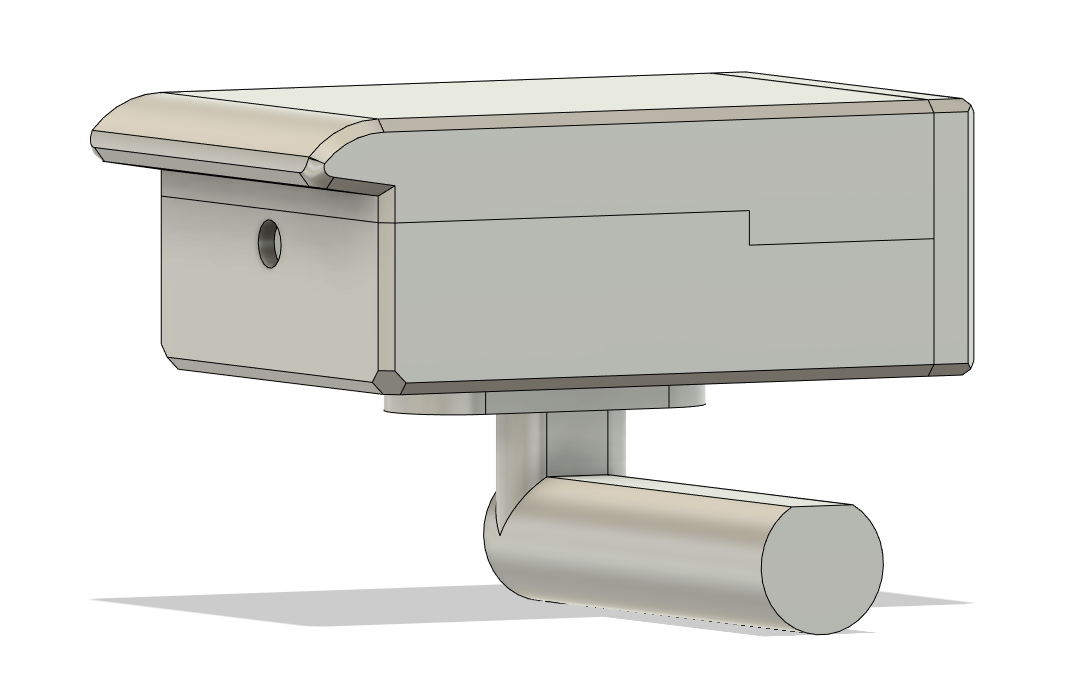

11/2/2025 - Improved the casing

The case is now water proof and better than it was

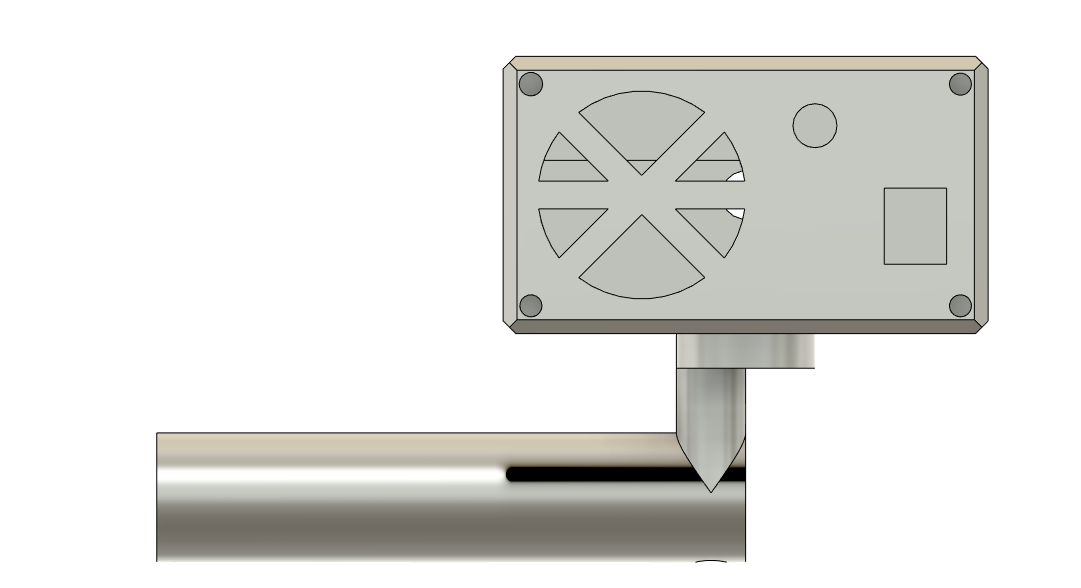

now it has fan dc jack to power and can take in a battery pack to run for 2days without power
has a wifi antenna too for better range
overall a drastic improvement for me lol

It has a holding arm too i am planning to make it move via servos will do that in later rev after that i gotta make the pcb
the pcb wont be that much as its all hand wired

1/19/2026 - Made the charging and feeder circuit

Ok first half ofthis journal I made this real real simple circuit
no i need to think of a way to make a shit
that takes in solar panel power
uses it to charge battery and supply power to the whole circuit with stable 5 v all at same time and stops charging when battery full
AND most important only stop supplying power to circuit when its night
lets dive in that
Heck yeah i did smh i cooked smh chat

took like ~4hr
on this
it should work accoding to my calculation and serious analysis lol
also this has 2% chance that this will blow up cuz i couldn't find any reference design for this functionality
also i did the bom in b/w https://docs.google.com/spreadsheets/d/1vhEEEp49ozjwupS3d144l1iKtik39pZ1maQCybNjw7k/edit?gid=0#gid=0
