3D design of PCB and additional fixes

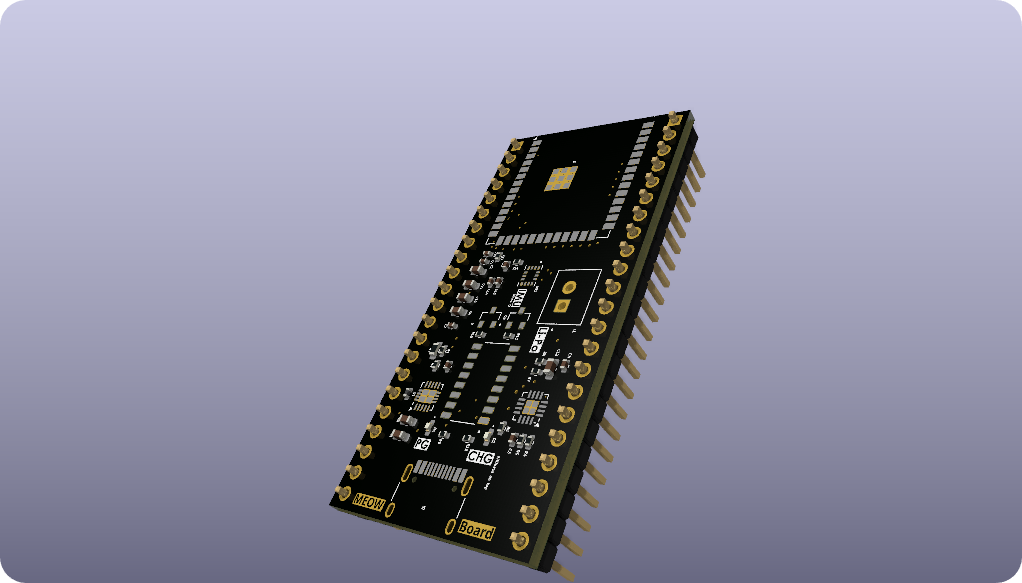

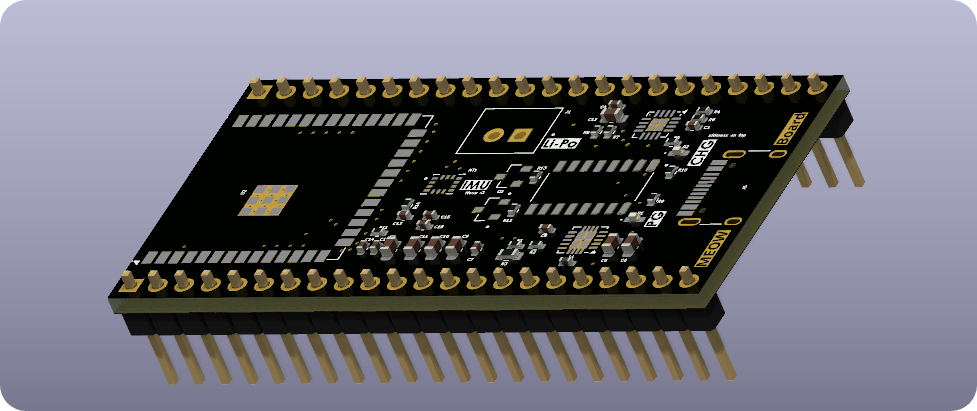

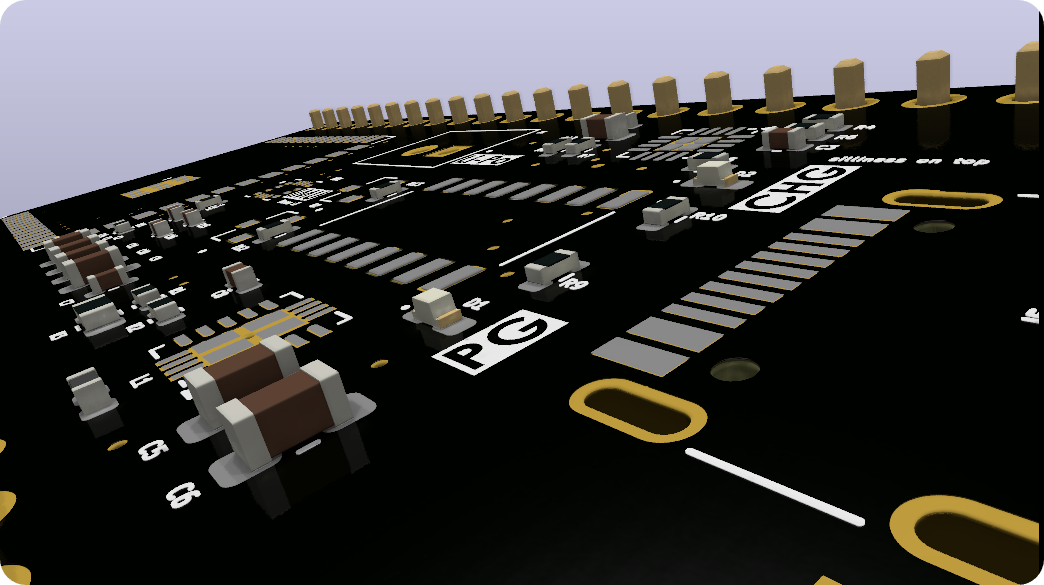

There was a minor error with the resistors so i had to rewire everything... Well ye that took a lot of my time but I also wanted to post more pictures of the chip so here they are:

Github repo and other stuff

Soo now that I have all the important files I have to make the github repo and BOM and all files in it.

I spend some time doing so and then the rest preparing the PCB pricing... Im not done yet but im getting there slowly.. I have the repo locally rn and estimated price too but I will publish it tmrw with more additions to it aswell :3

PCB

The journals before were from yesterday but I ended up just going straight to bed that day so I wrote them today but with that I also used the advantage that we have a day off in school :3

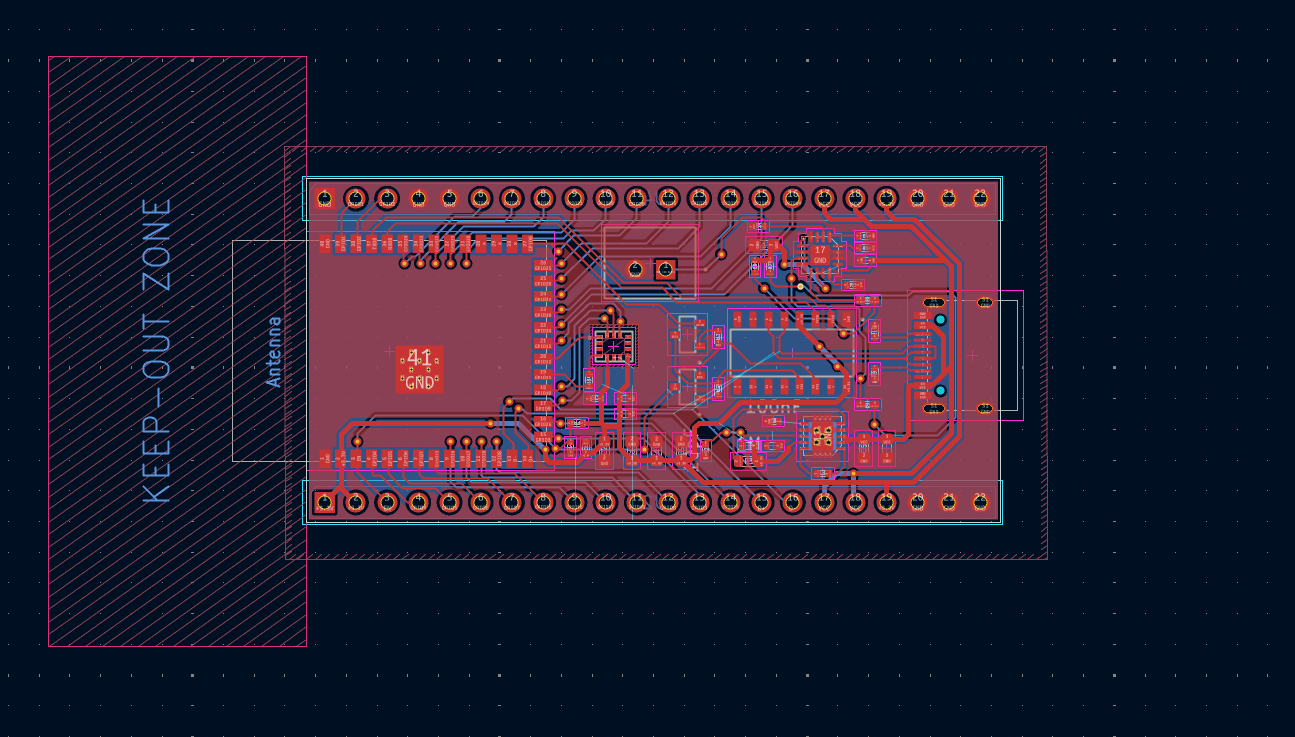

I spend a lot of time and googling for tutorials and stuff.. Now I have a somewhat working and nicely made and also routed pcb. I learned a lot from this step bcuz it was really long process to make everything connected, working and ready and stuff..

I did use a guide for some basic stuff like making the base and then continued with my own additions like the sensors and battery sensors. Surprisingly it all managed to fit on board which is kinda crazy but ye It's there and should also work..

Schematic timeee :3

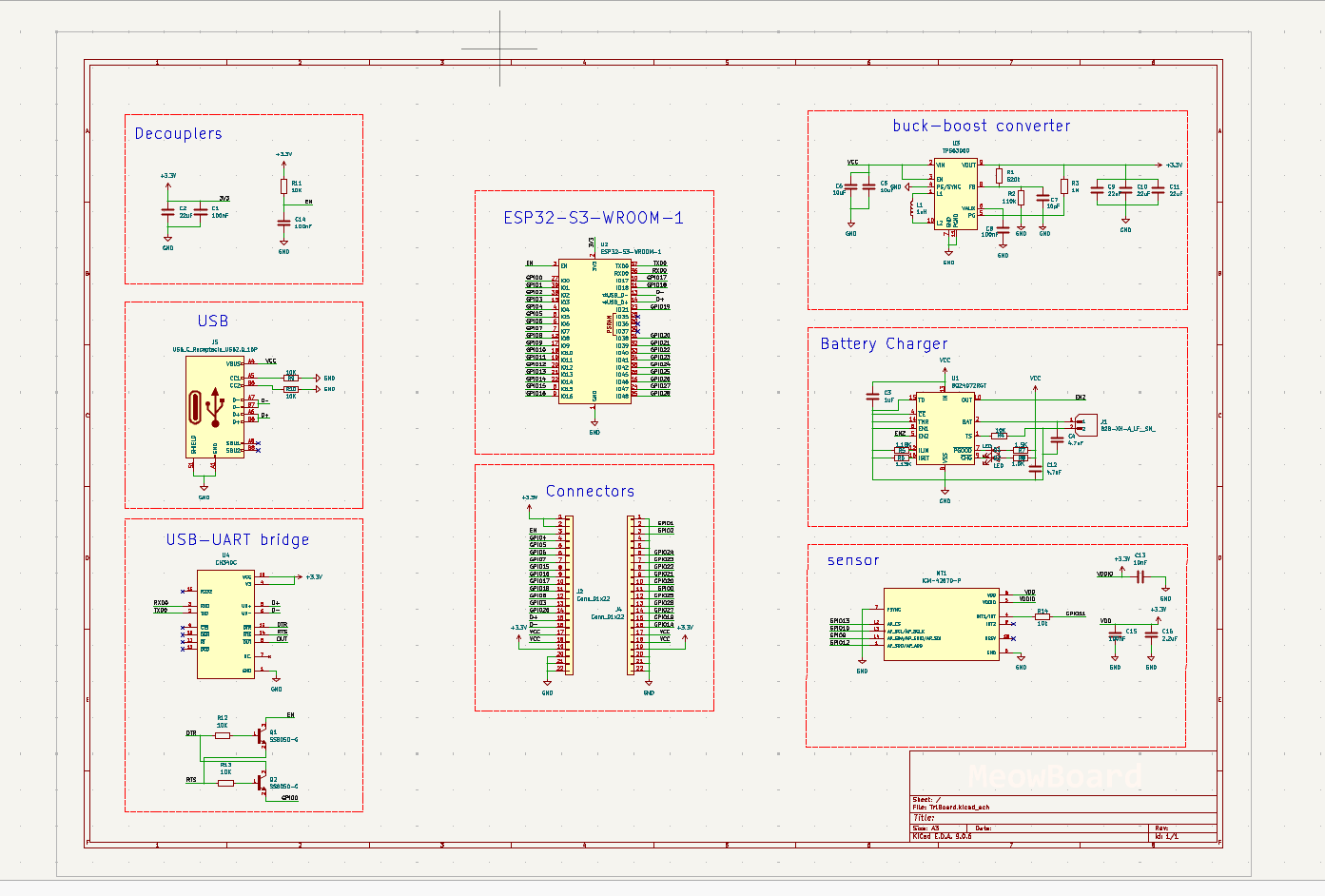

Well i spend a lot of time focusing on the schematic.. I had to redo it once or twice but I got it now. Its really nicely looking imo. I spend a lot of time checking if it will all work and if its compatible..

I also focused a lot on the footprints. I searched for a lot of stuff using mainly the jlcpcb pcba parts library.. It took a lot of tries but now i finally have done it and its ready to move on to the PCB part

Finding the most of the parts + preparing the schematics

Before starting this project I wanted to think everything before starting..

When I found out about blueprint I was really interested and I went ahead and give it a shot.. Made few projects and started to enjoy it.. I'm kinda out of ideas I would love to make as I already did most I can think of. That's why I decided to continue making projects, practice my skills and stuff but this time with being exchanged as Tokens. I really enjoy this and I would def love to save up for the CNC so this project will try help me get closer to my goal and with that get great experience with practicing the PCB making and also schematic making..

I have found most of the parts and gathered them in a new project in KiCad.

The entire board will be powered by some ESP32-wroom-s3 chip probably and will have all a dev board has + build in led, sensors and battery support. I have prepared all in the KiCad already and now I'm moving on to the process of making the schematic work and stuff :3
