Reduced the PCB size and updated materials & BOM

The LiPo battery wouldn't be able to provide a stable 5V to esp32, so I added a new module MT3608 Boost Converter for stable 5V. Updated my PCB as well! Also, I added price and link to modules in my BOM. I discovered that shipping is making this costly!!! Might have to update my tier.

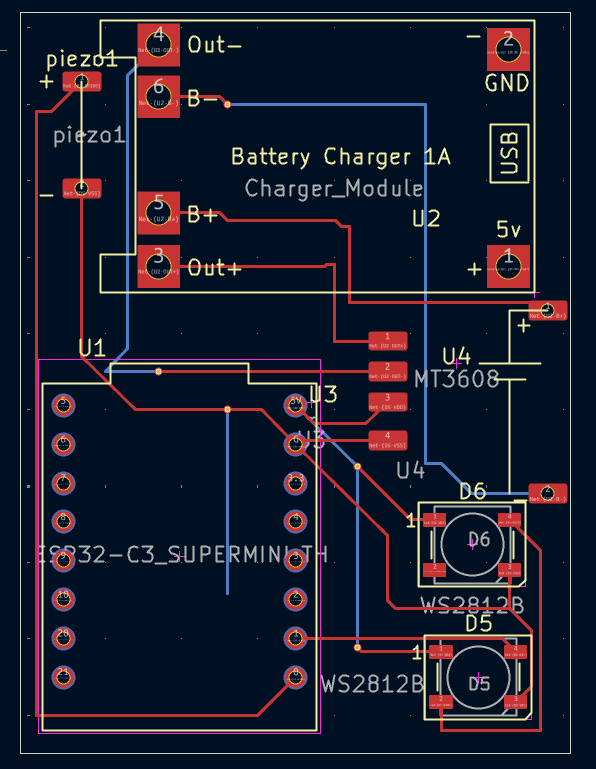

The new PCB:

most of them are external modules, so i need not worry about the PCB size, it should fit inside the shell, at printing legion, i found someone who can print my model for just $5(thats rlly good including shipping) and PCB using JCLPCB can be easily made under $10!

waiting for approval finally

Updated PCB and 3d Model

I figured out a way to fit the pcb in this compact 3d model, turns out I was just doing wrong. I remove the huge symbols of piezo electric plate and LiPo battery and made smaller symbols.

also, while reviewing my design, @Iamalive asked for the original mode, its:
https://www.printables.com/model/1259379-chick-hatching-with-feet

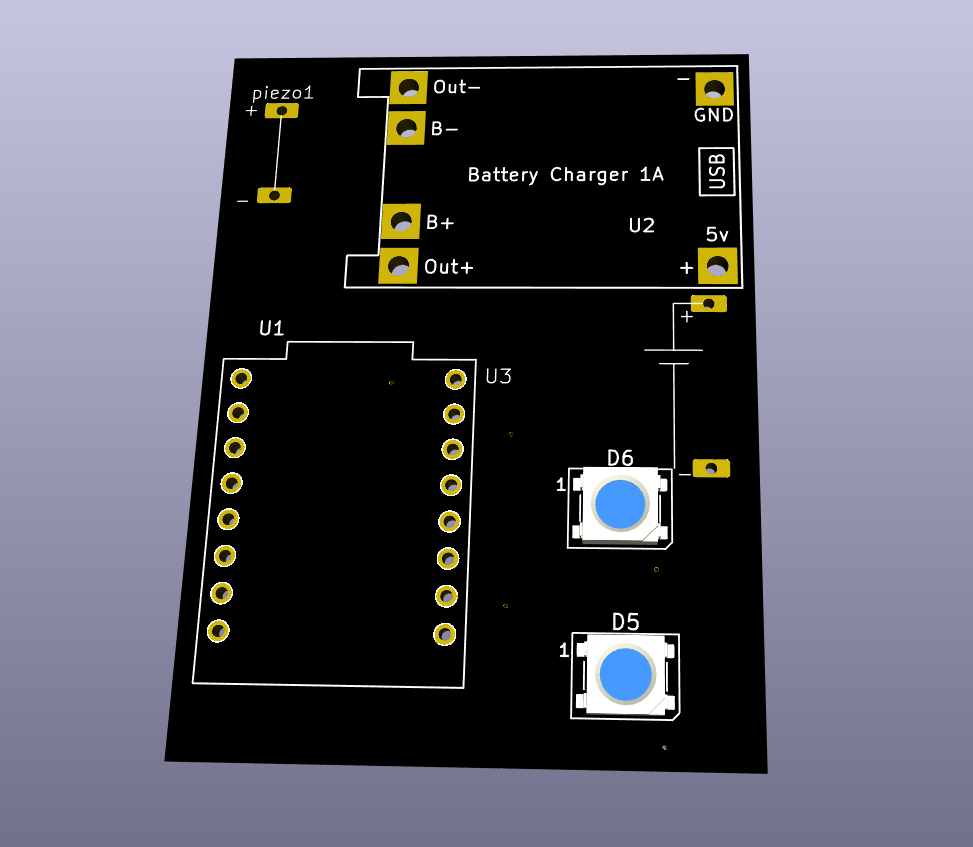

there. I didnt make much edits but i added a cylinder between its neck and hollowed out, so i can fit my PCB inside. They also asked for final render of PCB which is:

My 3d model:

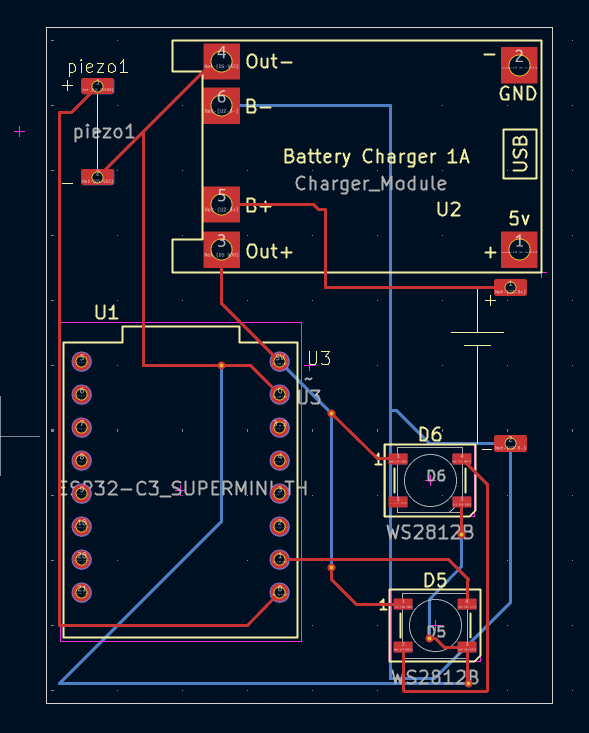

The new PCB:

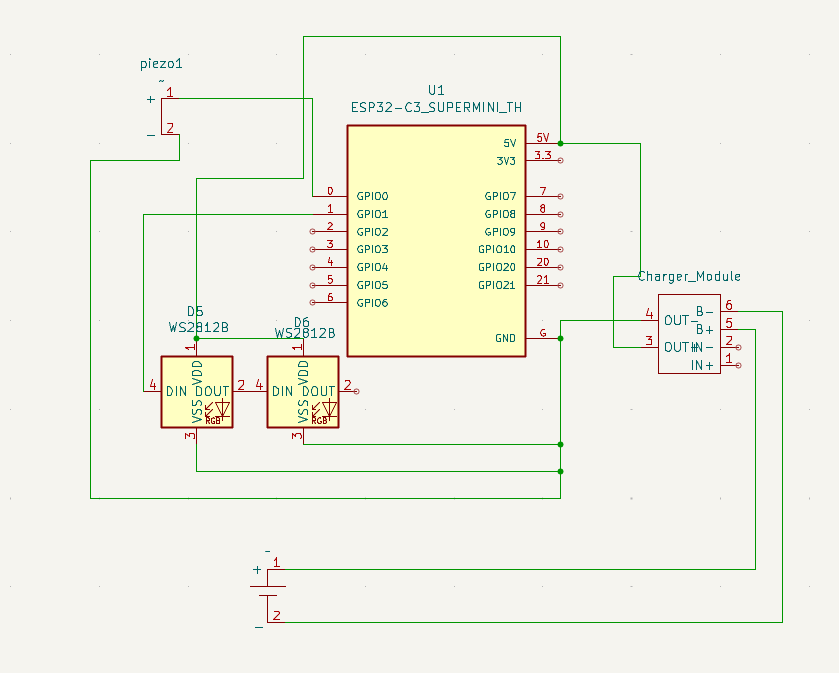

And the schematic:

that's it!

Made KiCAD PCB and Schematic!

I made the Schematic of this lamp using KiCAD, the symbols were really harder to get so i used custom footprint and symbol for LiPo battery piezo electric plate. Finally, routed the PCB and pushed to github! ABout to submit.

this lamp works such that, it glows using 2 WS2812B addressable LEDs, its kinda funny, but i used piezoelectric plate to detect slap. One slap on back is change color, two quick slaps is Power On/Off. I didnt find any suitable controller, so i decided to use esp32 c3 mini which is of very well size for my use case. and Rechargable battery so it need not stay plugged.

I have to find the parts online now and then I'll proceed with design Submission yay!

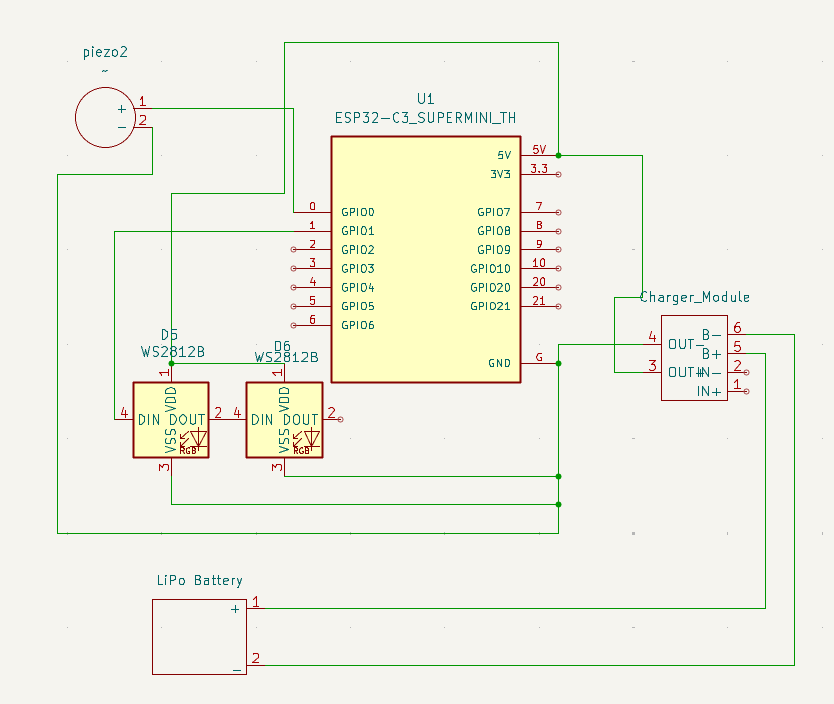

btw, Schematic:

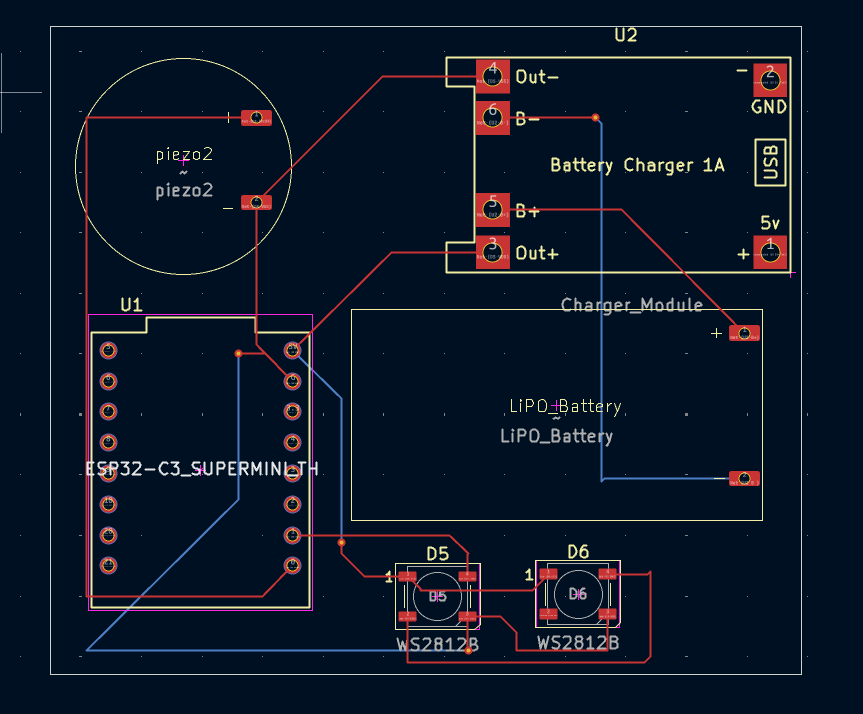

and, PCB:

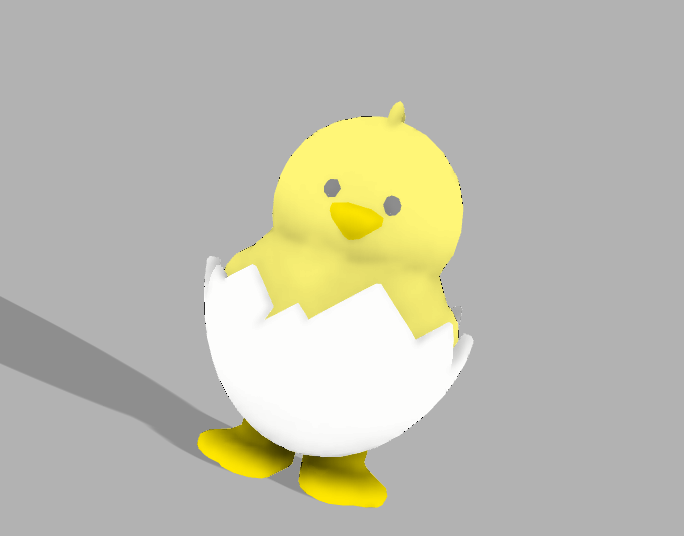

and a little cute overview:

DEVELOPED A 3D MODEL OF THE LAMP

I USED FUSION360 TO RENDER A 3D MODEL OF THE LAMP, I FIRST TRIED MAKING MYSELF, BUT THEN I FOUND A REALLY WELL MODEL ON WEB, SO I MAYBE DROPPED MINE AND TOOK THEIRS, THO I MADE EDITS TO IT.

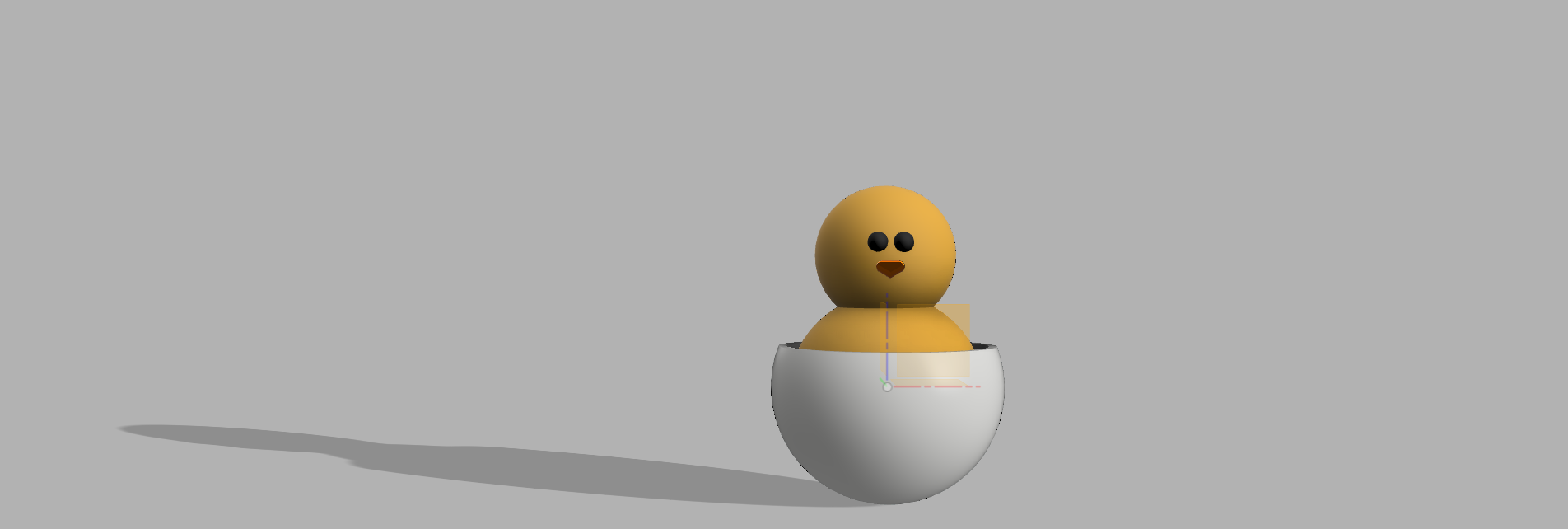

MY MODEL:

THE ONE I FOUND:
