MarketView
MarketView is a small, desk-friendly device that shows live market prices. By default, it displays cryptocurrencies like Bitcoin and Ethereum, but it can be expanded to stocks or other markets later.
Created by
GreatJo
46 views
3 followers
CAN ⚡🚀
approved MarketView ago
Tickets awarded: 48 tickets
GreatJo
submitted MarketView for review ago
GreatJo
added to the journal ago
Final pcb touch
Worked the pcb after a the layout arrangement.. i have added some buttons to change the modes. I am thinking to add some other things to the project to make it better. Recently I added buttons and improved the power supply for it. Some I will added a battery to it
GreatJo
added to the journal ago

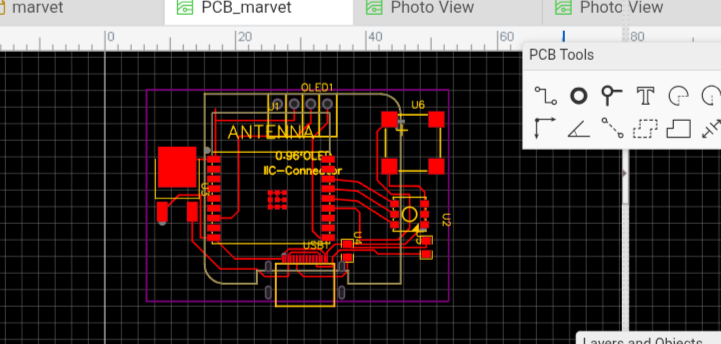

Reassembled the PCB
I had some errors in routing pcb and took a while to fix it. I had removed the old oled display and replaced it with different model display. And I have added type c connector to the board and added a regulator to give the esp 3.3v instead of 5v. The power supply is managed well.
GreatJo
added to the journal ago

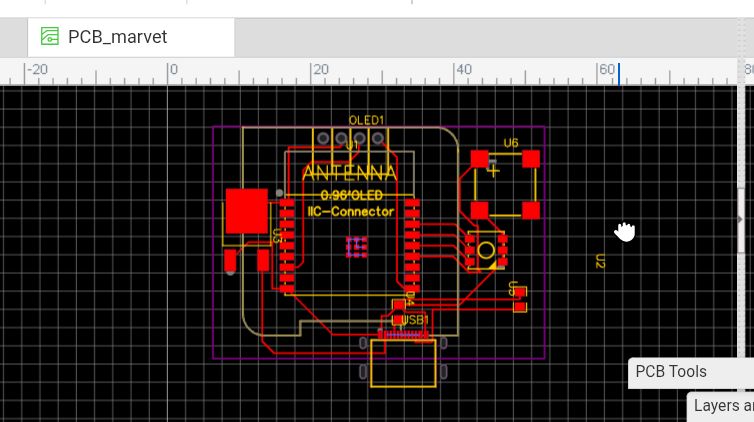

Pcb creation
This is my first time using easyeda and also take hard time to make it.. I have learned more about this.. and hardly finished routing the entire pcb.. there are some of features I want to add soon. I also had added busser and led for some indications.
GreatJo
added to the journal ago

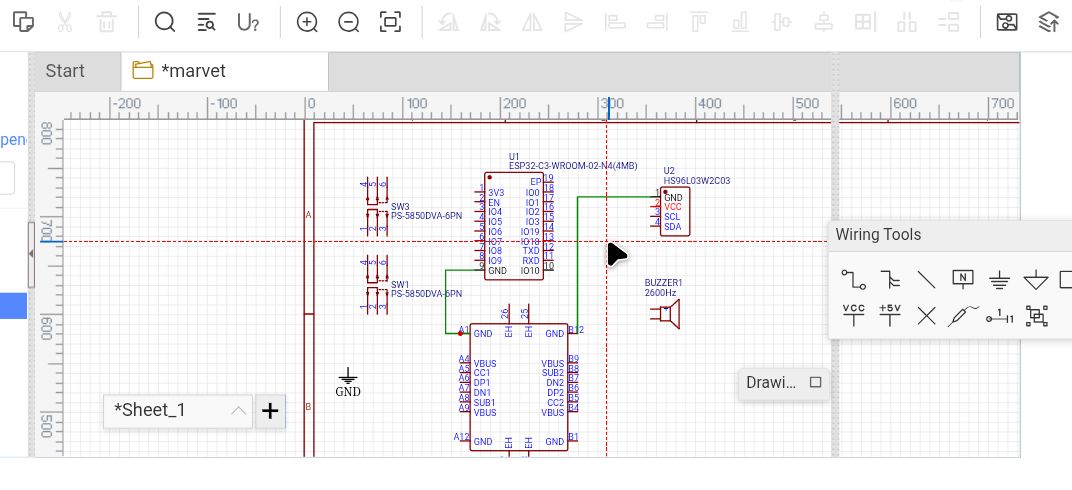

I worked on arranging pcb layouts
I have been working on the pcb layouts on easyeda. kinda hard to find the perfect components for my project. I am using esp32 wroom, 0.96 oled display and butons. Routing was the biggest take.. it is not finished yet. This step is exacting because I could see the hardware about to done, and I learned more about bcb principles
GreatJo
started MarketView ago
10/13/2025 7 AM - I worked on arranging pcb layouts
I have been working on the pcb layouts on easyeda. kinda hard to find the perfect components for my project. I am using esp32 wroom, 0.96 oled display and butons. Routing was the biggest take.. it is not finished yet. This step is exacting because I could see the hardware about to done, and I learned more about bcb principles
10/13/2025 9 PM - Pcb creation
This is my first time using easyeda and also take hard time to make it.. I have learned more about this.. and hardly finished routing the entire pcb.. there are some of features I want to add soon. I also had added busser and led for some indications.
10/14/2025 - Reassembled the PCB
I had some errors in routing pcb and took a while to fix it. I had removed the old oled display and replaced it with different model display. And I have added type c connector to the board and added a regulator to give the esp 3.3v instead of 5v. The power supply is managed well.
10/15/2025 - Final pcb touch
Worked the pcb after a the layout arrangement.. i have added some buttons to change the modes. I am thinking to add some other things to the project to make it better. Recently I added buttons and improved the power supply for it. Some I will added a battery to it
