20x40 mm Block
This is a 20x40mm block with a 2 5mm(radius) holes
Created by
Anirudh 🚀
No Grant
44 views
2 followers
Timeline
CAN ⚡🚀
approved 20x40 mm Block ago
Tickets awarded: 6 tickets
Anirudh 🚀
submitted 20x40 mm Block for review ago
samliu ⚡🚀
requested changes for 20x40 mm Block ago
Can you show the full item in your cart screenshot? For example, you shouldn't need 1k of filament to print this. Please re-submit.
Anirudh 🚀
submitted 20x40 mm Block for review ago
Anirudh 🚀
added to the journal ago
finished shipping the project
Published it on Printables! tried posting on maker world but that requires a real life image of the model :(

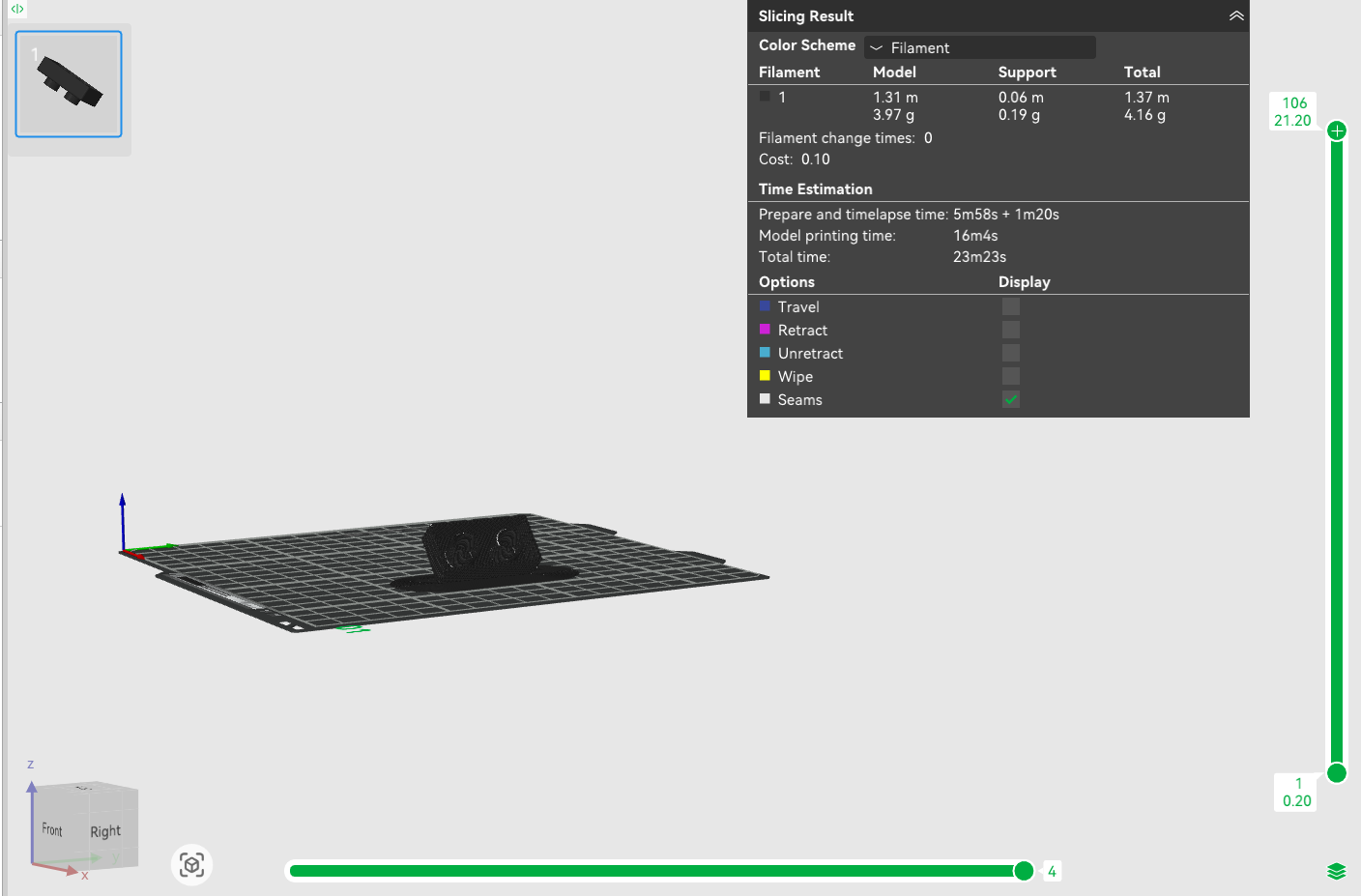

created a Bom and a very short readme, sliced it on bambu studio and created a 3mf file and this needs some supports too! but overall its coming in 4.16g
Anirudh 🚀
added to the journal ago
Added final touches

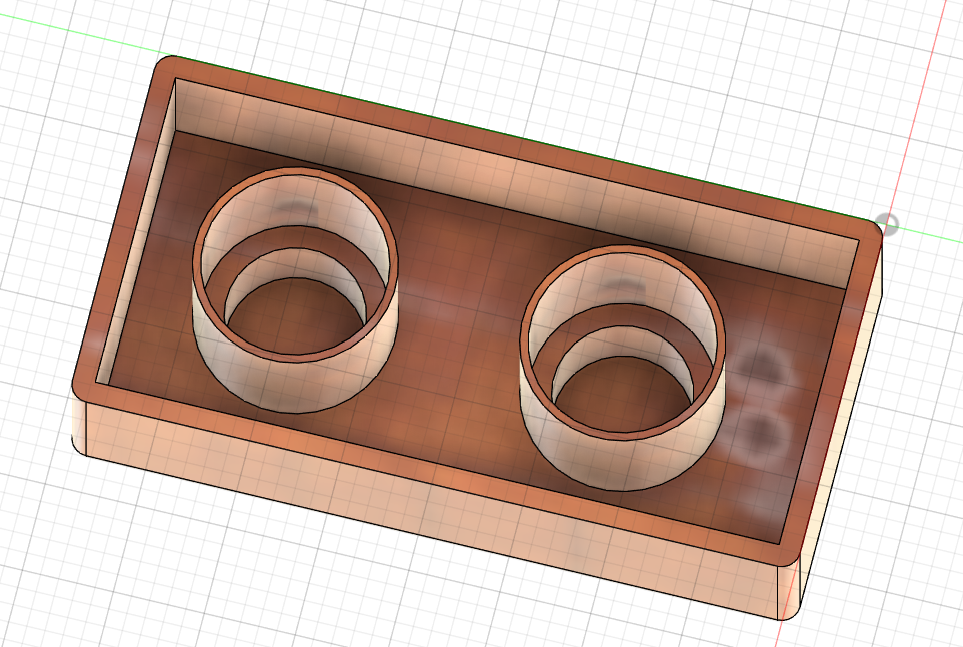

Added the holes for bottom for other blocks to fit! and added a cool texture of wood
Kept in mind tolerances! Idk how much tolerance to keep so I kept it at 0.2 mm right now and for thickness I went with 1mm

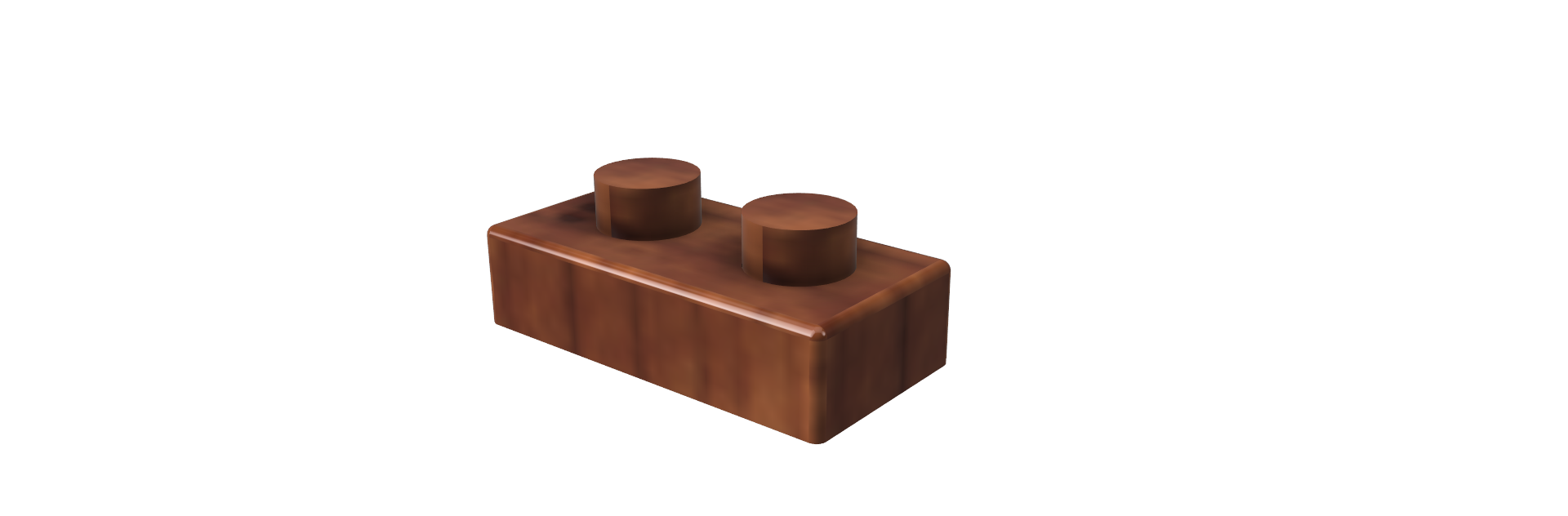

Played a bit with the fusion 360 render tab and tried to change some lights and material
Anirudh 🚀
added to the journal ago

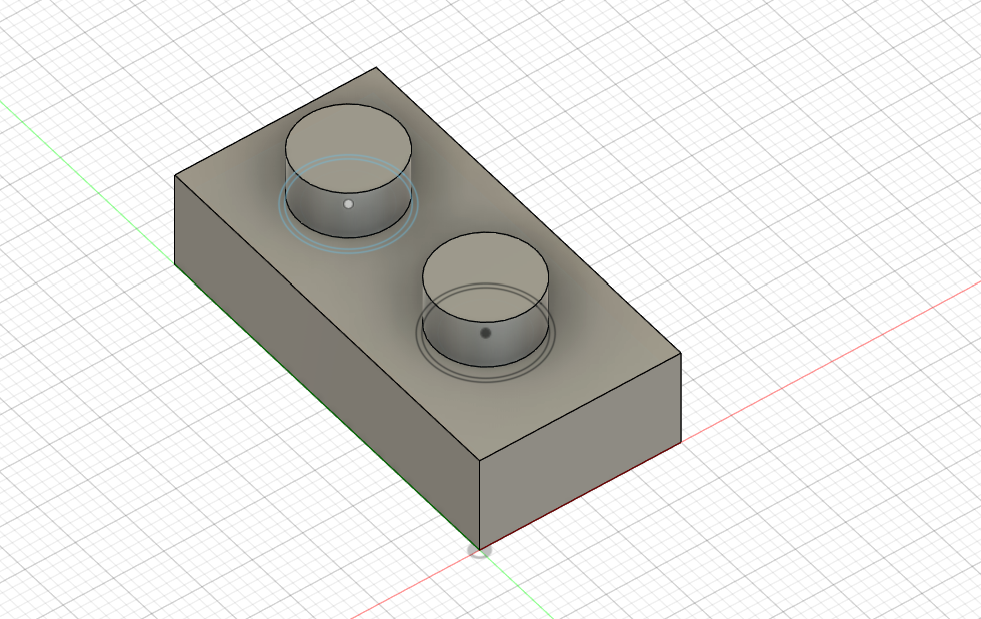

Created my initial block and added 2 circles
Started my basic project! learned about rectangle and circular patterns in fusion and a bit more details about sketching tools
Made a very small block right now and added 2 circles using the rectangle patterns tool and next i'll make 2 holes inside the block! also did shelling
Anirudh 🚀
started 20x40 mm Block ago
