PID Line Following Robot

Line Following Robot is a highly efficient robot design that detects and follow the line on the ground. The robot immediately responds to any line shift. Ultra High Quality Parts and Sensors will be used. PID will be implemented in it

Created by Safeer Hassan Safeer Hassan

Tier 3

47 views

3 followers

samliu samliu ⚡🚀 approved PID Line Following Robot ago

Tier approved: 3

Grant approved: $103.00

I would've loved to see more about how you plan to do the firmware of this, but this is alright. Let me know how it turns out! Approved.

Safeer Hassan Safeer Hassan added to the journal ago

Rechecked the whole Project

So I have rechecked the whole project in accordance with the submission deadline. Here is what I concluded.
It is Original with CAD Files, Untested Firmware.
It has been Sanity Checked by: https://hackclub.enterprise.slack.com/team/U08AZBA9NFJ and in KiCad Discord Server also.
BoM is present in .csv Format with all Links and Prices alongwith PCB Source Files (Gerbers, Schematic, Board etc). It's completely Organised and Readable
The ReadMe file has description of what the project is, why I made this and how to use the project, contains 2 Pictures of 3D Model, 2 Pictures of PCB, 1 Picture of Schematic Diagram, BoM in Table form at end with Links etc
It has no AI Usage. I have fixed several things in readme, CAD etc. I also have fixed PCB by removing all 90 degree turns etc.

The step file was a bit bigger than maximum size limit so I have to use Git LFS but unfortunately it messed all up... my whole project vanished so I have to spend a lot of time fixing that... finally i have fixed that and now the project is complete
Screenshot 2026-02-15 094438

Safeer Hassan Safeer Hassan submitted PID Line Following Robot for ship review ago

Tanuki Tanuki ⚡🚀 requested changes for PID Line Following Robot ago

(DMed user - PCB routing issues.)

Please DM me when u fix these issues! Just returning for organization.

Safeer Hassan Safeer Hassan submitted PID Line Following Robot for ship review ago

Safeer Hassan Safeer Hassan added to the journal ago

Fixed the whole Project

So I have fixed the whole project as asked by reviewer. I have used Global Labels in Schematic Diagram and also realised I was missing a power switch that I have now. Also I updated the whole PCB accordingly and fixed all DRC errors etc. Its looking good. I also updated the PCB in the 3D Model and created new Gerber files for it. Its ready to reship! Hopefully it don't get in queue for 20 days again.

PCB 23D Model 2
PCB
Schematic Diagram3D Model 1

Tanuki Tanuki ⚡🚀 requested changes for PID Line Following Robot ago

Hey! Cool project, but please utilize global / net labels. The schematic is a bit hard to read. Additnally, please include a picture of the PCB in the BOM (not just the 3d view, but in the PCB editor.) Also, please include .step instead of zip. If its over the file size limit (which this shouldnt be) try git lfs. Please check out https://blueprint.hackclub.com/about/submission-guidelines, and ping me if you have any questions in #blueprint-drafts!

Safeer Hassan Safeer Hassan submitted PID Line Following Robot for ship review ago

Safeer Hassan Safeer Hassan added to the journal ago

NOTE FOR THE REVIEWER

Dear Reviewer,
I have fixed everything now and there's nothing left to do. If you check my journals, you can see that I have worked a lot to reduce cost. It was costing about $170-200 at first but I decided to use local alternatives and finally I reached about $100. Trust me it can't be reduced below this. The decision to use PCB as chassis has been made for lowering weight, adding complexity. The cost with normal chassis will also be same, even if its lower so it will have less complexity so will get in tier 4 while we want complexity and its place in tier 3. Also I have fully fixed PCB, Schematic Diagram and 3D Model after the updated BoM. Readme has been fixed and everything is alright now. I have also added the competition in ReadMe in which I plan to participate via this robot. If you check the website given, it clearly says that the competition is planned on 11-13 June. My O Level exams are starting soon and will end on June 10 and I will quit my laptop and all other activities on 1 March so I have very few time. I hope this project is approved this time and as soon as possible. Please (T-T)
Screenshot 2026-01-20 194701

alexren alexren ⚡🚀 requested changes for PID Line Following Robot ago

hi there! i think this project has a great premise but still has a long way to go. There's a ton you can do to get cheaper parts, and you really don't need to make the chassis out of the pcb - you should be able to make this for under $50. your readme also makes a lot of mentions about what you "will" be doing instead of whats been done; you should make your readme as reflective of the current state of the project as possible

also - share some of the line following robot competitions you're thinking of!

Safeer Hassan Safeer Hassan submitted PID Line Following Robot for ship review ago

zsharpminor zsharpminor requested changes for PID Line Following Robot ago

Your BOM and cart screenshots do not match (to name one example, your BOM mentions AliExpress but you do not have an AliExpress cart screenshot). Additionally, please try to source more of your parts from the same source (ideally AliExpress due to generally free shipping), and try to reduce the cost of your PCB - have you compared prices with PCBWAY and SEEED Studio PCB? For Pakistan, I believe that SEEED might be cheaper, especially for shipping.

Safeer Hassan Safeer Hassan submitted PID Line Following Robot for ship review ago

Shaurya Bisht Shaurya Bisht requested changes for PID Line Following Robot ago

Please add a BOM.csv to your repo with all the components you need to buy with prices and vendors and a total price as well.

Safeer Hassan Safeer Hassan submitted PID Line Following Robot for ship review ago

Iamalive Iamalive 🚀 requested changes for PID Line Following Robot ago

Please include the items that you're planning to buy as cart screenshots as well, not the total cost. Also, include the shipping option for your pcb shipping option since we need to verify that you've chosen the cheapest option.

M.Abdullah M.Abdullah gave kudos to PID Line Following Robot ago

WOW

Safeer Hassan Safeer Hassan submitted PID Line Following Robot for ship review ago

Tanuki Tanuki ⚡🚀 requested changes for PID Line Following Robot ago

Hey! The decision to not include CAD seems to be a creative decision to cut weight, so thats fine. Just include firmware and organize the repo! Happy hacking

Safeer Hassan Safeer Hassan added to the journal ago

Made 3D Model

I am sorry I forgot to journal before submitting project. So I made the CAD Model as was demanded by reviewers. I found step files of almost all components except one so i made a simple cad design for that according to its dimensions.Screenshot 2025-12-17 204329

Safeer Hassan Safeer Hassan submitted PID Line Following Robot for ship review ago

Tanuki Tanuki ⚡🚀 requested changes for PID Line Following Robot ago

I have the same feedback as the previous reviewer! Please include CAD :)

Safeer Hassan Safeer Hassan submitted PID Line Following Robot for ship review ago

Safeer Hassan Safeer Hassan added to the journal ago

Completed Project for Resubmission

Screenshot 2025-12-15 193344
So I now again changed the BoM. Made several changes in it and the cost is now fully approx 100 dollars. I decided to go with n20 motors with encoders because it will ensure smoothness and precision in the car. I also tried to cut several costs including capacitors, battery. For adding a bit more complexity, I have decided to use simple Li-ion battery and integrate a BMS with it. Hope so my project is approved and lands in Tier 3.Screenshot 2025-12-15 193334

Safeer Hassan Safeer Hassan added to the journal ago

Wrote basic code

So the reviewer demanded to write code for the project even if its basic one so I wrote. The code includes basic functionality of getting input from IR Sensor Array, giving it to ESP32 and then ESP32 gives signal to Motor Driver to adjust speed base on that Input from IR Sensor Array. This journal is quite short oneScreenshot 2025-12-08 202642

Safeer Hassan Safeer Hassan added to the journal ago

Recreated the BoM

As the cost of project was $160 including each and everything, I got to know that I have to get into Tier 2 to cover this cost and I can't because the effort is not sufficient. So I decided to cut cost. The main problem was that AliExpress was charging $60 AS TAXES.... My all components costed $80 while I just had to pay $60 for taxes. So I decided to turn to a local store for cheaper rates and no taxes. I found one named Digilog. Its authentic and reliable. I went to its website, found all products, added them to cart, created a new .csv file and listed them all with name and cost and qty. Surprisingly, this reduced the whole cost fro $160 to just $70. But the issue I am encountering that is Digilog only supports either Cash on Delievery or Bank Transfer and HCB wont provide this. I have contacted them to solve this issue and I hope that it will be solved somehow. If solved, I could fit into Tier 3.Screenshot 2025-12-07 185439

zsharpminor zsharpminor requested changes for PID Line Following Robot ago

Nice project! Unfortunately, this cannot be approved for Tier 2 as it does not feature any form of CAD case, and you're using a TON of prebuilt parts.

According to your journal, you spent approximately 30 hours making one PCB? This supposedly includes 6 hours for one schematic, another 3.5 hours fixing that same schematic, and 8? hours putting that schematic into a PCB - this should take an hour or two, especially if you're using ChatGPT :p

I'd say that currently, your project is around a Tier 4, and if you do some solid work on your PCB and/or design a case, that could be bumped up to Tier 3.

You have NO README.MD file at all, and no images in said readme.

You have NO code for your robot - code is required (even if just preliminary) for a project to be approved.

Overall, the state of your project doesn't seem to be very polished, and you're using a lot of premade components, which is why it cannot be approved for Tier 2. Keep up the good work, though!

Safeer Hassan Safeer Hassan submitted PID Line Following Robot for ship review ago

Safeer Hassan Safeer Hassan added to the journal ago

Done a lot!!!

Screenshot 2025-12-04 204742
So I think this is gonna be the last journal. I have successfully completed PCB, routed it. I have also changed the whole design on PCB. After that, I update my BoM trying to minimise the cost as much as possible but its still cost about 160 dollars including PCB and everything. I generated gerber files in Kicad and got a quote of the cost. I added this too to BoM. I uploaded every file to Repository. One thing I want to talk is about taxes. Without taxes, my project would cost about $110 but there are crazy $60 taxes on aliexpress. All I can do now is to hope to get into Tier 2
Screenshot 2025-12-04 202722Screenshot 2025-12-04 195355

Safeer Hassan Safeer Hassan added to the journal ago

Designed the PCB (Not completed yet)

After I fixed schematic diagram, I imported all the assigned footprints on PCB editor and as told in previous journal that I also fixed all the errors I encountered while importing. The problem was that I didnt had a definite design for the PCB. I didn't knew what to make and how to make. Me and my friend thought a while and presented a simple car shaped design for PCB Shape. We decided few measurements like length, width etc. He advised me to round the corners to make it asthetic (T:T). What I did was designed the PCB Shape on cuts layer and measured so that each side is of perfect length. After that, I had to figure out where to place compoenents on it and it was truly a battle. Literally I designed the whole PCB 3-4 times and each time a component went on wrong place and boom, everything got messed up. But at last I decided to first sketch roughly on paper to find best components placement and it worked. I quickly aligned the compenents as I planned. Then came the routing part. I tried routing but I was failing because sometime 2-3 routes encapsulated a component and there was no chance to kindof connect it. I redesigned routing about 4-5 times and finally now I have the routing. ITS A LOT MESSY!!! I don't care because it was my first PCB design so I just want it to work. Then I ran DRC and got some errors that I fixed. Next I'll kindof place the points where the holes are to be drilled in PCB for components mounting. Then I will recheck it and it will be ready.
Screenshot 2025-11-27 204915Screenshot 2025-11-27 163813
Screenshot 2025-11-28 163943
Screenshot 2025-11-29 195818Screenshot 2025-11-27 202344

Safeer Hassan Safeer Hassan added to the journal ago

Fixed Schematic Diagram

I have just fixed the whole schematic diagram again. When trying to switch to PCB Creation, I came to know that I should first do ERC Checks. On doing, I got about 40 errors. I tried to solve it all and I did but the schematic diagram became too messy so I have to create a completely new one. Also I have now decided to use ESP32 C6 DevkitM1 instead of ESP32 S3 DevkitC1 because its cheap and fitting for our project. I have also created footprints for all of the components and also added them to PCB. Now I will first design Formula One like Chasis(PCB) and then mount components on it and then I think PCB will be complete.
Screenshot 2025-11-27 162319
Screenshot 2025-11-27 162430

Safeer Hassan Safeer Hassan added to the journal ago

Created Schematic Diagram

After completing BoM, we started making schematic diagram. The issue we faced was that it was our first time doing such thing and first time using KiCad so we don't know how to make schematic.. We figured it out by watching tutorials and with help of ChatGPT. The next problem was that we didnt found the symbols we want. At first, we were worried that we might have to design whole logic of a component to create its custom symbol but then we came to know that creating a symbol is just too easy so we did. Then we spent time figuring perfect voltage for motor encoder and then BOOM!!! Schematic Diagram Completed. Our next goal is to make a PCB. I think it would take us about 15 hours as we are totally null and void regarding PCB.
Screenshot 2025-11-23 184151

Safeer Hassan Safeer Hassan added to the journal ago

BoM Completed!!!!!

Finally after a lot of time, the BoM is completed. Everything required is now listed along with link and price etc. Now we have started working on schematic diagram. We are currently facing some issues in it as we can't find most of the component symbols in KiCad. I guess we have to now create custom symbols. We hope to ship it by 15-20 November

Capture

Safeer Hassan Safeer Hassan added to the journal ago

Solved a stupid issue

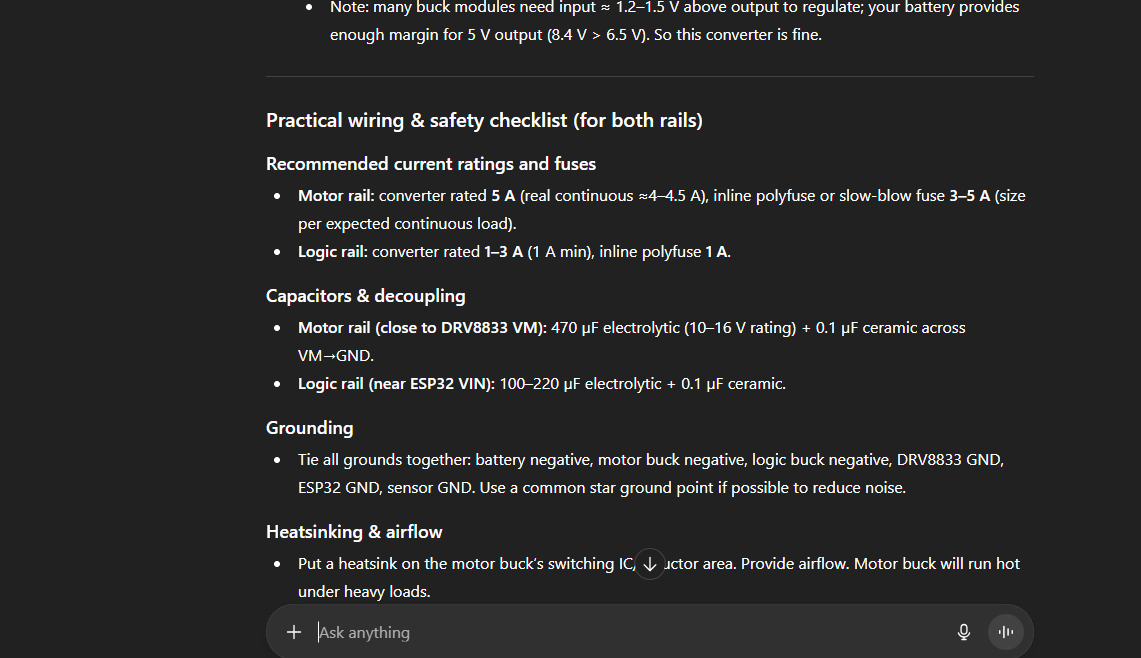

Its something unrealistic to say but I spend 1.5 hours just figuring out which Buck Convertors to use between battery, ESP32 and Motor Driver. Sometimes I found the efficiency to be not suitable and sometimes current, heat, voltage etc. But at the last I have chose 2 different Buck Convertors well suited for their purpose. I also deleted whole BoM and created it once again. Moreover, I tried creating schematic diagram of circuit on KiCad but failed :(. I will do it once BoM is complete.Screenshot (4)
Capture

Safeer Hassan Safeer Hassan added to the journal ago

Started making BoM

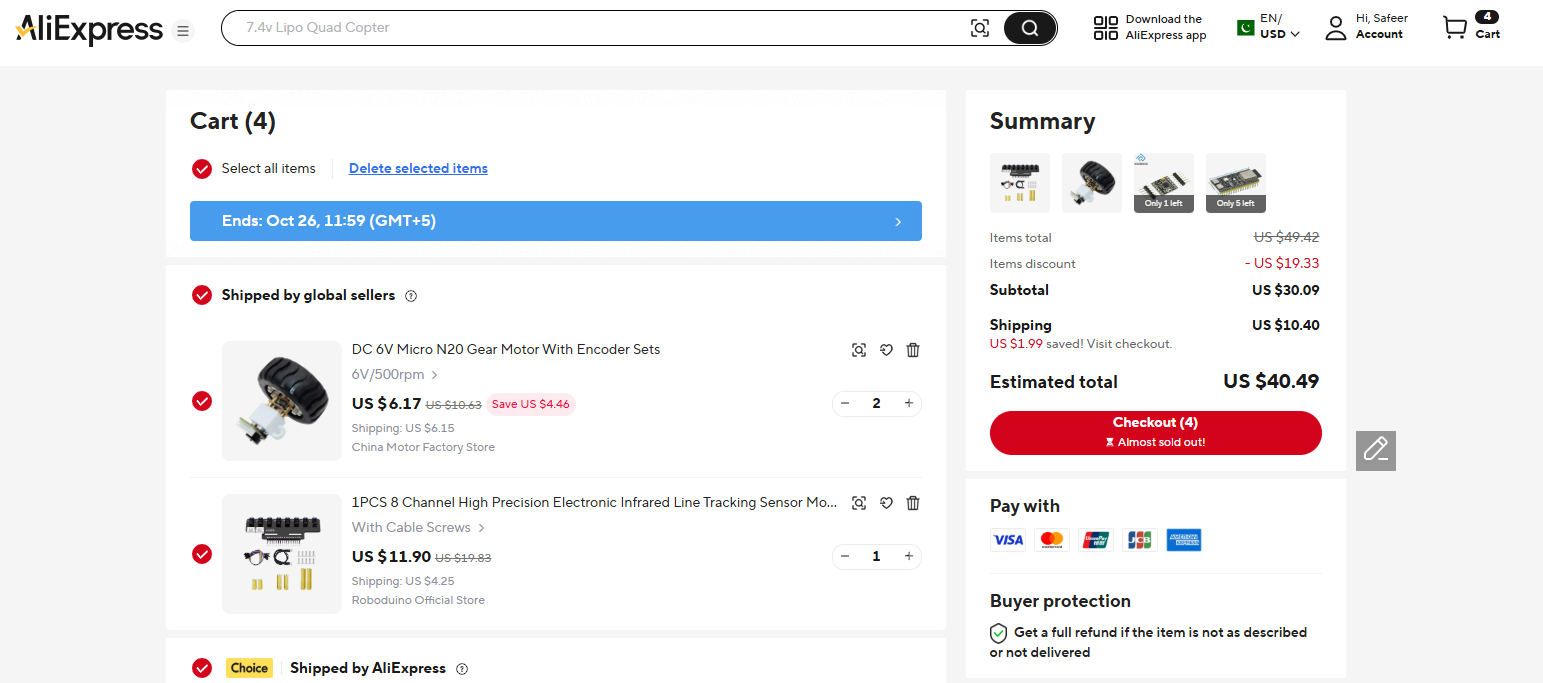

I spent about 30 Minutes doing research on all the components required for my robot. Then I started choosing the specifications of each componenet that will work best. Then I listed them all in an excel sheet in attempt to create a BoM. Then I did research about the vendors from whom I can get these componenets. There were some like Digilog but they didnt accepted Visa Payment so finally I had to choose AliExpress. Now I am adding all the components to cart on AliExpress and will soon complete the BoM. I hope the next journal will be about completion of BoM and Readme file.

Screenshot (3).png

Safeer Hassan Safeer Hassan added to the journal ago

Platform Research

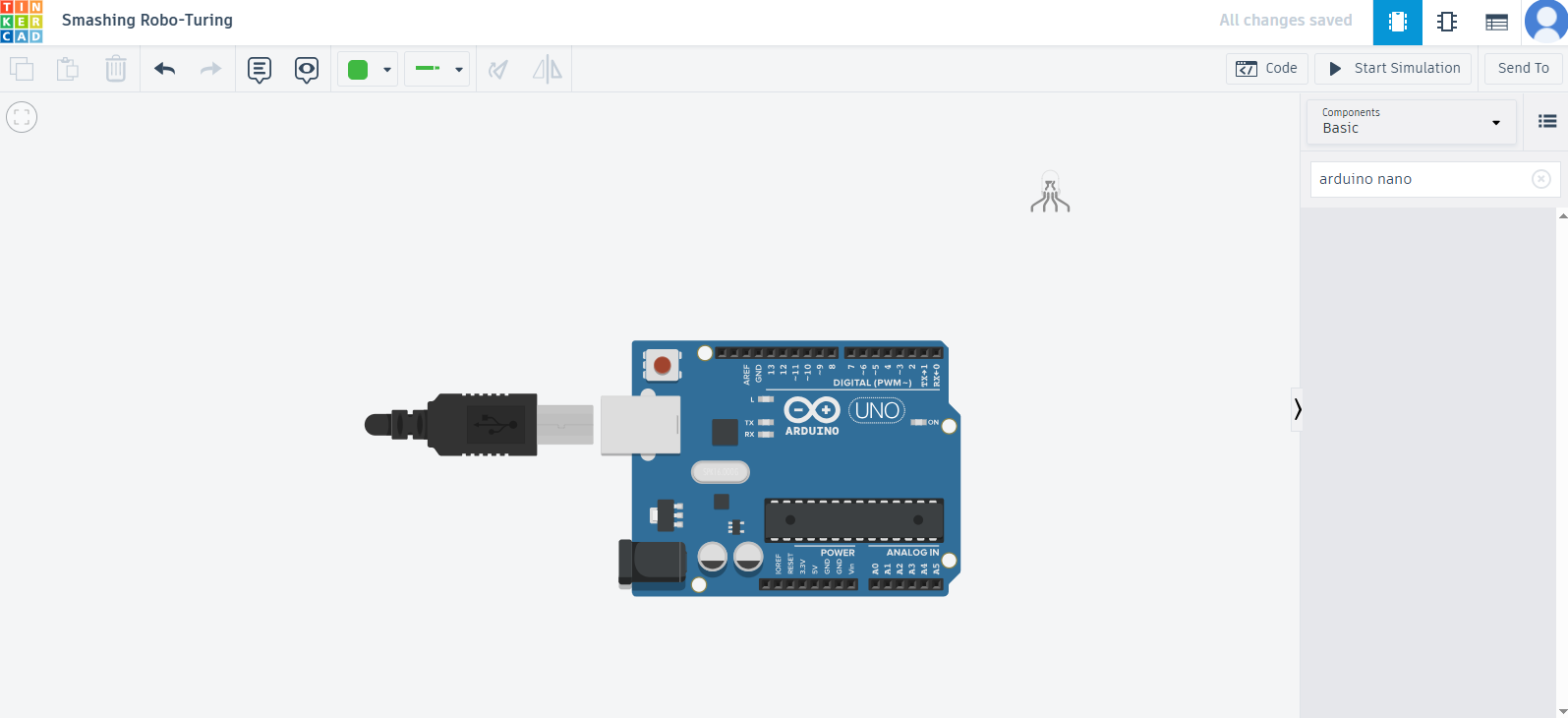

I spent an hour figuring out the best platform for creating schematic diagram and PCB. i first tried tinkercad but it didn't had Arduino Nano, then I used wokwi and it didn't had IR Sensor. Now I am deciding whether to use KiCad for schematic diagram or just make a handdrawn schematic diagram. I also visited Altium and Proteus for PCB Design and visited JLCPCB website for having an idea PCB manufacturing. I have now decided to first test the robot by making it on breadboard and then shifting to PCB once it works on breadboard.
Screenshot (1).png

Safeer Hassan Safeer Hassan started PID Line Following Robot ago

10/19/2025 - Platform Research

I spent an hour figuring out the best platform for creating schematic diagram and PCB. i first tried tinkercad but it didn't had Arduino Nano, then I used wokwi and it didn't had IR Sensor. Now I am deciding whether to use KiCad for schematic diagram or just make a handdrawn schematic diagram. I also visited Altium and Proteus for PCB Design and visited JLCPCB website for having an idea PCB manufacturing. I have now decided to first test the robot by making it on breadboard and then shifting to PCB once it works on breadboard.
Screenshot (1).png

10/23/2025 - Started making BoM

I spent about 30 Minutes doing research on all the components required for my robot. Then I started choosing the specifications of each componenet that will work best. Then I listed them all in an excel sheet in attempt to create a BoM. Then I did research about the vendors from whom I can get these componenets. There were some like Digilog but they didnt accepted Visa Payment so finally I had to choose AliExpress. Now I am adding all the components to cart on AliExpress and will soon complete the BoM. I hope the next journal will be about completion of BoM and Readme file.

Screenshot (3).png

10/28/2025 - Solved a stupid issue

Its something unrealistic to say but I spend 1.5 hours just figuring out which Buck Convertors to use between battery, ESP32 and Motor Driver. Sometimes I found the efficiency to be not suitable and sometimes current, heat, voltage etc. But at the last I have chose 2 different Buck Convertors well suited for their purpose. I also deleted whole BoM and created it once again. Moreover, I tried creating schematic diagram of circuit on KiCad but failed :(. I will do it once BoM is complete.Screenshot (4)
Capture

11/3/2025 - BoM Completed!!!!!

Finally after a lot of time, the BoM is completed. Everything required is now listed along with link and price etc. Now we have started working on schematic diagram. We are currently facing some issues in it as we can't find most of the component symbols in KiCad. I guess we have to now create custom symbols. We hope to ship it by 15-20 November

Capture

11/23/2025 - Created Schematic Diagram

After completing BoM, we started making schematic diagram. The issue we faced was that it was our first time doing such thing and first time using KiCad so we don't know how to make schematic.. We figured it out by watching tutorials and with help of ChatGPT. The next problem was that we didnt found the symbols we want. At first, we were worried that we might have to design whole logic of a component to create its custom symbol but then we came to know that creating a symbol is just too easy so we did. Then we spent time figuring perfect voltage for motor encoder and then BOOM!!! Schematic Diagram Completed. Our next goal is to make a PCB. I think it would take us about 15 hours as we are totally null and void regarding PCB.
Screenshot 2025-11-23 184151

11/27/2025 - Fixed Schematic Diagram

I have just fixed the whole schematic diagram again. When trying to switch to PCB Creation, I came to know that I should first do ERC Checks. On doing, I got about 40 errors. I tried to solve it all and I did but the schematic diagram became too messy so I have to create a completely new one. Also I have now decided to use ESP32 C6 DevkitM1 instead of ESP32 S3 DevkitC1 because its cheap and fitting for our project. I have also created footprints for all of the components and also added them to PCB. Now I will first design Formula One like Chasis(PCB) and then mount components on it and then I think PCB will be complete.
Screenshot 2025-11-27 162319
Screenshot 2025-11-27 162430

11/29/2025 - Designed the PCB (Not completed yet)

After I fixed schematic diagram, I imported all the assigned footprints on PCB editor and as told in previous journal that I also fixed all the errors I encountered while importing. The problem was that I didnt had a definite design for the PCB. I didn't knew what to make and how to make. Me and my friend thought a while and presented a simple car shaped design for PCB Shape. We decided few measurements like length, width etc. He advised me to round the corners to make it asthetic (T:T). What I did was designed the PCB Shape on cuts layer and measured so that each side is of perfect length. After that, I had to figure out where to place compoenents on it and it was truly a battle. Literally I designed the whole PCB 3-4 times and each time a component went on wrong place and boom, everything got messed up. But at last I decided to first sketch roughly on paper to find best components placement and it worked. I quickly aligned the compenents as I planned. Then came the routing part. I tried routing but I was failing because sometime 2-3 routes encapsulated a component and there was no chance to kindof connect it. I redesigned routing about 4-5 times and finally now I have the routing. ITS A LOT MESSY!!! I don't care because it was my first PCB design so I just want it to work. Then I ran DRC and got some errors that I fixed. Next I'll kindof place the points where the holes are to be drilled in PCB for components mounting. Then I will recheck it and it will be ready.
Screenshot 2025-11-27 204915Screenshot 2025-11-27 163813
Screenshot 2025-11-28 163943
Screenshot 2025-11-29 195818Screenshot 2025-11-27 202344

12/4/2025 - Done a lot!!!

Screenshot 2025-12-04 204742
So I think this is gonna be the last journal. I have successfully completed PCB, routed it. I have also changed the whole design on PCB. After that, I update my BoM trying to minimise the cost as much as possible but its still cost about 160 dollars including PCB and everything. I generated gerber files in Kicad and got a quote of the cost. I added this too to BoM. I uploaded every file to Repository. One thing I want to talk is about taxes. Without taxes, my project would cost about $110 but there are crazy $60 taxes on aliexpress. All I can do now is to hope to get into Tier 2
Screenshot 2025-12-04 202722Screenshot 2025-12-04 195355

12/7/2025 - Recreated the BoM

As the cost of project was $160 including each and everything, I got to know that I have to get into Tier 2 to cover this cost and I can't because the effort is not sufficient. So I decided to cut cost. The main problem was that AliExpress was charging $60 AS TAXES.... My all components costed $80 while I just had to pay $60 for taxes. So I decided to turn to a local store for cheaper rates and no taxes. I found one named Digilog. Its authentic and reliable. I went to its website, found all products, added them to cart, created a new .csv file and listed them all with name and cost and qty. Surprisingly, this reduced the whole cost fro $160 to just $70. But the issue I am encountering that is Digilog only supports either Cash on Delievery or Bank Transfer and HCB wont provide this. I have contacted them to solve this issue and I hope that it will be solved somehow. If solved, I could fit into Tier 3.Screenshot 2025-12-07 185439

12/8/2025 - Wrote basic code

So the reviewer demanded to write code for the project even if its basic one so I wrote. The code includes basic functionality of getting input from IR Sensor Array, giving it to ESP32 and then ESP32 gives signal to Motor Driver to adjust speed base on that Input from IR Sensor Array. This journal is quite short oneScreenshot 2025-12-08 202642

12/15/2025 - Completed Project for Resubmission

Screenshot 2025-12-15 193344
So I now again changed the BoM. Made several changes in it and the cost is now fully approx 100 dollars. I decided to go with n20 motors with encoders because it will ensure smoothness and precision in the car. I also tried to cut several costs including capacitors, battery. For adding a bit more complexity, I have decided to use simple Li-ion battery and integrate a BMS with it. Hope so my project is approved and lands in Tier 3.Screenshot 2025-12-15 193334

12/17/2025 - Made 3D Model

I am sorry I forgot to journal before submitting project. So I made the CAD Model as was demanded by reviewers. I found step files of almost all components except one so i made a simple cad design for that according to its dimensions.Screenshot 2025-12-17 204329

1/20/2026 - NOTE FOR THE REVIEWER

Dear Reviewer,
I have fixed everything now and there's nothing left to do. If you check my journals, you can see that I have worked a lot to reduce cost. It was costing about $170-200 at first but I decided to use local alternatives and finally I reached about $100. Trust me it can't be reduced below this. The decision to use PCB as chassis has been made for lowering weight, adding complexity. The cost with normal chassis will also be same, even if its lower so it will have less complexity so will get in tier 4 while we want complexity and its place in tier 3. Also I have fully fixed PCB, Schematic Diagram and 3D Model after the updated BoM. Readme has been fixed and everything is alright now. I have also added the competition in ReadMe in which I plan to participate via this robot. If you check the website given, it clearly says that the competition is planned on 11-13 June. My O Level exams are starting soon and will end on June 10 and I will quit my laptop and all other activities on 1 March so I have very few time. I hope this project is approved this time and as soon as possible. Please (T-T)
Screenshot 2026-01-20 194701

2/9/2026 - Fixed the whole Project

So I have fixed the whole project as asked by reviewer. I have used Global Labels in Schematic Diagram and also realised I was missing a power switch that I have now. Also I updated the whole PCB accordingly and fixed all DRC errors etc. Its looking good. I also updated the PCB in the 3D Model and created new Gerber files for it. Its ready to reship! Hopefully it don't get in queue for 20 days again.

PCB 23D Model 2
PCB
Schematic Diagram3D Model 1

2/15/2026 - Rechecked the whole Project

So I have rechecked the whole project in accordance with the submission deadline. Here is what I concluded.
It is Original with CAD Files, Untested Firmware.
It has been Sanity Checked by: https://hackclub.enterprise.slack.com/team/U08AZBA9NFJ and in KiCad Discord Server also.
BoM is present in .csv Format with all Links and Prices alongwith PCB Source Files (Gerbers, Schematic, Board etc). It's completely Organised and Readable
The ReadMe file has description of what the project is, why I made this and how to use the project, contains 2 Pictures of 3D Model, 2 Pictures of PCB, 1 Picture of Schematic Diagram, BoM in Table form at end with Links etc
It has no AI Usage. I have fixed several things in readme, CAD etc. I also have fixed PCB by removing all 90 degree turns etc.

The step file was a bit bigger than maximum size limit so I have to use Git LFS but unfortunately it messed all up... my whole project vanished so I have to spend a lot of time fixing that... finally i have fixed that and now the project is complete
Screenshot 2026-02-15 094438
