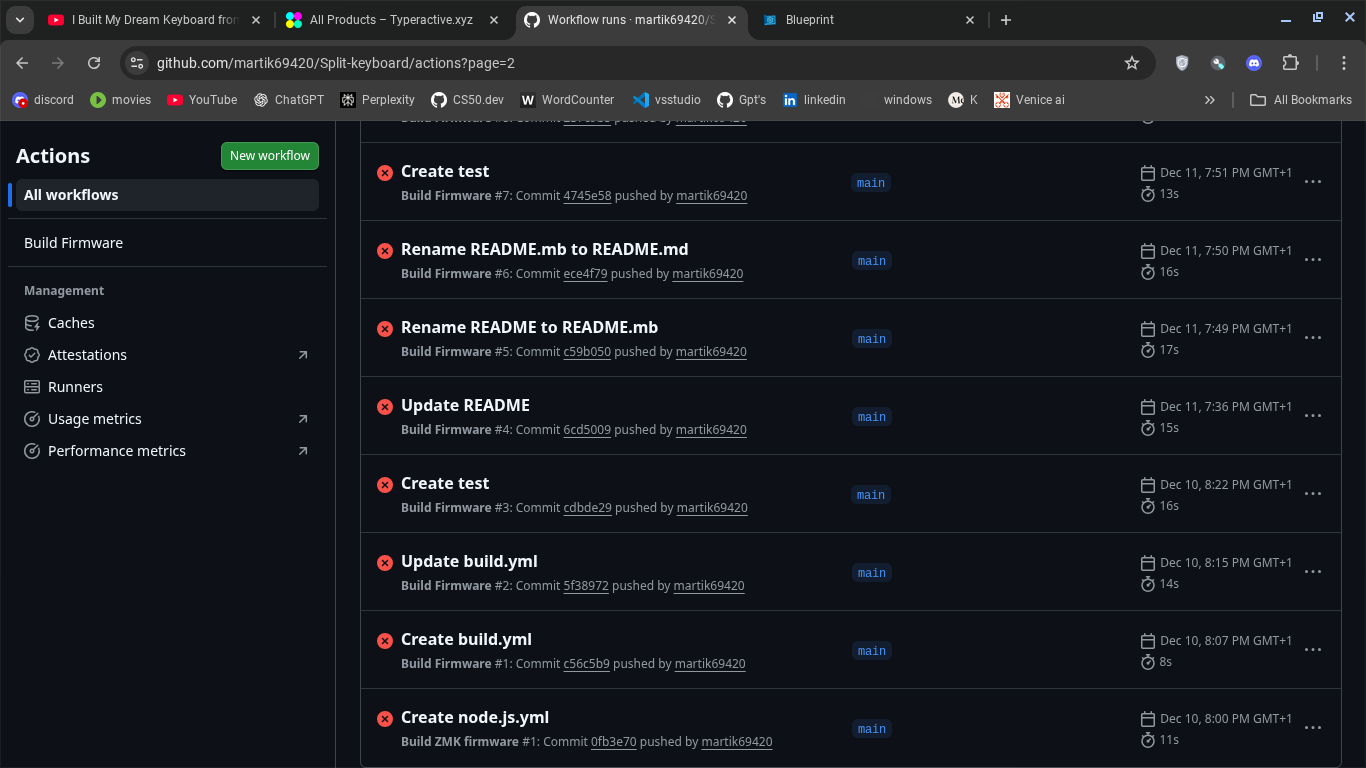

Creating firmware for both sides

So I tried following the video, but I am on a Chromebook, so using the terminal was pretty much impossible. So i had to use github, which proved ineffective, so as a last resort, I used chatgpt the first time, it didn't work at all. I quit for the day and decided to come back the next day. It was worth it because it finally worked.

The reason why it says 3 hours instead of 2 is because the first 2 you can see in the picture but the remaining 1 hour was done using chatgpt and therefore not documented.

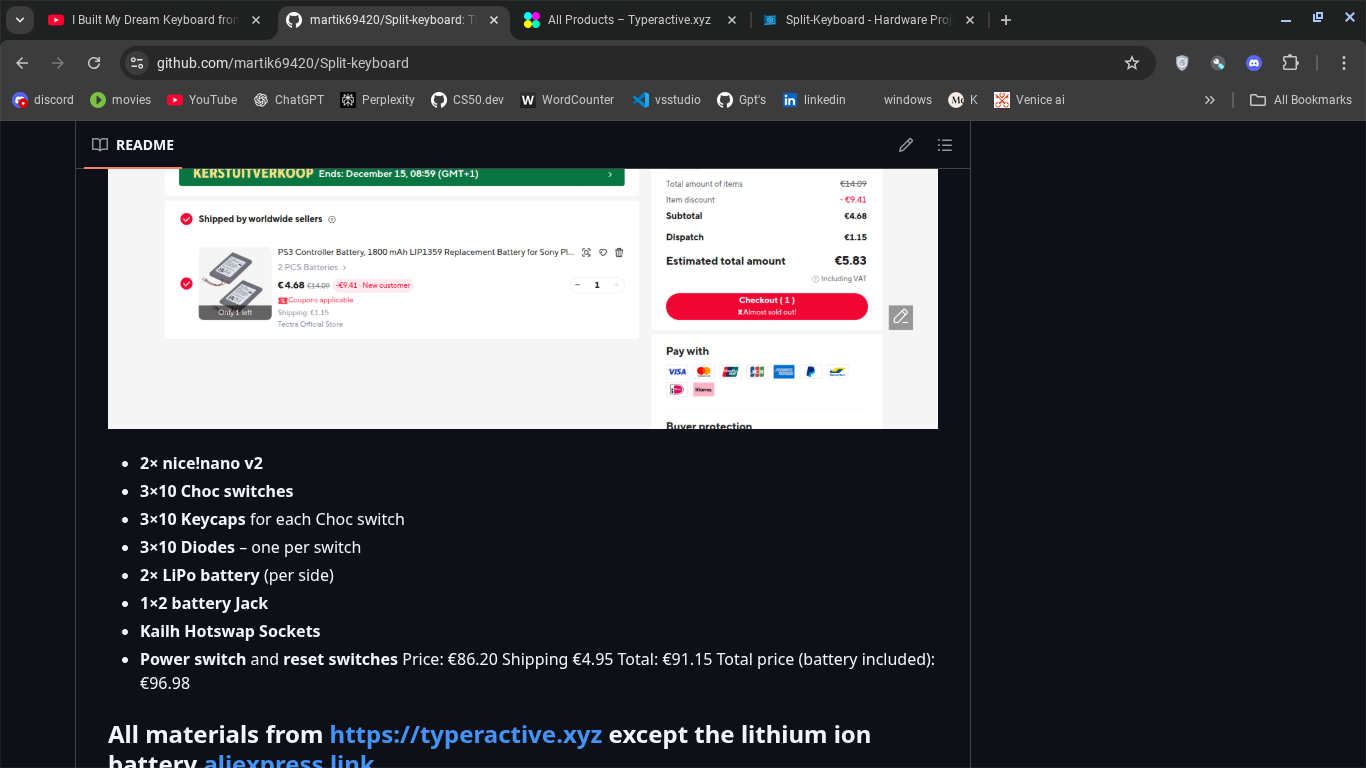

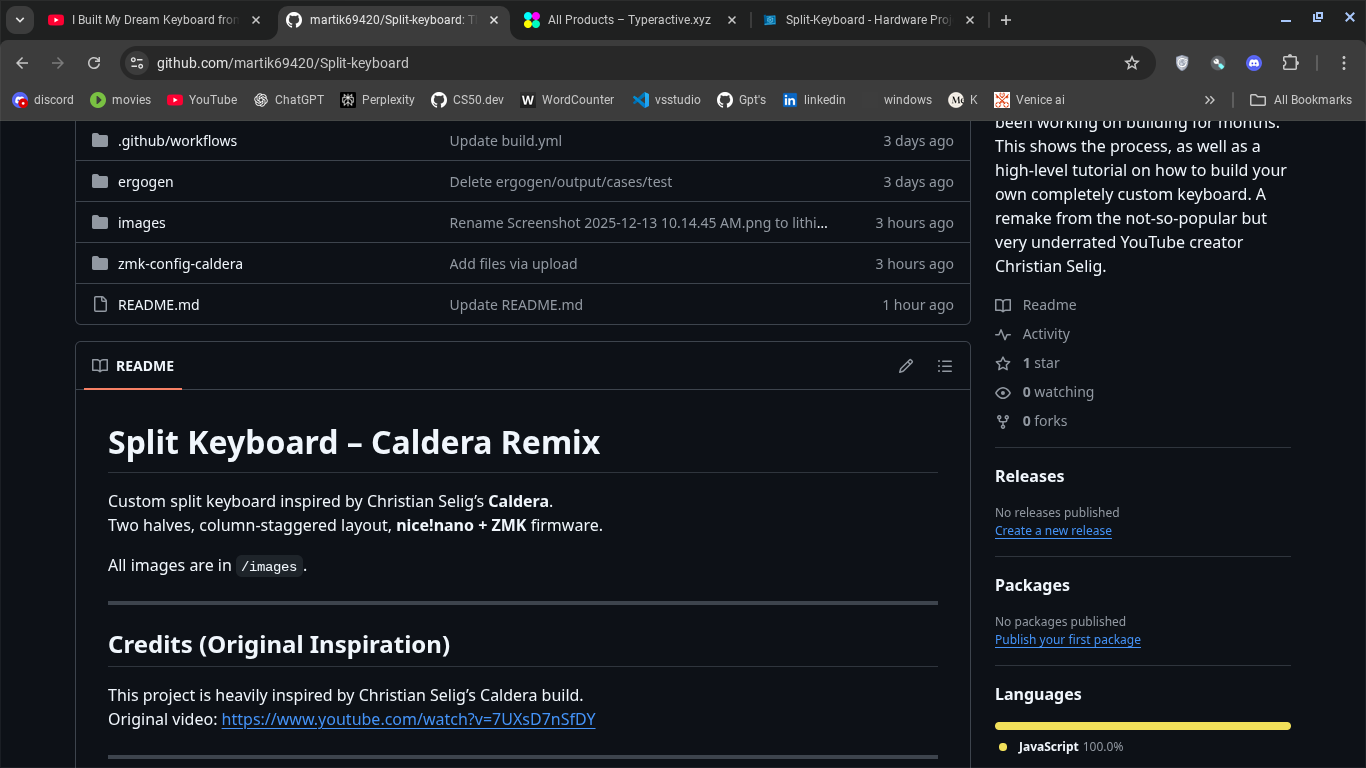

Worked on updating github

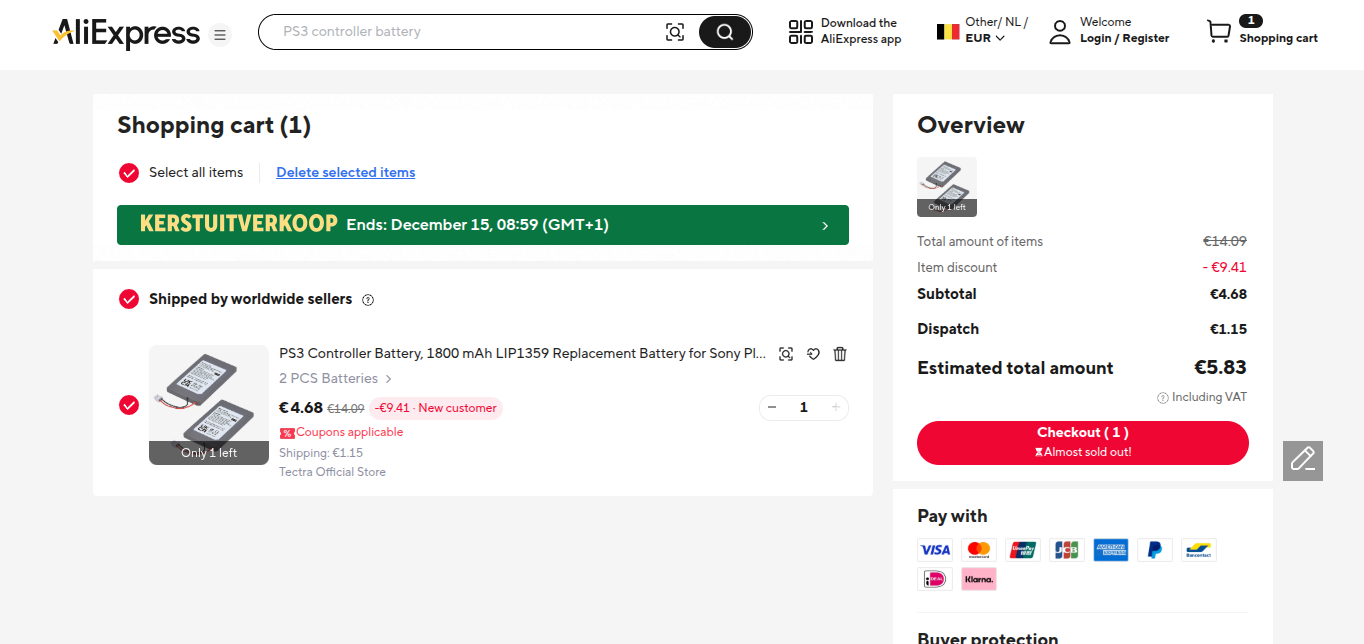

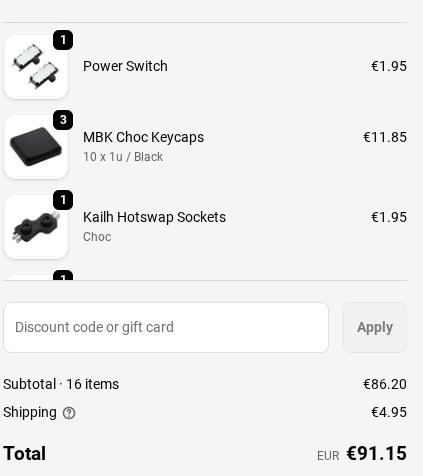

I added image of cad, ergogen, pcb, parts and more to the github readme.mb file and added the firware for both side in the zmk-config-caldera folder on github.

Well i'm a morron its this one

The last file was an accident ,it was actually these images that you needed to account for not the last one. Terribly sorry but please check this one. Never mind this I just deleted the other one

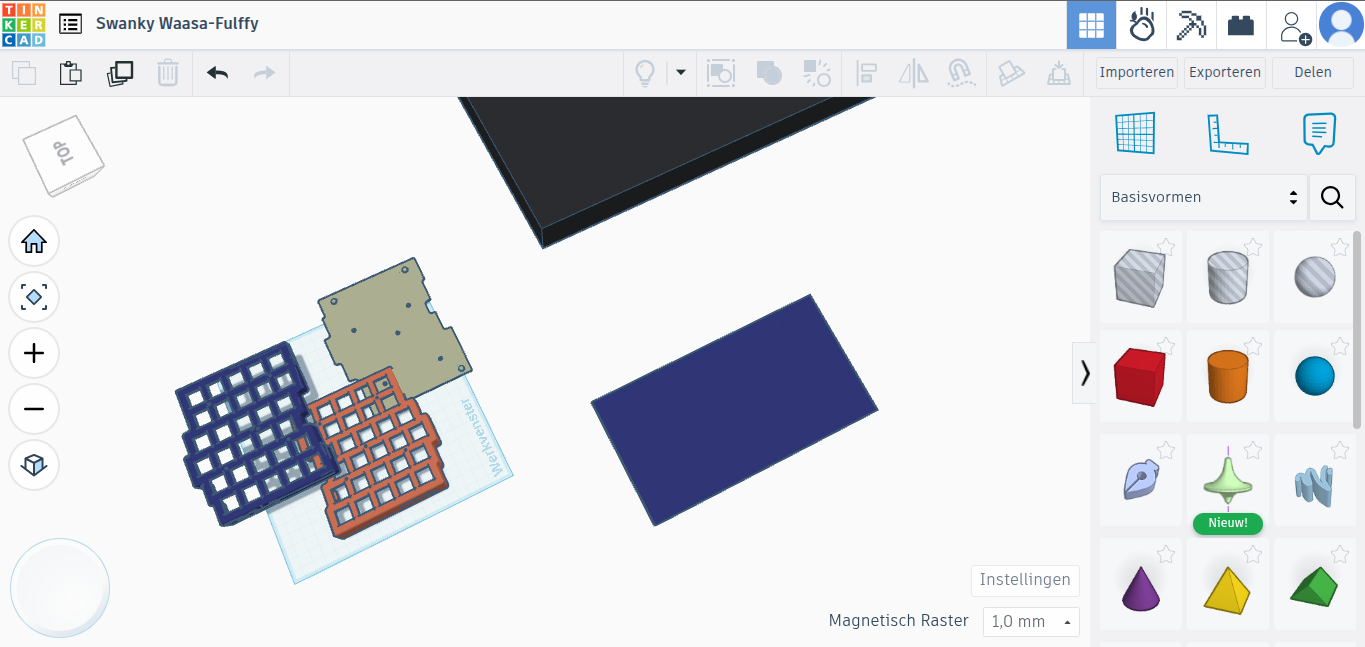

Recreating the case

Recreating the case was pretty difficult because I was using thinkercad ,and for the most part of making I was using touchscreen because I didn't have my mouse.

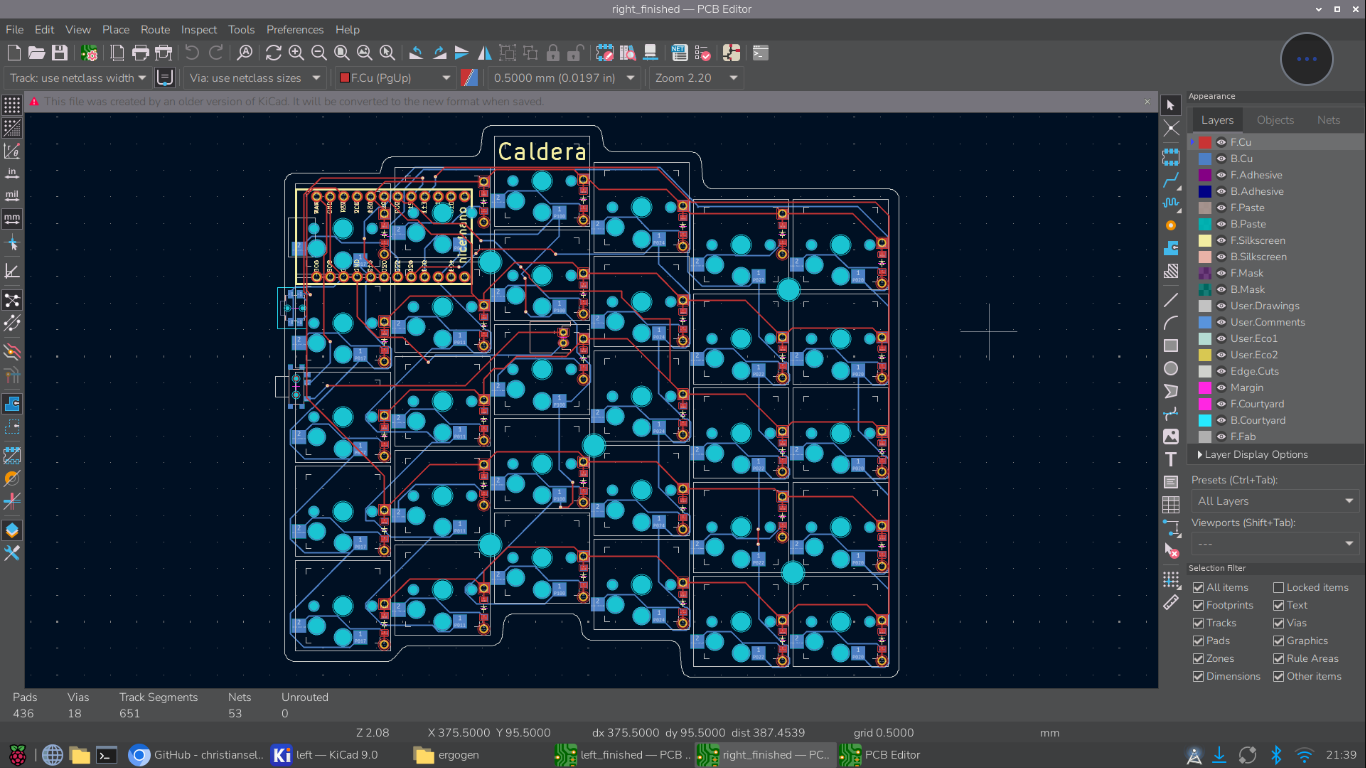

Connected all electric wiring in kiCad - Right

So after doing the left side, it became easier, but it still proved to have taken a lot of time around 3 hours, but it was the same click button make connections and voila so I did that until i had no more to route and I was done after that

Getting the PCB in kiCad - Right

After doing the left side, getting the right side in would prove easy, but the download speeds were sooooo slow that it took 15 mins to download, and for my poor PI, it took 5 mins to just render, but after that it was fine.

(I forgot to take a screenshot, but here is a recreation of it)

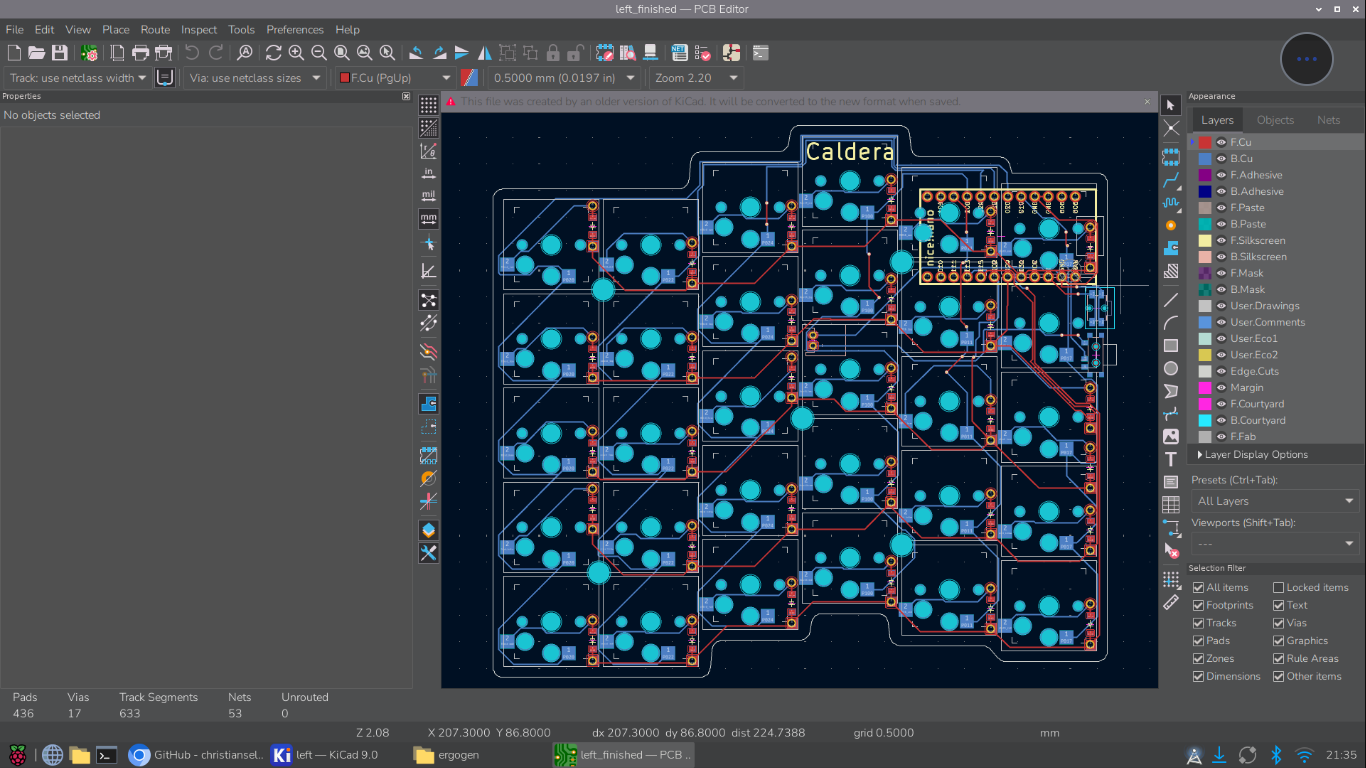

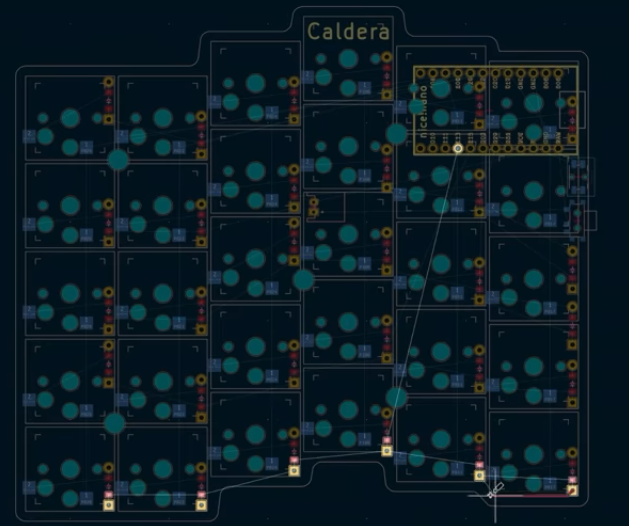

Connected all electric wiring in kiCad - Left

So after figuring out how to put in the pcb I started to connect the wiring, but I didn't really know how. Christian said it was pretty simple, you just had to click on it, and it would tell you where you had to make your next connection.

So I did it for every single connection until it said 'Unrouted: 0', that is when I knew I was done, finally, after finding every single one. I am free at last.

KiCad upload pcb connect -Left

I uploaded the left side PCB to KiCad, which was difficult because I didn't know how to do it myself, so I asked ChatGPT, which wasn't a wonder, but I somehow got it to work in KiCad.

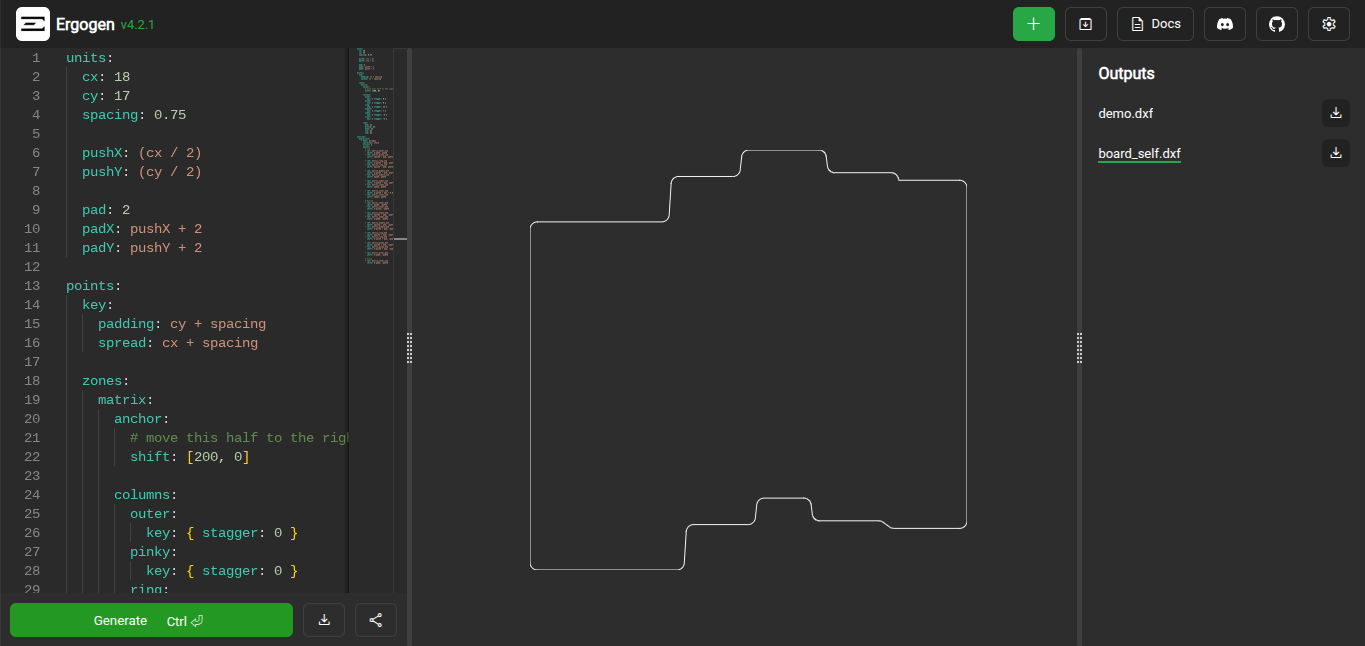

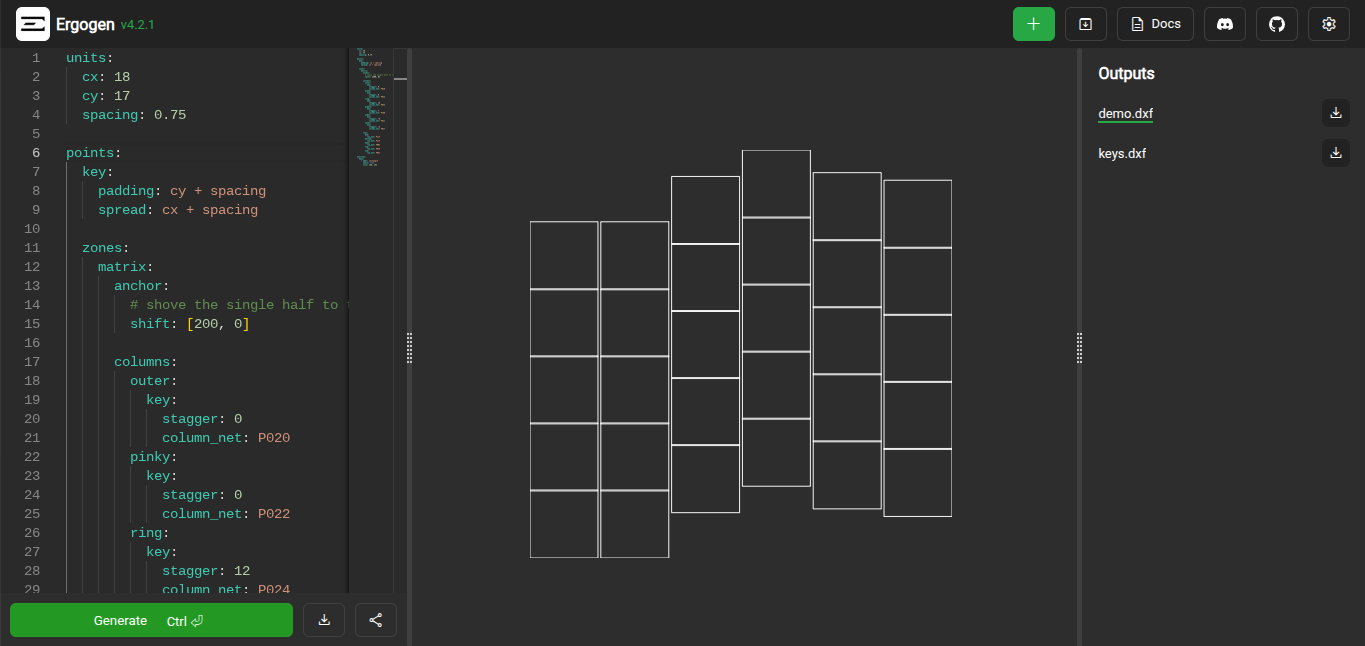

Fixing ergogen

Code didn't work so I reployed chatgpt to help me find the proper layout. Have currently created the same keyplacement as his while I am writing this am about to make the layout. I am done creating the layout.

Configuring Egogen code

Here, I couldn't find the code on GitHub, so I had to write it down manually, copying and pausing each frame to write down the details. ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎

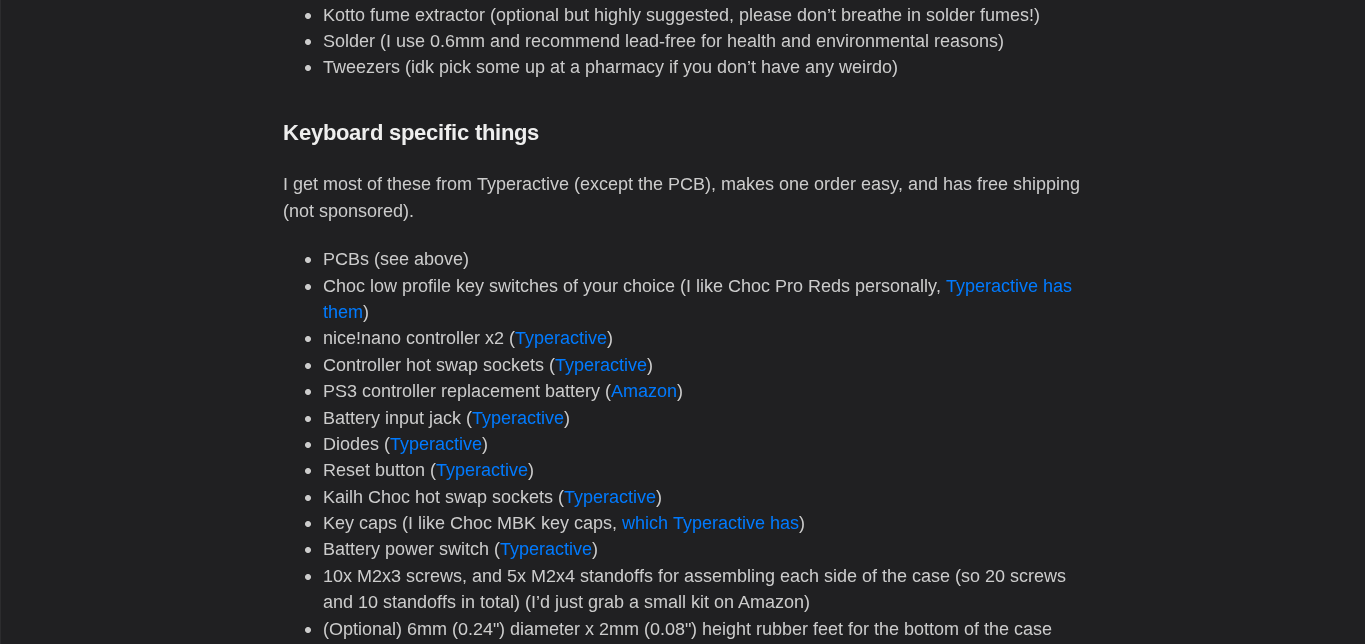

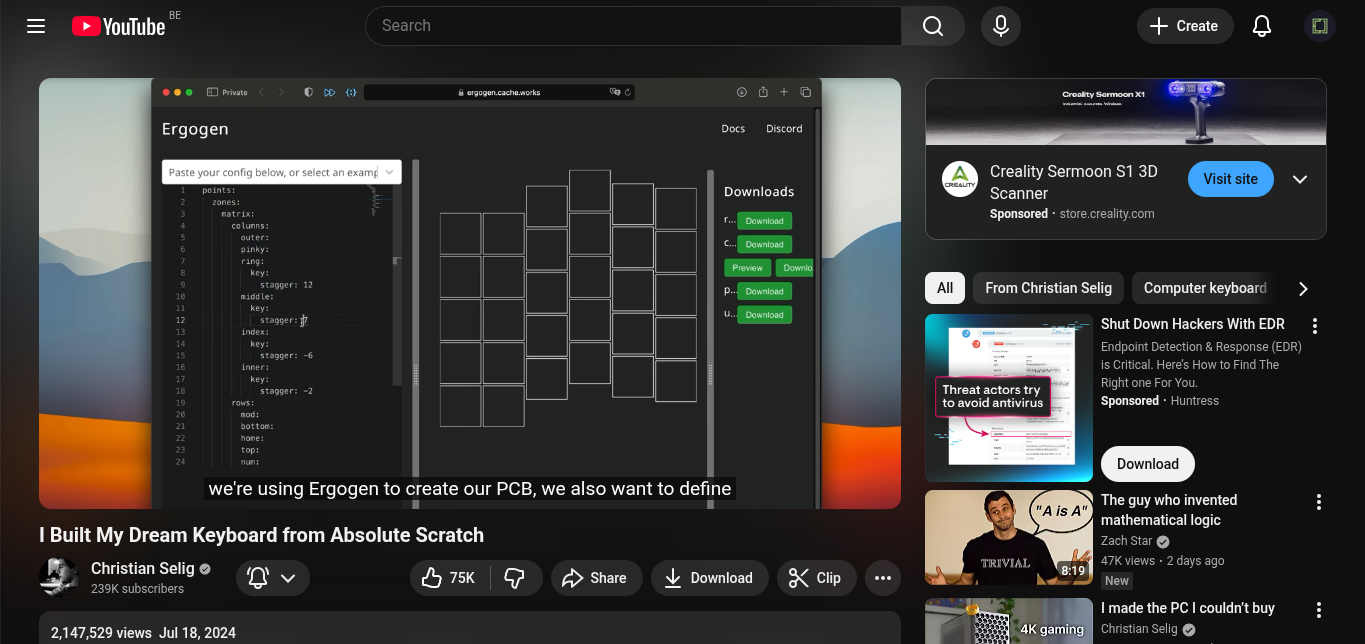

Watching the full Christian Selig video

Watching the full Christian Selig video, I just watched the video keeping in mind the steps he took and which order, and checking the description for useful links
