513 LED Chaser
I made this projet through a HackClub workshop at home. With a custom PCB I can blink LED
Created by
Charles
Tier 5
2 views
0 followers
CAN ⚡🚀
approved 513 LED Chaser ago
Nice project
Charles
added to the journal ago
Create a Box for the PCB (optional)

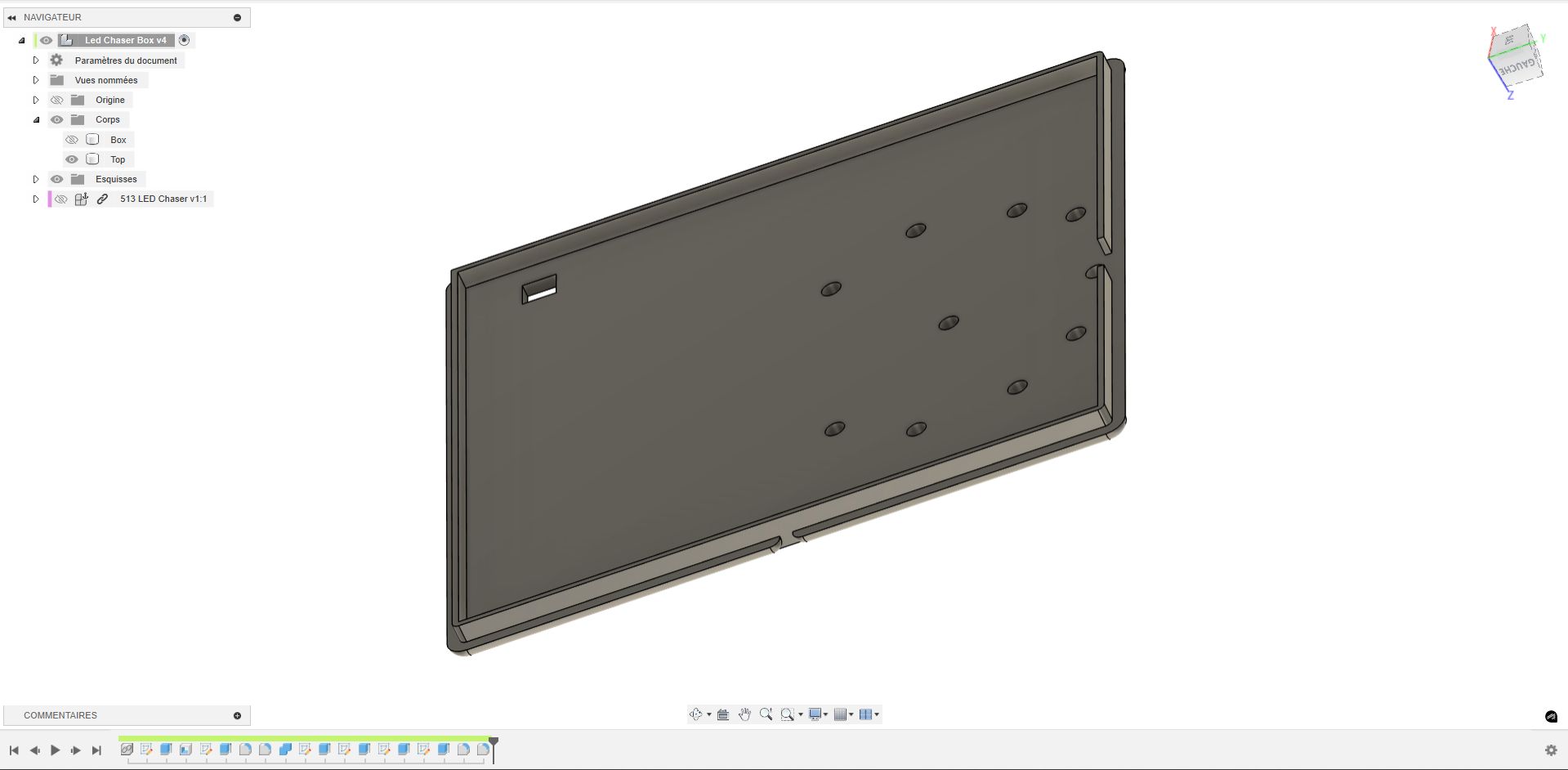

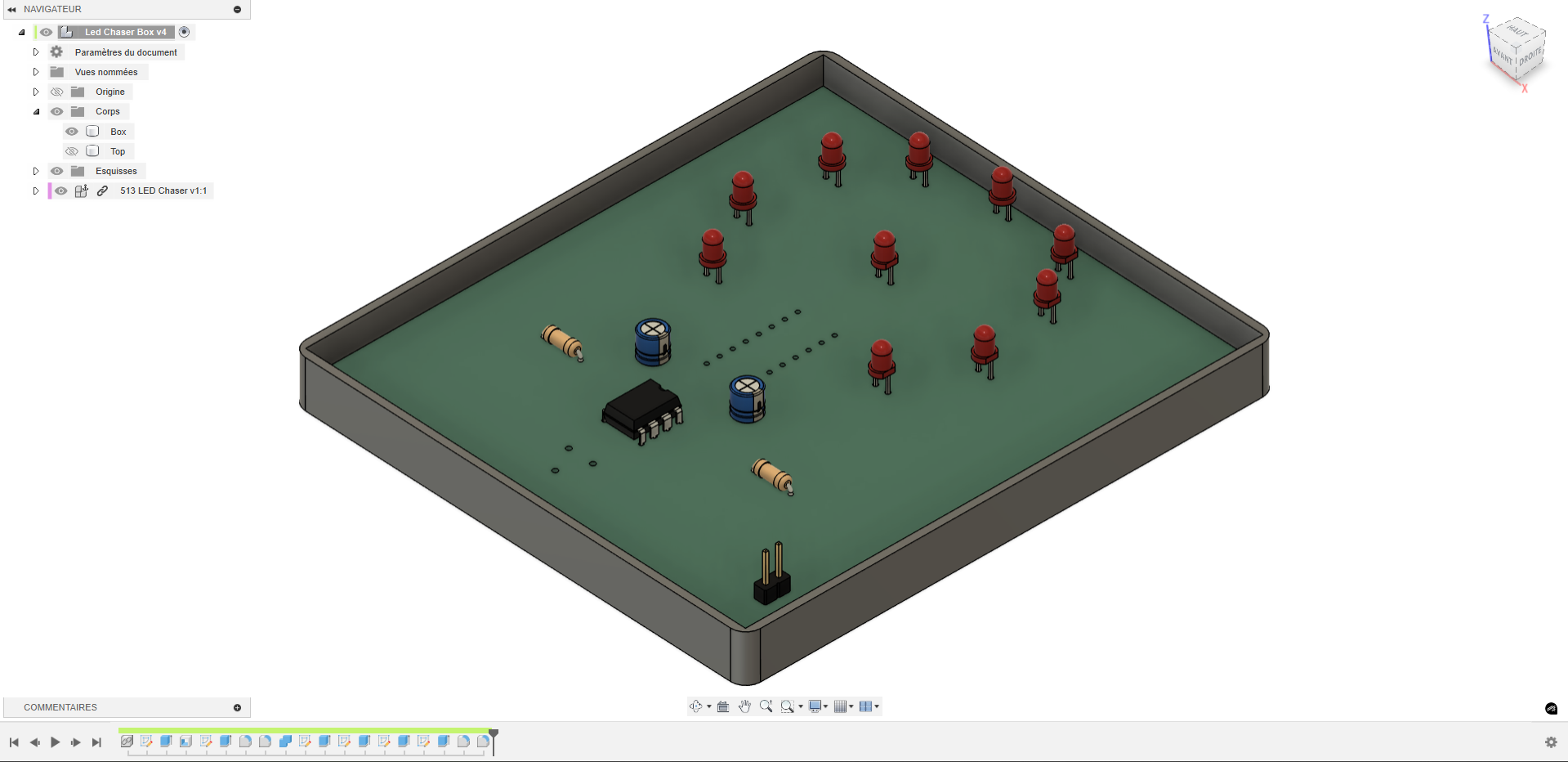

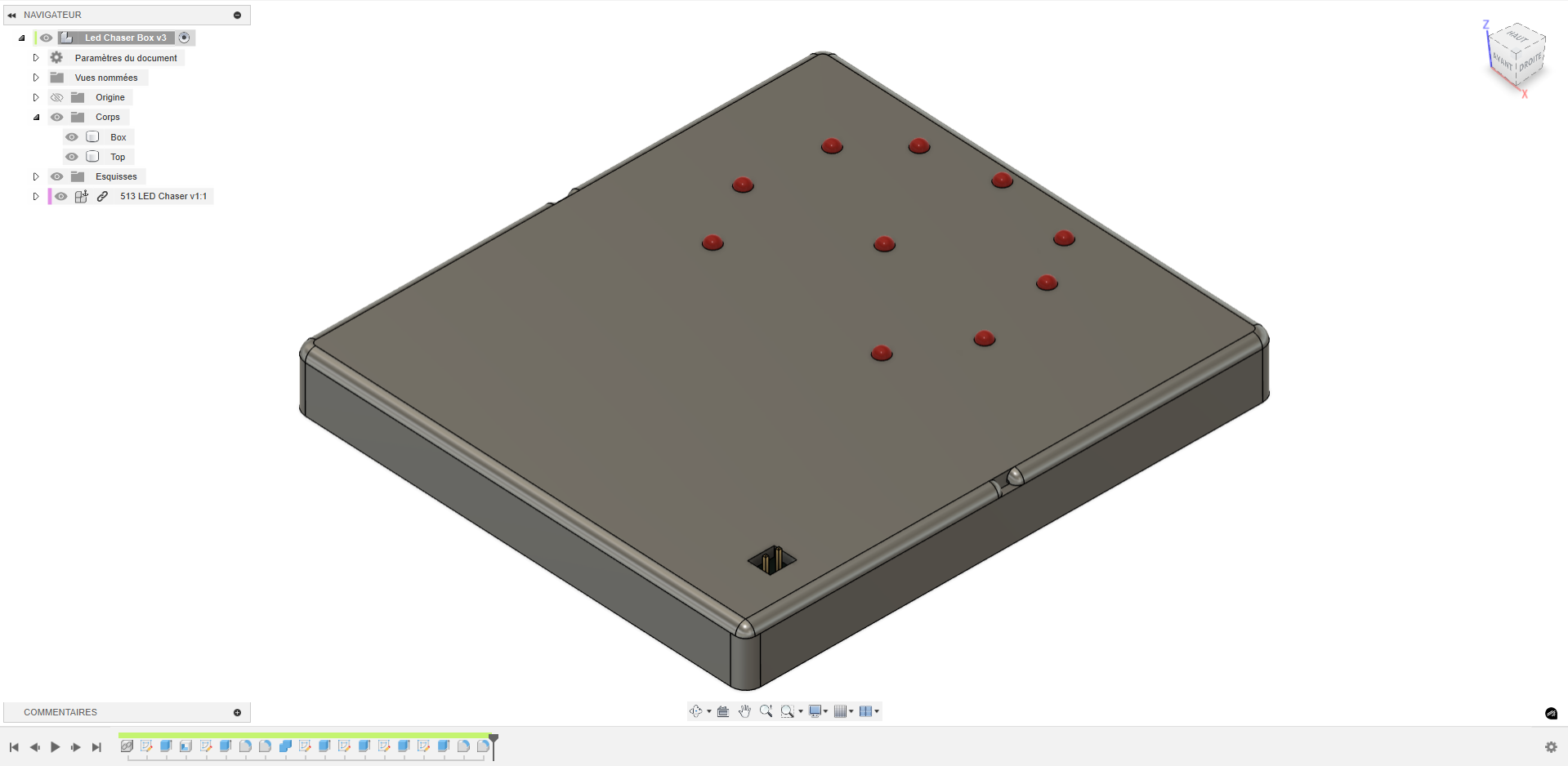

Today, I create a small box that fit perfectly with the pcb I create the PCB with the Blueprint Guided Project and I create the box by myself in Fusion360. All the files PCB and 3D files are on GitHub at https://github.com/Charles-pyt/513-LED-Chaser.
Charles
submitted 513 LED Chaser for ship review ago
PenguinMo
requested changes for 513 LED Chaser ago
Nice! Part are provided so you need to change your grant price
Grant to expect: $8.00
Charles
added to the journal ago

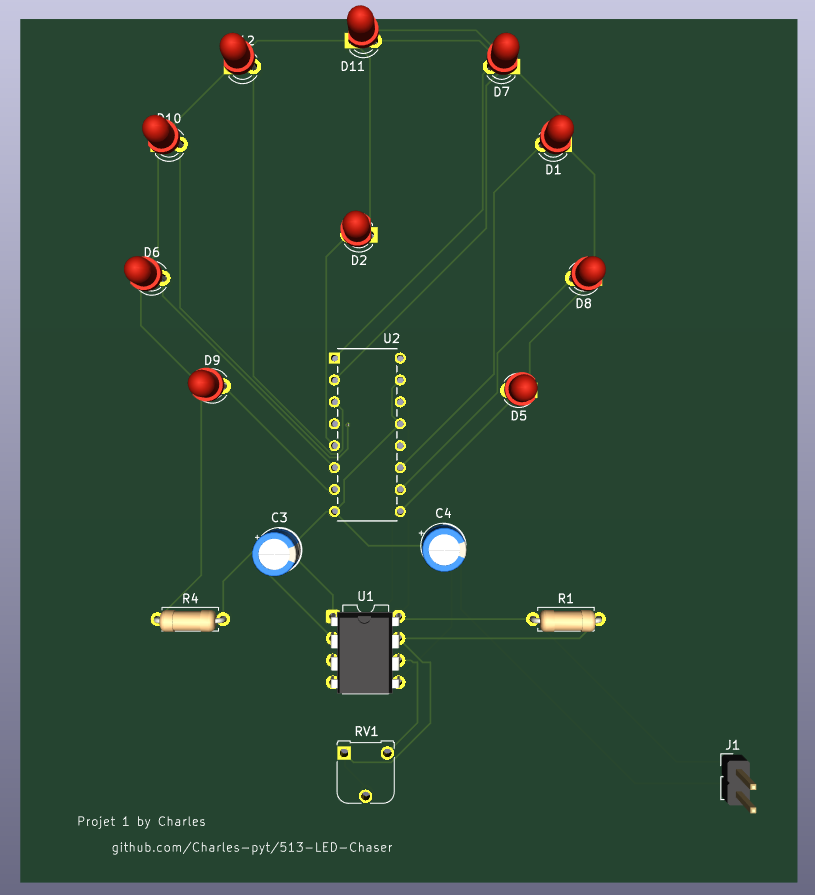

Finish the PCB
513-LED-Chaser
I made this projet through a HackClub workshop at home. With a custom PCB I can blink LED. Thanks to HackClub/Bkueprint for buying nedded pieces. It takes me few hours (~5h) because even if I'm great at 3D modeling I am really bad in electronics!
513 LED Chaser was submitted for review ago
Charles
started 513 LED Chaser ago
12/12/2025 - Finish the PCB
513-LED-Chaser
I made this projet through a HackClub workshop at home. With a custom PCB I can blink LED. Thanks to HackClub/Bkueprint for buying nedded pieces. It takes me few hours (~5h) because even if I'm great at 3D modeling I am really bad in electronics!
12/13/2025 - Create a Box for the PCB (optional)
Today, I create a small box that fit perfectly with the pcb I create the PCB with the Blueprint Guided Project and I create the box by myself in Fusion360. All the files PCB and 3D files are on GitHub at https://github.com/Charles-pyt/513-LED-Chaser.
