a low power audio amp
in this project i'll make a simple and low power audio amp
Created by
imranstab703
Tier 5
1 view
0 followers
Timeline
imranstab703
submitted a low power audio amp for review ago
Iamalive 🚀
requested changes for a low power audio amp ago
Alright, all good! Please just attach the cart screenshot of your shipping option!
imranstab703
submitted a low power audio amp for review ago
funkeudo
requested changes for a low power audio amp ago
This is a really cool project - but your BOM mentions you needing $40 USD, yet you only requested an $18 USD grant, is it possible for you to fix this, and if you need cheaper parts, please don't hesitate to go to cheaper sites like Aliexpress to source them! Keep it up!
imranstab703
submitted a low power audio amp for review ago
funkeudo
requested changes for a low power audio amp ago
Nice project! I love the idea, but you're still missing a BOM.csv file with prices and links to the items you need (sadly, you can't use the autogenerated one :c). Otherwise, it looks great! Keep up the good work.
imranstab703
submitted a low power audio amp for review ago
Iamalive 🚀
requested changes for a low power audio amp ago
Please fix your repo! Your readme should be more detailed, have pictures of your pcb, and a BOM.csv is needed.
imranstab703
submitted a low power audio amp for review ago
imranstab703
added to the journal ago
finished the project in one go lmao

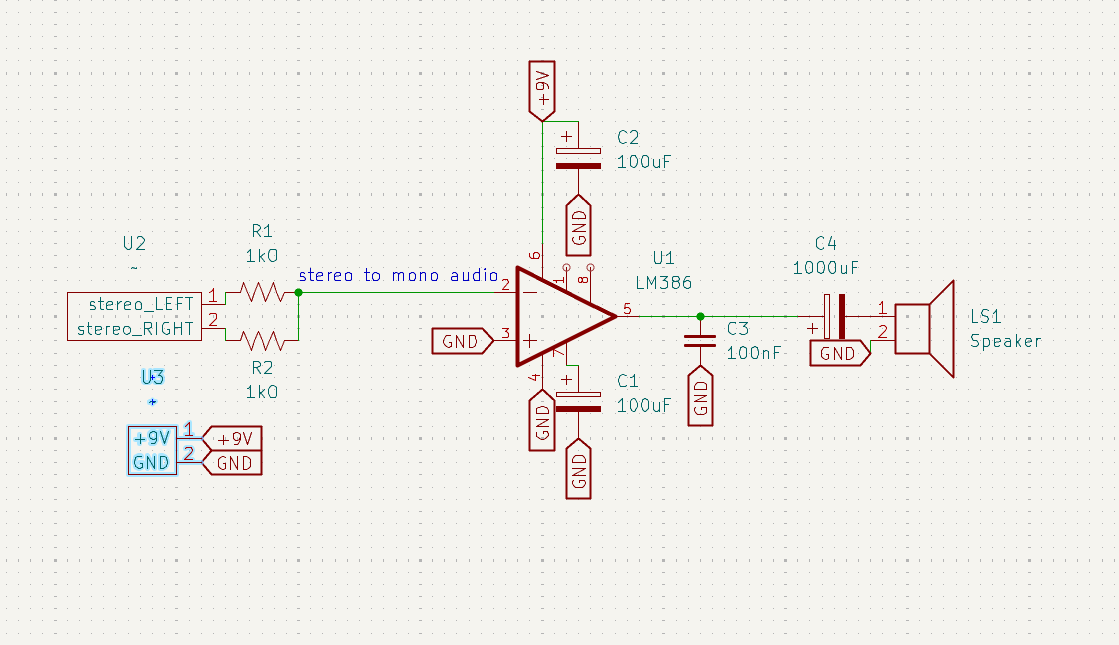

researched a bit on how to make an audio amp, cuz i need one for my upcoming .WAV player. Then figured out how to make one. I also had to make some symbols and footprints for the speaker n audio input, just SMD stuff.
So, to use this, cut off a earphone, or any stereo audio output, solder the left and right stereo terminal into the appropriate smd pads, and for the speaker, same as the earphone, solder the +- terminals into the +- output. and power into the power terminals. As a result you should get a amplified mono audio! :D
imranstab703
started a low power audio amp ago
