My Hackpad

In this project I'll build my personal macropad for shortcuts. I plan on adding 4 keys, a screen and some RGB lights

Created by Charles

Hackpad

1 view

0 followers

View Repository No Demo Yet

CAN CAN ⚡🚀 approved My Hackpad 12/17/2025 at 10:57 PM ago

Nice hackpad

Charles submitted My Hackpad for ship review 12/17/2025 at 5:24 PM ago

Tanuki Tanuki ⚡🚀 requested changes for My Hackpad 12/17/2025 at 4:37 PM ago

Hey! Please use .step, and organize the PCB files into one folder!

Charles submitted My Hackpad for ship review 12/17/2025 at 3:13 PM ago

PenguinMo requested changes for My Hackpad 12/17/2025 at 4:46 AM ago

Please organize your files

Charles submitted My Hackpad for ship review 12/16/2025 at 10:30 PM ago

Charles added to the journal 12/14/2025 at 8:29 PM ago

Modify the PCB and creating the new Box

Day 3

Today I finish the new case for the V2 of my hackpad

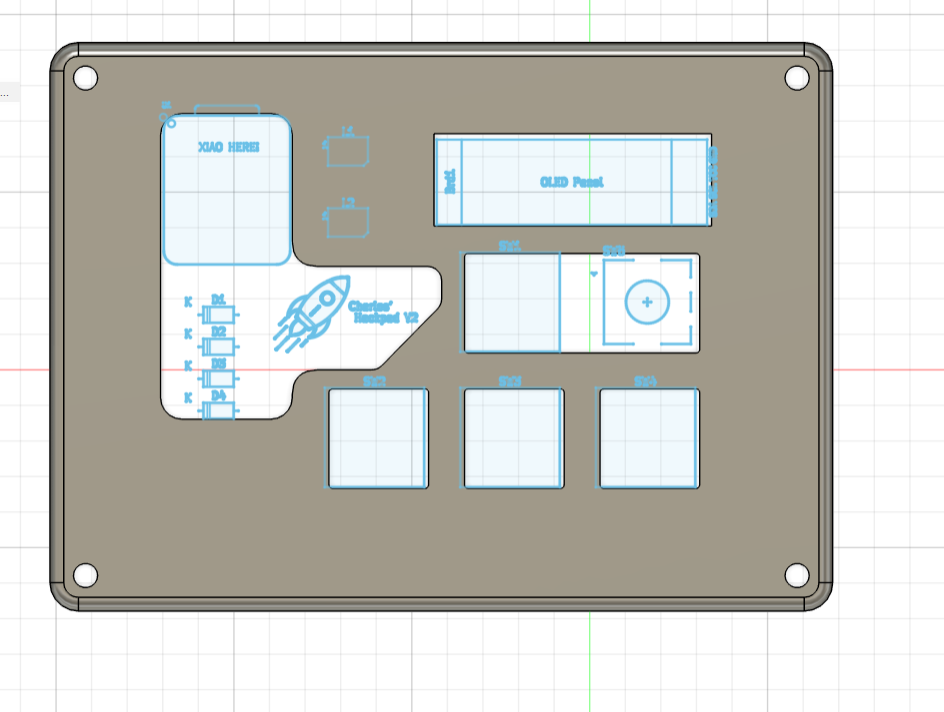

Top

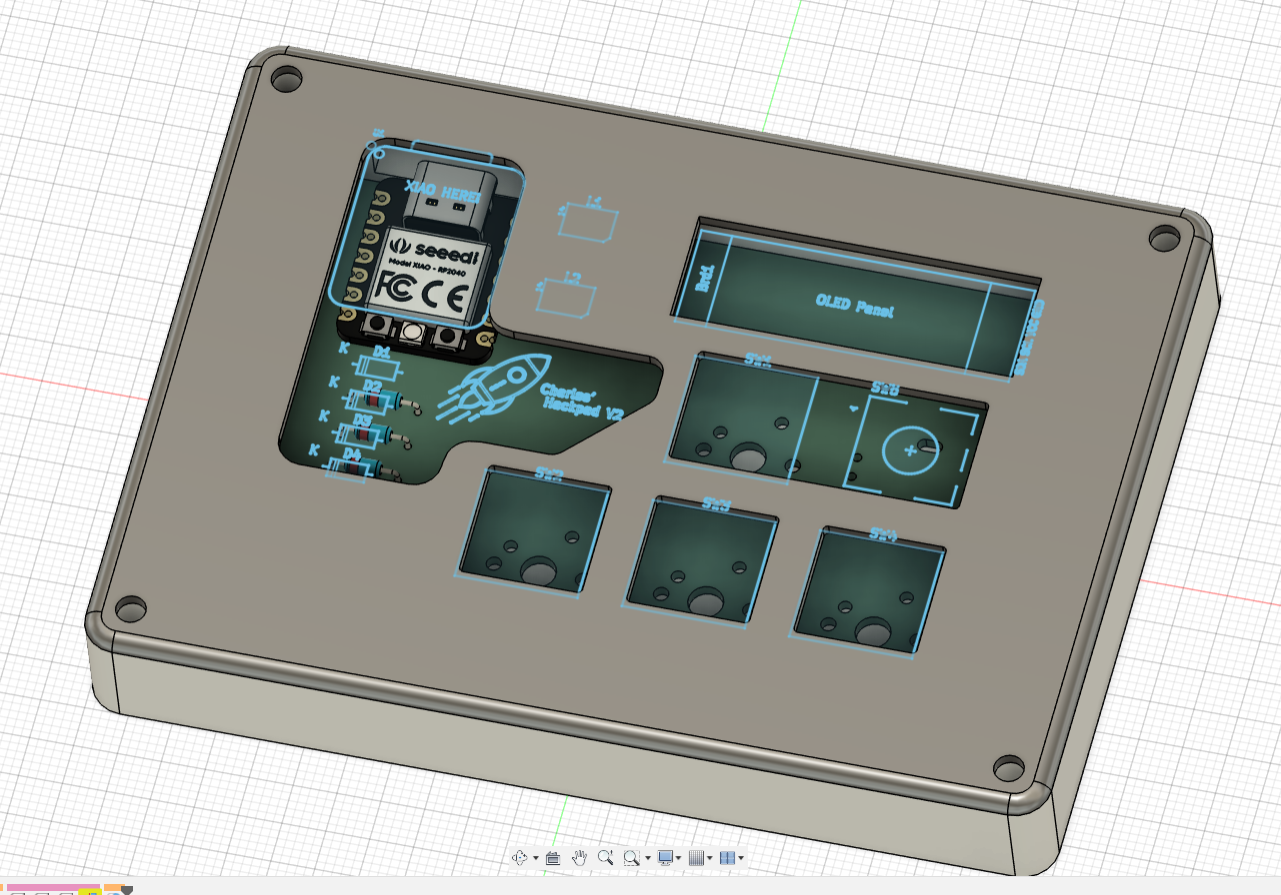

Box

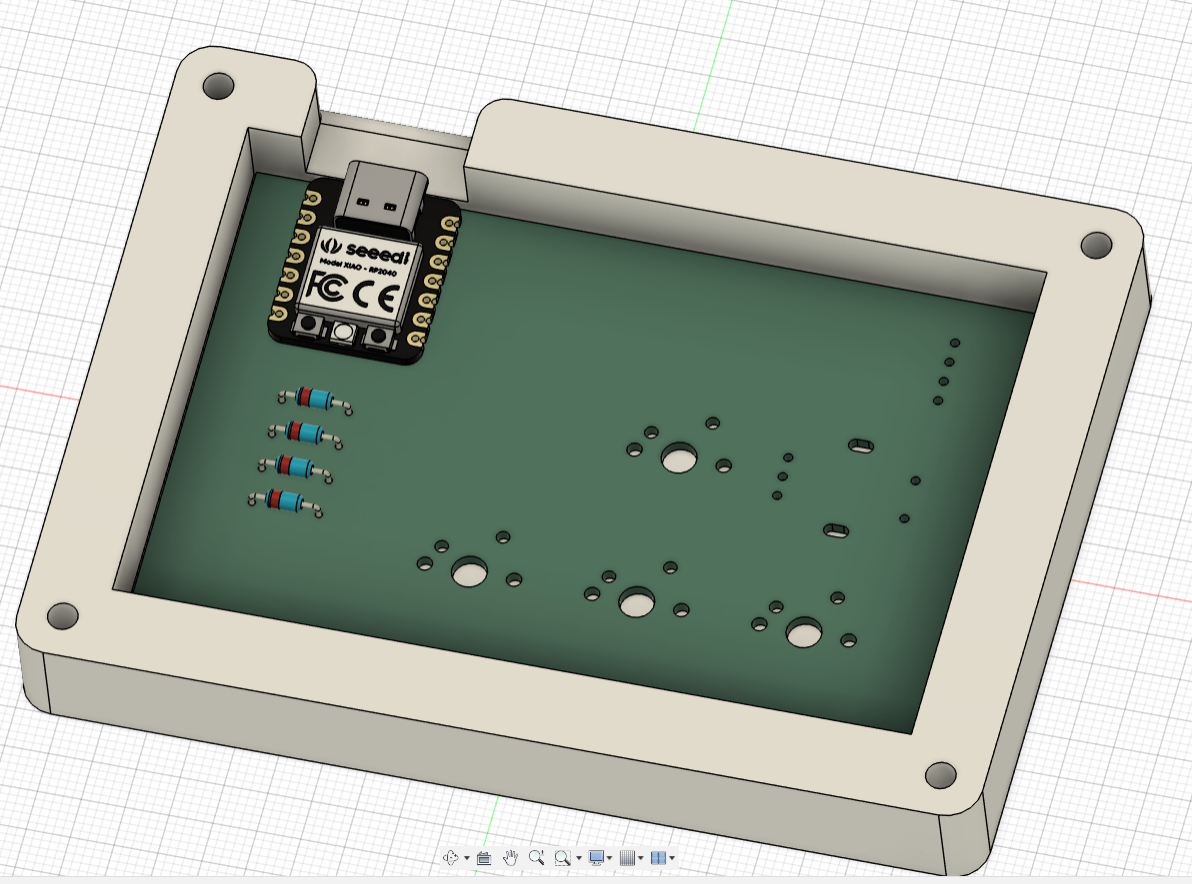

Inside

Day 2

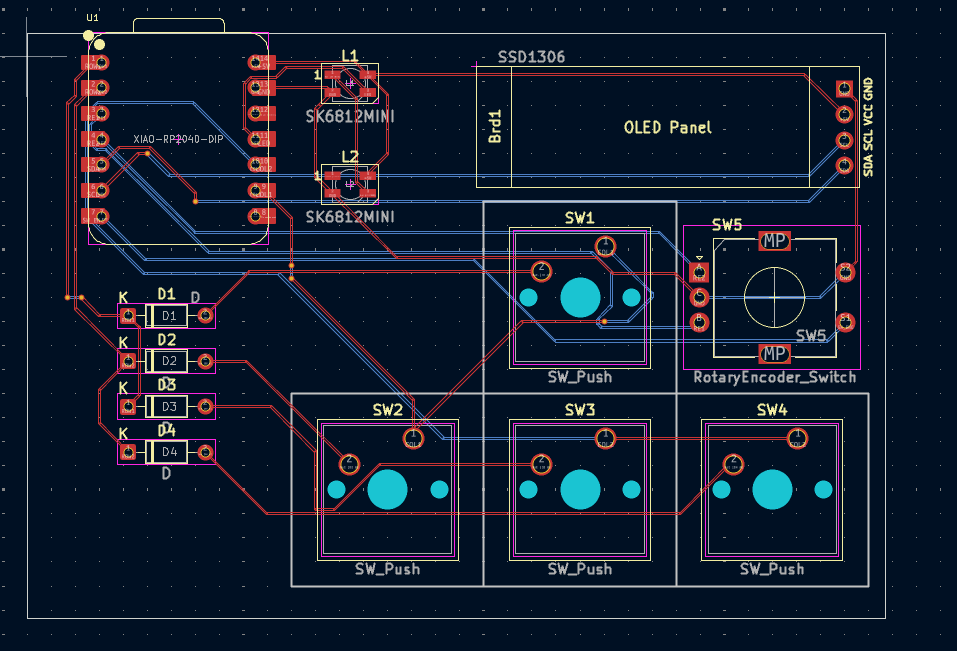

Today I create a second version of my Hackpad which I made yesterday. I added news components such as diodes, the OLED display of 0.91 inch and a rotative encoder EC11. Tommorow I'll update my old case to fit the new PCB.

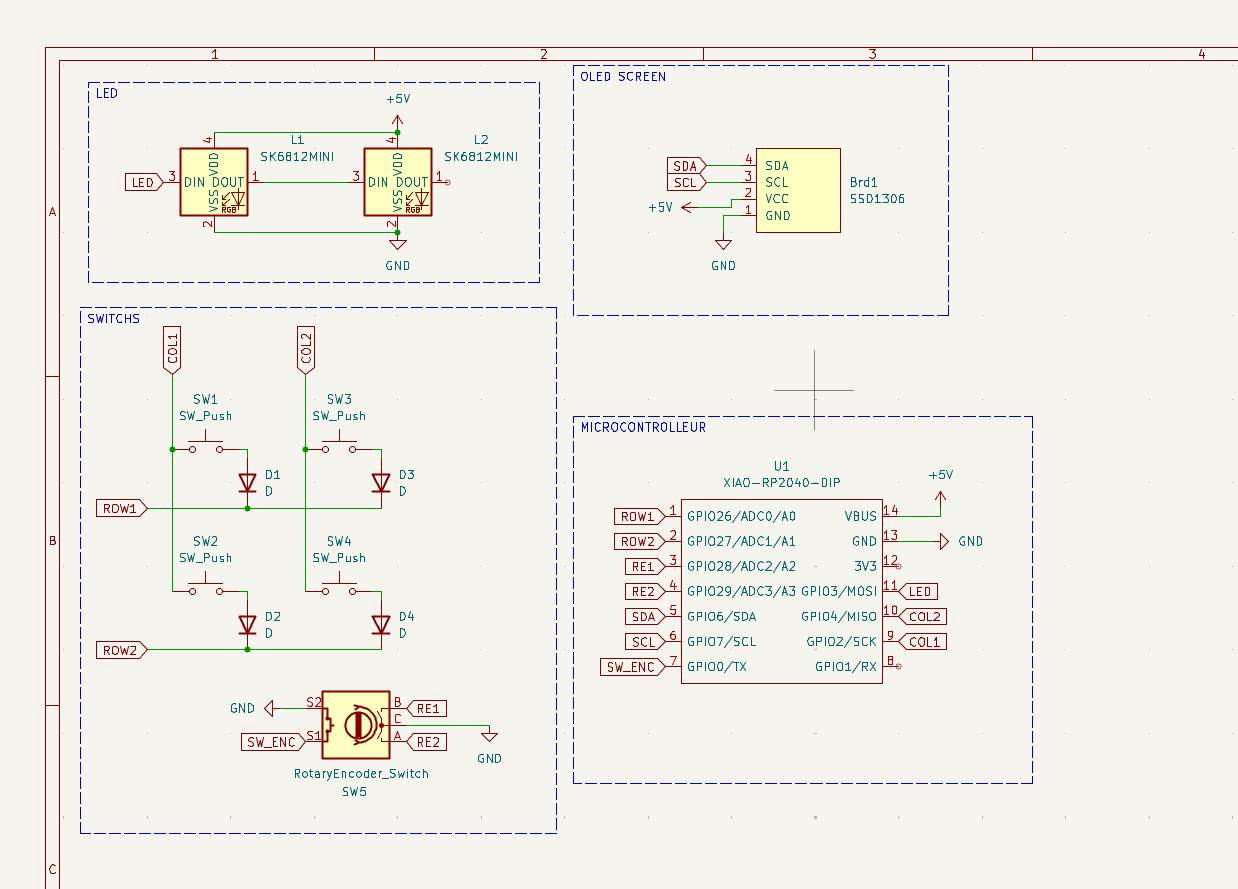

SchémaV2
CircuitV2

Charles added to the journal 12/13/2025 at 9:05 PM ago

Create the Schematic, PCB and start the Case

Day 1

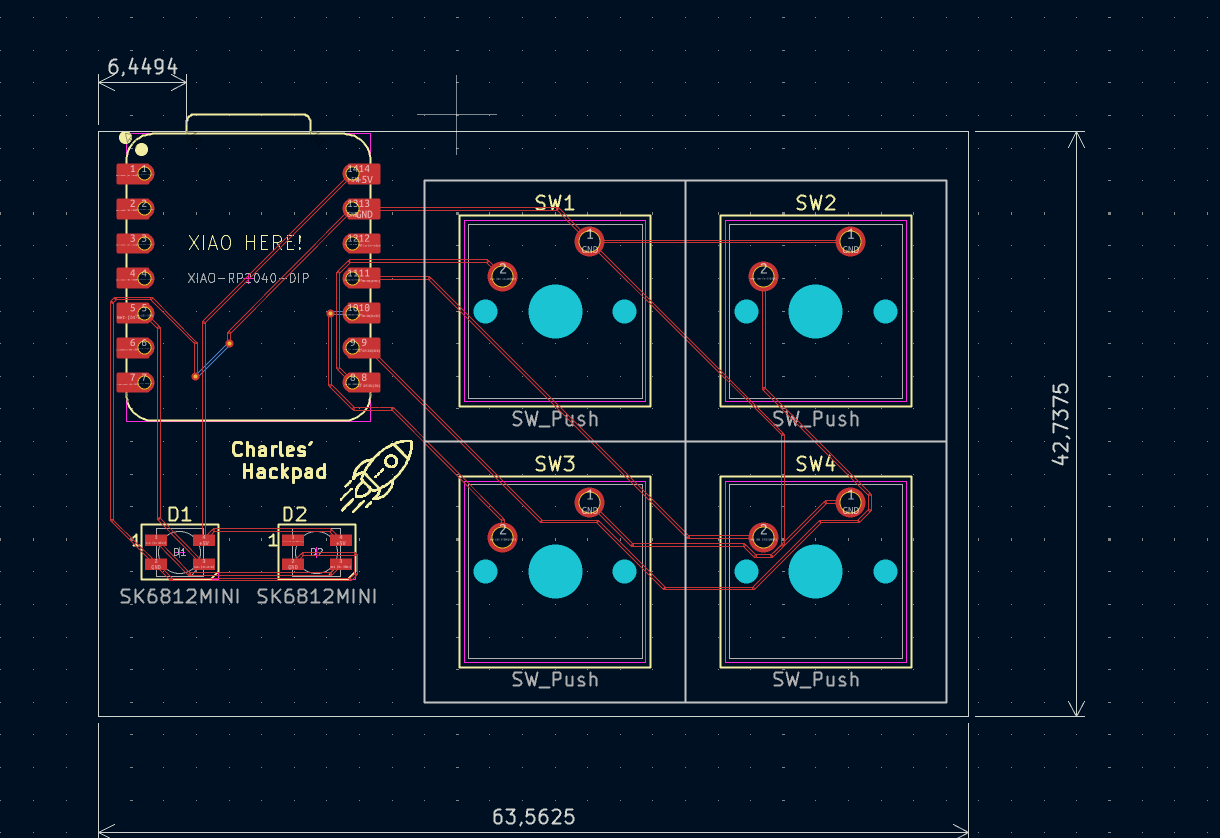

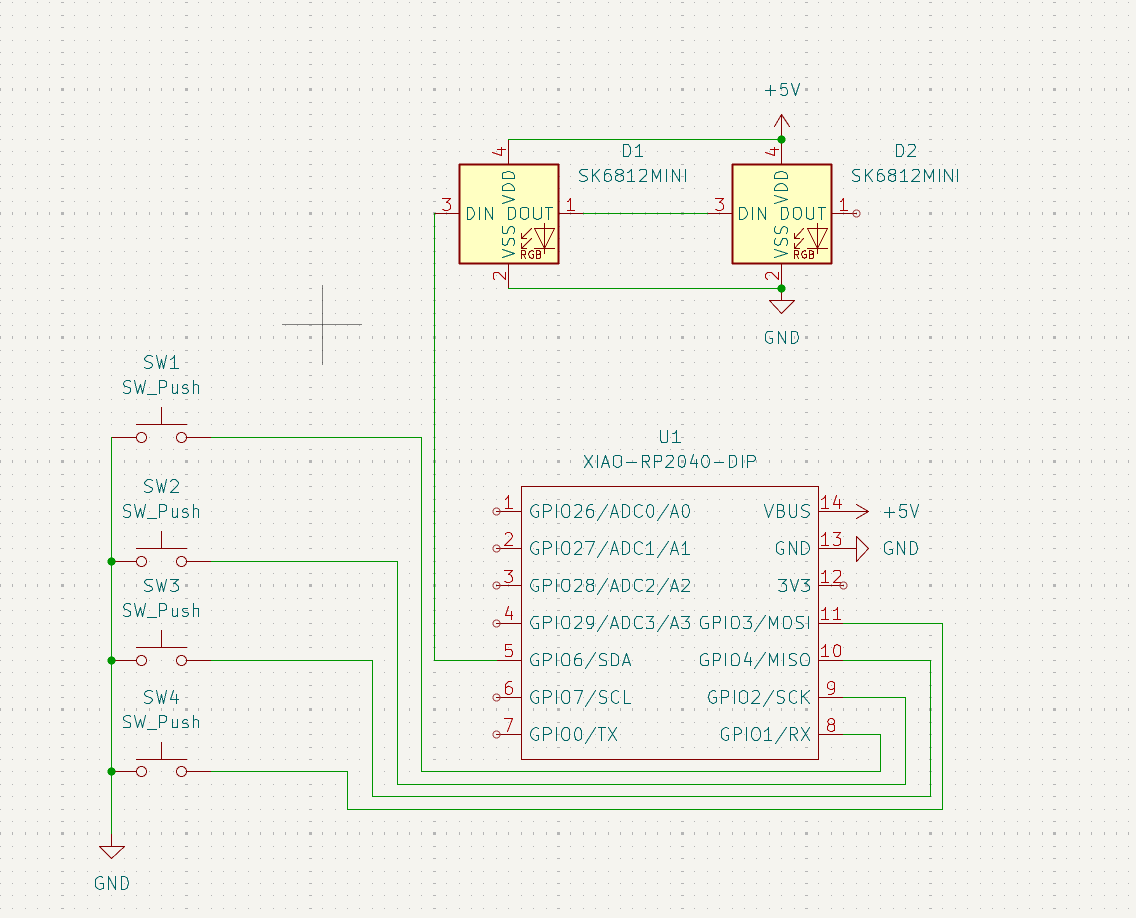

Today I start the project of my personal Hackpad. I started by creating the schematic with the Blueprint tutorial and then I created the PCB and placing the components where I want. I'll upload soon the files on GitHub and linked it with the projet. Tomorrow I would like to upgrade my SChematic/PCB. Here are some images :

PCB

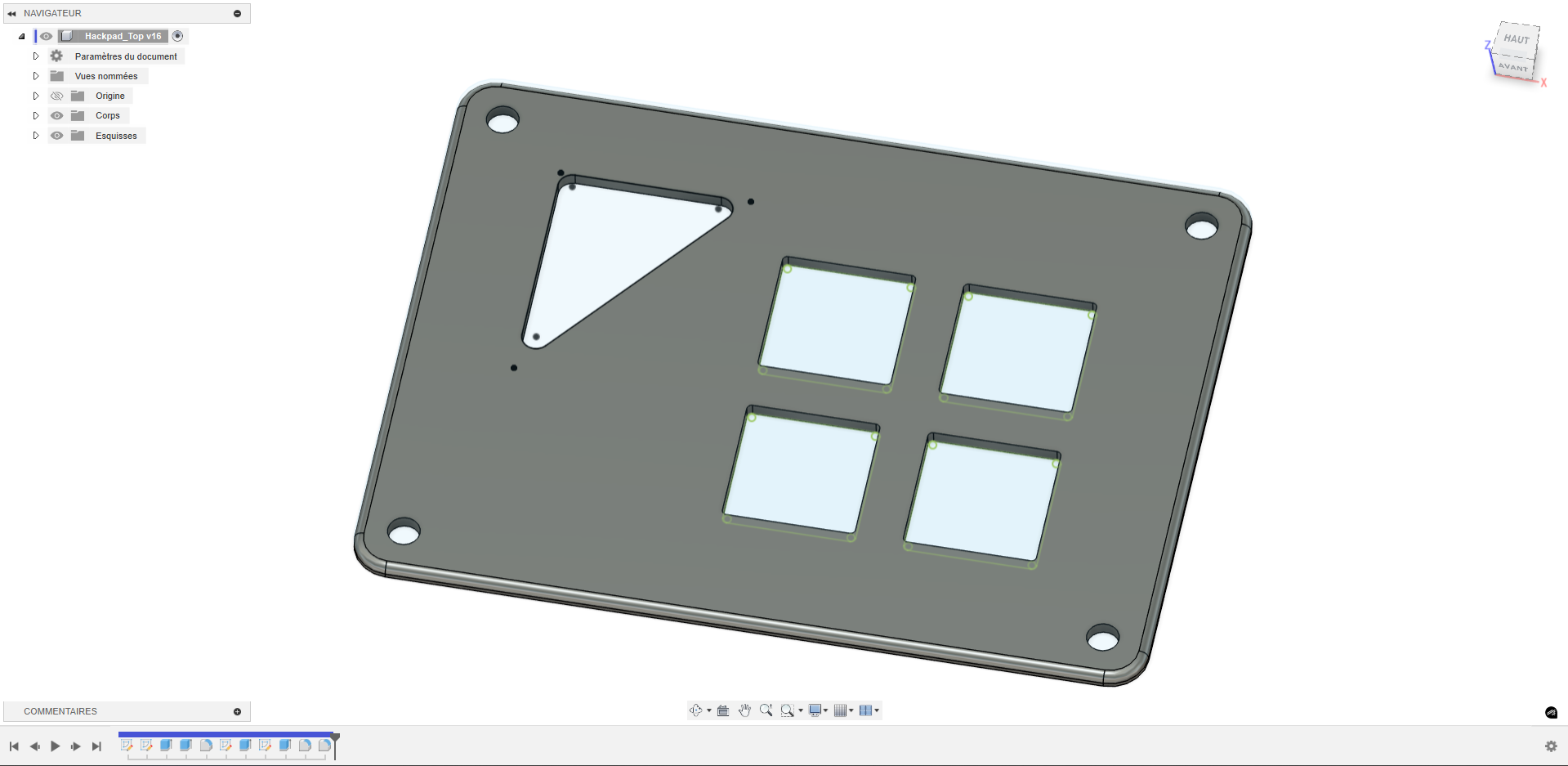

Hackpad_Top

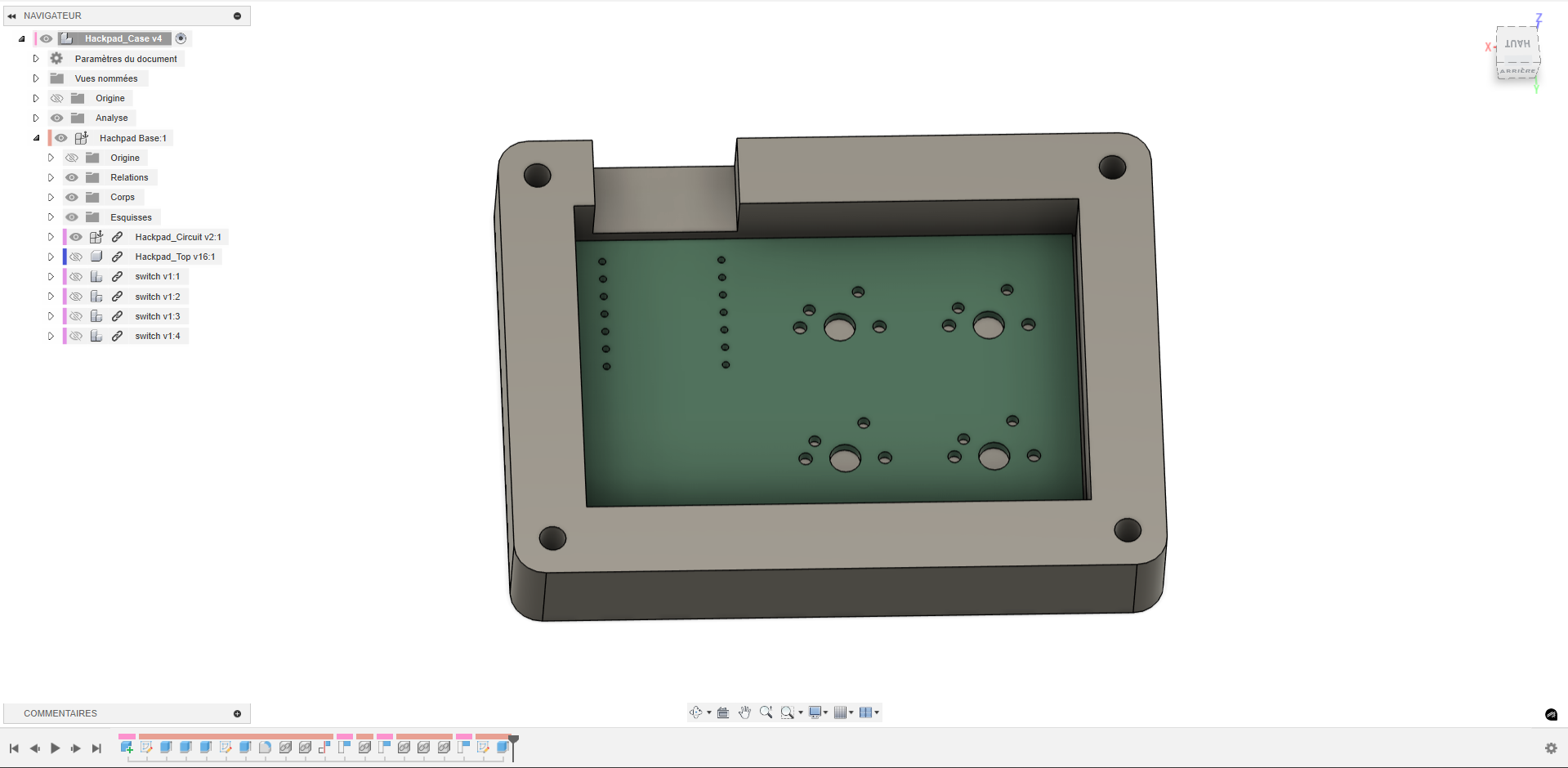

Hackpad_Interior

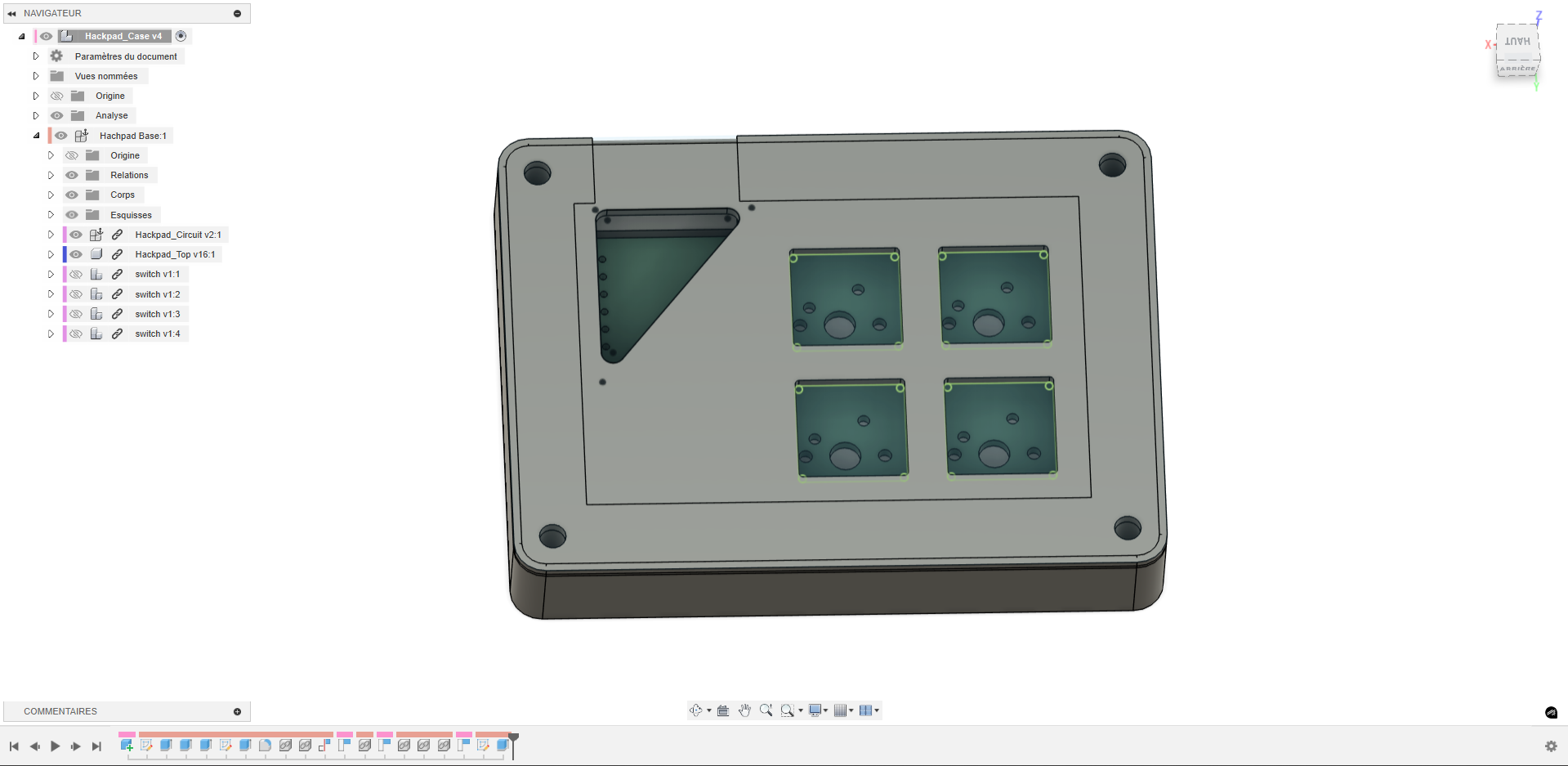

Hackpad_Box
