Built-In nRF split keyboard
Built-In nRF split keyboard with ZMK software, choc V2s and revesible
Created by
wizard maddy (manni) ๐
Tier 2
7 views
3 followers
wizard maddy (manni) ๐
added to the journal ago
Redo everything and finnish pcb ooop
Forgot to journalโฆ oooop. So basically, I redid the schematic using an nRF module instead of the bare chip, because the bare chip was too much for me.

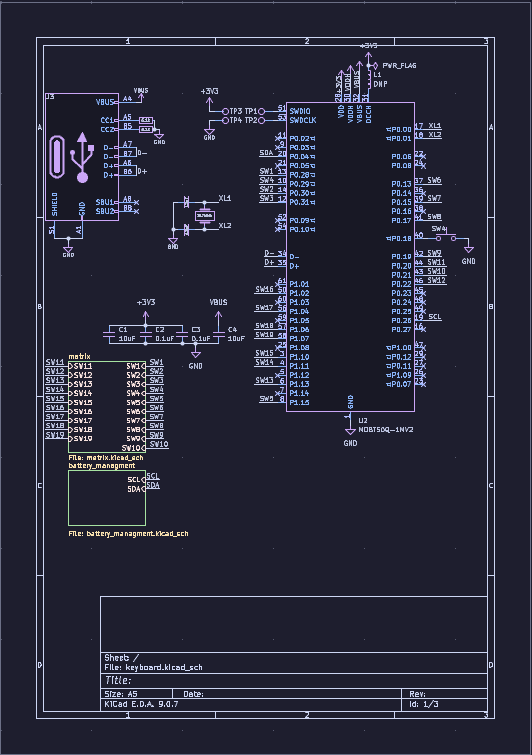

Finished schem:
Then I did the PCB layout and wired everything. Took some time, but it got really nice!
Finnished pcb:
wizard maddy (manni) ๐
added to the journal ago
Redid the pcb and made it a matrix
Yesterday, while trying to wire everything, I realized that using a matrix would be way easier. So I switched to that and started rewiring my PCB. Itโs much cleaner now, and the matrix really helped.
And decided the edge cuts :yay:
wizard maddy (manni) ๐
added to the journal ago
Started the pcb
Wired the more local things still need to put everything together almost done just need to add the anttenna the switches and wire the battery thingies
wizard maddy (manni) ๐
added to the journal ago
Made the Schematic
I Fully made the schematic (ty Kicad Discord for the help)
It took me some time due to having to read quite alot of datasheets and some other things but i seems to be good before i even ship my project ill sanity check it like a few times
wizard maddy (manni) ๐
added to the journal ago
Did Research For Components
I was trying to find which components to use if i make it reversible do i make it built in what charge controller do i use and a bunch of other things so i have decided on:
- nRF52840
- MAX17048X
- BQ24075RGT
- Choc V2's
wizard maddy (manni) ๐
started Built-In nRF split keyboard ago
1/6/2026 - Did Research For Components
I was trying to find which components to use if i make it reversible do i make it built in what charge controller do i use and a bunch of other things so i have decided on:
- nRF52840
- MAX17048X
- BQ24075RGT
- Choc V2's
1/7/2026 - Made the Schematic
I Fully made the schematic (ty Kicad Discord for the help)
It took me some time due to having to read quite alot of datasheets and some other things but i seems to be good before i even ship my project ill sanity check it like a few times
1/9/2026 - Started the pcb
Wired the more local things still need to put everything together almost done just need to add the anttenna the switches and wire the battery thingies
1/10/2026 - Redid the pcb and made it a matrix
Yesterday, while trying to wire everything, I realized that using a matrix would be way easier. So I switched to that and started rewiring my PCB. Itโs much cleaner now, and the matrix really helped.
And decided the edge cuts :yay:
1/17/2026 - Redo everything and finnish pcb ooop
Forgot to journalโฆ oooop. So basically, I redid the schematic using an nRF module instead of the bare chip, because the bare chip was too much for me.
Finished schem:
Then I did the PCB layout and wired everything. Took some time, but it got really nice!
Finnished pcb:
